LS1019L
Slide Compound Miter Saw

LS1019L
Slide Compound Miter Saw

Slide Compound Miter Saw 260 mm (10-1/4") 1,510 W

  

๐ Single sliding system enables smooth operation to produce superior cuts ๐ Increased sliding durability of safety cover ๐ Slide lock for locking the sliding movement of the carriage ๐ Holders are provided on both sides of the tool to hold long workpieces horizontally ๐ Exclusive linear ball bearings engineered to deliver "dead-on" accurate cuts ๐ Innovative direct drive gearbox and guard system is engineered for increased vertical cutting capacity (133 mm (5-1/4")) ๐ Factory calibrated class II laser enables accurate alignment of blade and cutting line ๐ Powerful 1,510 W direct drive motor requires less maintenance and delivers 3,200 RPM ๐ Exclusive 120 mm (4-3/4") tall dual sliding fence system features upper and lower fence adjustments for more precise miter and bevel cuts ๐ Soft start feature for smooth start-ups. ๐ Electronic speed control maintains constant speed under load for smoother, higher quality cutting. ๐ Lock-off (2 stage) safety switch for increased operator safety. ๐ Electric brake for maximum productivity and increased operator safety. ๐ Incorporates Deep eXact cutting Technology (DXT) achieved by our consistent pursuit of cutting larger size workpiece but with higher accuracy. ๐ Externally accessible brushes for easy replacement. ๐ Double insulated

Standard Equipments : TCT saw blade, Dust bag, Triangular rule, Vertical vise, Hex wrench


Technical specifications

Continuous Rating Input 1,510 W
Wheel Diameter 255 - 260 mm

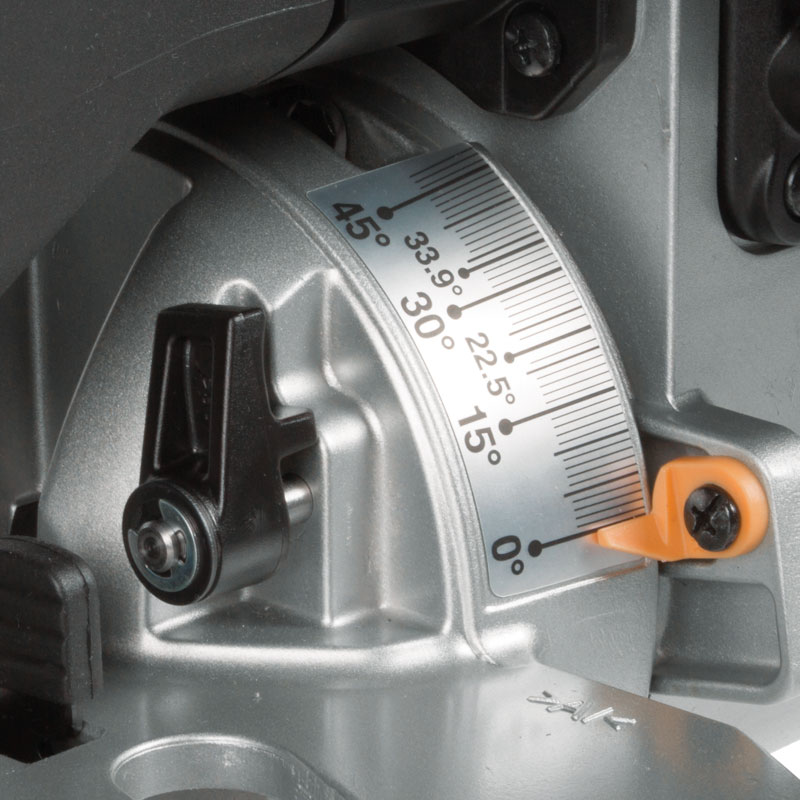

Bevel angle 48° L 48° R
Miter Anger 60° L 48° R
Max Cutting Capacity 68 x 310 mm
Max Cutting Capacity 45° 91 x 197 mm
No Load Speed (RPM) 3,200
Dimensions (L x W x H) 805 x 644 x 660 mm
Net weight 26.3 kg
Carbon Brush 153
Double Insulation
Brake
Constant Speed
Soft Start
Bevel Cutting 45 LR
Laser Marker
Dust Collection
