LS1040
Compound Miter Saw
LS1040
Compound Miter Saw
Compound Miter Saw 260 mm (10-1/4") 1,650 วัตต์

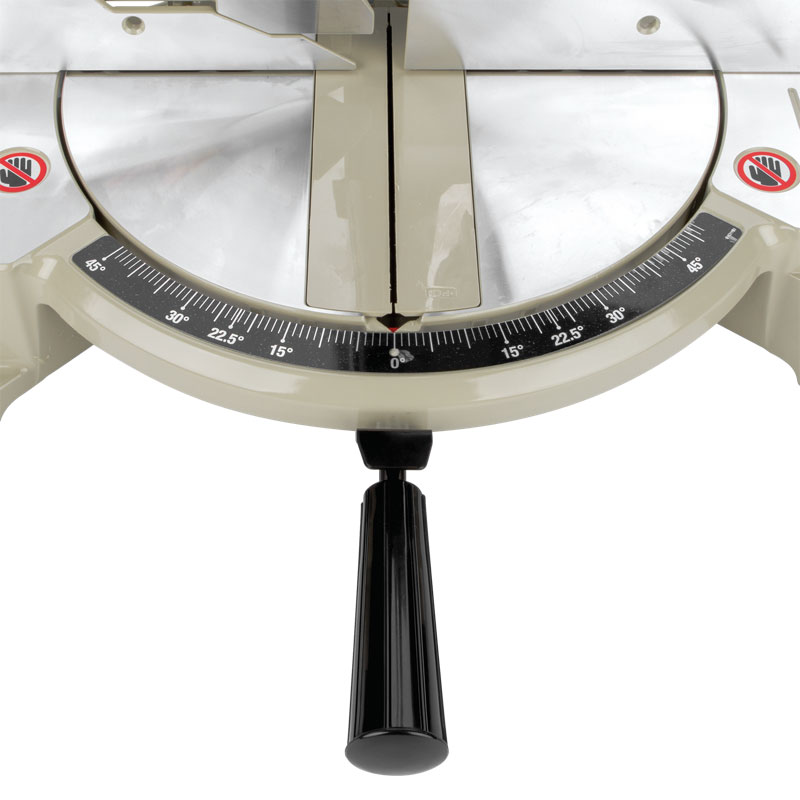

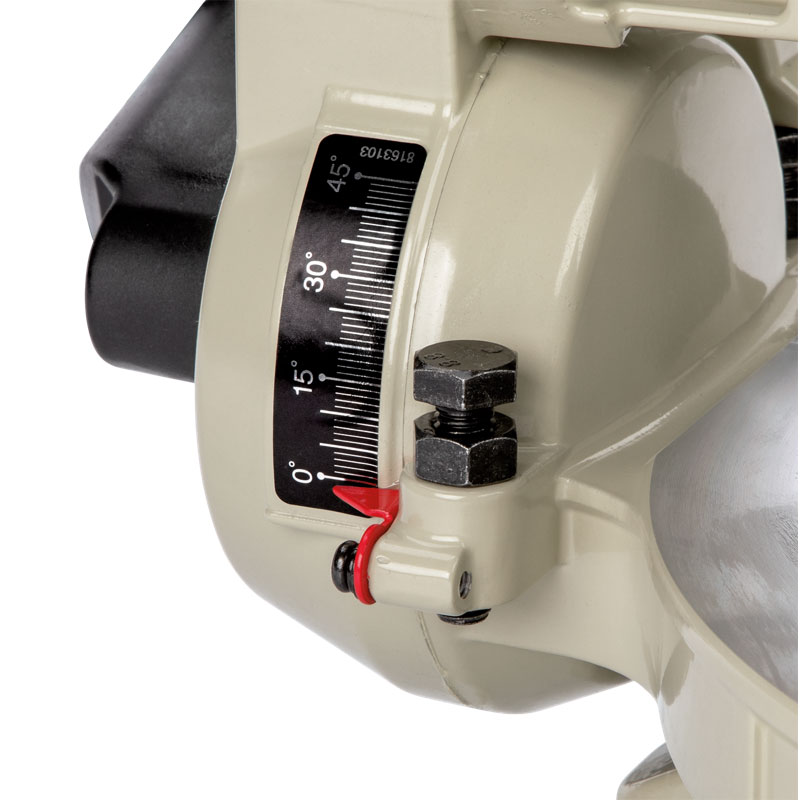

๐ Pivoting Fence for Supporting Larger Material ๐ Powerful 1,650 W direct drive motor for improved performance; 4,600 RPM ๐ Dual post compound pivoting arm ๐ Miter cuts 0°-45° left and 0°-52° right ๐ Positive miter stops at 9 settings: 15°, 22.5°, 30°, 45°, right or left and 0° (90° cuts) ๐ Bevel cuts up to 45° to the left ๐ Lightweight for easy portability ๐ Precision machined aluminum base ensures accurate cuts ๐ Performs compound cutting operations ๐ Electric brake for maximum productivity ๐ Dust bag for a cleaner work environment ๐ Holders are provided on both sides of the tool to hold long workpieces horizontally ๐ Shaft lock for easy blade changes ๐ Double insulated
Standard Equipments : Socket wrench, Dust bag, Holder, Vertical vise, Triangular rule
Technical specifications
| Continuous Rating Input | 1,650 W |
|---|---|
| Wheel Diameter | 255 - 260 mm |
| Bevel angle | 45° L |
| Max Cutting Capacity | 90.5 x 95 mm |
| Max Cutting Capacity 45° | 90.5 x 67 mm |
| No Load Speed (RPM) | 4,600 |
| Dimensions (L x W x H) | 530 x 476 x 532 mm |
| Net weight | 12.4 kg |
| Carbon Brush | 153 |
