LS1018L

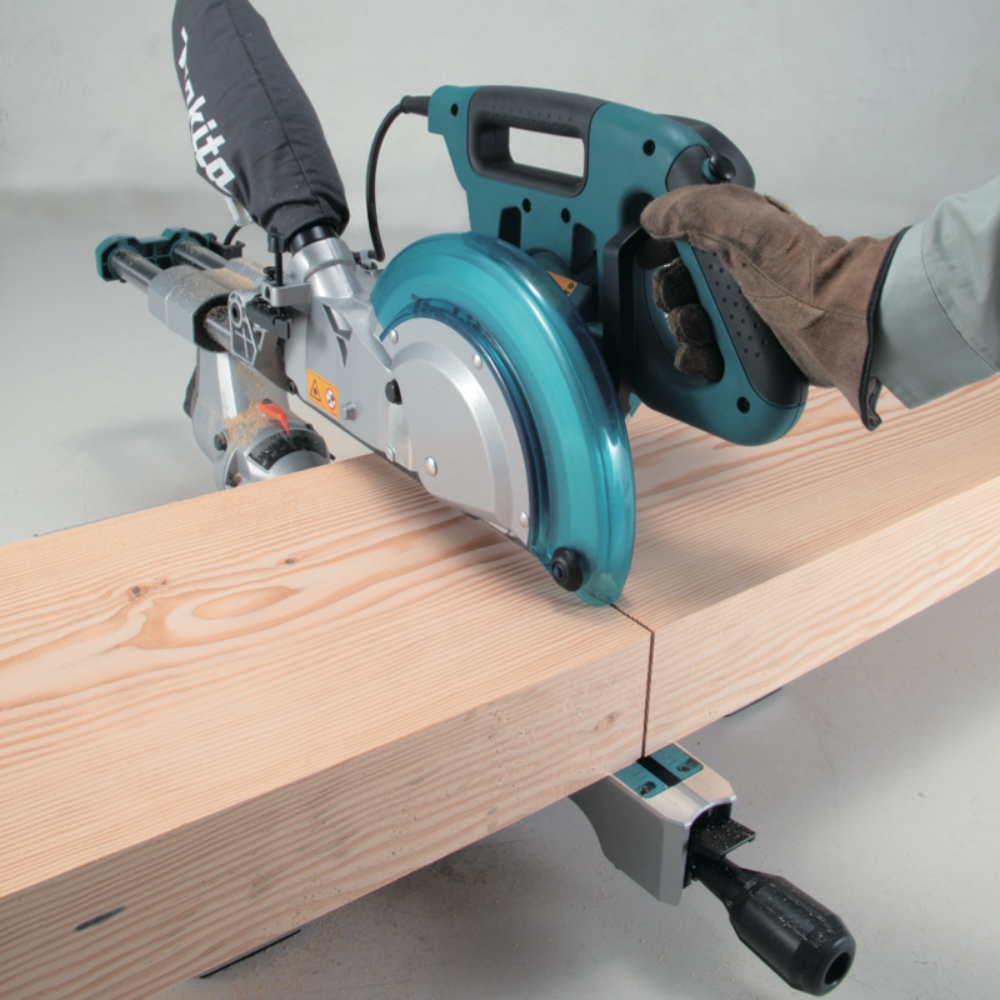

Slide Compound Saw

LS1018L
Slide Compound Saw

Slide Compound Miter Saw 260 mm (10-1/4") 1,430 W

  

๐ Battery Operated, Factory Calibrated Class II Laser enables accurate alignment of blade and cutting line ๐ Powerful 1,430 W direct drive motor requires less maintenance and delivers 4,300 RPM ๐ Miters 0° - 47° left and 0° - 60° right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° (left and right) ๐ Cuts up to 305 mm (12”) at 90° and 215 mm (8-1/2”) at 45° ๐ Linear ball bearing system engineered to deliver "dead-on" accurate cuts ๐ Rear handle bevel lock is easily accessible and adjusts 0° - 45° (left and right) with positive stops at 0°, 45° (left and right) ๐ Less weight and compact design for job site portability ๐ Soft start feature for smooth start-ups ๐ Large precision machined aluminum base supports material for more efficient cutting ๐ Electric brake for maximum productivity ๐ Dust bag for a cleaner work environment ๐ See-through blade guard system for greater visibility of blade and line of cut ๐ Oversized trigger switch for better fit, added comfort and easier operation ๐ Includes extension wings for supporting long work pieces

Standard Equipments : TCT saw blade, Vertical vise, Socket wrench, Triangular rule, Dust bag, Holder


Technical specifications

Continuous Rating Input 1,430 W
Wheel Diameter 260 mm
Bevel angle 45 / 45° L 45, 45° R
Miter Anger 47 / 60° L 47, 60° R
Max Cutting Capacity 91 x 305 mm
Max Cutting Capacity 45° 91 x 197 mm
No Load Speed (RPM) 4,300
Dimensions (L x W x H) 825 x 536 x 633 mm
Net weight 20.6 kg
Carbon Brush JM23000123
Double Insulation
Brake
Soft Start
Bevel Cutting 45 LR
Laser Marker
