LS0815FL

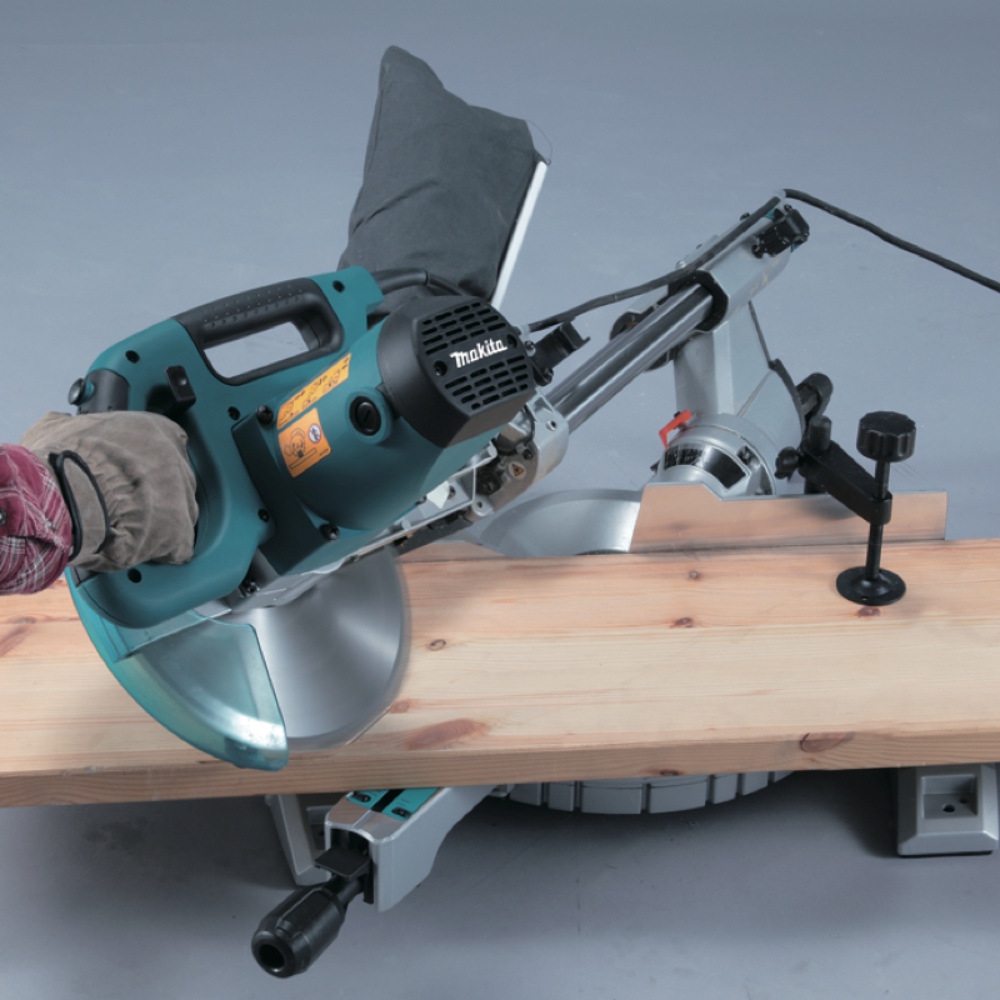

Slide Compound Miter Saw

LS0815FL
Slide Compound Miter Saw

Slide Compound Miter Saw 260 mm (10-1/4") 1,430 W

  

๐ Sliding Rail Mechanism incorporating 3 Linear Ball Bearings provides increased rigidity to produce precise, adjustment free cuts right out of the box ๐ Sliding Fence (Left Side) can be adjusted outwards when bevel cutting or inwards for increased support of small or delicate materials ๐ Soft Start feature gradually increases speed to eliminate start up shock ๐ Battery Operated, Factory Calibrated Class II Laser enables accurate alignment of blade and cutting line ๐ Bevel Capacity of 45° Left or 5° Right ๐ Miter Capacity of 47° Left or 60° Right with Positive Stops at 0°, 15°, 22.5°, 31.6° & 45° ๐ Re-Located Miter Scale enables easier viewing during operation ๐ 2 Stage Safety Switch for increased operator safety ๐ Electric brake for maximum productivity and increased operator safety ๐ Dust bag for a cleaner work environment ๐ Holders are provided on both sides of the tool to hold long workpieces horizontally ๐ Externally accessible brushes for easy replacement

Standard Equipments : Carbide-tipped saw blade, Vertical vise, Socket wrench, Triangular rule, Dust bag, Holder


Technical specifications

Continuous Rating Input 1,430 W
Miter Anger 47 / 60° L 47, 60° R
Bevel angle 45 / 5° L 45, 5° R
Max Cutting Capacity 91 x 305 mm
Max Cutting Capacity 45° 91 x 215 mm
No Load Speed (RPM) 4,200
Dimensions (L x W x H) 825 x 536 x 581 mm
Net weight 19.5 kg
Carbon Brush JM23000123
Double Insulation
Brake
Soft Start
Bevel Cutting L45 R5
Laser Marker
