(EN / TH)

HR1841F
Rotary Hammer

HR1841F
Rotary Hammer

Rotary Hammer 18 mm (11/16") 1.4 J, AVT, SDS-PLUS

  

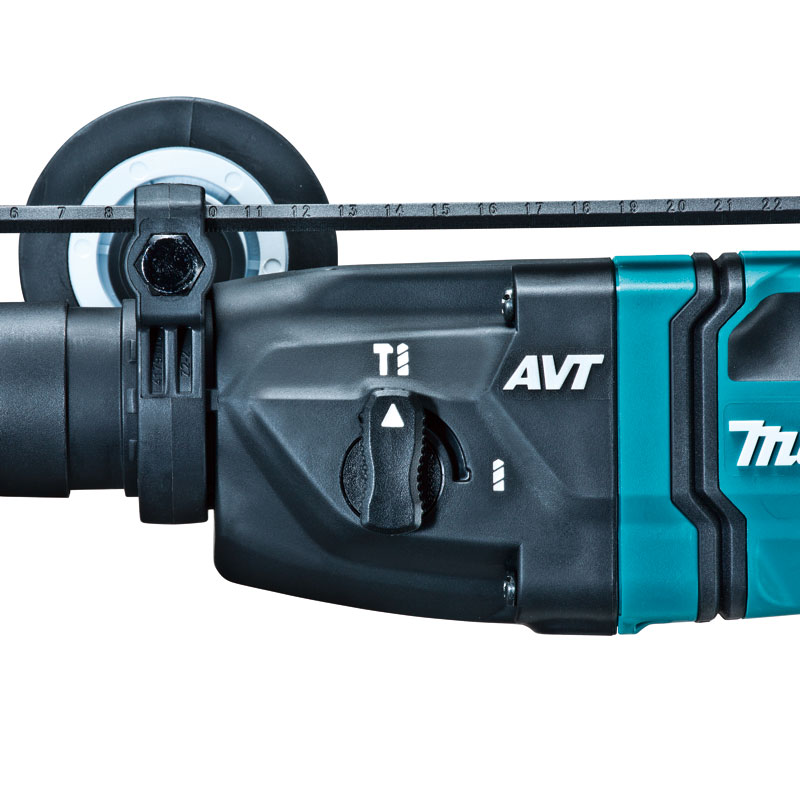

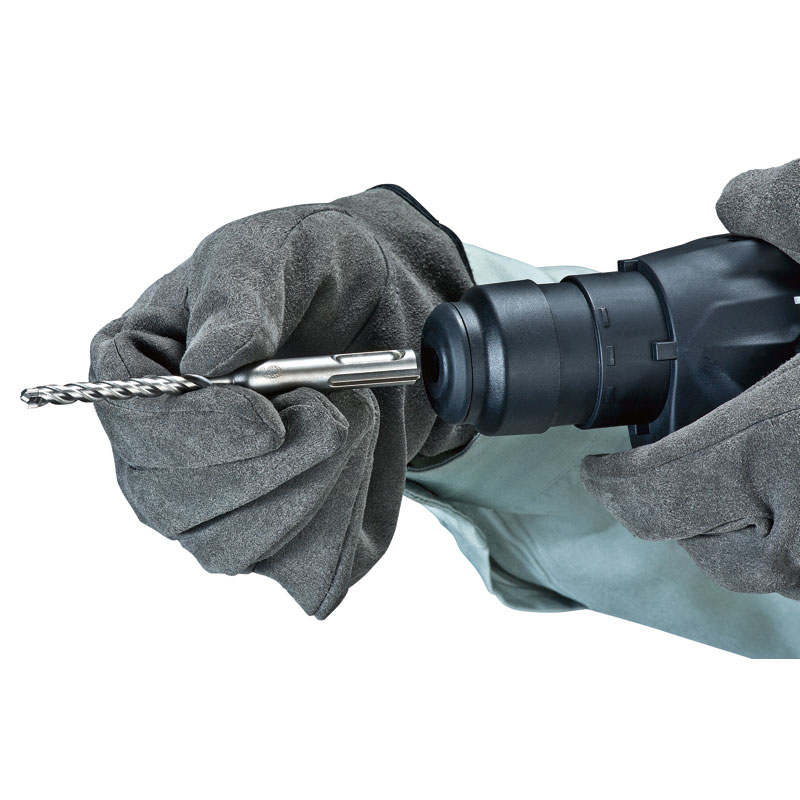

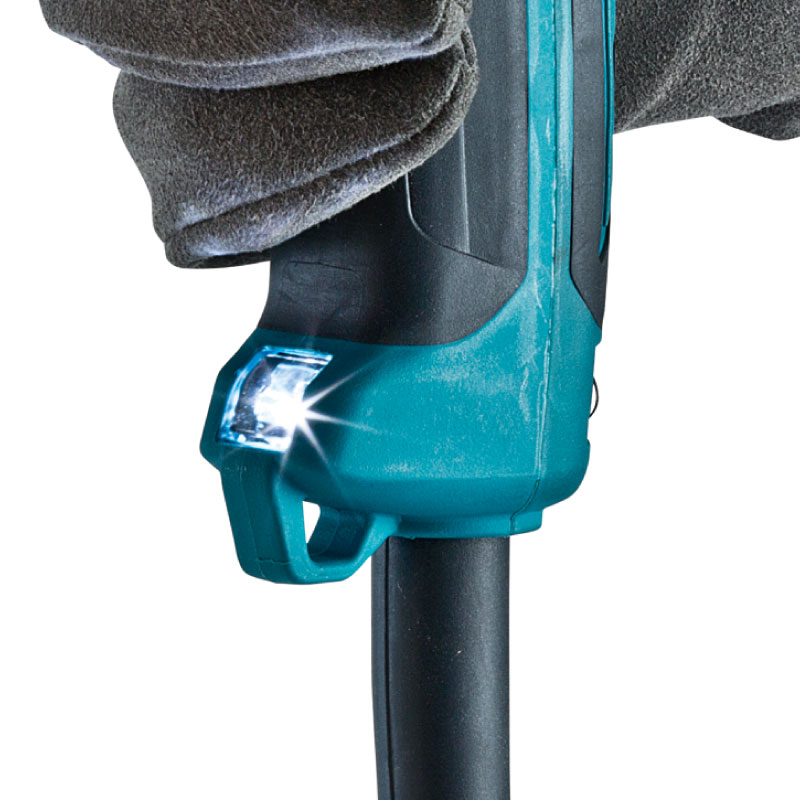

๐ First in the Class 18 mm (11/16") Rotary Hammer Equipped with AVT ๐ Anti-Vibration Technology (AVT) for best-in-class low vibration ๐ Compact AVT is our unique mechanism developed especially for small rotary hammers ๐ Powerful 470 W motor delivers 0 - 2,100 RPM, 0 - 4,800 BPM and 1.4 J (EPTA-Procedure 05/2009) of impact energy for fast drilling ๐ LED light illuminates drilling surface for more productivity in low light applications ๐ Compact with less weight ๐ Torque limiting clutch engineered to minimize gear damage by automatically disengaging gears if the bit binds ๐ 2-Mode operation for "Rotation Only" or "Hammering with Rotation" ๐ Variable speed trigger allows operator to adjust speed based on materials or application ๐ One-touch sliding chuck for quick bit changes ๐ "No hammering when idling" function helps increase tool life ๐ Ergonomic "Pistol-shaped" handle with rubberized soft grip for increased comfort ๐ Recessed lock-on button for continuous use ๐ Depth gauge for increased drilling consistency ๐ Double insulated

Standard Equipments : Side grip, Depth gauge


Technical specifications

Continuous Rating Input 470 W
Impacts Per Minute (IPM) 1.4
Capacity : Concrete 18 mm
Capacity : Steel 13 mm
Capacity : Wood 24 mm
Blows Per Minute (BPM) 0 - 4,800
No Load Speed (RPM) 0 - 2,100
Dimensions (L x W x H) 285 x 75 x 208 mm
Net weight 2 - 2.5 kg
Double Insulation
Variable Speed
Reversing
Torque Limiter
Dust Collection
Built-in-Job Light
SDS-PLUS Shank
