HR2661
Combination Hammer with Self Dust Collection

HR2661
Combination Hammer with Self Dust Collection

Combination Hammer 26 mm (1") 2.2 J with HEPA Self Dust Collection, SDS-PLUS

  

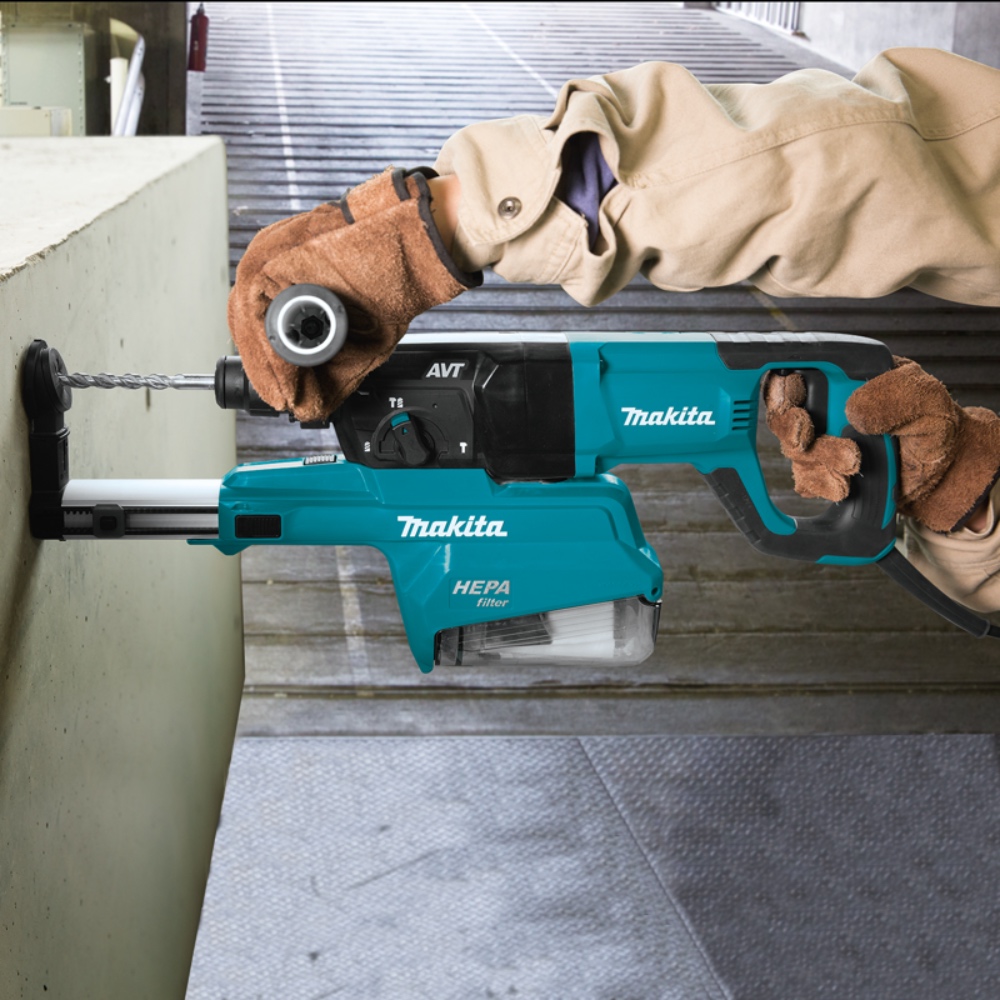

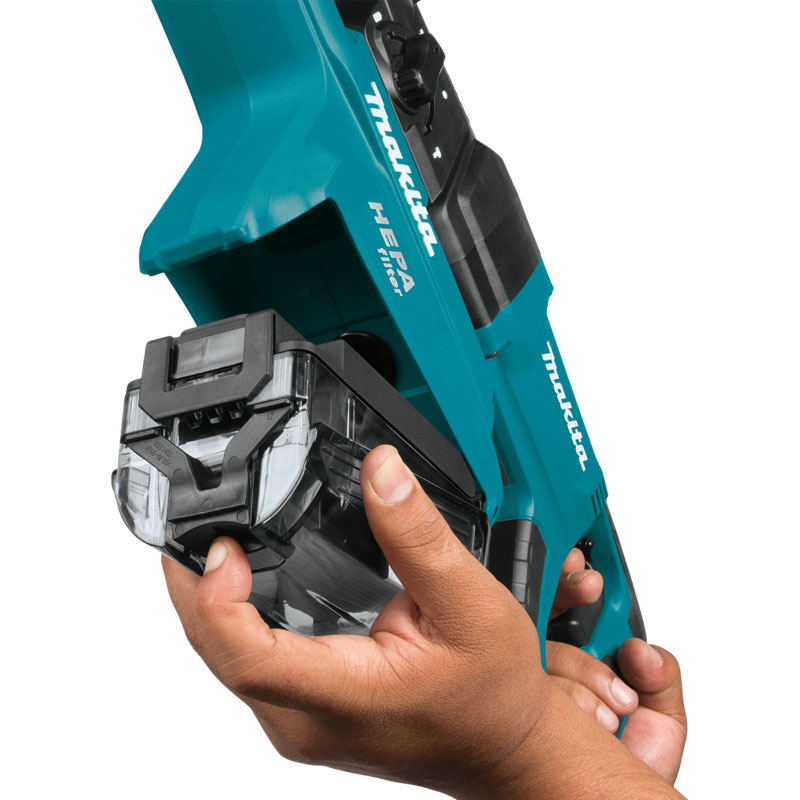

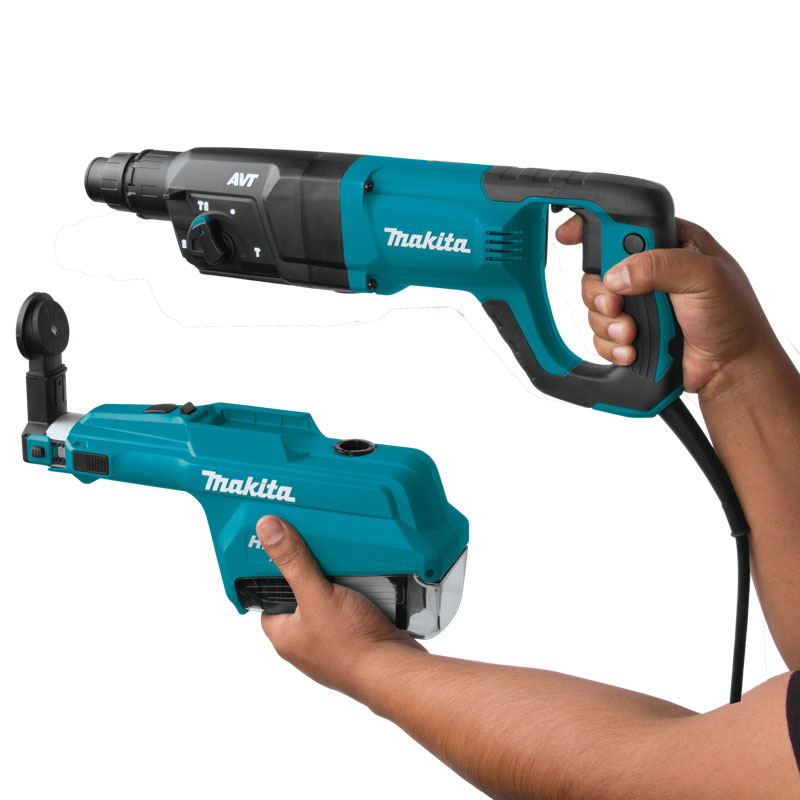

๐ Filter Cleaning Mechanism for More Efficient Drilling ๐ HEPA filter removes particles with an efficiency rating of 99.75% ๐ Dust collecting port on telescopic guide with a sliding range of 190 mm enables to accept longer drill bits ๐ Secure connection between dust case and dust collecting section for less dust leakage ๐ See-through dust case for easy checking of collected dust amount ๐ A desired drilling depth can be obtained simply by sliding a push button on telescopic guide ๐ AVT (Anti-Vibration Technology) - extremely low vibration achieved by a counterweight mechanism and damper spring ๐ Powerful 800 W motor delivers 2.2 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications ๐ Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection ๐ 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications ๐ Variable speed trigger allows operator to adjust speed based on materials or application ๐ Double insulated

Standard Equipments : Side grip, Depth gauge, Sealing cap


Technical specifications

Continuous Rating Input 800 W
Impact energy 2.2 J
Capacity : Concrete 26 mm
Capacity : Steel 13 mm
Capacity : Wood 32 mm
Blows Per Minute (BPM) 0 - 4,500
No Load Speed (RPM) 0 - 1,100
Dimensions (L x W x H) 666 x 89 x 228 mm
Net weight 3.3 - 4.4 kg
Carbon Brush 419
Double Insulation
Variable Speed
Reversing
Torque Limiter
Dust Collection
SDS-PLUS Shank
