DLS714

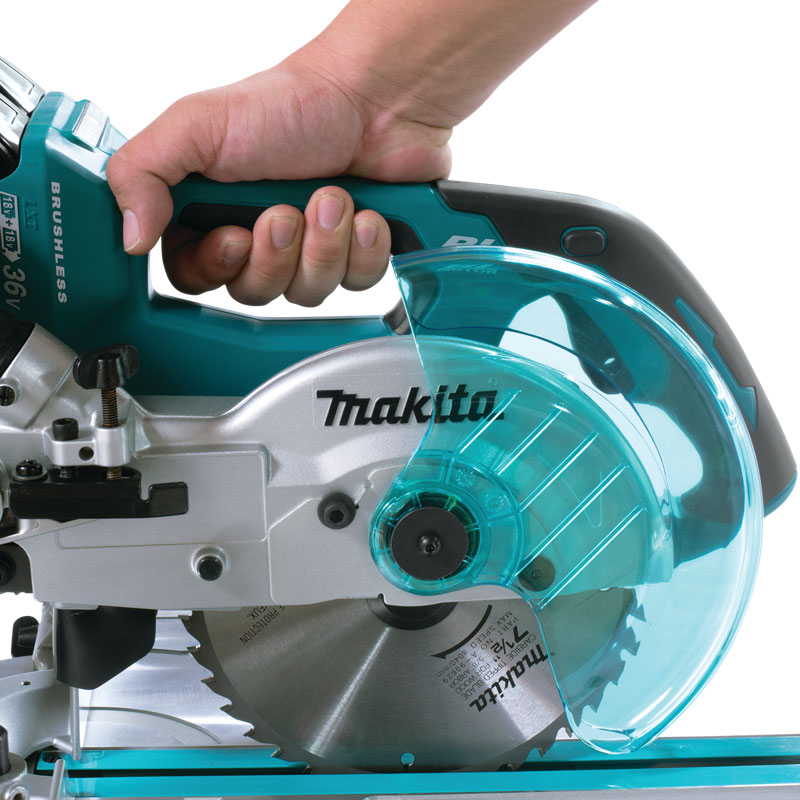

Cordless Slide Compound Miter Saw

DLS714
Cordless Slide Compound Miter Saw

18V X2 (36V) Cordless Slide Compound Miter Saw 190 mm (7-1/2")

  

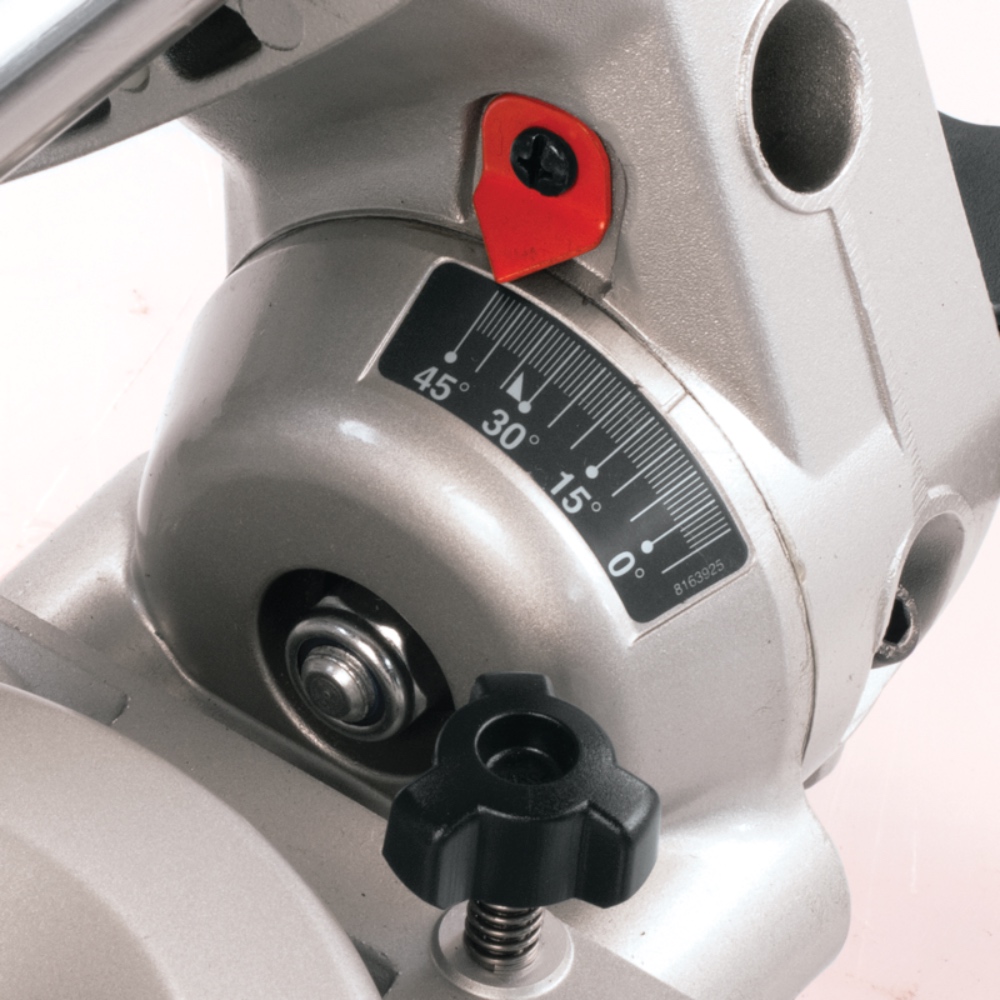

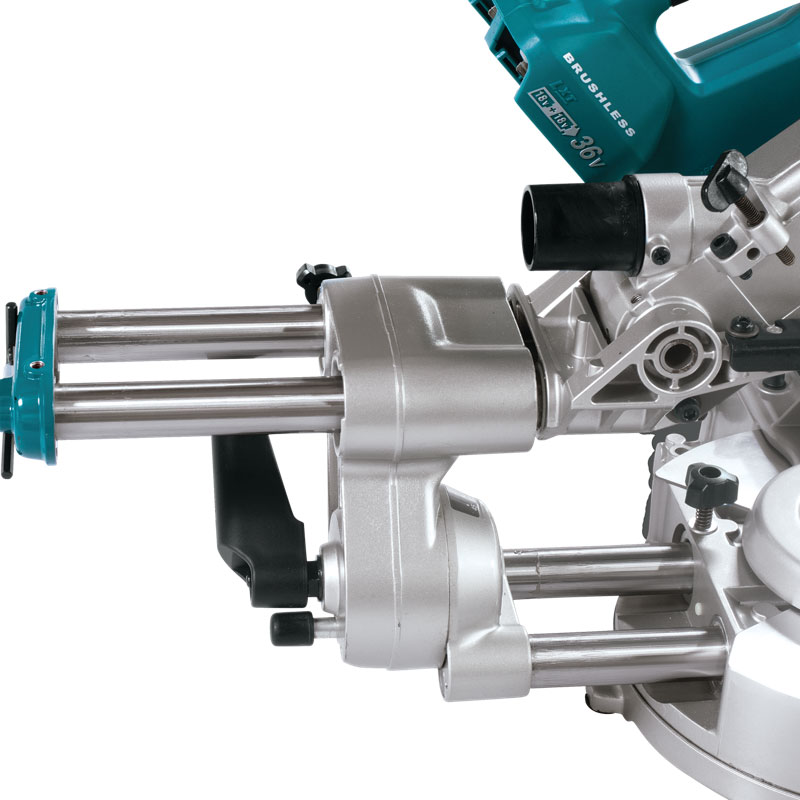

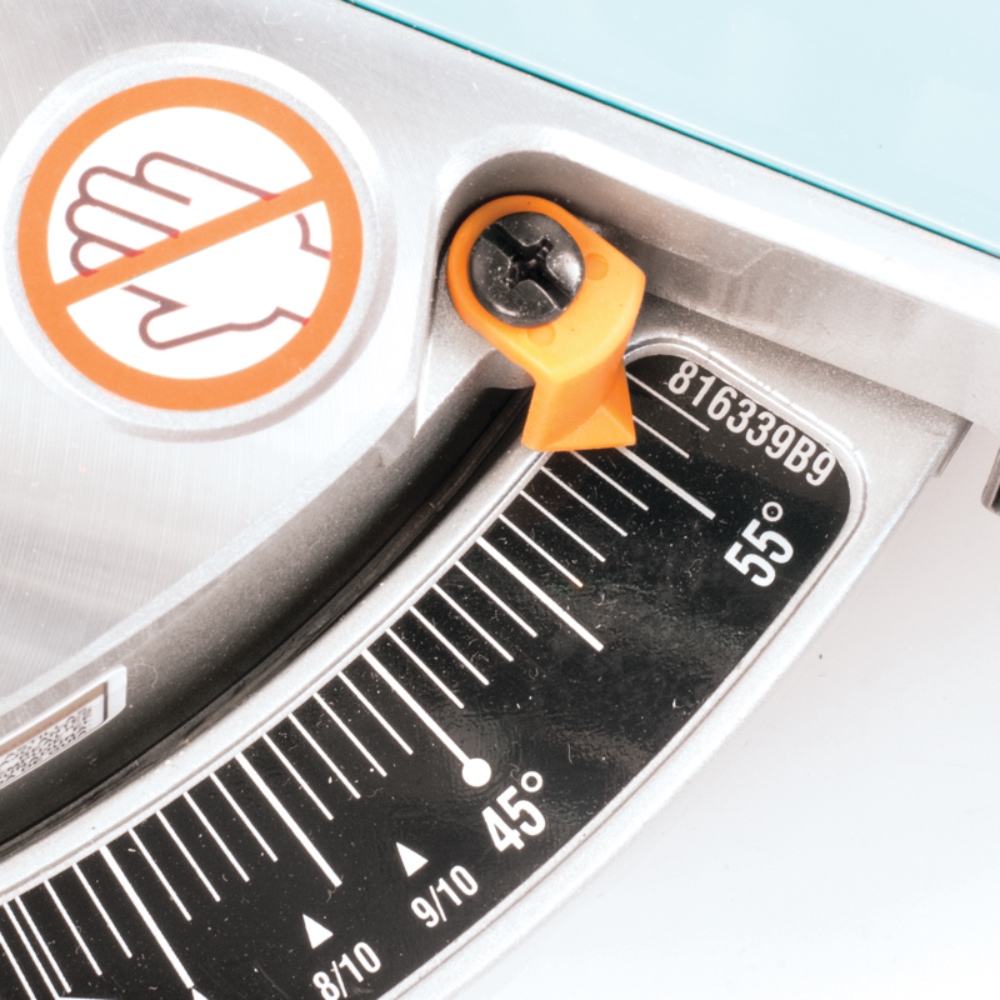

๐ Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform ๐ High power delivered by 36V (18Vx2) DC Brushless motor enables to cut as fast as if you were using a corded slide compound miter saw ๐ Large cutting capacity; Crosscuts up to 52 x 300 mm (2-1/16" x 11-3/4") at 90° ๐ Miters 0-47 ° left and 0-57 ° right; bevels 0-45 ° left and 0-5 ° right ๐ ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance ๐ 4-Steel Rail Sliding System increaes rigidity to produce superior cuts ๐ Powerful BL Motor delivers 5,700 RPM for fast cutting ๐ Large dimensional lumber cutting capacity: 52 x 300 mm (2" x 12") at 90° and 52 x 212 mm (2" x 8") at 45° ๐ Positive miter stops at: 0°, 15°, 22.5°, 30° and 45° left and right ๐ Linear ball bearing system engineered to deliver “dead-on” accurate cuts ๐ Large aluminum base supports large stock for efficient cutting ๐ Holders are provided on both sides of the tool to hold long workpieces horizontally ๐ Electric brake for maximum productivity ๐ LED indicator panel for 2 indications

Standard Equipments : TCT saw blade, Dust bag, Holder set, Vertical vise, Hex wrench, Triangular rule


Technical specifications

Wheel Diameter 190 mm
Hole diameter 20 mm
Max Cutting Capacity 52 x 300 mm
Max Cutting Capacity 45° 40 x 300 mm
No Load Speed (RPM) 5,700
Dimensions (L x W x H) 655 x 430 x 445 mm
Net weight 12.6 kg
Brake
Soft Start
Bevel Cutting L45 R5
Dust Collection
