DLS211
Cordless Slide Compound Miter Saw

DLS211
Cordless Slide Compound Miter Saw

18V X2 (36V) Cordless Slide Compound Miter Saw 305 mm (12")

  
Brake
Soft Start
Bevel Cutting 45 LR
Laser Marker
Dust Collection

Features

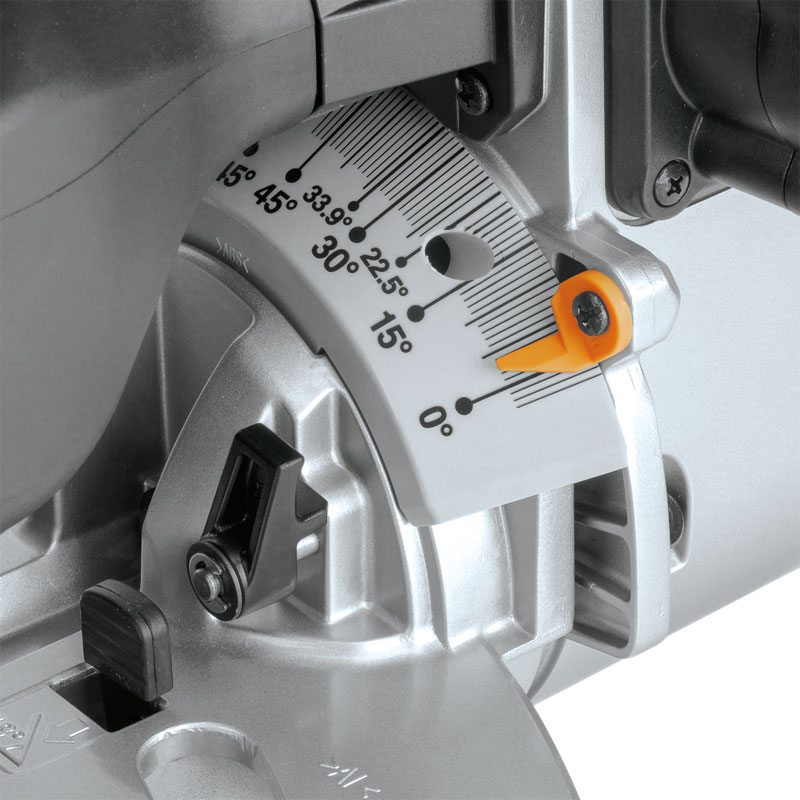

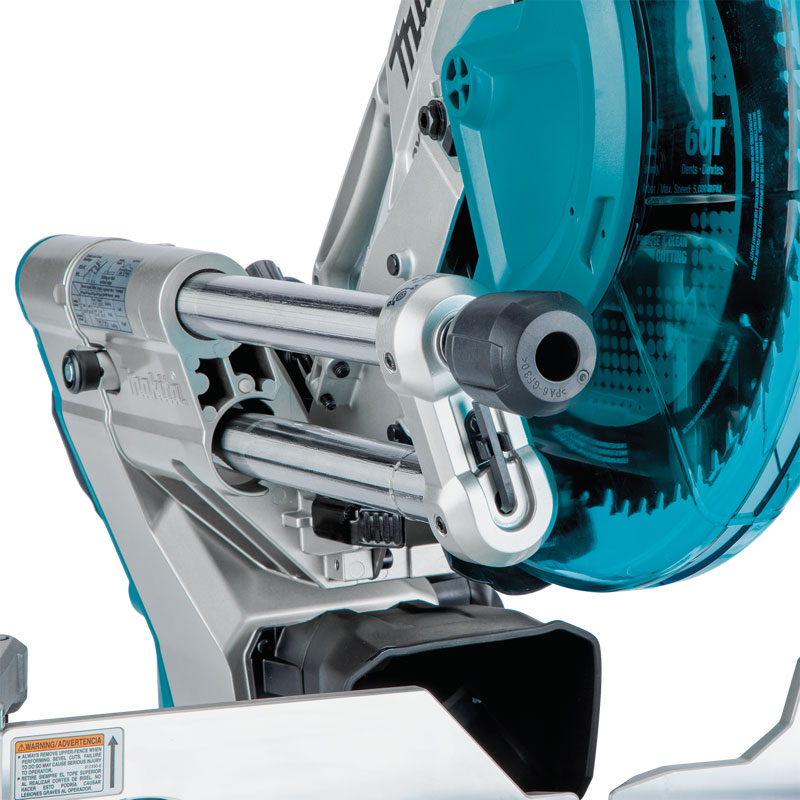

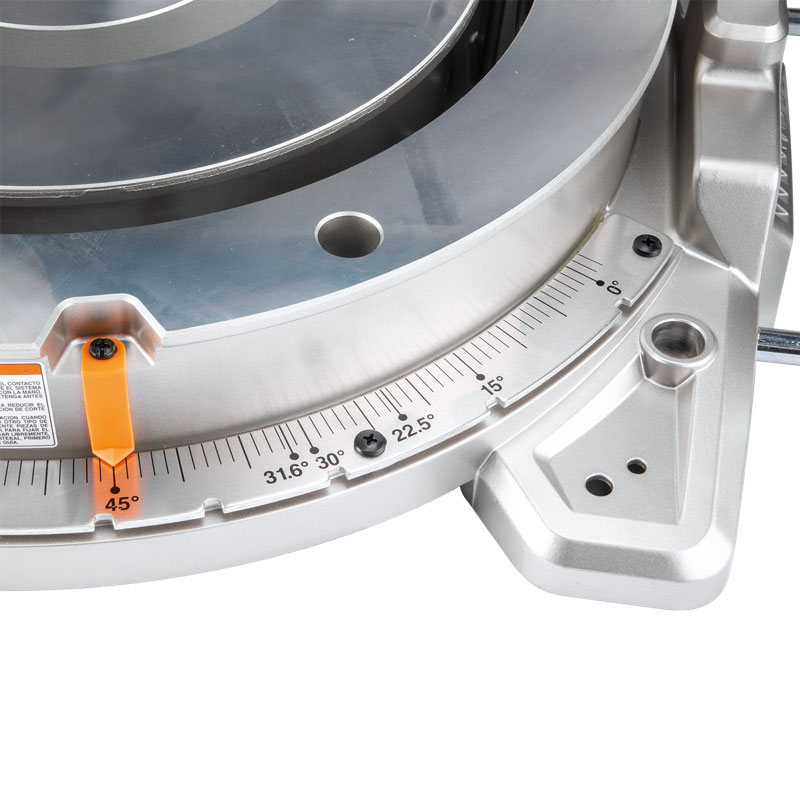

๐ Auto-Start Wireless System (AWS) Connects to Compatible Vacuum Cleaners with Bluetooth ๐ Rail-forward design enables to be placed against a wall for maximizing work space ๐ High power delivered by 36V (18Vx2) DC Brushless motor enables to cut as fast as if you were using a corded slide compound miter saw ๐ Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance ๐ Large turn base supports workpiece securely for increased stability ๐ Integrated guide fences for increased rigidity and high cutting accuracy ๐ Increased dust extraction rate for a cleaner work environment ๐ Single sliding system enables smooth operation to produce superior cuts ๐ Front knob for easy bevel angle adjustment ๐ Increased sliding durability of safety cover ๐ Slide lock for locking the sliding movement of the carriage ๐ Holders are provided on both sides of the tool to hold long workpieces horizontally ๐ Largest crown molding cutting capacity in its class ๐ Exclusive linear ball bearings engineered to deliver "dead-on" accurate cuts ๐ Innovative direct drive gearbox and guard system is engineered for increased vertical cutting capacity ๐ Miters 0°-60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left and right).

Standard Equipments : TCT saw blade, Dust bag, Triangular rule, Vertical vise, Hex wrench


Technical specifications

Wheel Diameter 305 mm
Hole diameter 25.4 mm
Cutting capacity 107 x 363 x 92 x 382 mm
Max Cutting Capacity 45° 107 x 255 x 92 x 268 mm
No Load Speed 4,400 minˉ¹
Dimensions (L x W x H) 898 x 690 x 725 mm
Net weight 30.7 - 31.3 kg
