DLS111
Cordless Slide Compound Miter Saw

DLS111
Cordless Slide Compound Miter Saw

18V X2 (36V) Cordless Slide Compound Miter Saw 260 mm (10-1/4")

  

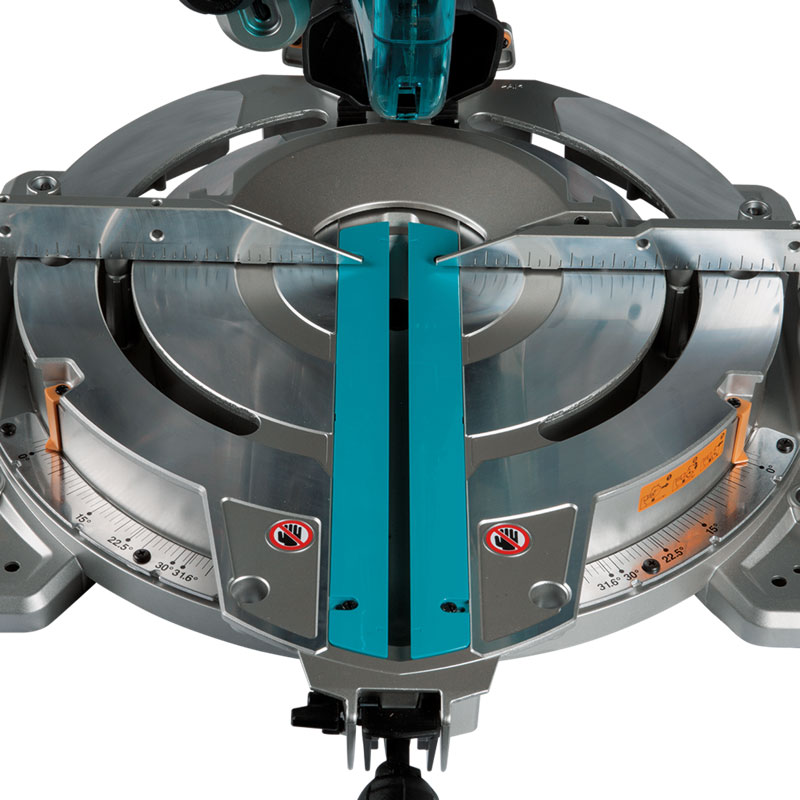

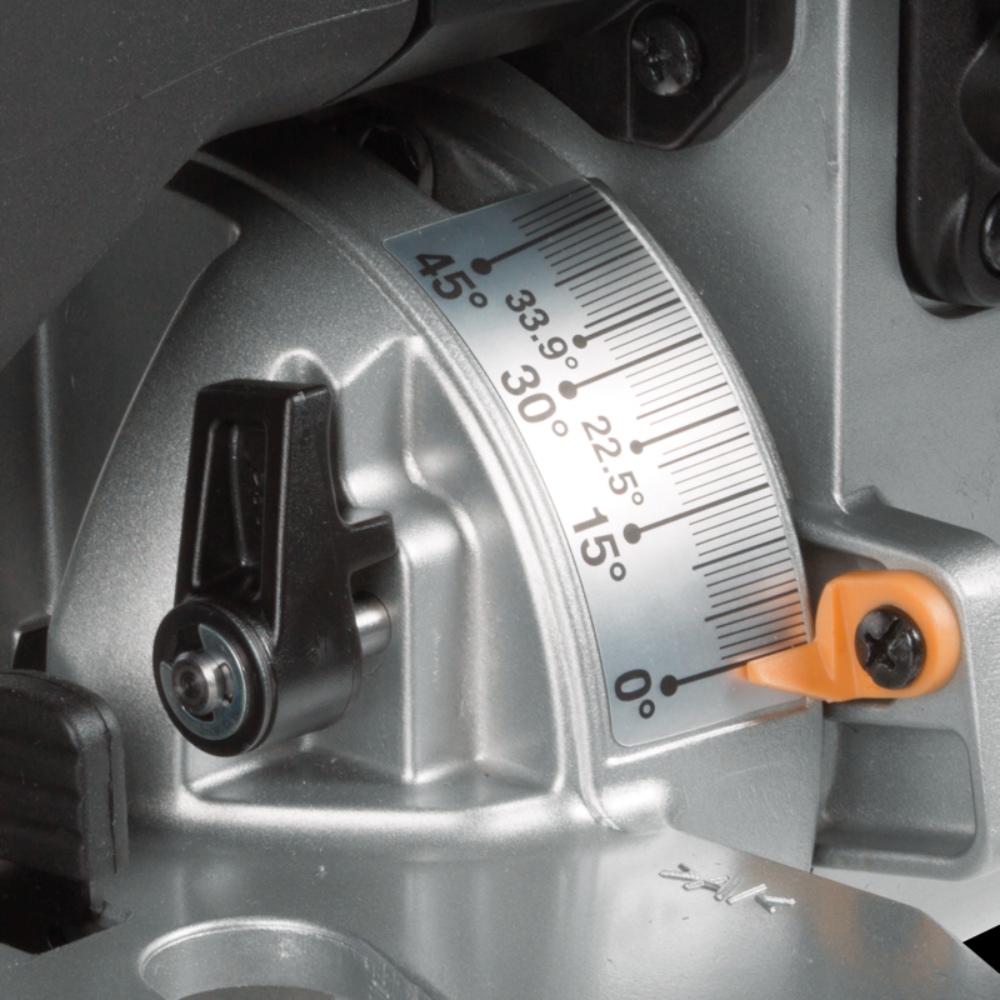

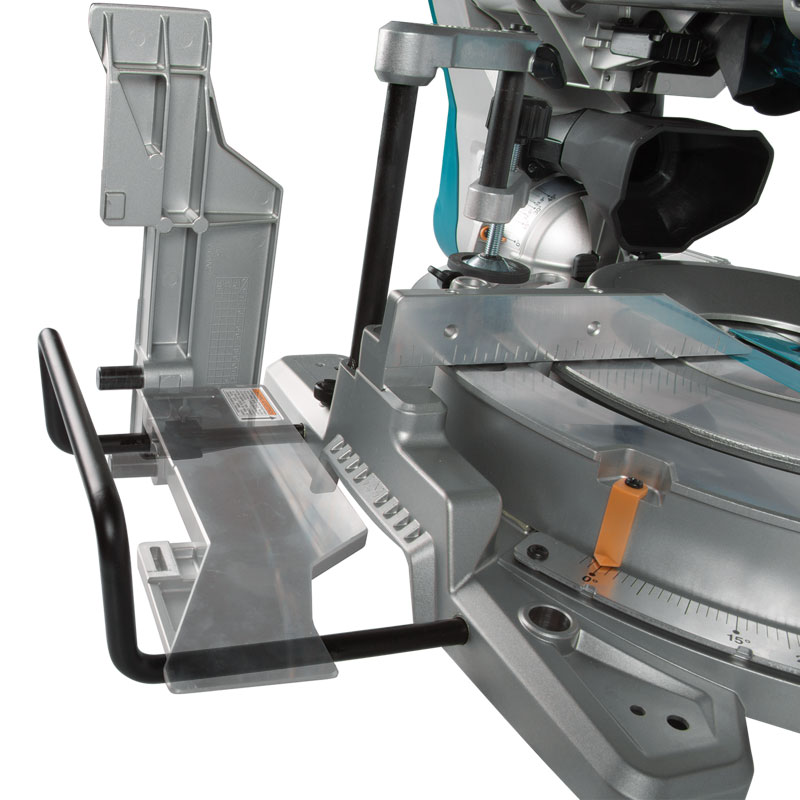

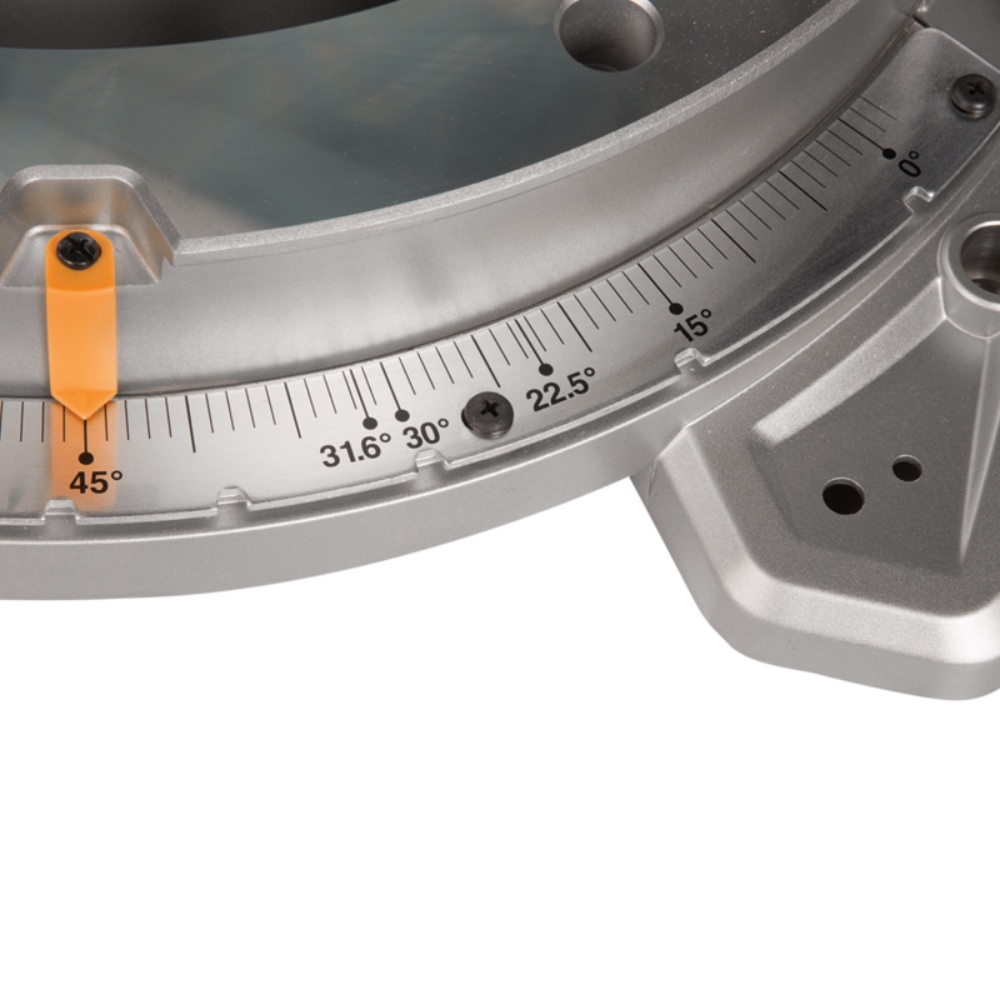

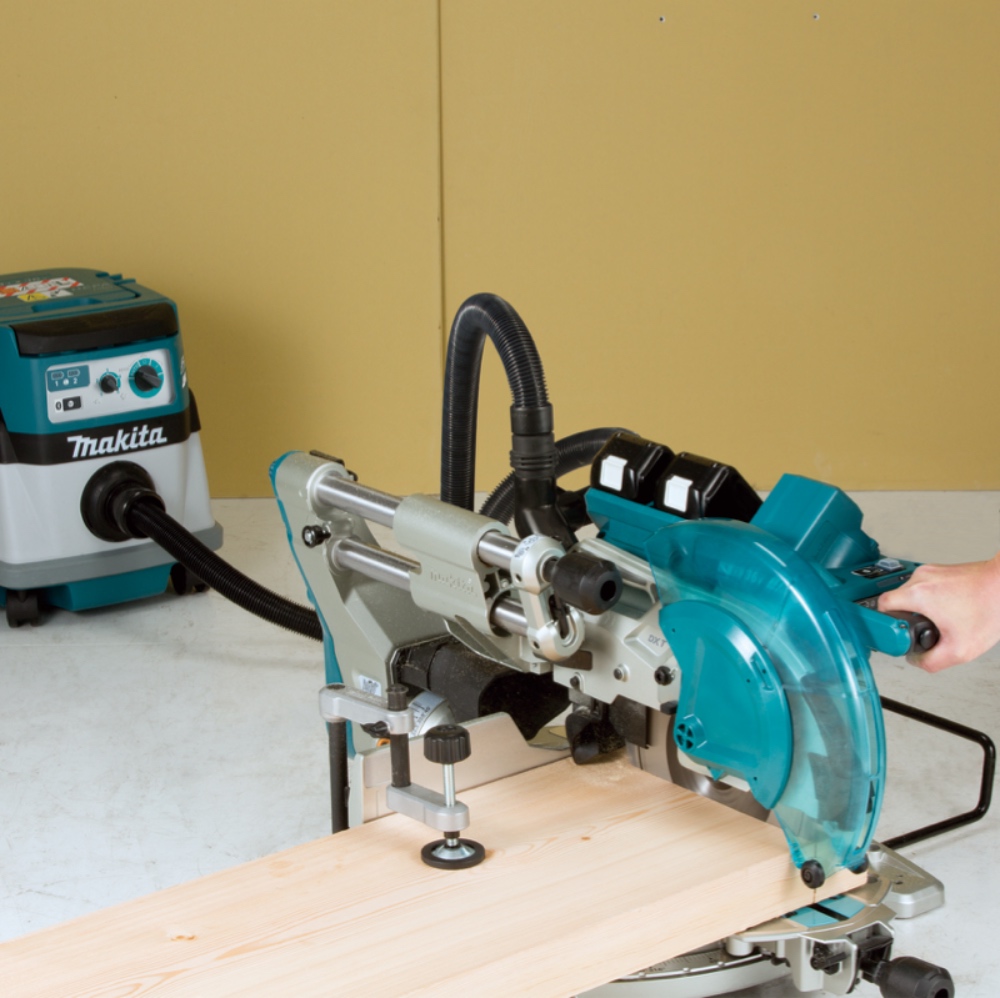

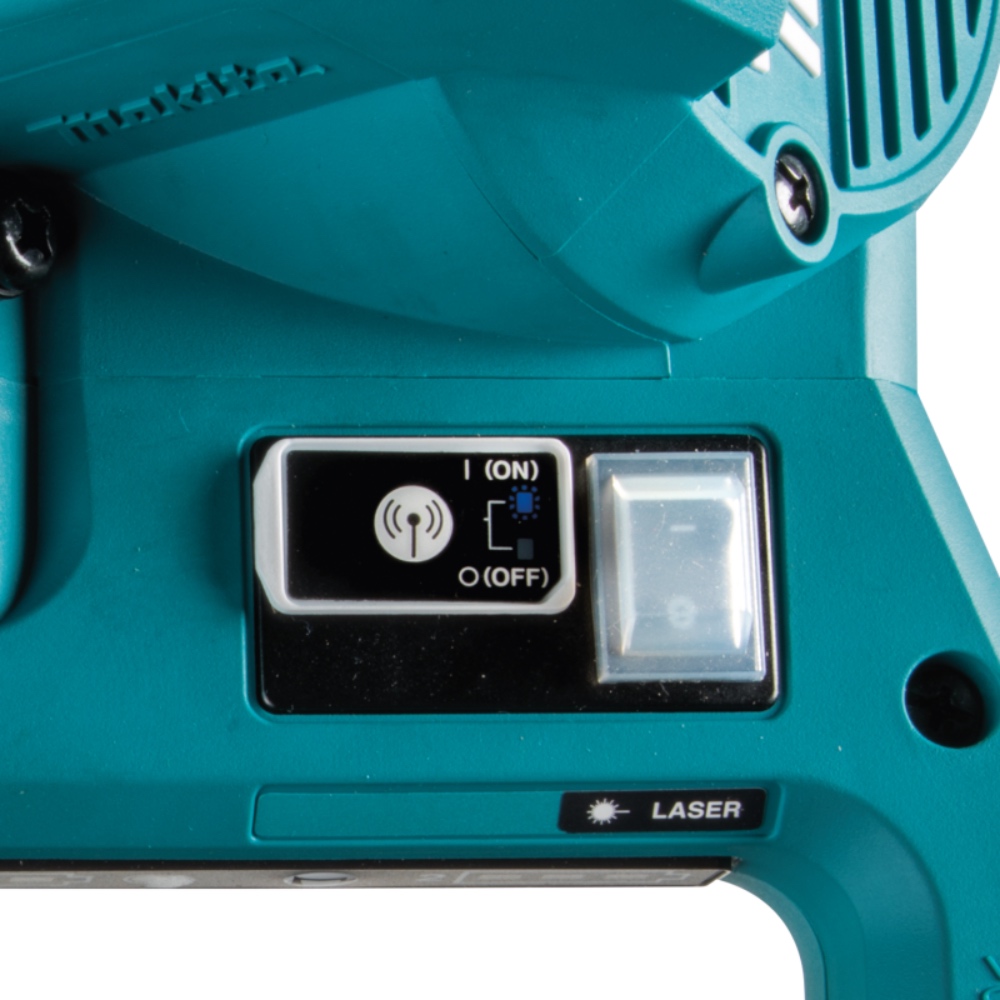

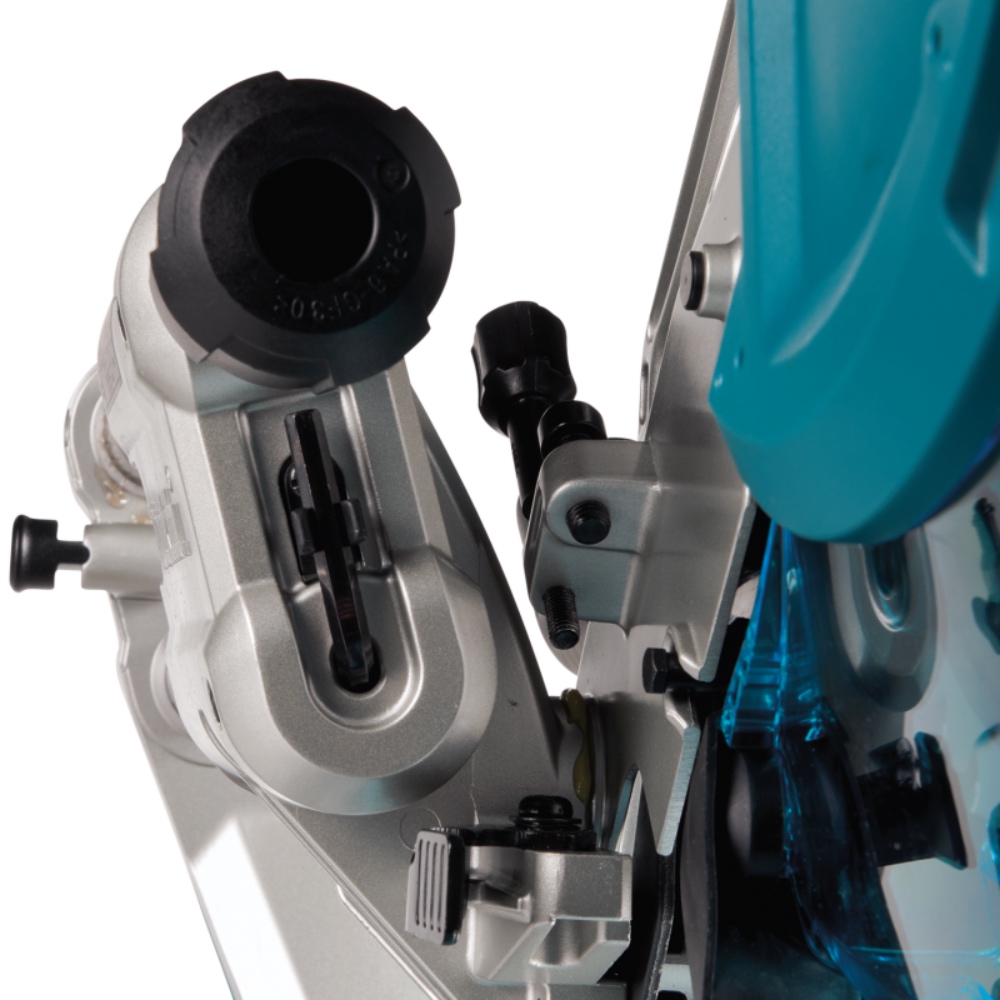

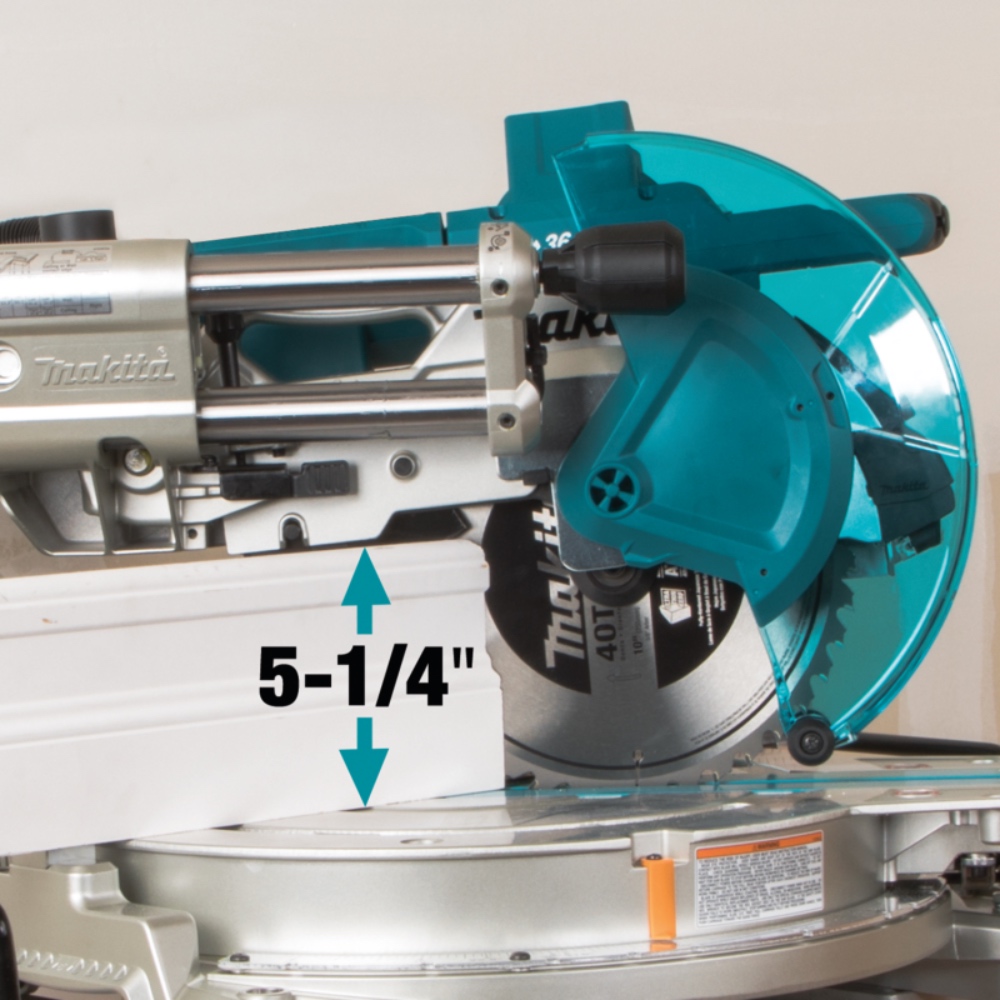

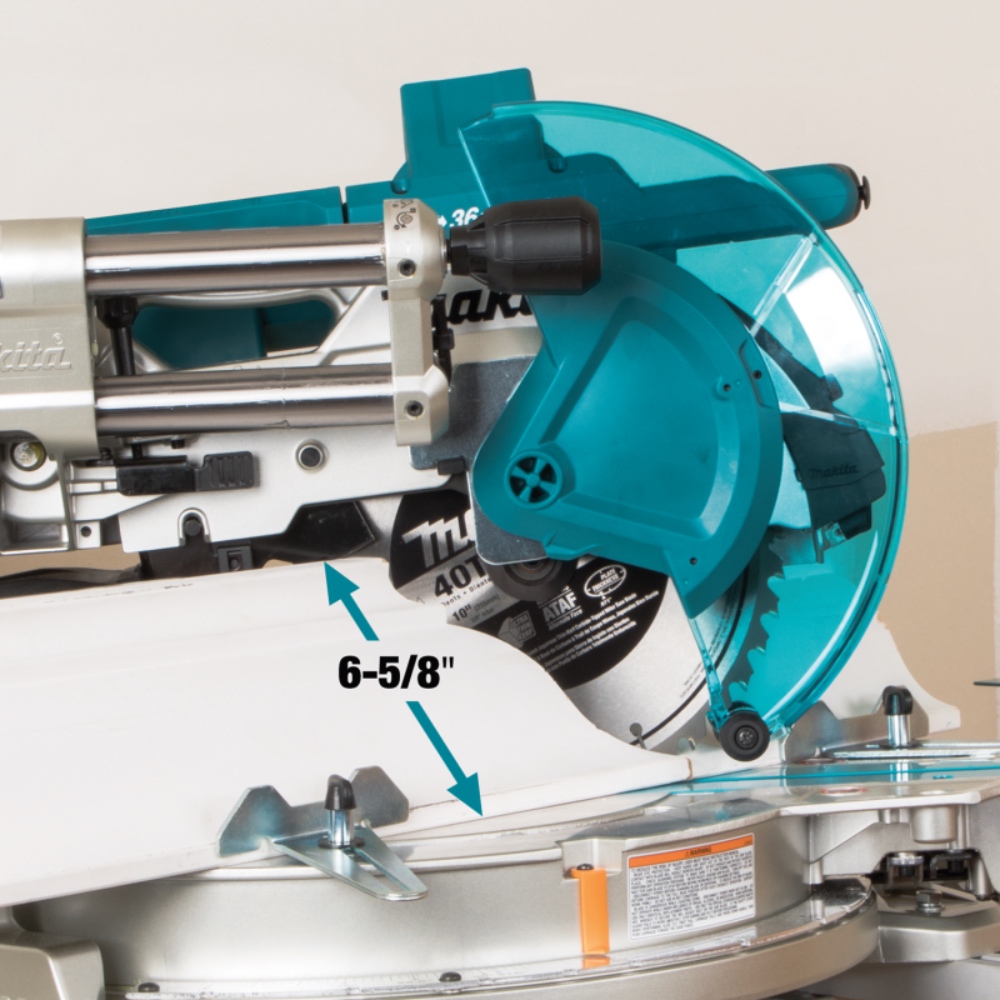

๐ Auto-Start Wireless System (AWS) Connects to Compatible Vacuum Cleaners with Bluetooth ๐ Rail-forward design enables to be placed against a wall for maximizing work space ๐ High power delivered by 36V (18Vx2) DC Brushless motor enables to cut as fast as if you were using a corded slide compound miter saw ๐ Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance ๐ Large turn base supports workpiece securely for increased stability ๐ Integrated guide fences for increased rigidity and high cutting accuracy ๐ Increased dust extraction rate for a cleaner work environment ๐ Single sliding system enables smooth operation to produce superior cuts ๐ Front knob for easy bevel angle adjustment ๐ Increased sliding durability of safety cover ๐ Slide lock for locking the sliding movement of the carriage ๐ Holders are provided on both sides of the tool to hold long workpieces horizontally ๐ Largest crown molding cutting capacity in its class ๐ Exclusive linear ball bearings engineered to deliver "dead-on" accurate cuts ๐ Innovative direct drive gearbox and guard system is engineered for increased vertical cutting capacity (133 mm (5-1/4")) ๐ Miters 0°-60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left and right).

Standard Equipments : TCT saw blade, Dust bag, Triangular rule, Vertical vise, Hex wrench


Technical specifications

Wheel Diameter 255 - 260 mm
Hole diameter 25.4 mm
Max Cutting Capacity 91 x 279 x 68 x 310 mm
Max Cutting Capacity 45° 91 x 197 x 68 x 218 mm
No Load Speed (RPM) 4,400
Dimensions (L x W x H) 805 x 644 x 660 mm
Net weight 26.6 - 27.3 kg
Brake
Soft Start
Bevel Cutting 45 LR
Laser Marker
Dust Collection
