(EN / TH)

DLS600

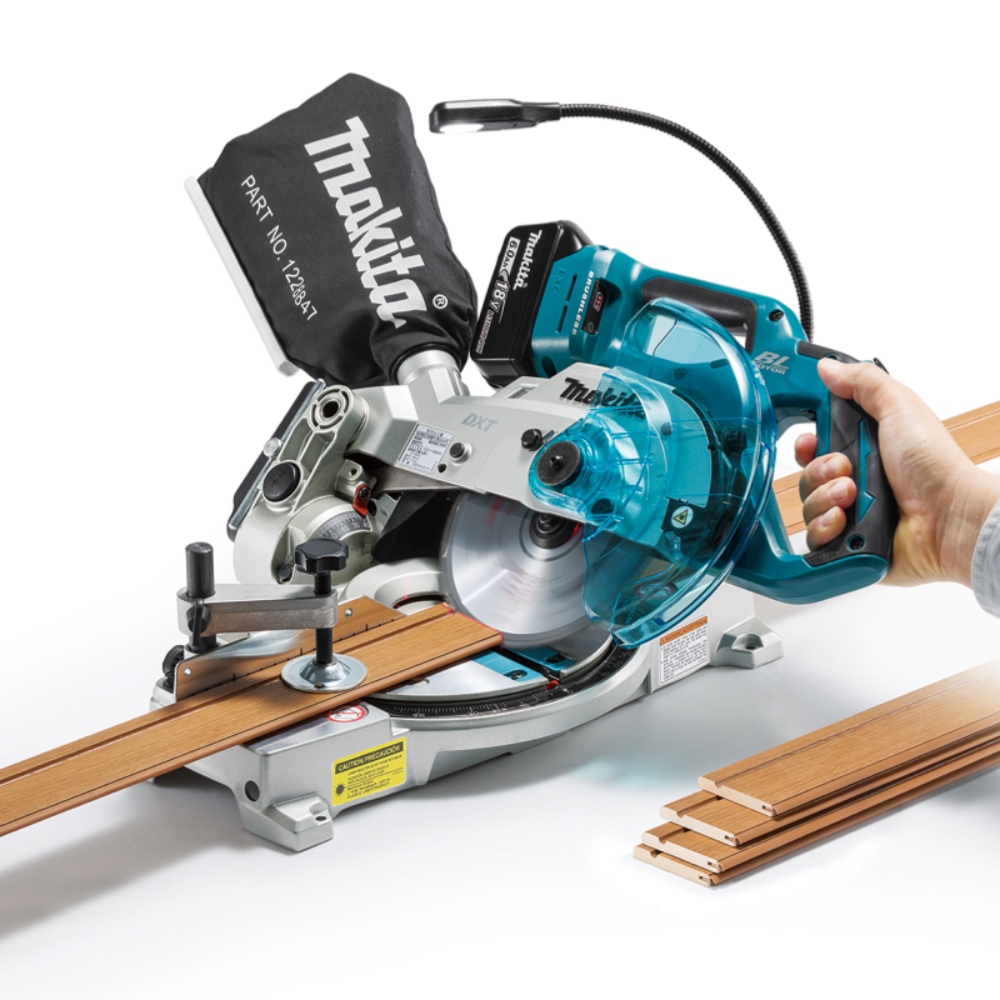

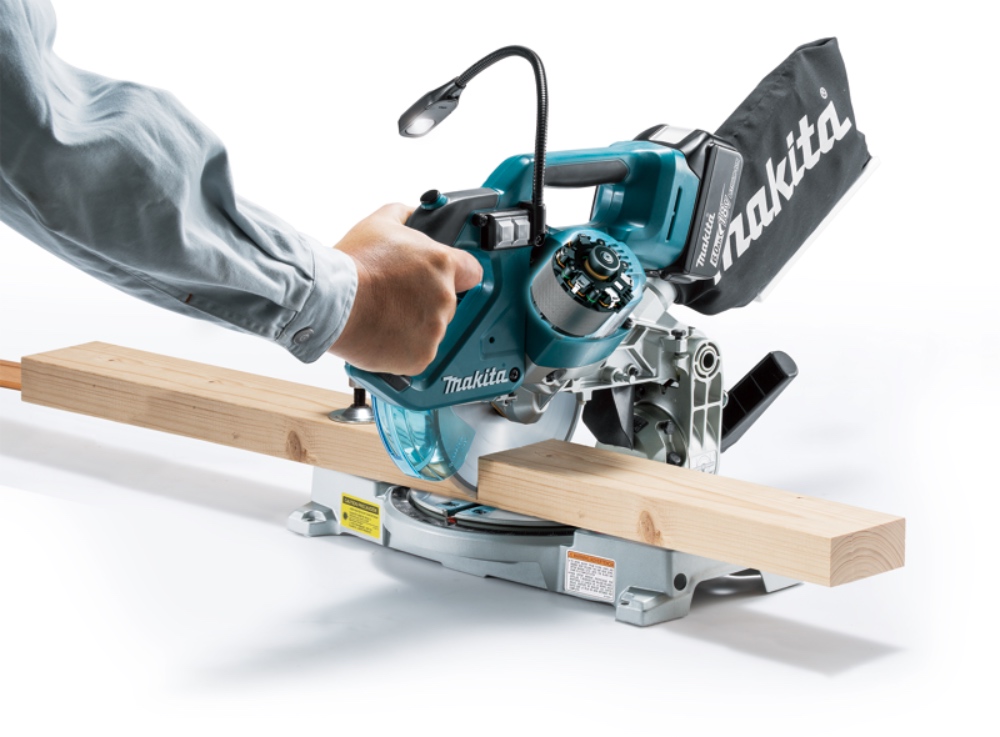

Cordless Compound Miter Saw

DLS600
Cordless Compound Miter Saw

18V Cordless Compound Miter Saw 165 mm (6-1/2")

  

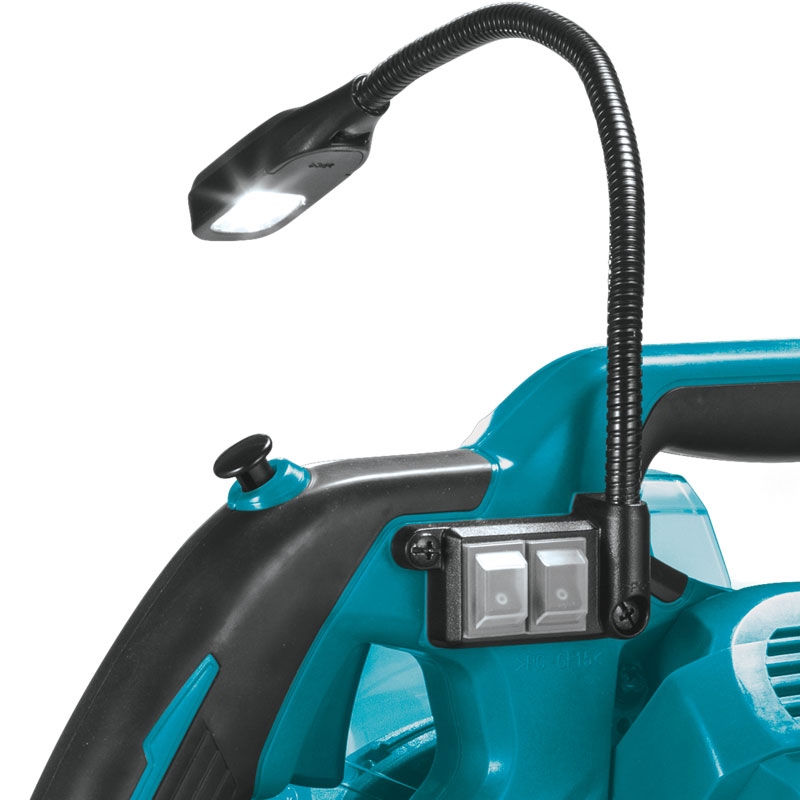

๐ High accuracy + Lightweight + Cordless ๐ Compact and lightweight body provides excellent portability ๐ Powerful BL Motor delivers 5,000 RPM for fast cutting ๐ Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance ๐ Cuts 270 baseboards of 15x90 mm at 45° bevel cutting with 18V 6.0 Ah LXT battery ๐ Increased sliding durability of safety cover ๐ LED job light brightly illuminates the cut line for easy cutting in the dark place ๐ Large cutting capacity; Crosscuts up to 46 x 92 mm (1-13/16" x 3-5/8") at 90° ๐ Miters 0-52° left and right; bevels 0-46° left and rightt ๐ Factory calibrated class II laser enables accurate alignment of blade and cutting line ๐ Large aluminum base supports large stock for efficient cutting ๐ Electric brake for maximum productivity and increased operator safety ๐ Dust bag for a cleaner work environment ๐ Battery capacity warning light indicates ideal time to recharge battery ๐ Soft start feature for smooth start-ups ๐ Incorporates Deep eXact cutting Technology (DXT) achieved by our consistent pursuit of cutting larger size workpiece but with higher accuracy. ๐ Lock-off (2 stage) safety switch for increased operator safety. ๐ Battery protection circuit protects against overloading, over-discharging and over-heating.

Standard Equipments: TCT saw blade, Dust bag, Vertical vise, Hex wrench, Triangular rule


Technical specifications

Wheel Diameter 155 - 165 mm
Hole diameter 20/ 30 mm
Miter Anger 52° L 52° R

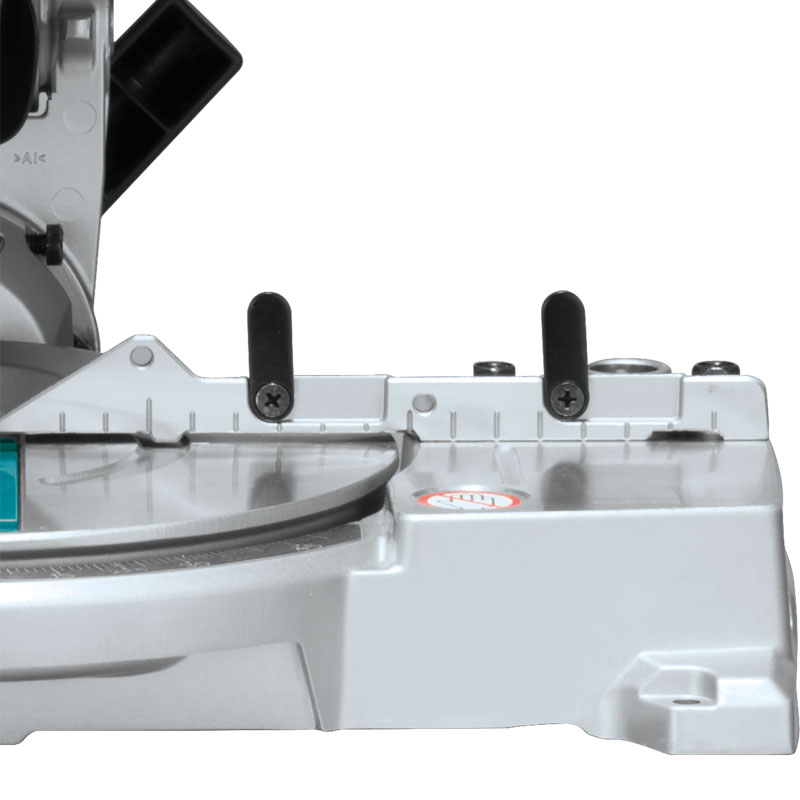

Bevel angle 46° L 46° R
Max Cutting Capacity 46 x 92 mm
Max Cutting Capacity 45° 46 x 65 mm
No Load Speed (RPM) 5,000
Dimensions (L x W x H) 340 x 400 x 440 mm
Net weight 6.3 - 6.6 kg
Brake
Soft Start
Bevel Cutting 45 LR
Laser Marker
Dust Collection
Built-in-Job Light
