DTD171
Cordless Impact Driver

DTD171
Cordless Impact Driver

18V Cordless Impact Driver 180 N·m

  

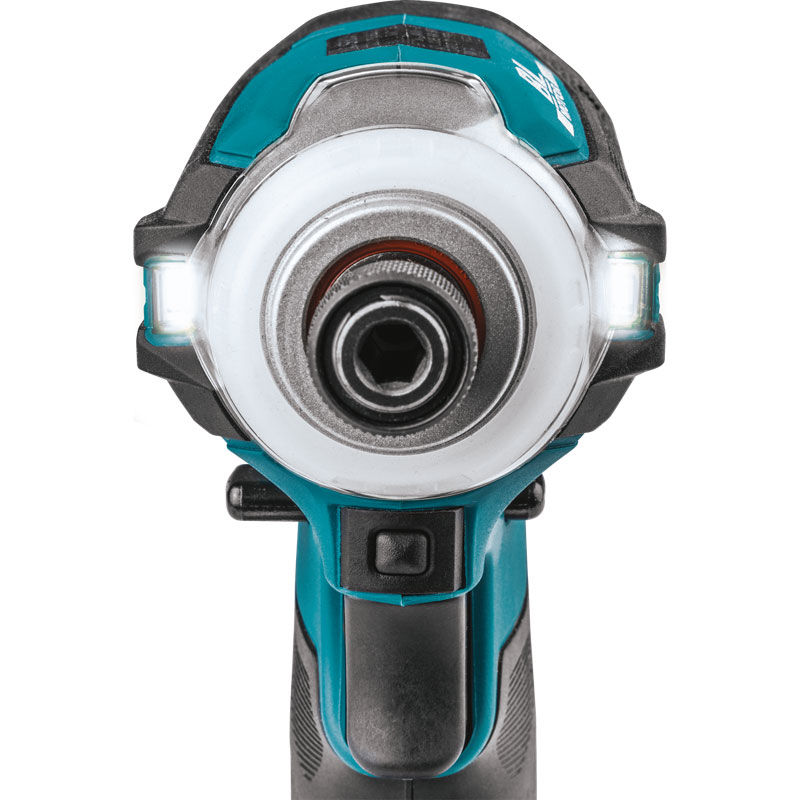

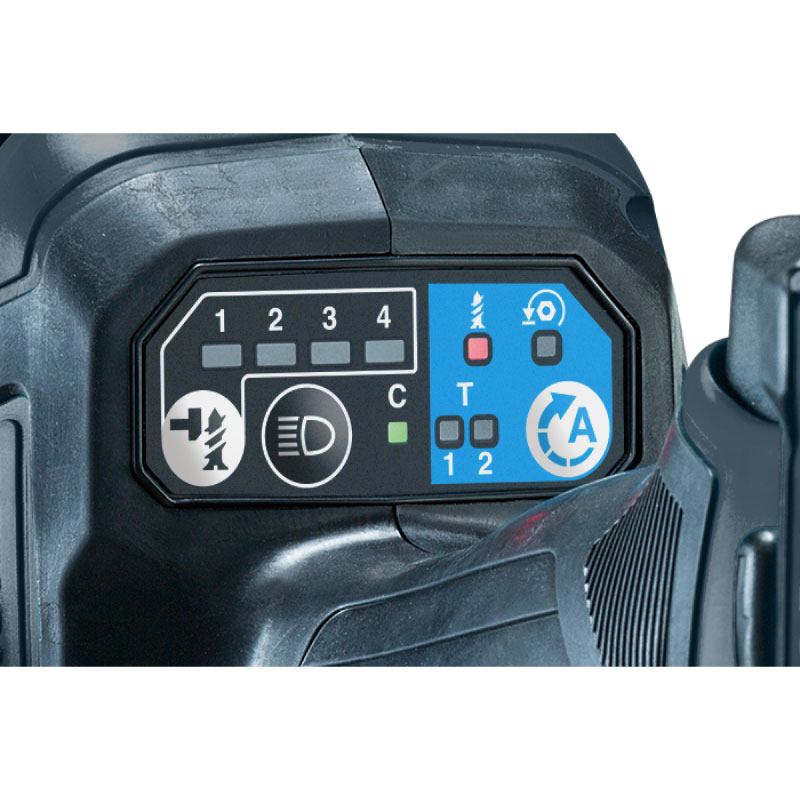

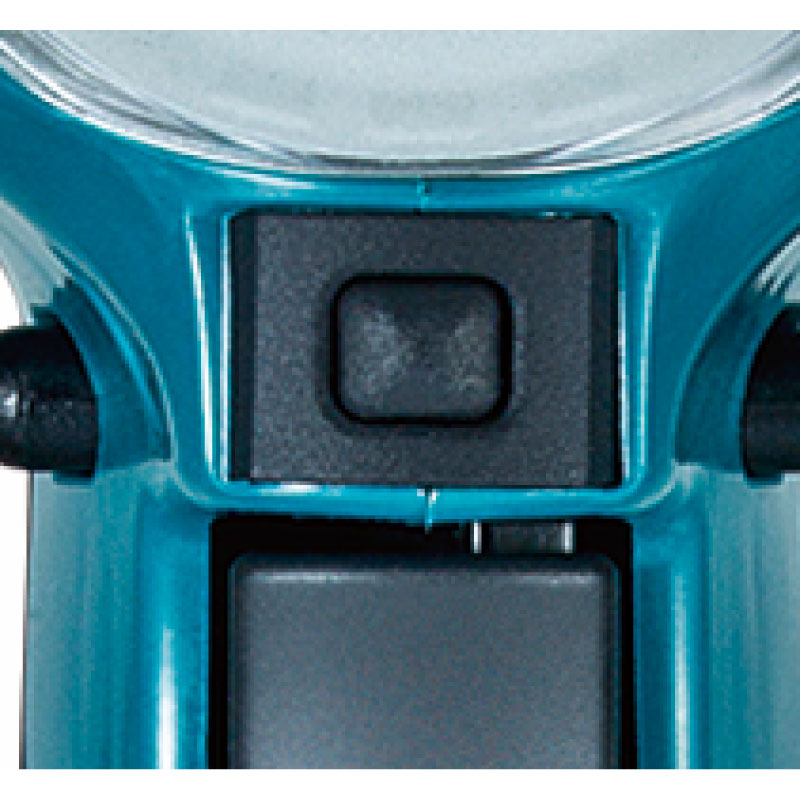

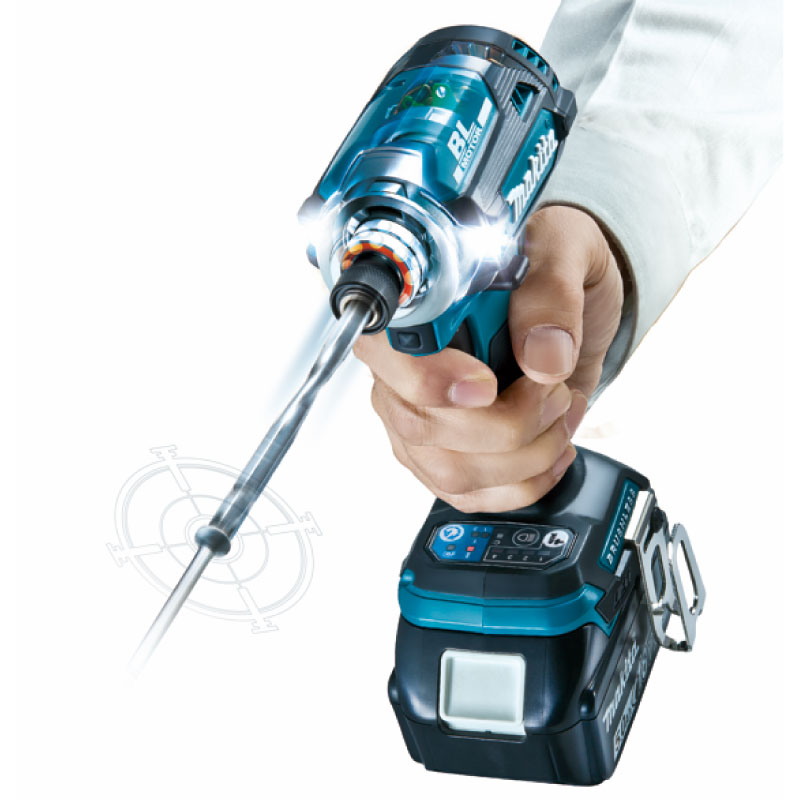

๐ Wood/Bolt/T-Mode (1, 2)/Max/Hard/Medium/Soft Mode for Multiple Applications ๐ Redesigned mode selection switch for one-handed mode selection ๐ ULTRA-COMPACT and perfect balance at only 116 mm long for maximum control and maneuverability ๐ Dual LED lights on both sides illuminate the work area for increased visibility ๐ Power selection switch provides the user with precise fastening control for a wide range of applications ๐ BL motor is electronically controlled to optimize battery energy use for longer run time per charge ๐ Lightweight for reduced operator fatigue ๐ Convenient one-touch 6.35 mm (1/4") hex chuck for quick bit changes (for some countries only) ๐ Soft grip provides increased comfort on the job ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Phosphorescent bumper glows blue in dark places ๐ Battery protection circuit protects against overloading, over-discharging and over-heating ๐ Electric brake for maximum productivity and increased operator safety ๐ Easy-to-operate, push button type F/R change switch

Standard Equipments : Phillips bit, Belt clip,


Technical specifications

Capacity Machine screw M4 - M8
Capacity Standard bolt M5 - M16
Capacity High strength bolt M5 - M14
No Load Speed (RPM) Max : 0 - 3,600
Impacts Per Minute (IPM) Max : 0 - 3,800
Max fastening torque 180 N·m
Dimensions (L x W x H) 116 x 79 x 236 mm
Net weight 1.2 - 1.6 kg
Variable Speed
Brake
Reversing
Electronic 4-Speed
Built-in-Job Light
