DTD154
Cordless Impact Driver

DTD154
Cordless Impact Driver

18V Cordless Impact Driver 175 N·m

  

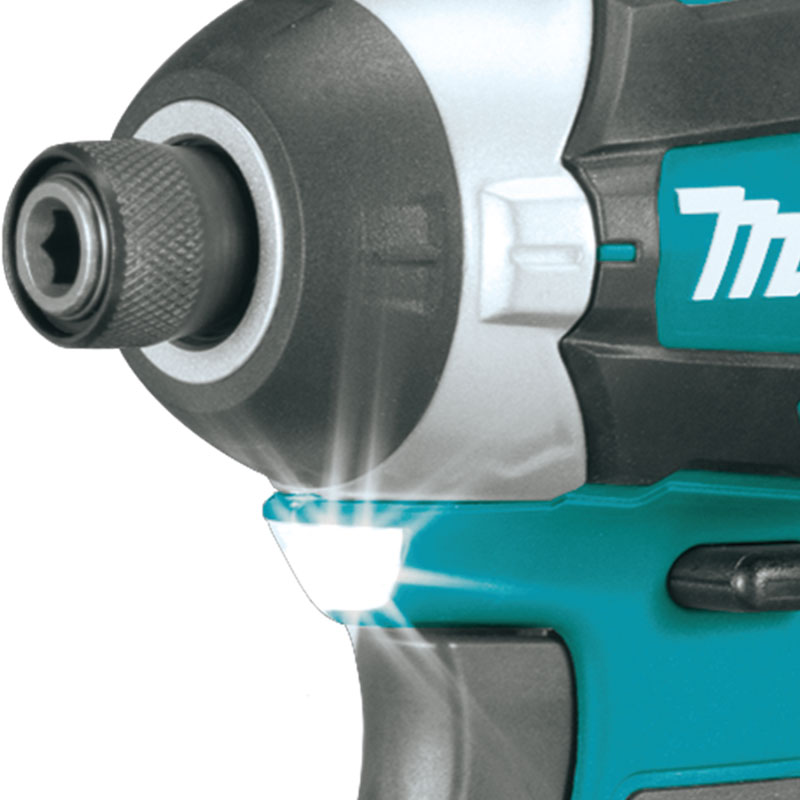

๐ ULTRA-COMPACT and ergonomic design at only 117 mm long ๐ Dual LED lights ๐ T-mode has an automatic electronic controller that downshifts and reduces rotation and impact speed prior to driving screw into place, and is engineered to minimize screw thread stripping, screw breakage and damage to work ๐ BL motor delivers 3,600 Max RPM and 175 N·m (1,550 in.lbs.) of Max Torque ๐ 3-Speed power selection switch (0-1,100 / 0-2,100 / 0-3,600 RPM & 0-1,100 / 0-2,600 / 0-3,800 IPM) provides the user with precise fastening control for a wide range of applications ๐ BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge ๐ Lightweight for reduced operator fatigue ๐ Convenient one-touch 6.35 mm (1/4") hex chuck for quick bit changes (country-specific) ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Electric brake for maximum productivity and increased operator safety ๐ Reversing switch is conveniently located ๐ Durable, reversible belt clip convenient for temporary tool hanging ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : Belt clip


Technical specifications

Capacity Machine screw M4 - M8
Capacity Standard bolt M5 - M16
Capacity High strength bolt M5 - M14
No Load Speed (RPM) 0 - 3,600 / 0 - 2,100 / 0 - 1,100
Impacts Per Minute (IPM) 0 - 3,800 / 0 - 2,600 / 0 - 1,100
Max fastening torque 175 N·m
Dimensions (L x W x H) 117 x 79 x 236 mm
Net weight 1.3 - 1.6 kg
Variable Speed
Brake
Reversing

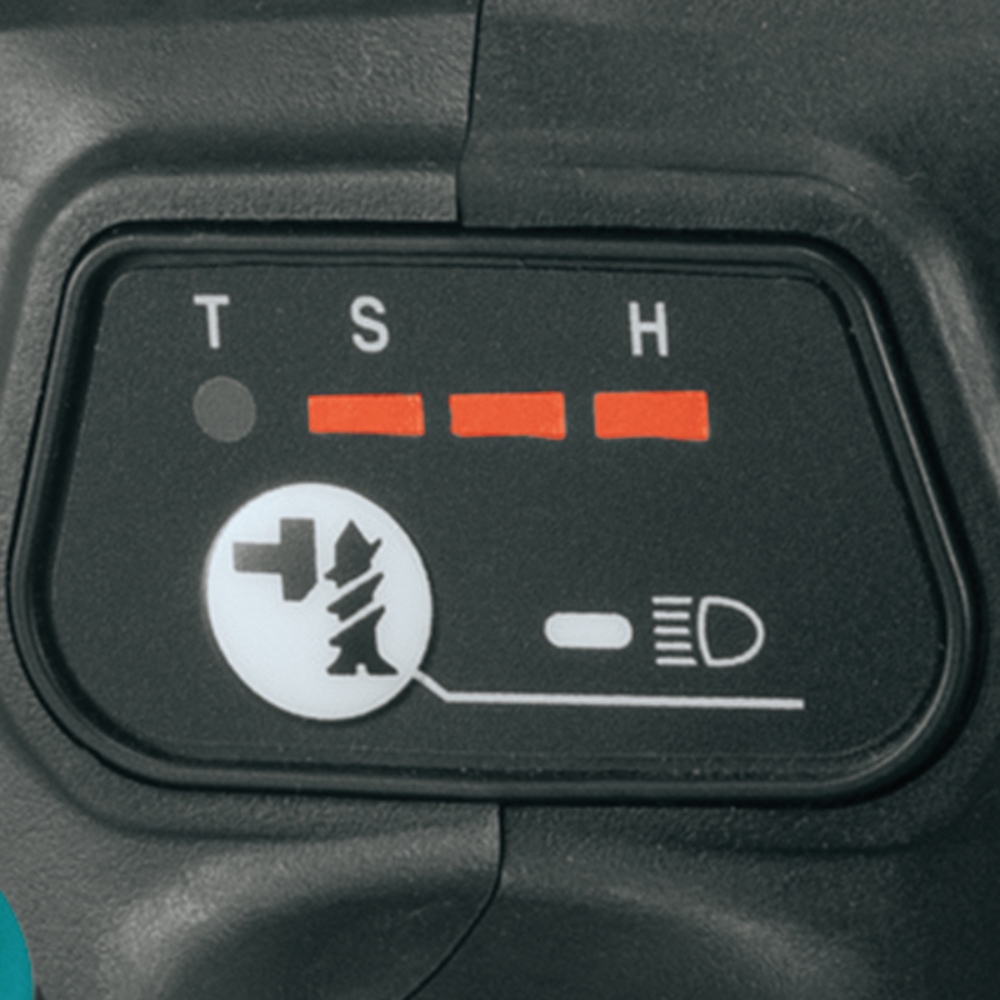

Electronic 3-Speed
Built-in-Job Light
