(EN / TH)

SP001G
Cordless Plunge Cut Saw

SP001G
Cordless Plunge Cut Saw

40V max Cordless Plunge Cut Saw 165 mm (6-1/2")

  

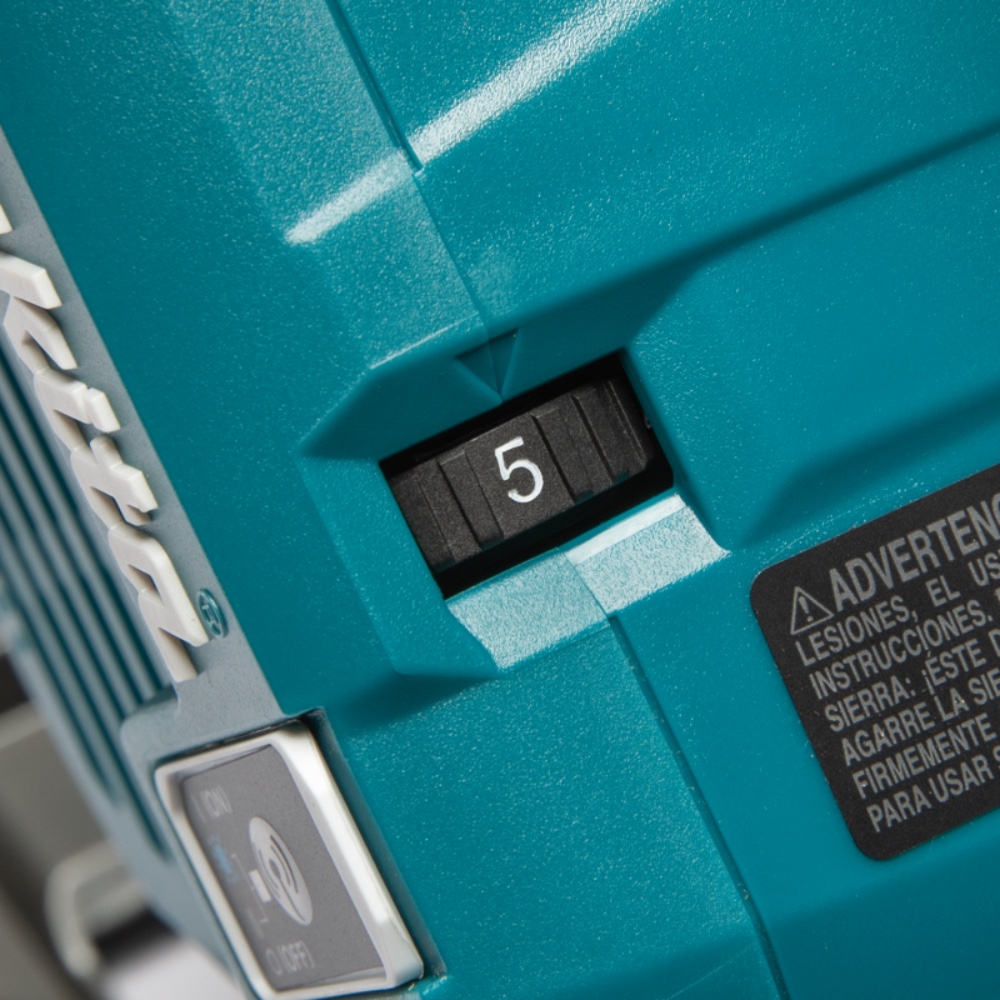

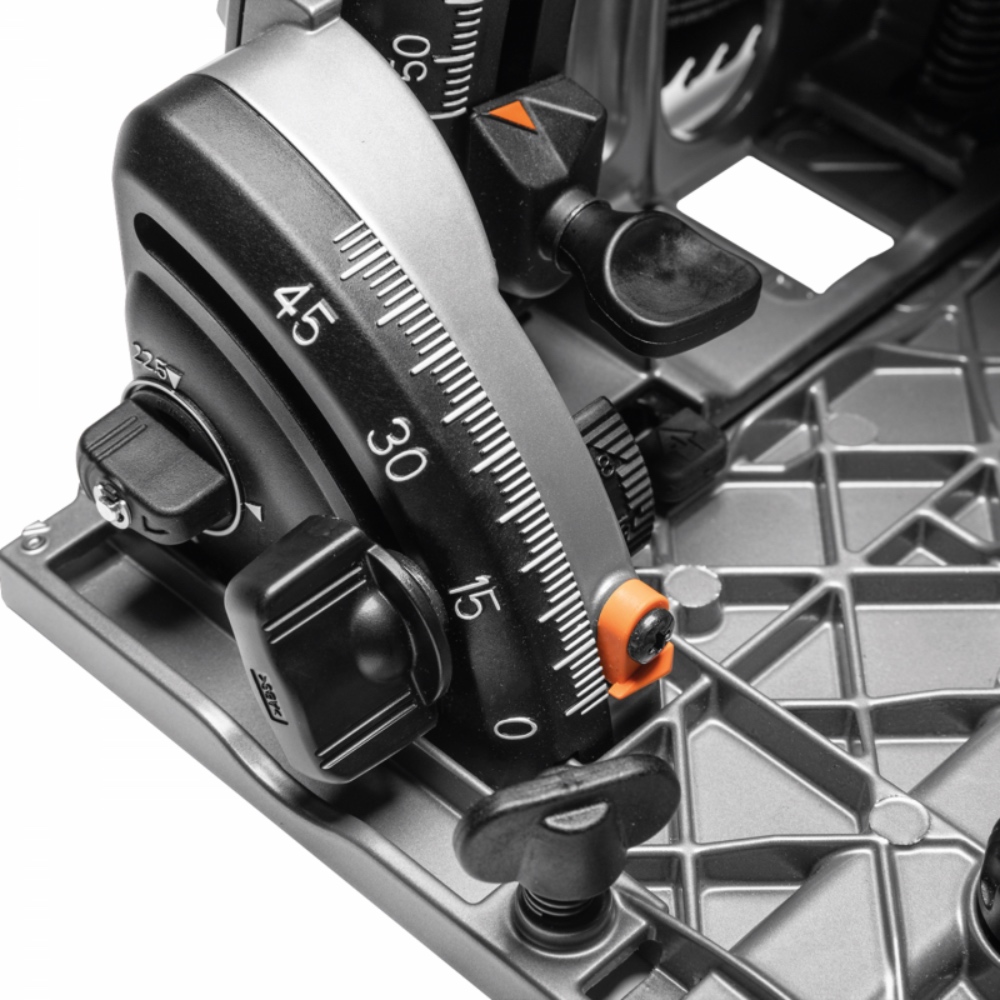

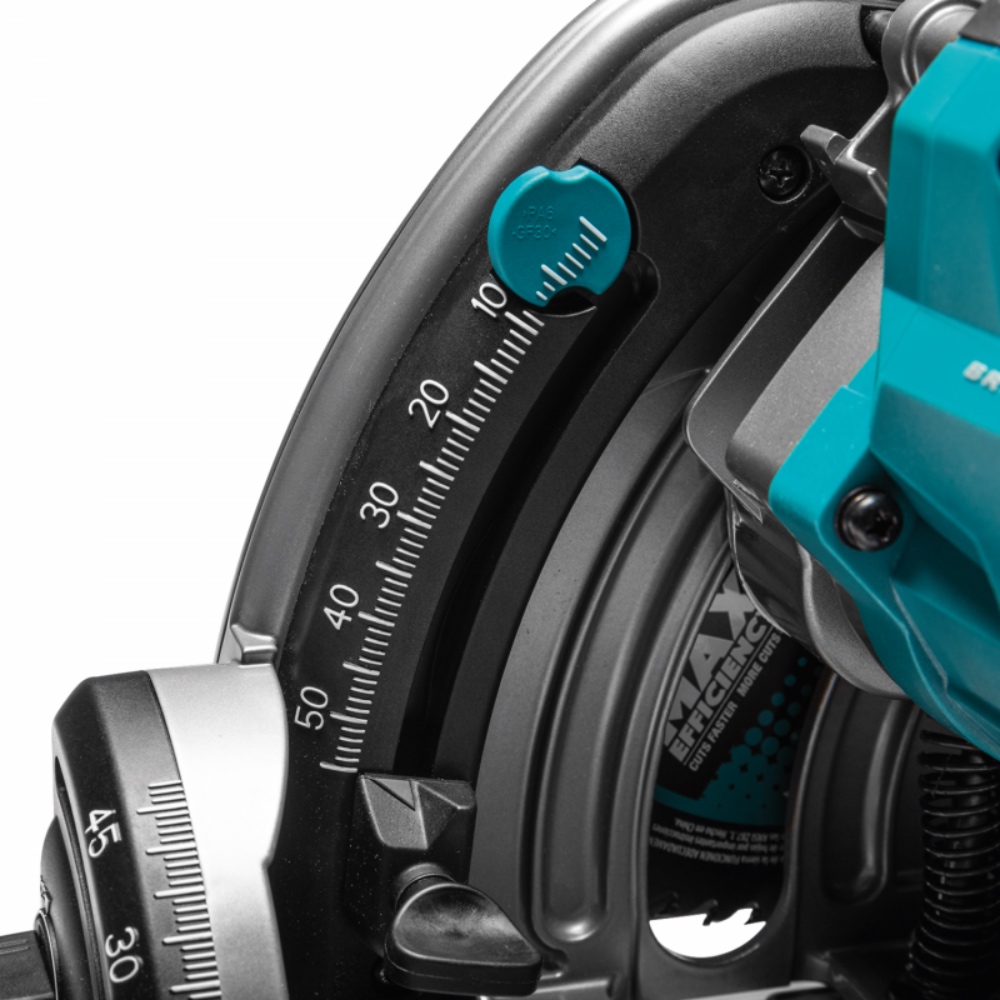

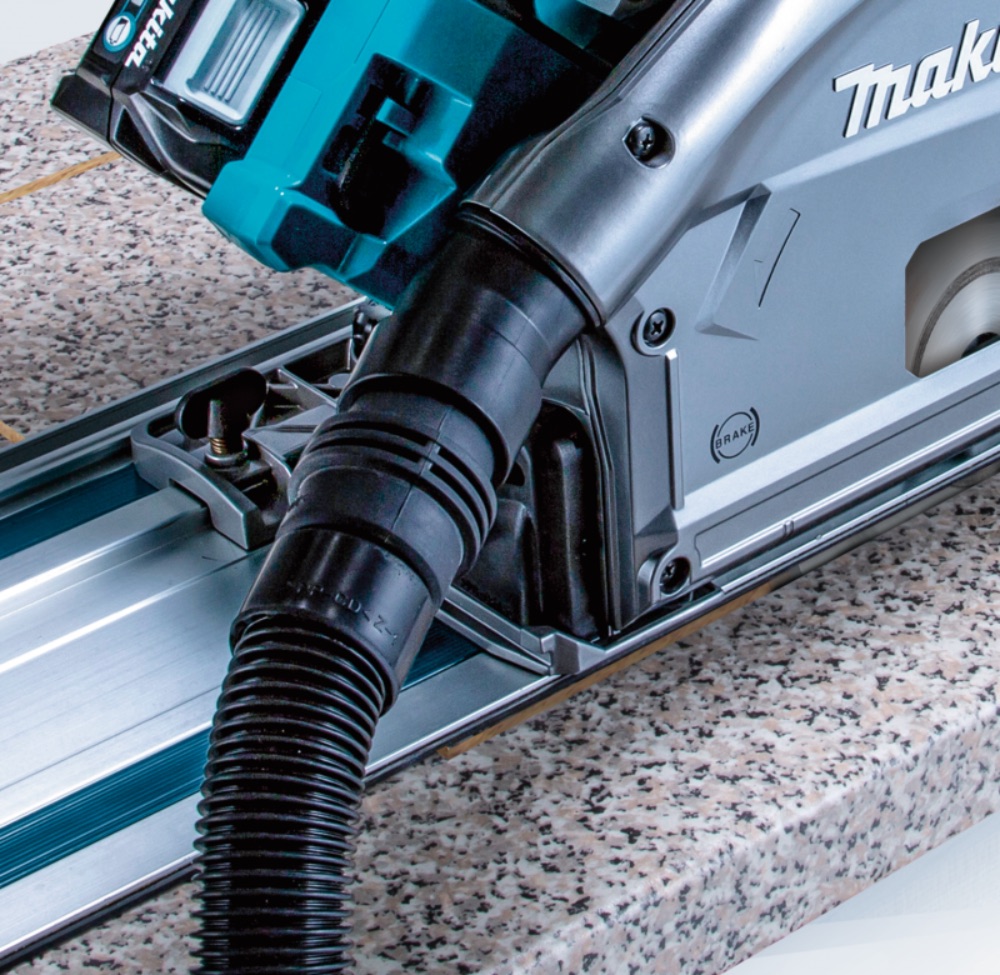

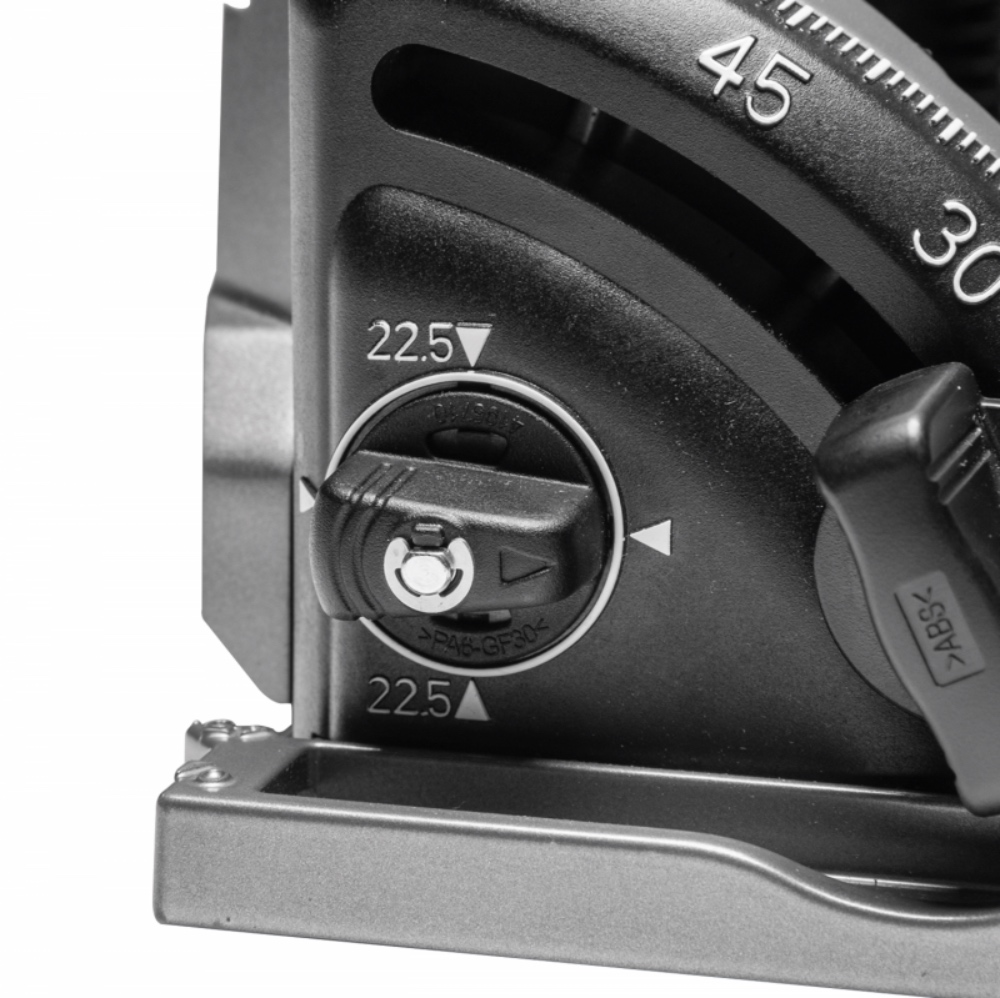

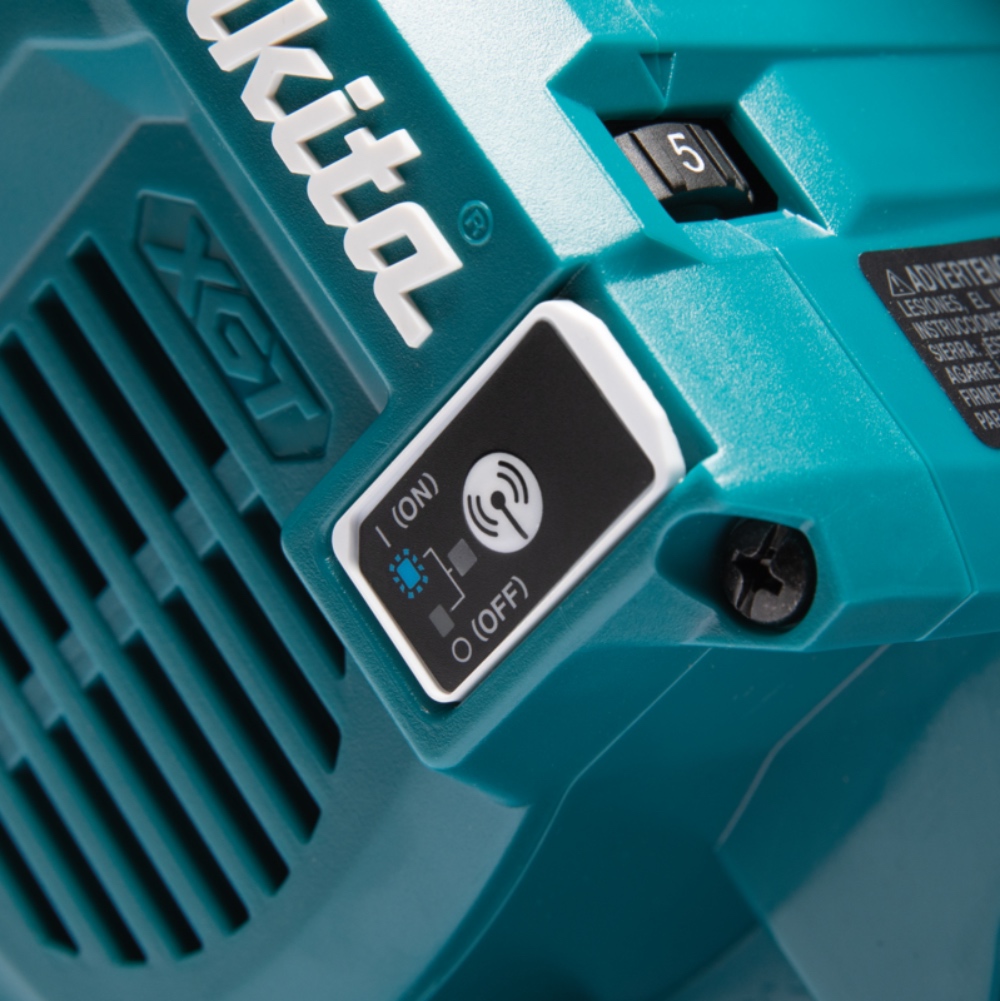

๐ Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth ๐ BL motor is electronically controlled to optimize battery energy use for longer run time per charge ๐ Rotatable dust nozzle; Added two leaf springs enable to twist and lock the nozzle with a click in order to reduce unexpected rotation ๐ eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Large cutting capacity (56 mm at 90º, 40 mm at 45º and 38 mm at 48º) and bevel capacity (-1° - 48°) with a positive stop at 22.5° ๐ Precision accurate cutting delivers a splinter-free mirror finish ๐ Depth stopper for scuffing enables to easily cut a preliminary groove at a depth of 2 mm ๐ Variable speed dial control (2,500 - 4,900 RPM) for optimum performance in a variety of materials ๐ Electronic soft start feature for smooth start-ups ๐ Easy to set depth adjustment with large scale ๐ Magnesium components deliver a well balanced and lightweight saw ๐ Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts ๐ Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation. ๐ Electric brake for improved productivity. ๐ Large rear dust port directs material away from the operator and easily connects to a vacuum system. ๐ Battery protection circuit protects against overloading, over-discharging and over-heating.

Standard Equipments: HEX. WRENCH 5 783203-8(1) MAKPAC-CASE4 821552-6(1) TCT BLADE165X20X56TWOOD/MDF DB B-57364(1)


Technical specifications

Wheel Diameter 165 mm
Hole diameter 20 mm
Bevel angle -1 - 48°
Max Cutting Capacity 56 mm
Max Cutting Capacity 45° 40 mm
No Load Speed (RPM) 2,500 - 4,900
Dimensions (L x W x H) 347 x 221 x 271 mm
Net weight 4.4 - 5.0 kg
Variable Speed
Brake
Constant Speed
Soft Start
Dust Collection
Carrying Case
