HS004G
Cordless Circular Saw

HS004G
Cordless Circular Saw

40V max Cordless Circular Saw 190 / 185 mm (7-1/2" / 7-1/4")

  

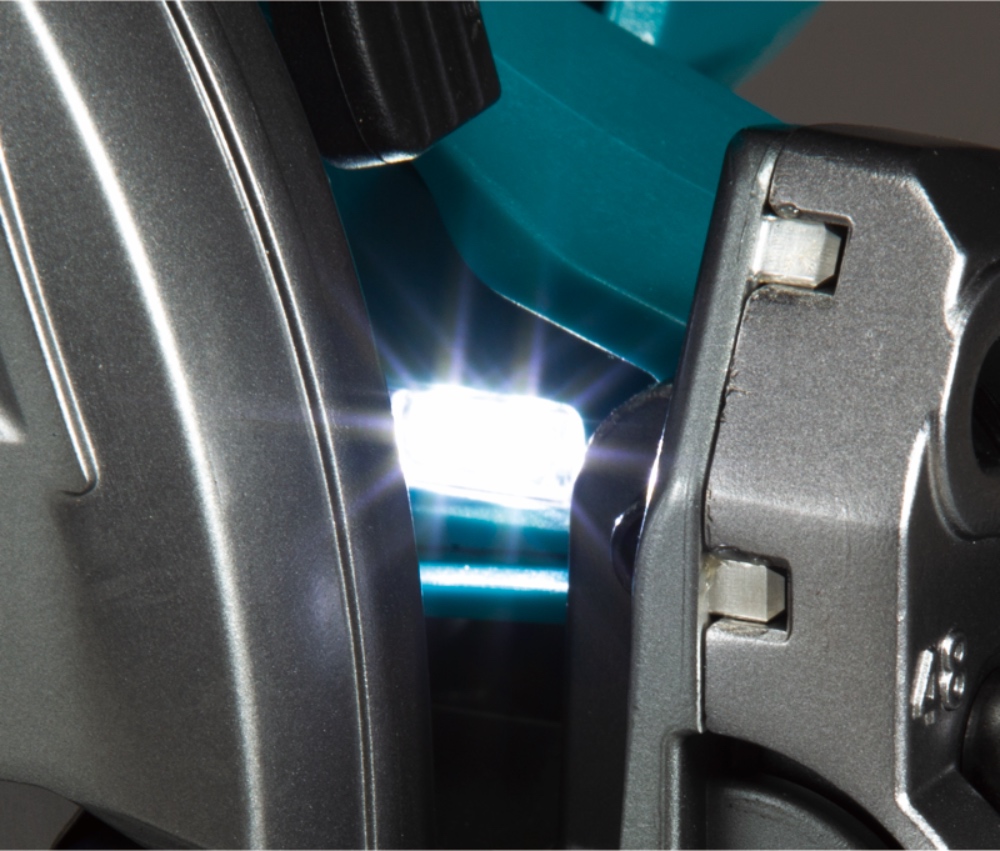

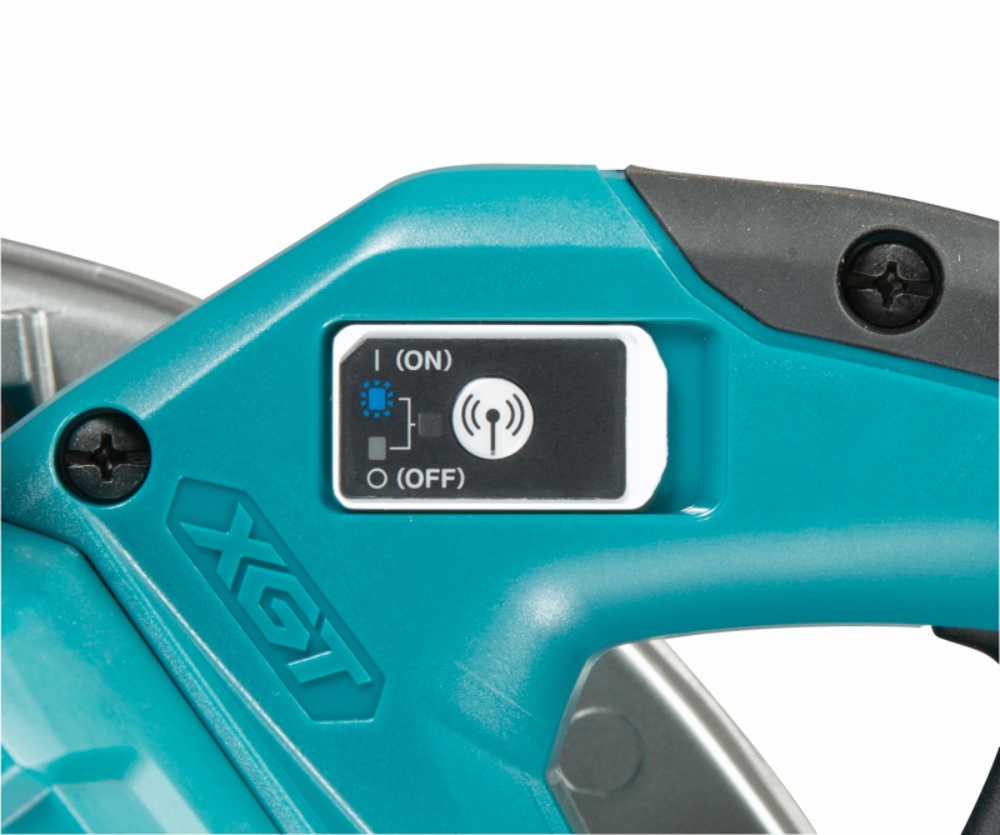

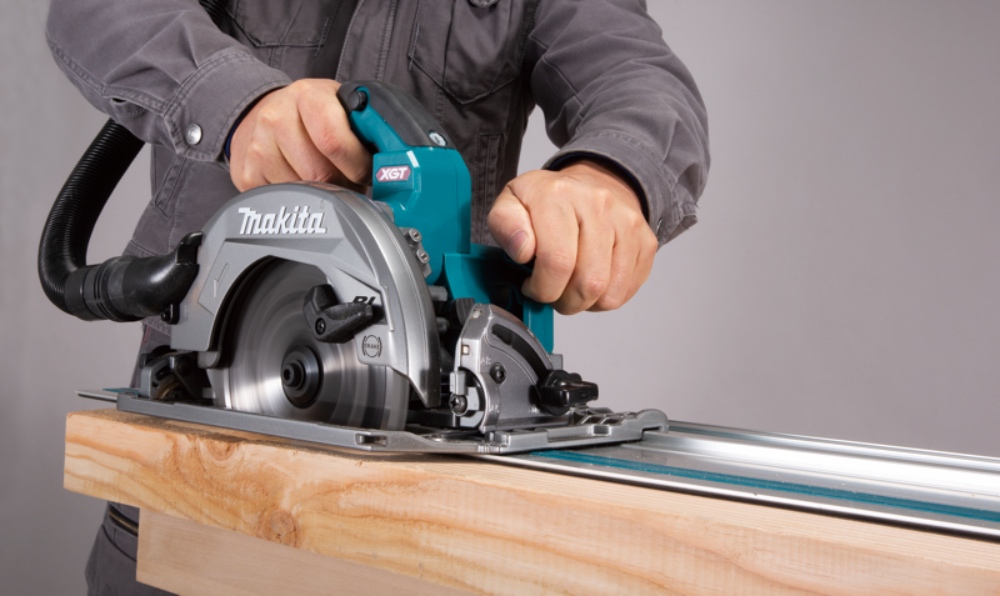

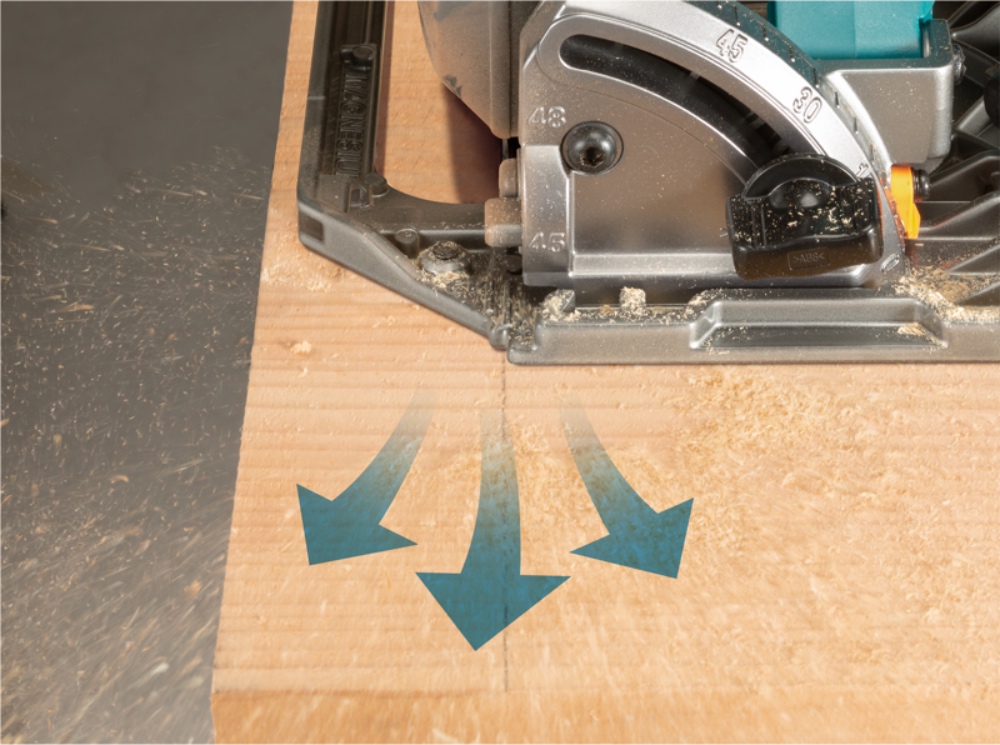

๐ Lightweight & high power ๐ 40Vmax XGT Li-Ion battery and BL motor allow for excellent balance of high power and lightweight maneuverability similar to corded tools ๐ Compatible with guide rail without adapter, providing precision cutting ๐ Increased visibility of ink line position ๐ BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life ๐ Large cutting capacity (62.5 mm at 90°) and bevel capacity (0° - 48°) with a positive stop at 45° ๐ Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth ๐ Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance ๐ Overload alert using ADT lamp ๐ Electric brake for maximum productivity and increased operator safety ๐ Twin LED ๐ Magnesium components create lightweight saws that are well-balanced and jobsite tough ๐ Soft start for smooth start-ups ๐ XPT (eXtreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Lock-off (2 stage) safety switch for increased operator safety

Standard Equipments : TCT saw blade, Dust nozzle, Hex wrench, Guide rule


Technical specifications

Wheel Diameter 185 - 190 mm
Hole diameter 20 / 30 mm
Max Cutting Capacity 62.5 / 60 mm
Max Cutting Capacity 45° 44.5 / 43 mm
No Load Speed (RPM) 6,000
Dimensions (L x W x H) 322 x 210 x 290 mm
Net weight 4.4 - 4.7 kg
Brake
Soft Start
Built-in-Job Light
Carrying Case
