(EN / TH)

HS013GZ
Cordless Circular Saw



HS013GZ
Cordless Circular Saw

40Vmax Cordless Circular Saw 415 mm (16-5/16")

  
Brake
Anti-restart function
Soft Start
Dust Collection

Features

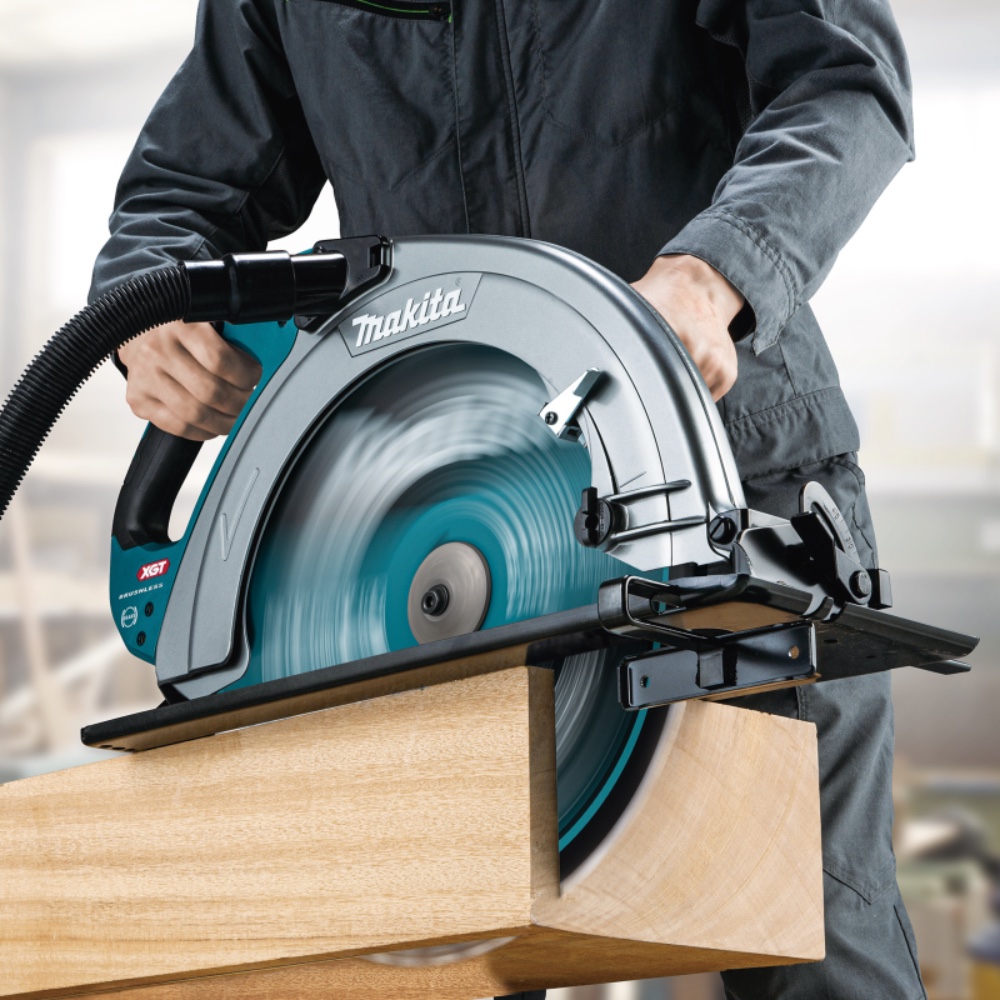

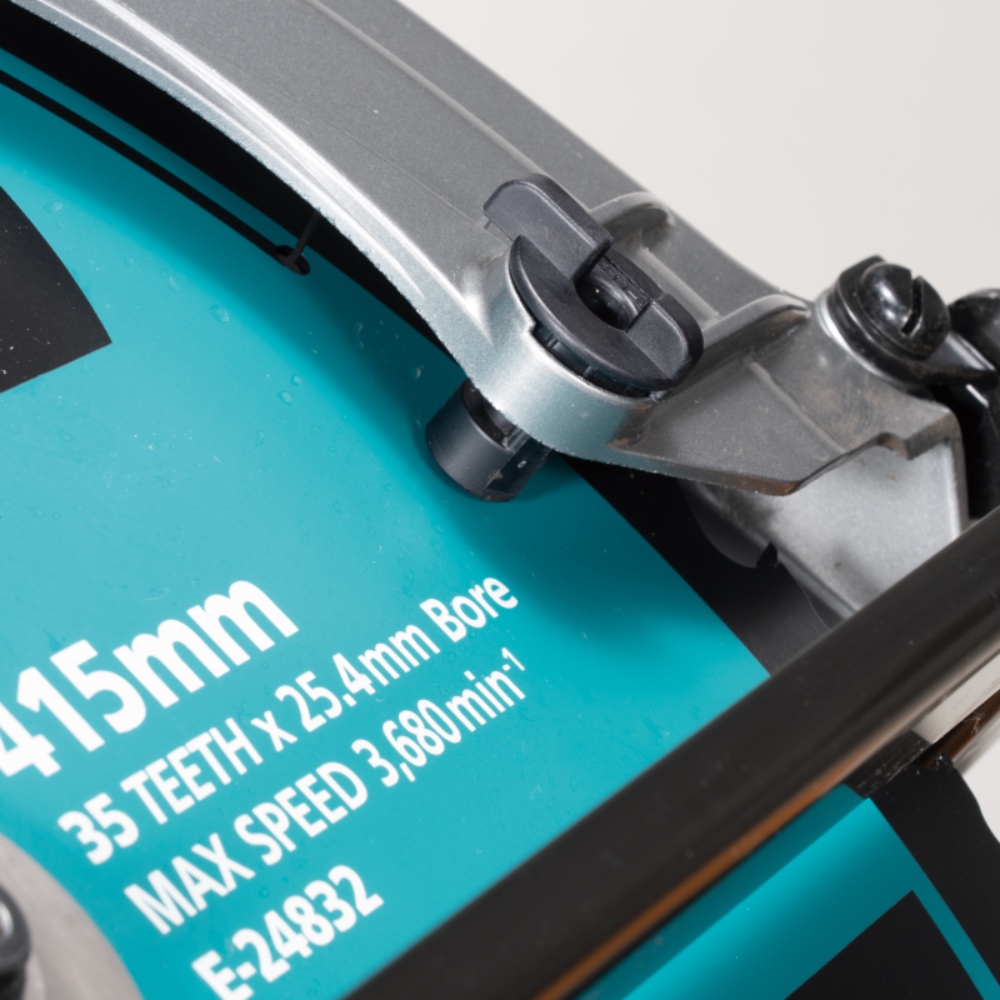

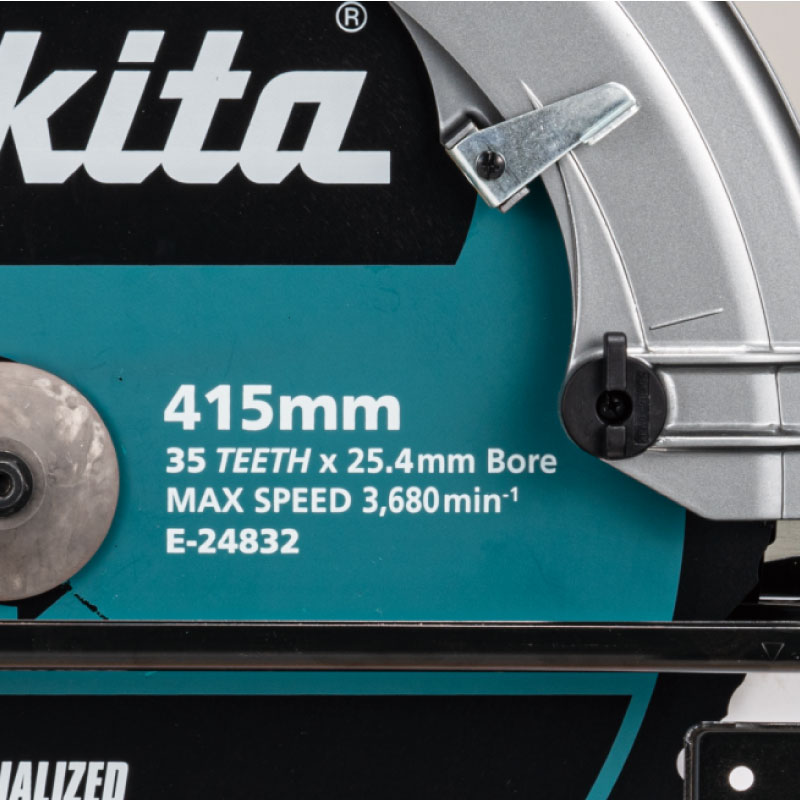

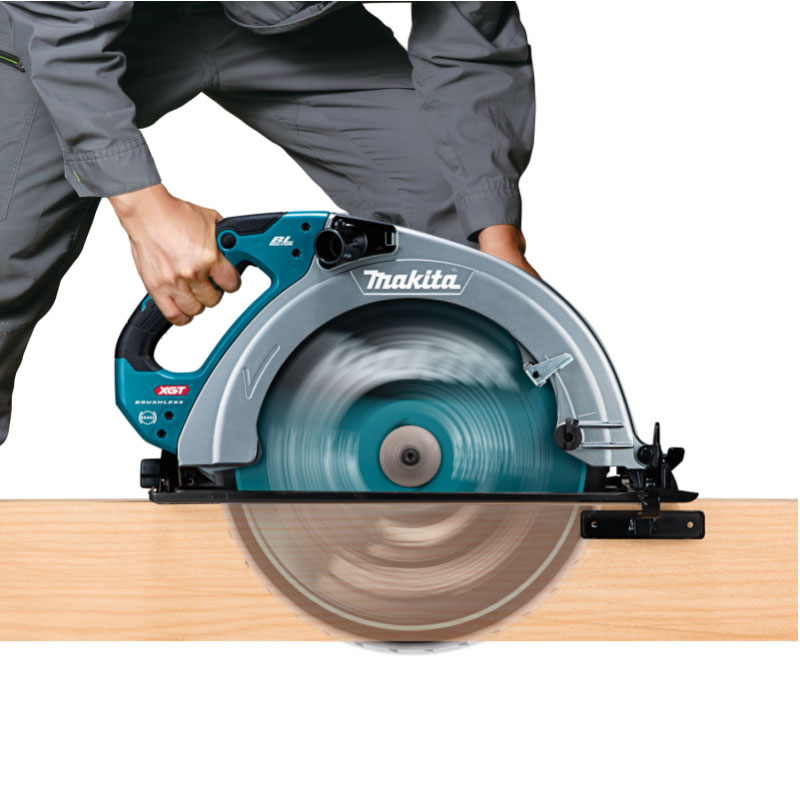

  •  High-Power Cutting Performance Achieves cutting capability equivalent to or greater than the 5402NA and top-tier corded competitors. Capable of cutting 6x timbers (max cutting depth: 158mm) in one pass. Powered by high-voltage XGT battery and BL motor (BL68-30). Optimized with EFFICUT saw blade for efficient, powerful cutting.
  •  World’s Largest Cordless Circular Saw As of August 2024, holds the title for the largest cordless model in its class.

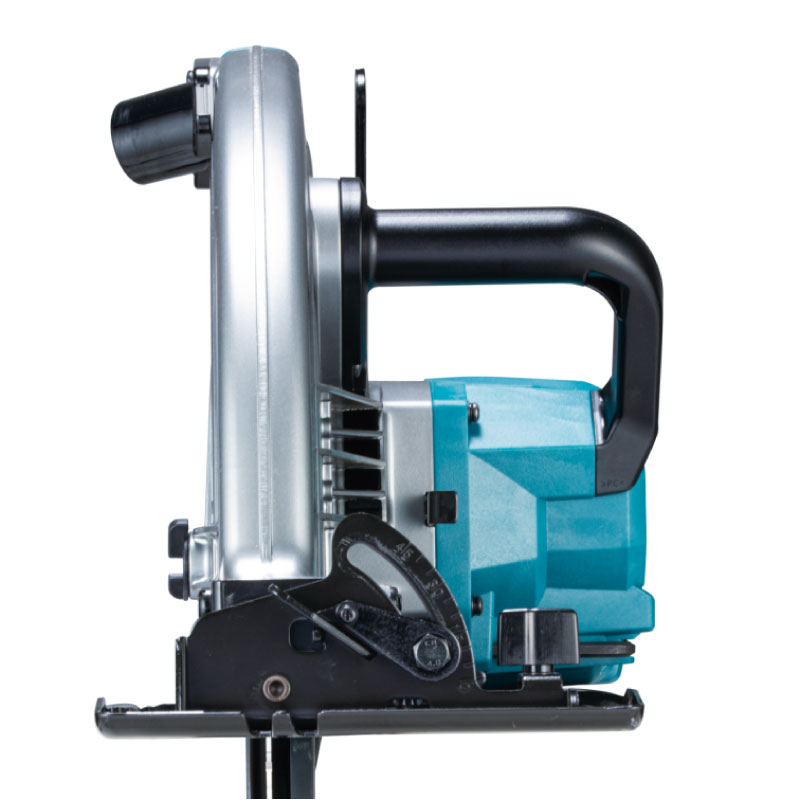

  •  Lightweight & Maneuverable Weight reduced by 1.5kg (compared to 5402NA with BL4050F battery) by switching motor housing from aluminum to durable resin. Slimmer design: 65mm narrower for improved handling and stability during maintenance.

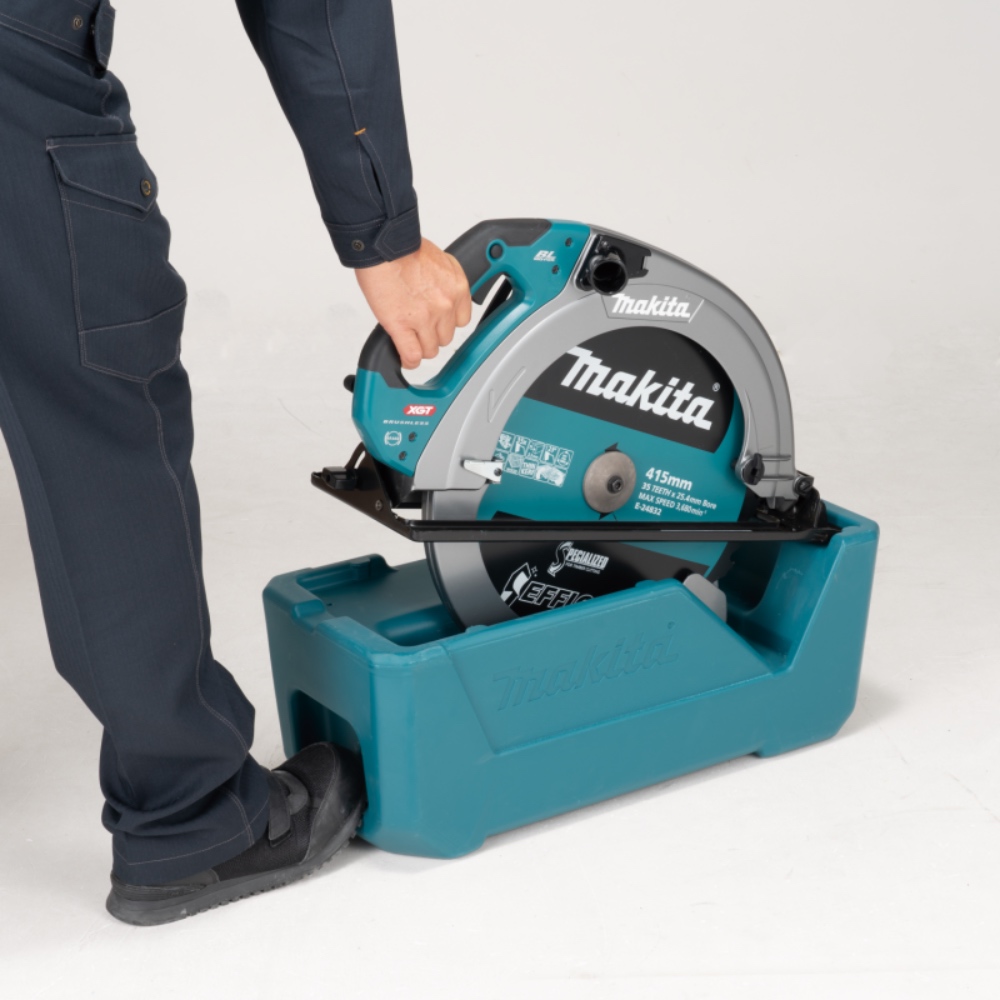

  •  Enhanced Usability Protective resin stand for safe storage and easy tool access. Stabilizing feature enables tool removal without bending. Electric brake, soft start, and anti-restart functions for improved safety and control.

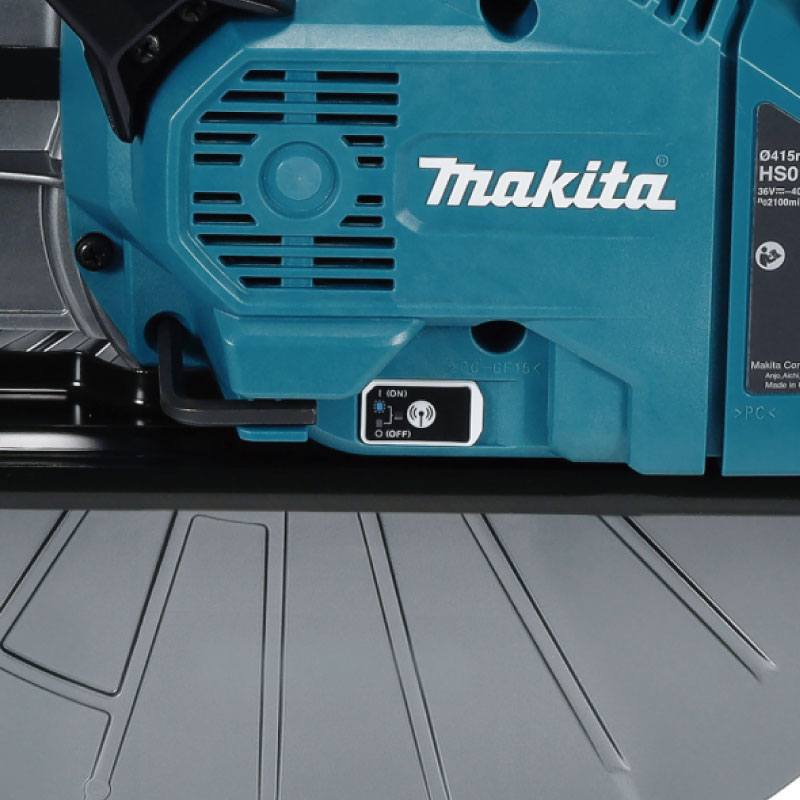

  •  Advanced Connectivity & Durability Auto-start Wireless System (AWS) connects via Bluetooth to compatible vacuum cleaners. XPT (eXtreme Protection Technology) ensures high water and dust resistance.
  • Precision Bevel Cutting Bevel capacity: 0 – 45° Right-side blade position for better visibility and cutting alignment.

Tool only, Not include batteries and chargers.


Technical specifications

No Load Speed 2,100 minˉ¹
Wheel Diameter 415 mm
Max Cutting Capacity 158 mm
Max Cutting Capacity 45° 106 mm
Dimensions (L x W x H) 606 x 233 x 476 mm
Net weight 11.0 - 12.0 kg
