DTC301
Cordless Crimper

DTC301 Parts List (1.42 MB)

DTC301 Leaflet (4.82 MB)

DTC301
Cordless Crimper

18V Cordless Crimper

  
Built-in-Job Light
Carrying Case

Features

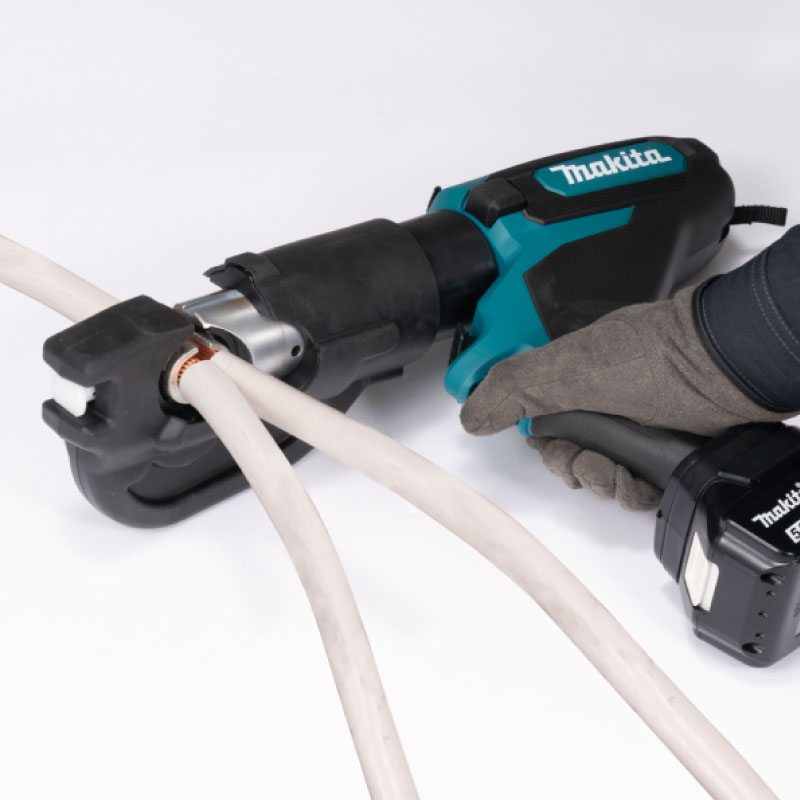

  • With a maximum crimping capacity of ø19.5 mm (300 mm²), this tool is capable of crimping terminals onto large-diameter electric wires.
  • Crimping capacity
    • Cu: ø19.5 mm (300 mm²)
    • Al: ø19.5 mm (300 mm²)
  • Auto retract function
    • The ram automatically retracts to its original position after completing the crimping operation, enhancing work efficiency.

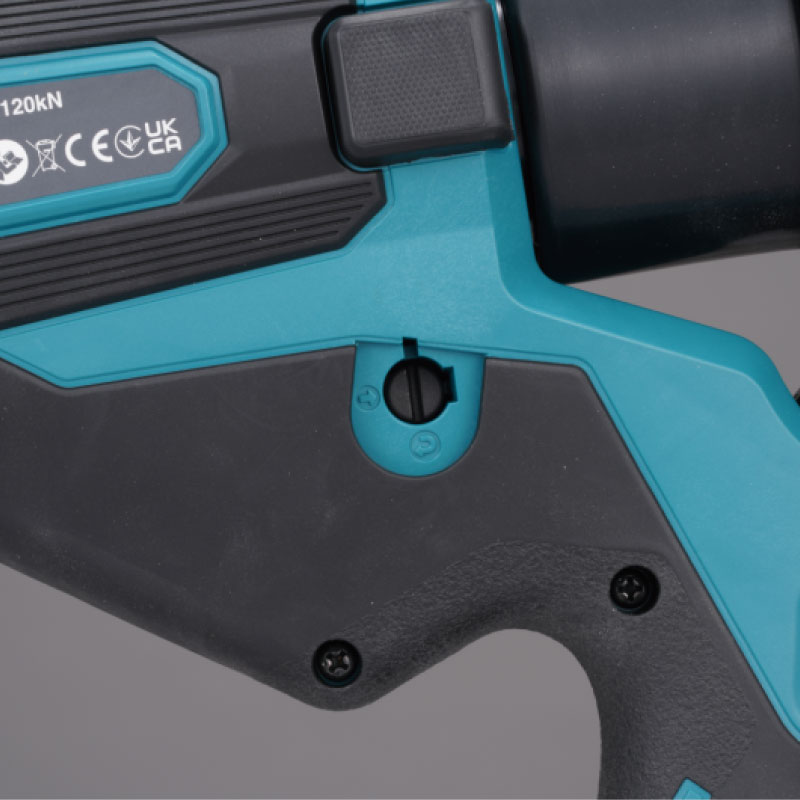

    • The On/Off setting of the auto retract function can be switched.

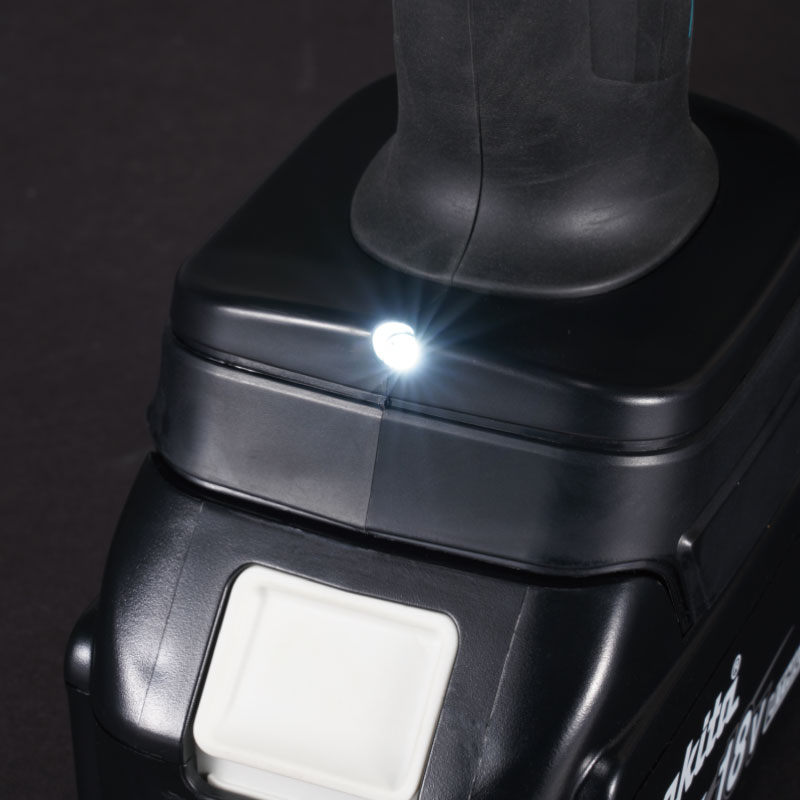

  • Single LED job light with afterglow function
  • Trigger-lock function to minimize accidental pulling of the switch trigger

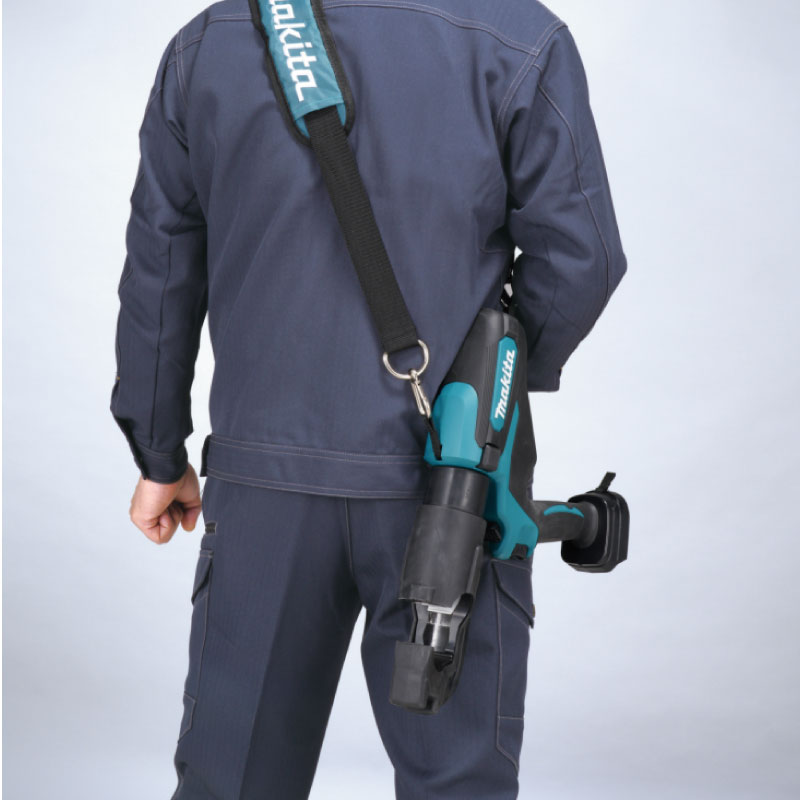

  • Straps for attaching the optional shoulder strap
  • Soft grip provides increased comfort during use

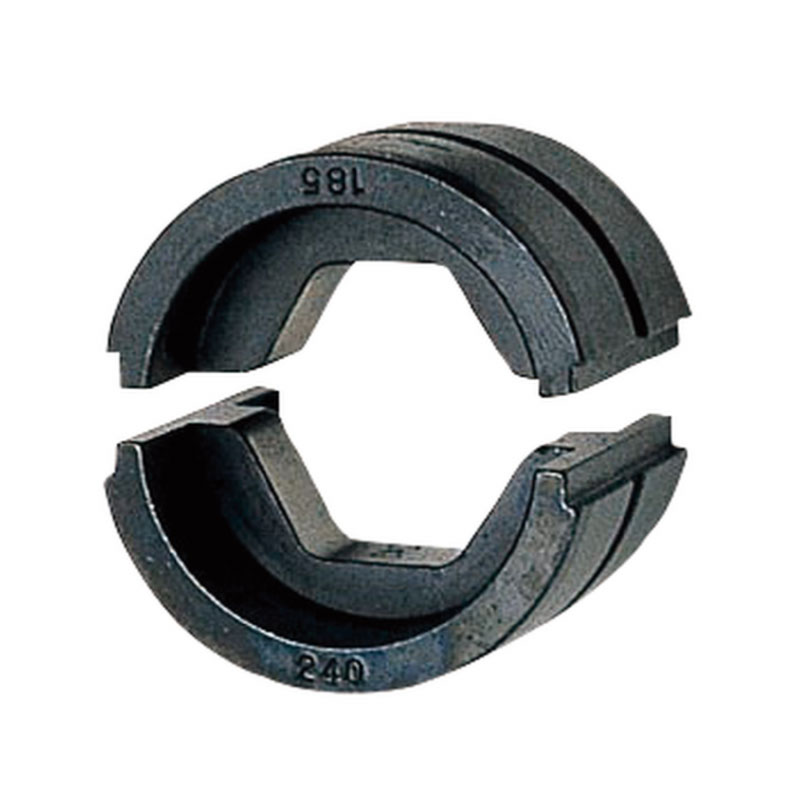

  • Thirteen types of crimping dies, compatible with DIN standards, are provided as optional accessories.


Parts List
(1.42 MB)


Leaflet
(4.82 MB)

Available options

DTC301ZK
Tool only   


Technical specifications

Output force 120 kN
Ram stroke length 31 mm
Crimping capacity Cu: ø19.5 mm / Al: ø19.5 mm
Dimensions (L x W x H) 415 x 92 x 346 mm
Net weight 6.8 - 7.1 kg
