DUP181
Cordless Pruning Shears

DUP181 Parts List (0.90 MB)

DUP181 Leaflet (13.89 MB)

DUP181
Cordless Pruning Shears

Cordless Pruning Shears 18V Brushless motor

  
Brake
Torque Limiter

Features

  • Overview:

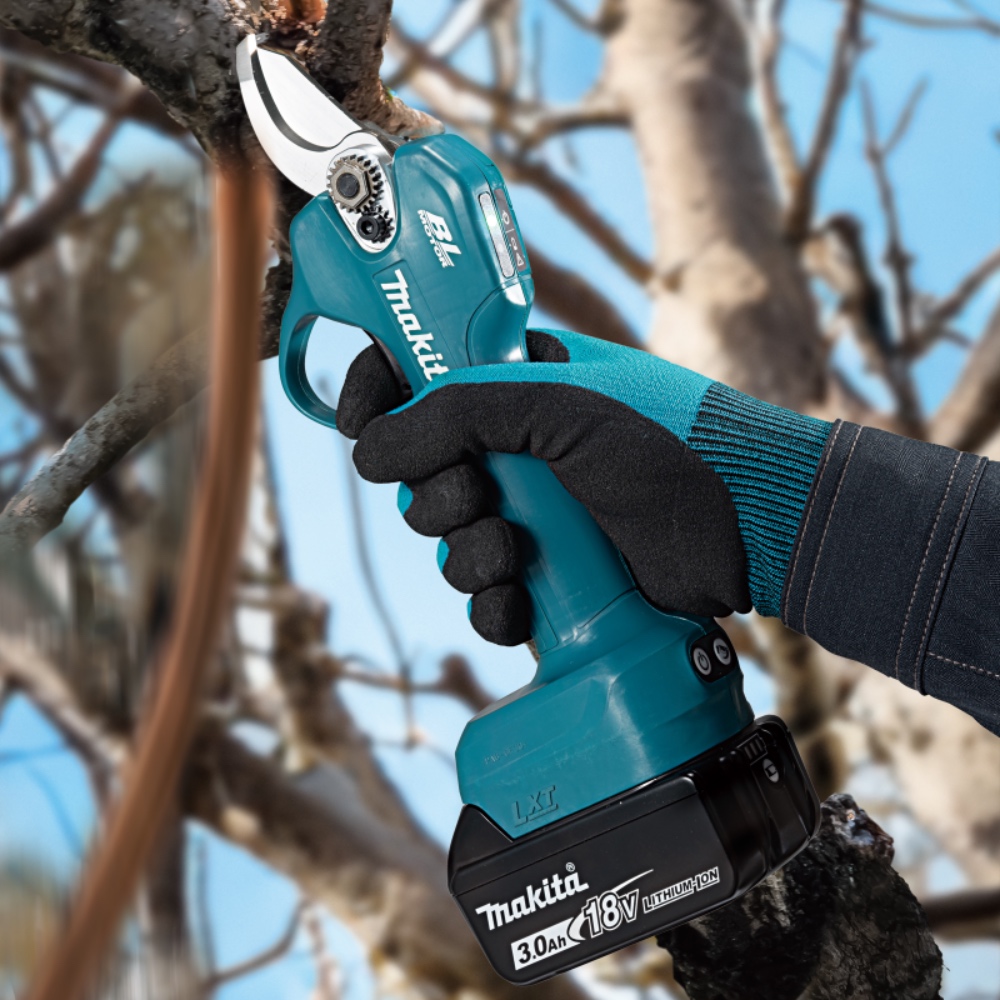

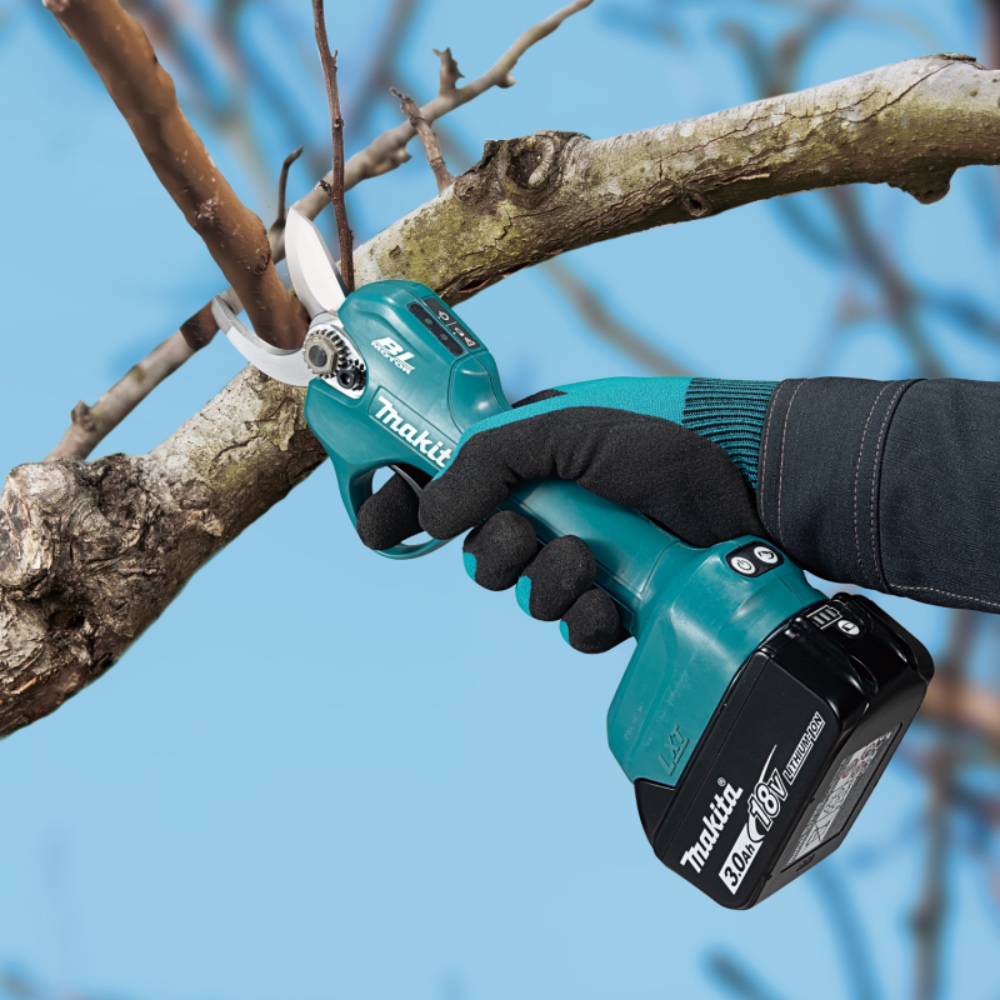

    The DUP181 is a pair of cordless pruning shears powered by an 18V LXT Li-Ion battery. Equipped with a brushless motor, this tool cuts branches up to 30 mm in diameter, weighs only 1.1 kg (with the BL1815N battery), provides a slim grip with a 125 mm circumference, offering smooth and effortless pruning.
  • The sensor built into the motor ensures smooth blade synchronization with the trigger and offers excellent trigger responsiveness even at low speeds for precise pruning.

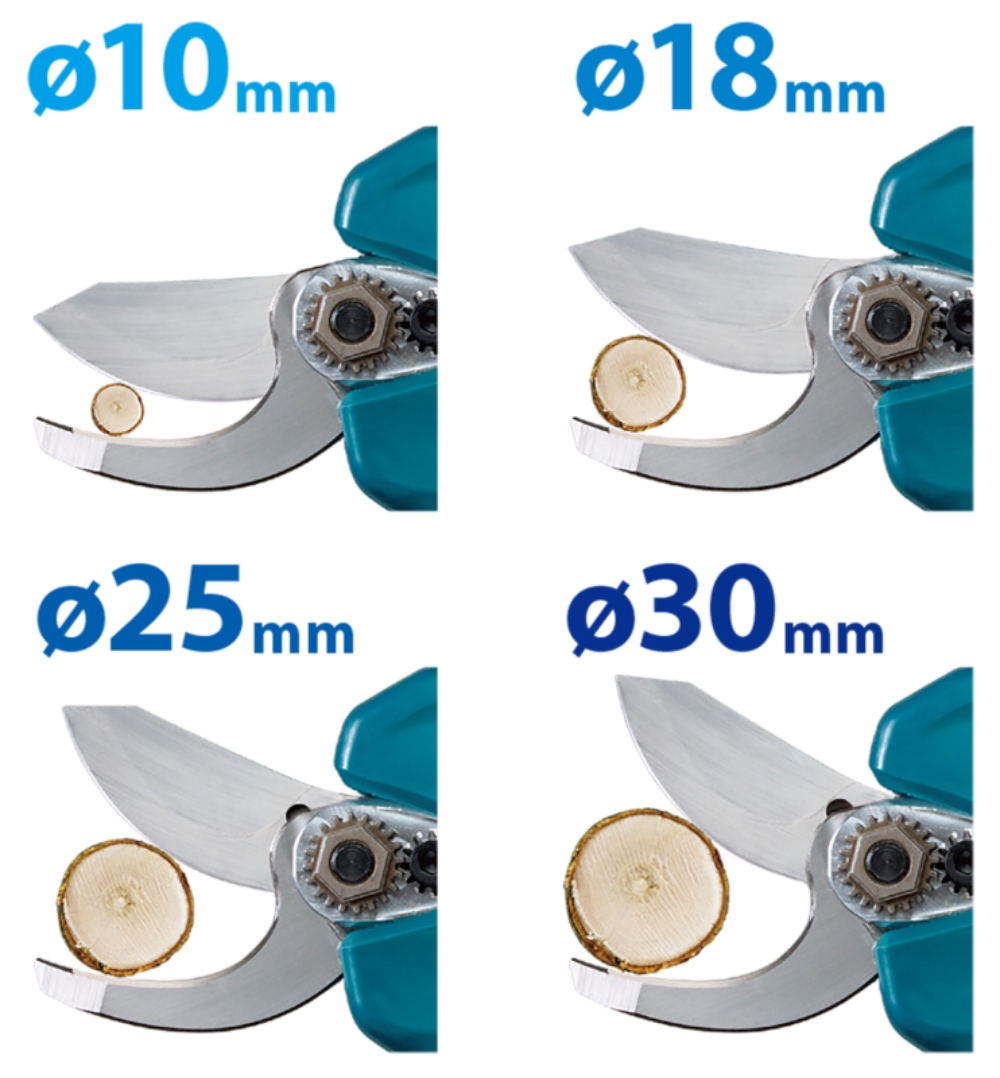

  • Four adjustable opening angles to suit different branch sizes for enhanced efficiency

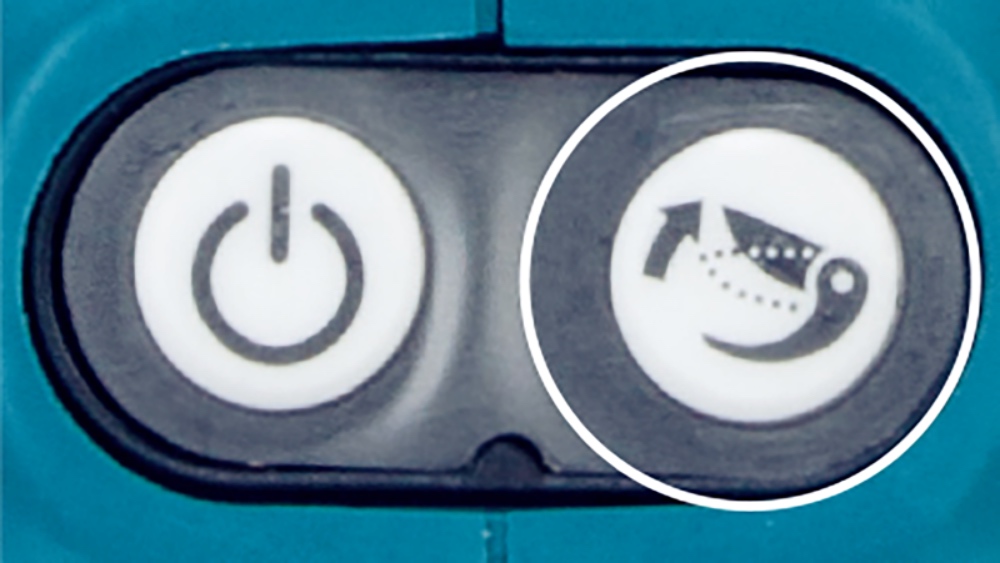

  • The standby mode is convenient for temporarily storing the tool in a holster between tasks.

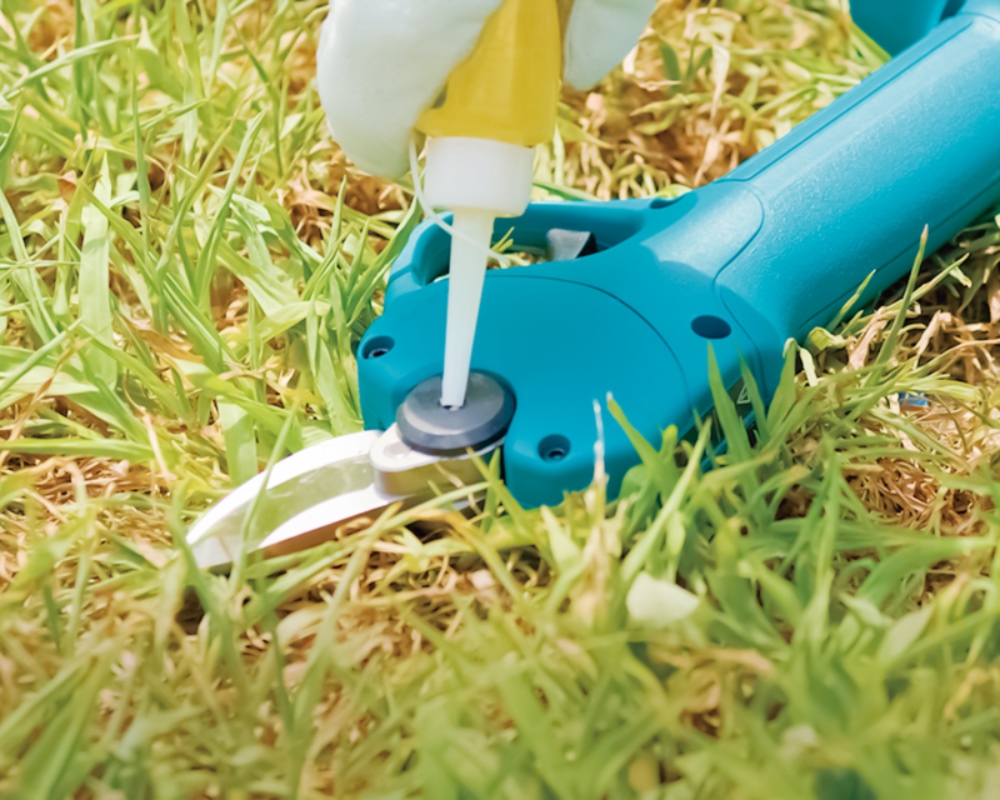

  • Lubricating oil can be applied from the outside without disassembly.
  • Cutting depth can be adjusted after blade replacement.
  • Lightweight design minimizes fatigue during extended use
  • The brushless motor provides longer work hours per charge and extended tool life.

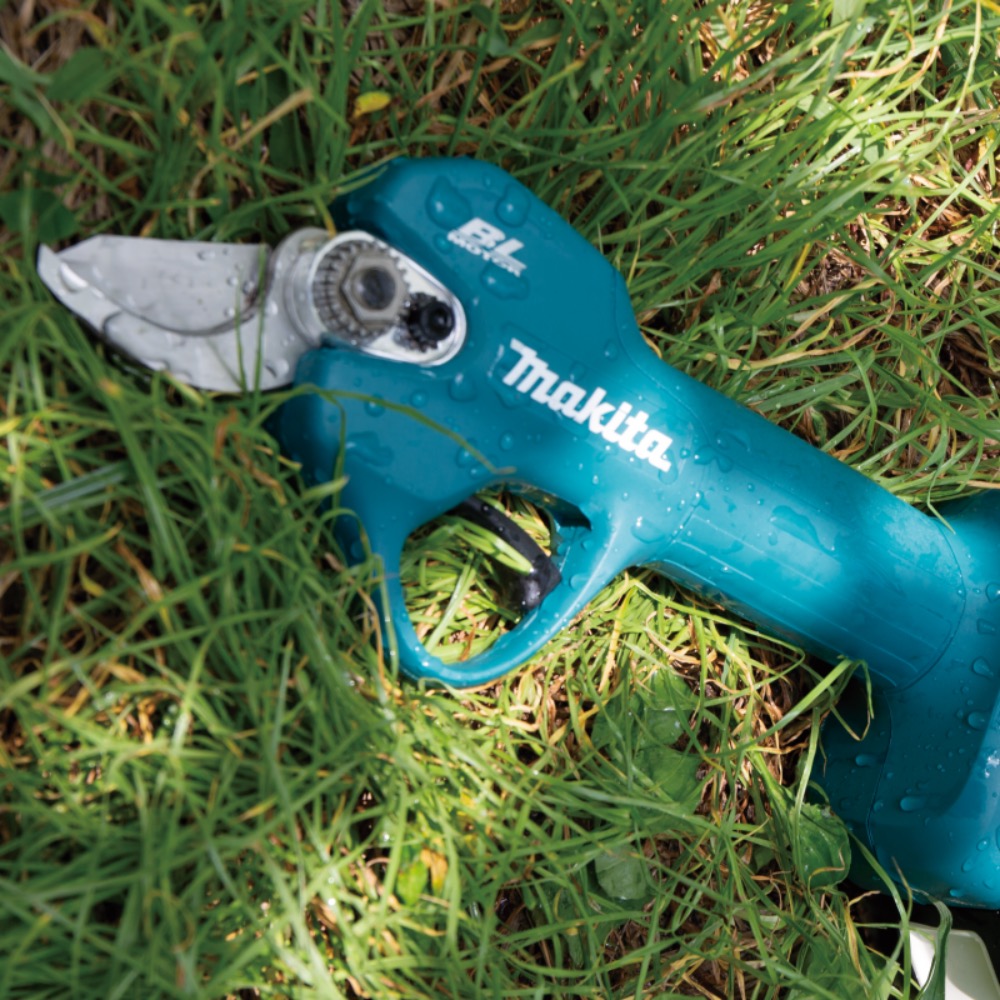

  • Water-resistance compatible with XPT
  • Electric brake that stops the blade for user protection
  • Battery protection circuit protects against overloading, over-discharging, and over-heating

Standard equipment : Blade cover, Hex wrench, Socket wrench


Parts List
(0.90 MB)


Leaflet
(13.89 MB)

Available options

DUP181Z
Tool only   


Technical specifications

Max Cutting Capacity 30 mm
Time from fully open to fully closed 0.34 sec
Work amount on a full battery charge BL1820B : 2,400 pcs
Dimensions (L x W x H) 300 x 75 x 113 mm
Net weight 1.1 - 2.1 kg
