DUP180
Battery Powered Pruning Shears

DUP180
Battery Powered Pruning Shears

18V Battery Powered Pruning Shears

  

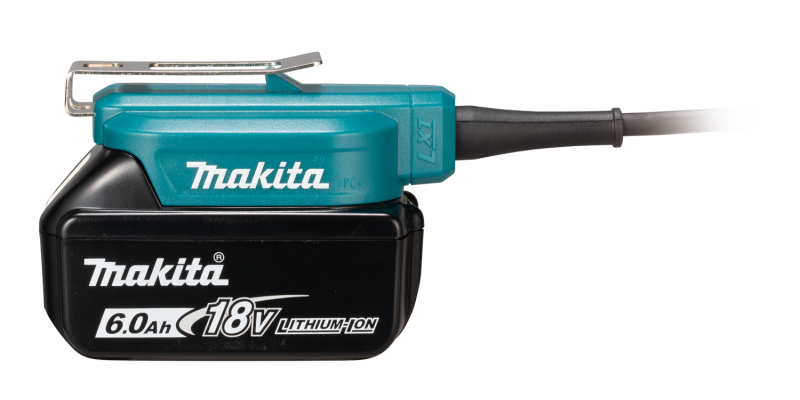

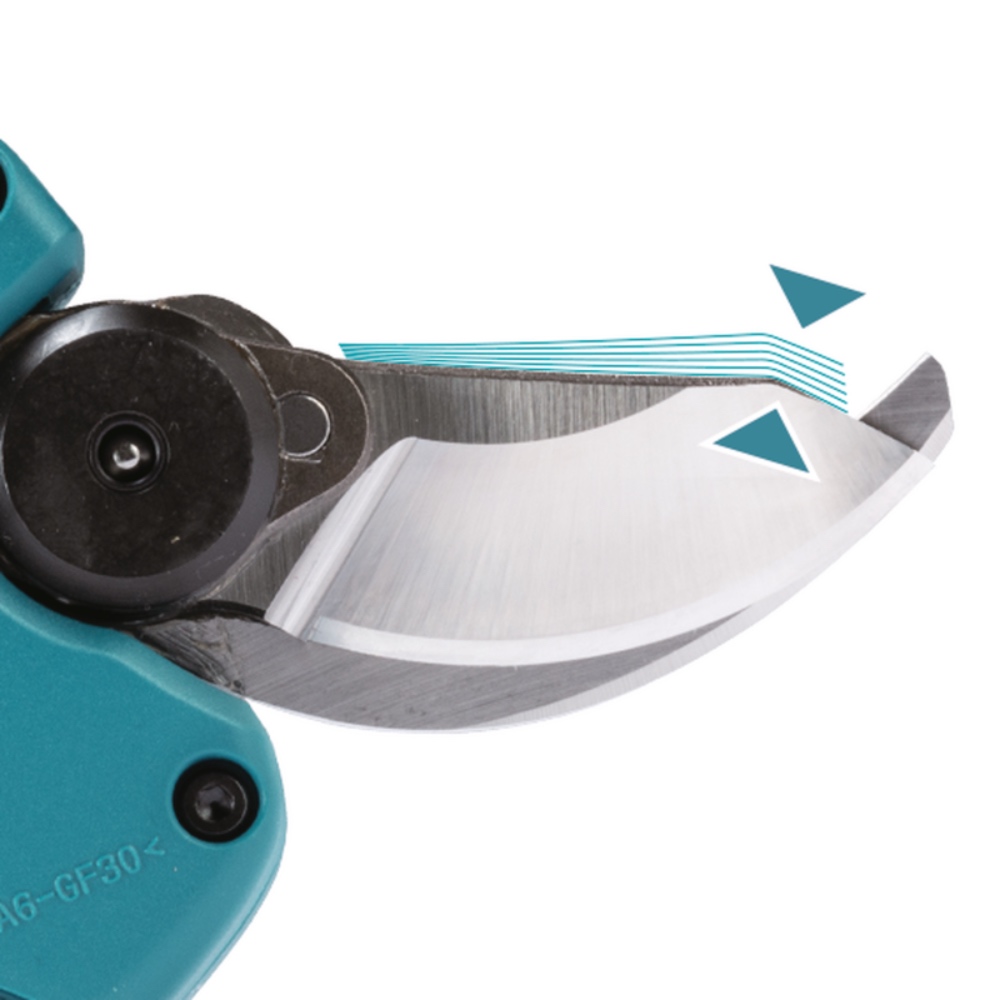

๐ Shear blade control is interlocked with Trigger for easier control of the blade ๐ Electronic adjustment of blade opening angle and overlap when closed ๐ Designed to be lightweight as the battery is connected via the battery adapter, reducing fatigue of user's arm during pruning ๐ The use of BL Coreless motor allows for reduction in the grip diameter and weight to reduce user's fatigue from pruning ๐ LED indicator mounted on the front of the body, allowing the status of the machine to be checked at a glance ๐ Two control buttons on the tool body ๐ Main power button and Blade opening angle adjustment button are located side by side on the rear of the grip for easier blade control ๐ External oil port ๐ Lubrication oil can be injected without disassembling the blade ๐ Adjustment of blade opening angle (by pressing and holding Blade opening angle adjustment button when fully closed) ๐ Adjustment of blade overlap when closed (by pressing and holding Blade opening angle adjustment button for 3 seconds or more when fully closed) ๐ XPT (eXtreme Protection Technology)/IPX1-compatible for improved dust and water resistance for operation in harsh conditions ๐ Motor protection circuit protects against overloading, over-discharging and over-heating ๐ Equipped with Torque limiter

Standard Equipments : Oil supply, Hex wrench, Socket wrench, Dressing stone, Holster


Technical specifications

Max Cutting Capacity 30 mm
Work amount on a full battery charge BL1860B : 8,000 pcs
Dimensions (L x W x H) 296 x 40 x 99 mm
Net weight 0.68 kg
Brake
Torque Limiter
Carrying Case
