(EN / TH)

UP100D
Cordless Pruning Shears

UP100D
Cordless Pruning Shears

12V max Cordless Pruning Shears

  

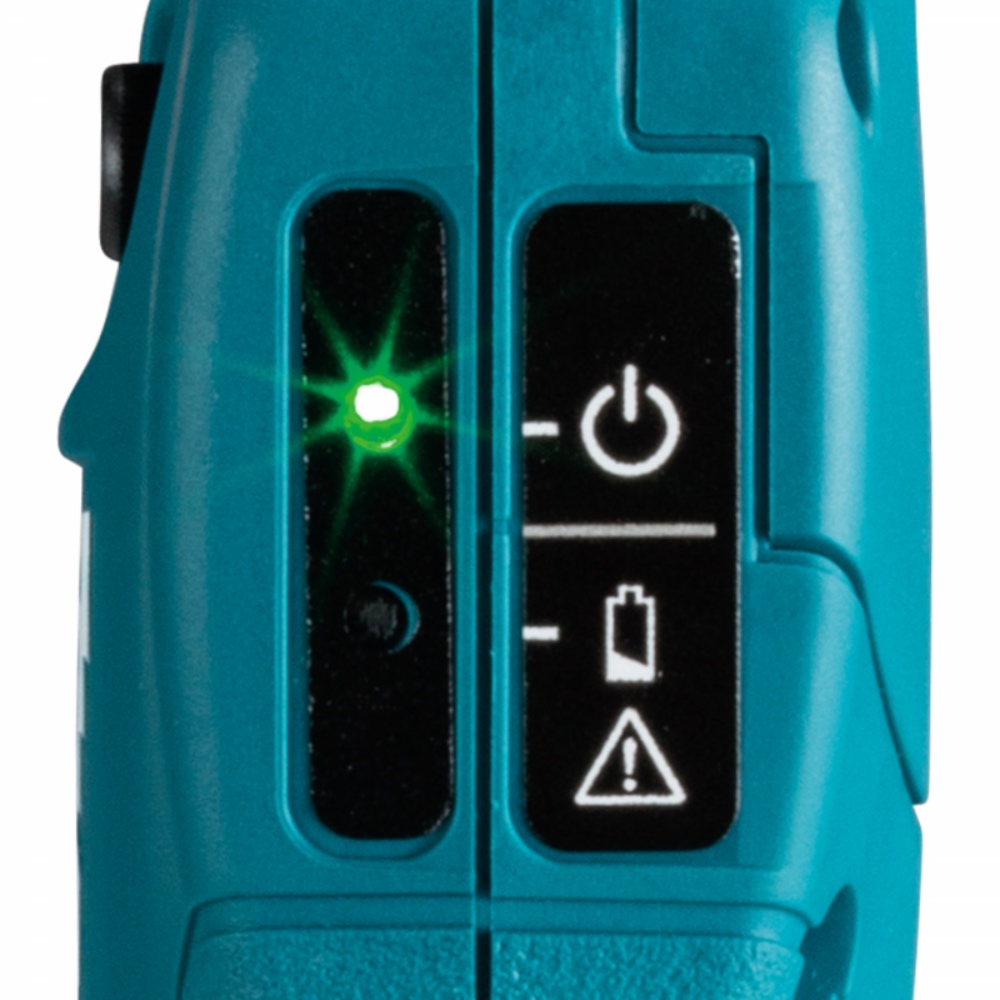

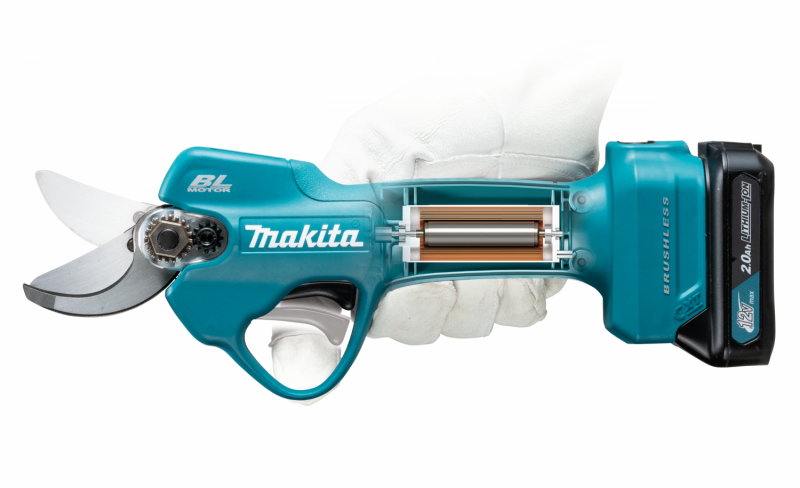

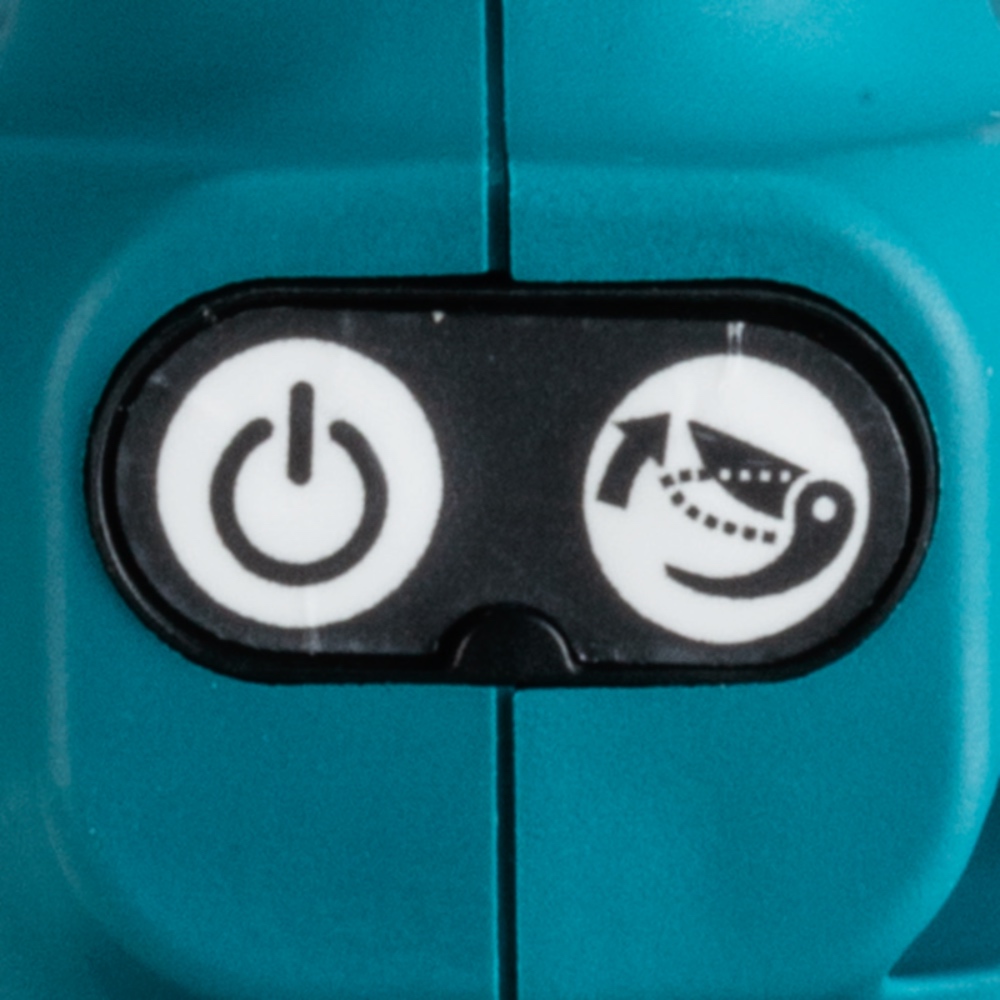

๐ Shear blade control is interlocked with Trigger for easier control of the blade ๐ Electronic adjustment of blade opening angle and overlap when closed ๐ Battery is attached directly to the tool body, providing higher maneuverability than models to which battery is connected via connector ๐ The use of BL Coreless motor allows for reduction in the grip diameter and weight to reduce user's fatigue from pruning ๐ LED indicator mounted on the front of the body, allowing the status of the machine to be checked at a glance ๐ Two control buttons on the tool body ๐ Main power button and Blade opening angle adjustment button are located side by side on the rear of the grip for easier blade control ๐ External oil port ๐ Lubrication oil can be injected without disassembling the blade ๐ Adjustment of blade opening angle (by pressing and holding Blade opening angle adjustment button when fully closed) ๐ Adjustment of blade overlap when closed (by pressing and holding Blade opening angle adjustment button for 3 seconds or more when fully closed) ๐ Torque limiter ๐ XPT (eXtreme Protection Technology)/IPX1-compatible for improved dust and water resistance for operation in harsh conditions ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : Oil supply, Hex wrench, Socket wrench, Dressing stone, Holster, Battery, Charger


Technical specifications

Max Cutting Capacity 25 mm
Time from fully open to fully closed 0.4 sec
Work amount on a full battery charge BL1021B : 2,200 pcs (ø15 mm)
Dimensions (L x W x H) 259 x 53 x 98 mm
Net weight 0.89 - 1.1 kg
Carrying Case
