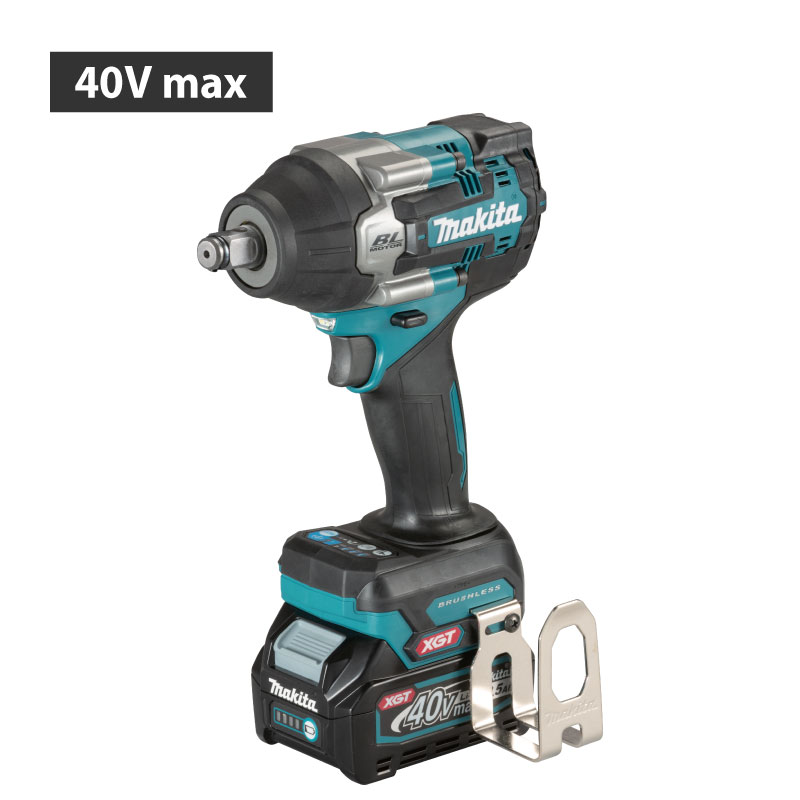

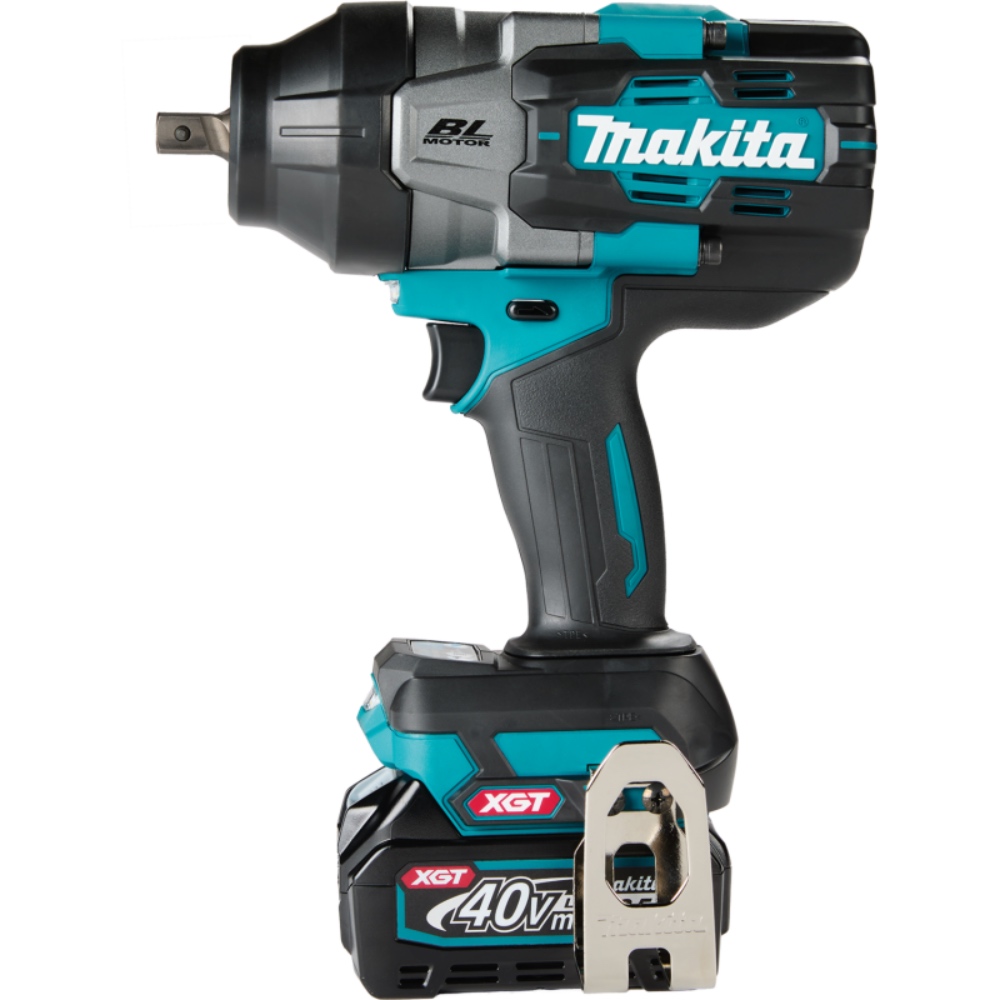

TW003G

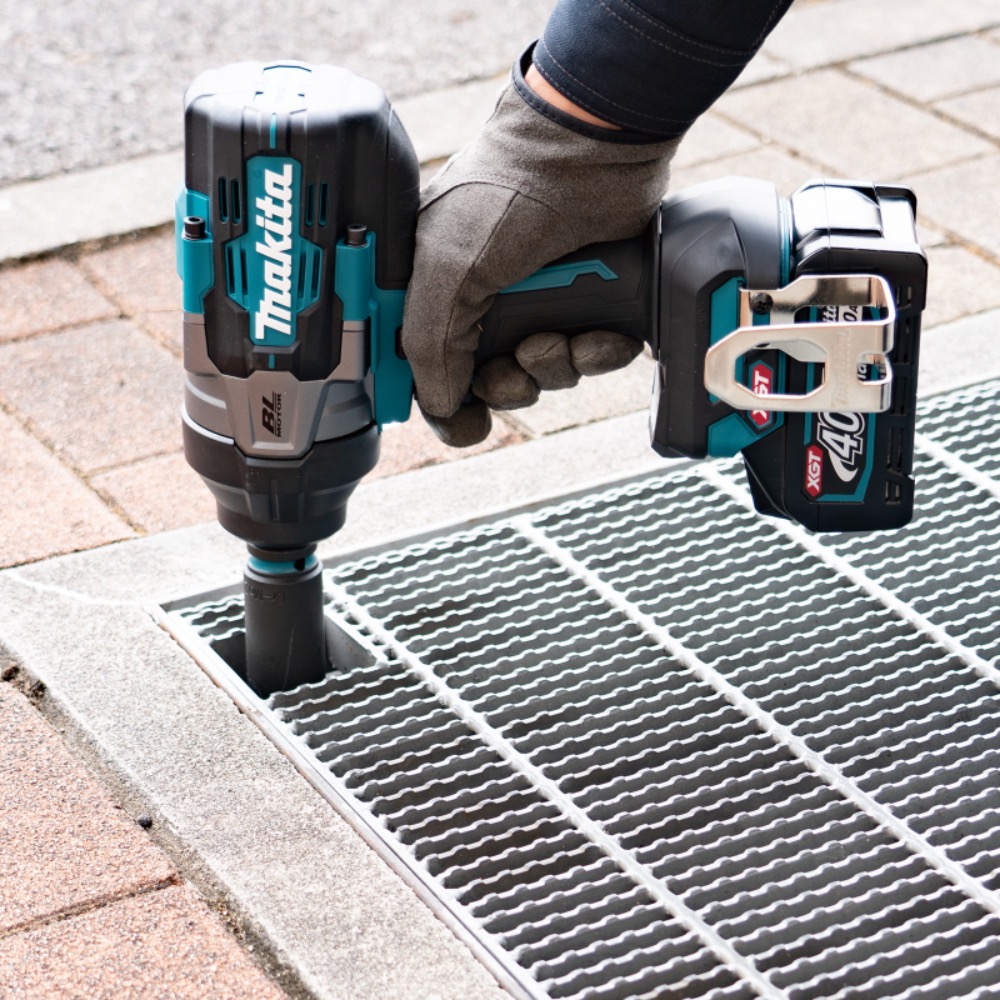

Cordless Impact Wrench

TW003G
Cordless Impact Wrench

40Vmax Cordless Impact Wrench 1/2" 1,360 N·m

  
Variable Speed
Brake
Reversing
Electronic 4-Speed
Constant Speed
Built-in-Job Light

Features

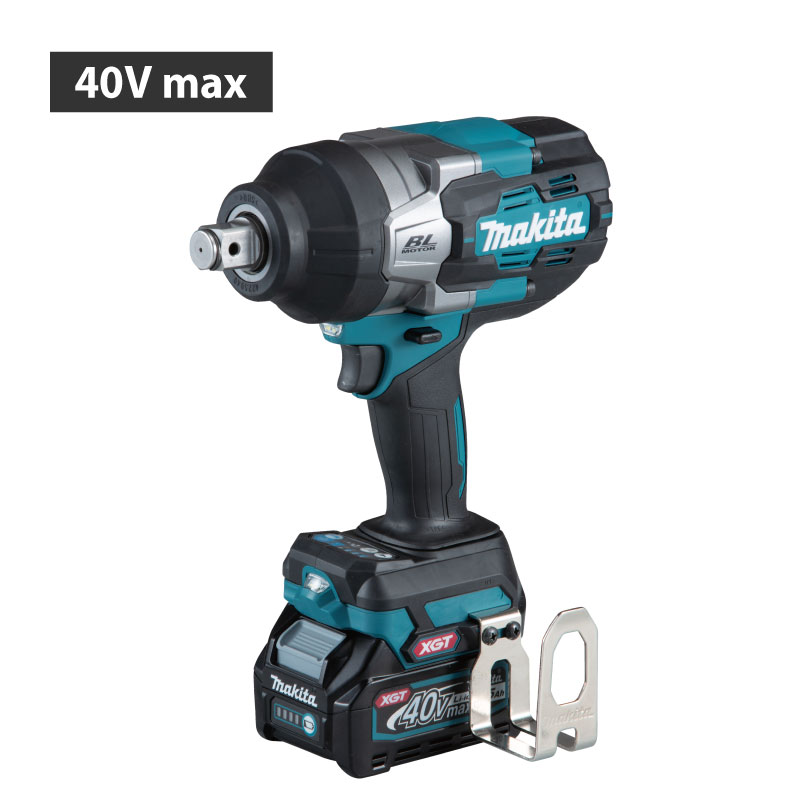

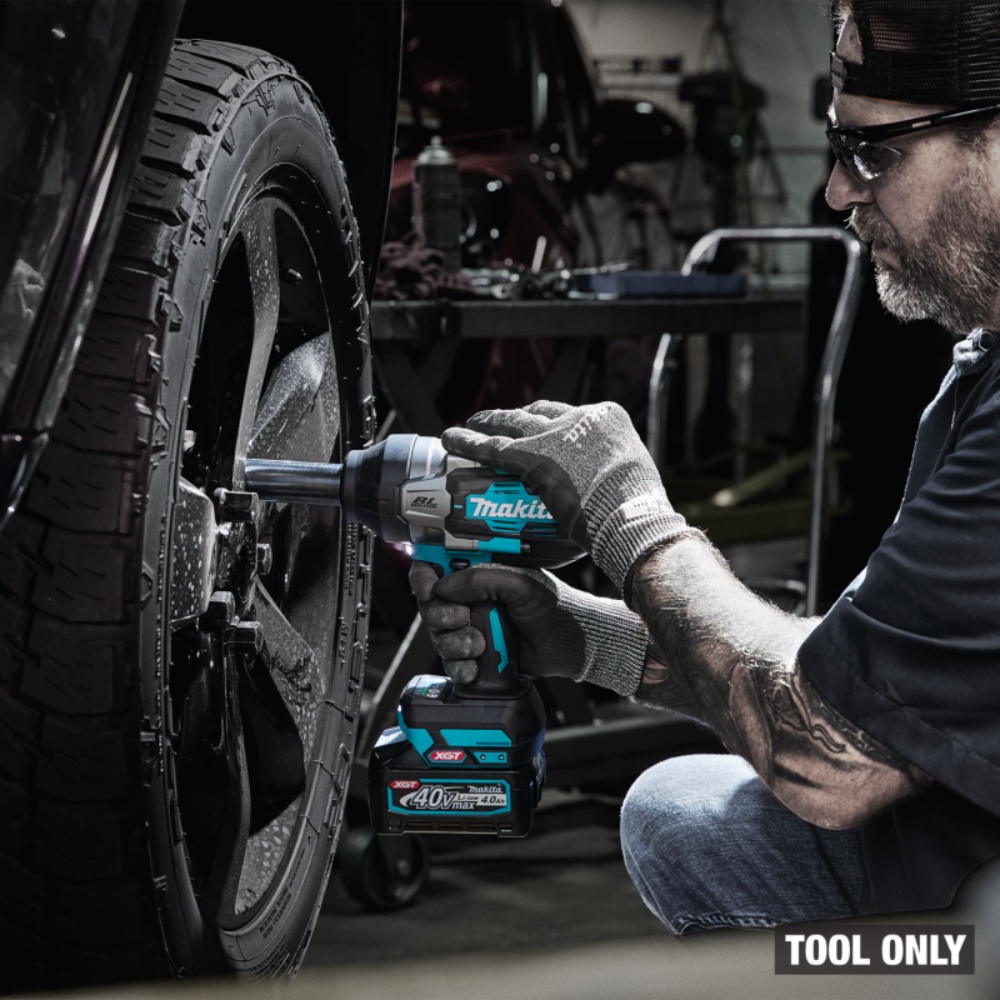

  • This model has been developed based on TW001G, and the tip shape of the anvil has been changed from the 19mm (3/4") square drive to a 12.7mm (1/2") square drive, making the tool suitable for tasks such as chassis maintenance and construction site work, where the 12.7mm (1/2") square drive and high torque are used.
  • High torque but compact overall length for easy handling and control

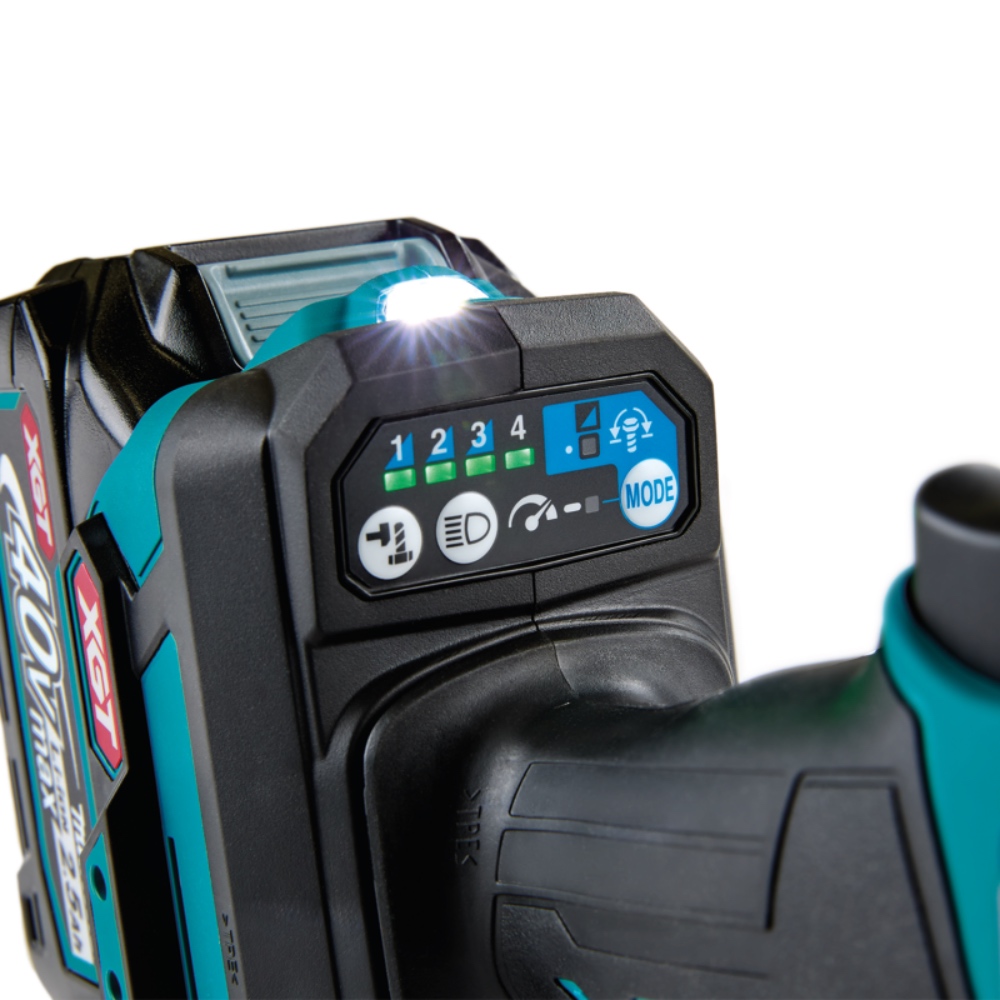

  • Electronic 4 stage impact power selection for added versatility
  • 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
  • Style of socket retention: C ring
  • Reverse Rotation Auto Stop Mode stops after the bolt/nut loosened enough

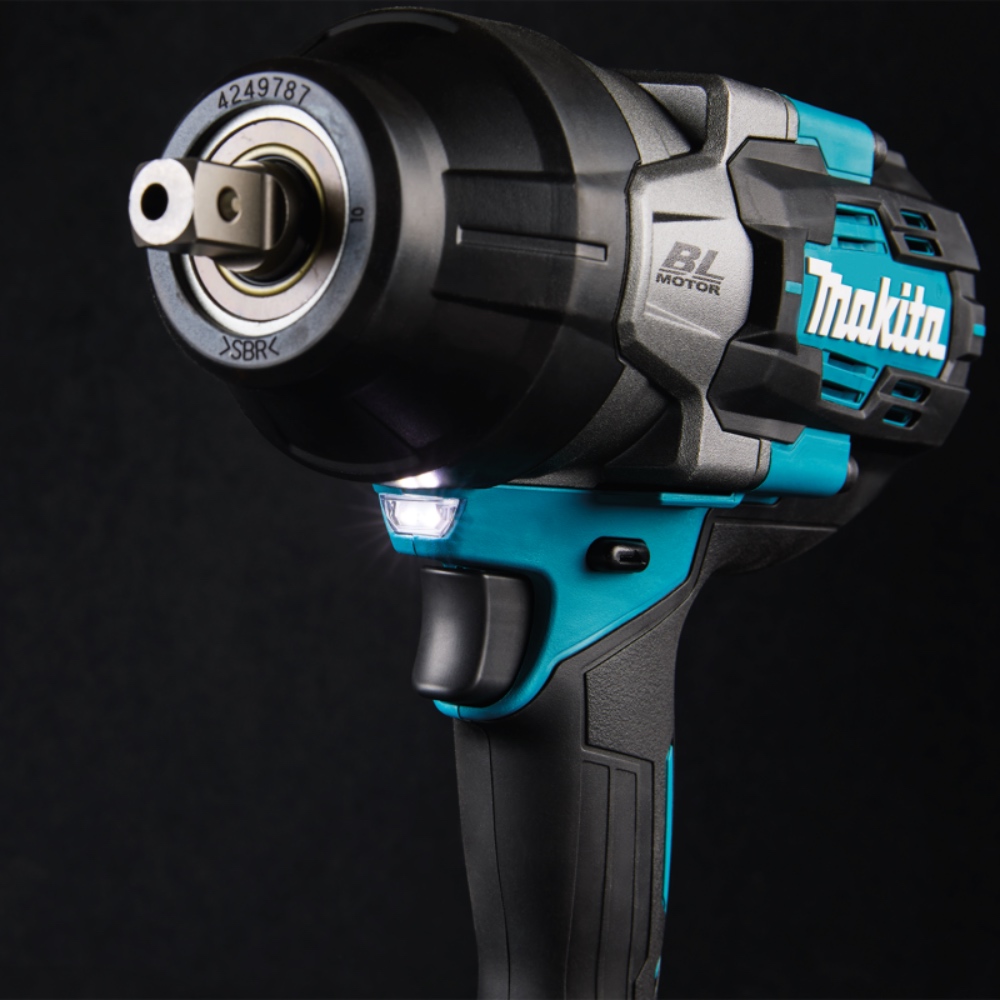

  • Twin LED job light ×2 with preglow and afterglow functions

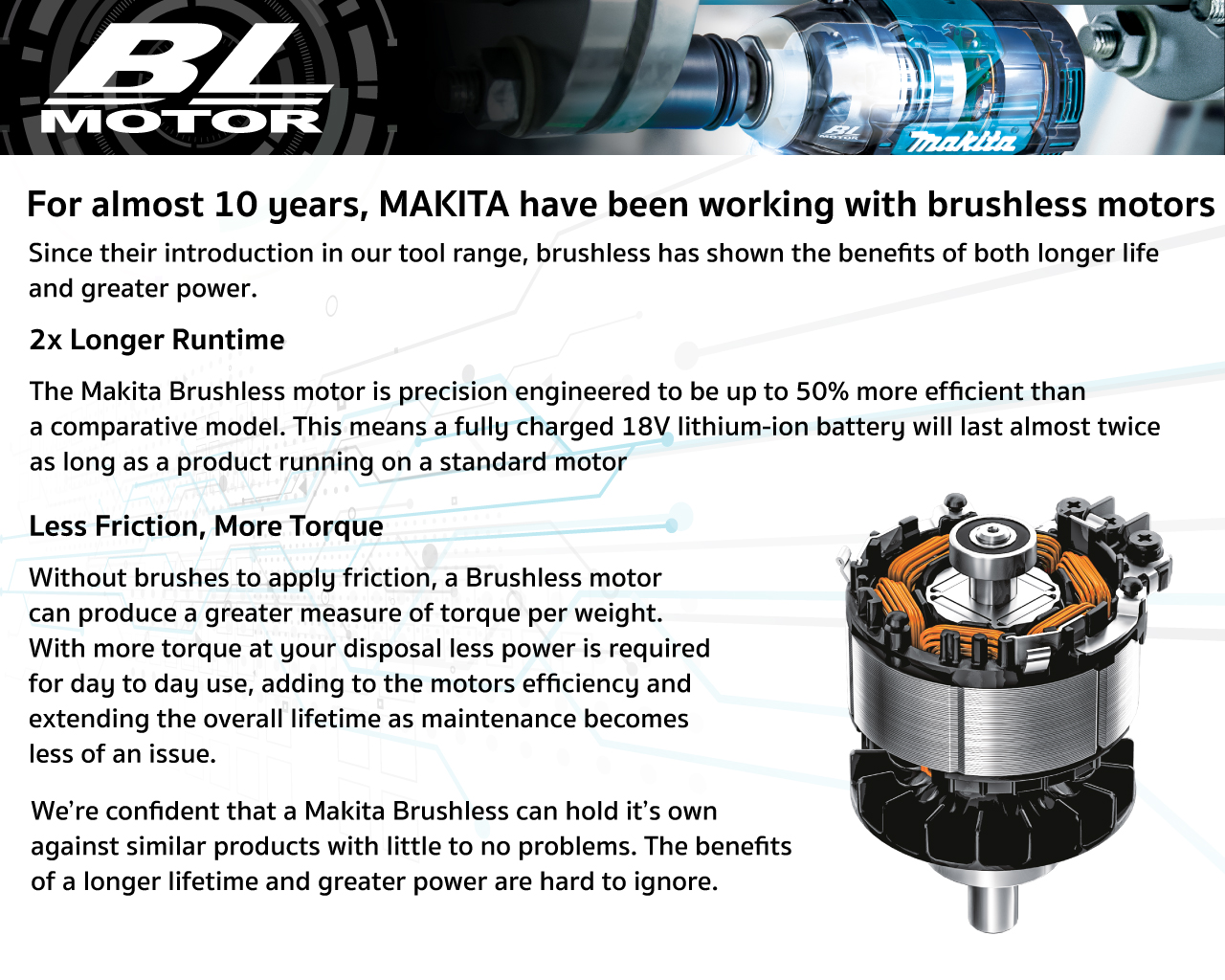

  • BL motor delivers 1,360 N·m (1,000 ft.lbs.) of max torque and 1,600 N∙m (1,180 ft.lbs.) of nut-busting torque ๐ BL motor is electronically controlled to optimize battery energy use for longer run time per charge
  • Excellent performance in continuous heavy duty applications
  • Ergonomically designed handle with rubberized soft grip
  • High water-resistance compatible with XPT
  • Electric brake stops the rotation gently but fast, allowing user to quickly resume operation ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Tool only, Not include batteries and chargers.


Technical specifications

Square drive 1/2" (12.7 mm)
No Load Speed Max / Hard / Med. / Soft: 0 - 1,800 / 0 - 1,200 / 0 - 1,000 / 0 - 800 minˉ¹
Impacts Per Minute Max / Hard / Med. / Soft: 0 - 2,400 / 0 - 2,300 / 0 - 2,000 / 0 - 1,600 minˉ¹ minˉ¹
Max fastening torque 1,360 N·m
Nut-busting torque 1,600 N·m
Dimensions (L x W x H) 213 x 94 x 297 mm
Net weight 3.8 - 5.0 kg
