(EN / TH)

TW002G

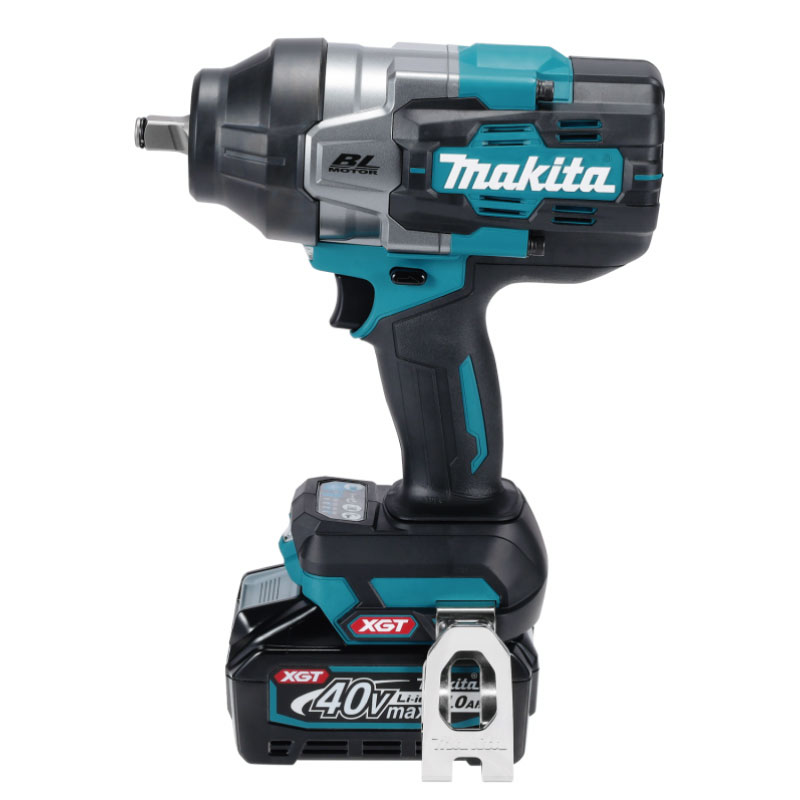

Cordless Impact Wrench

TW002G Parts List (0.94 MB)

TW002G Leaflet (4.86 MB)

TW002G
Cordless Impact Wrench

40Vmax Cordless Impact Wrench 1/2" 1,700 N·m

  
Variable Speed
Brake
Reversing
Electronic 4-Speed
Constant Speed
Built-in-Job Light

Features

  • 40Vmax XGT BL Cordless 1/2" (12.7 mm) 1,700 N·m (1,250 ft.lbs.) Impact Wrench, Reverse Rotation Auto Stop Mode

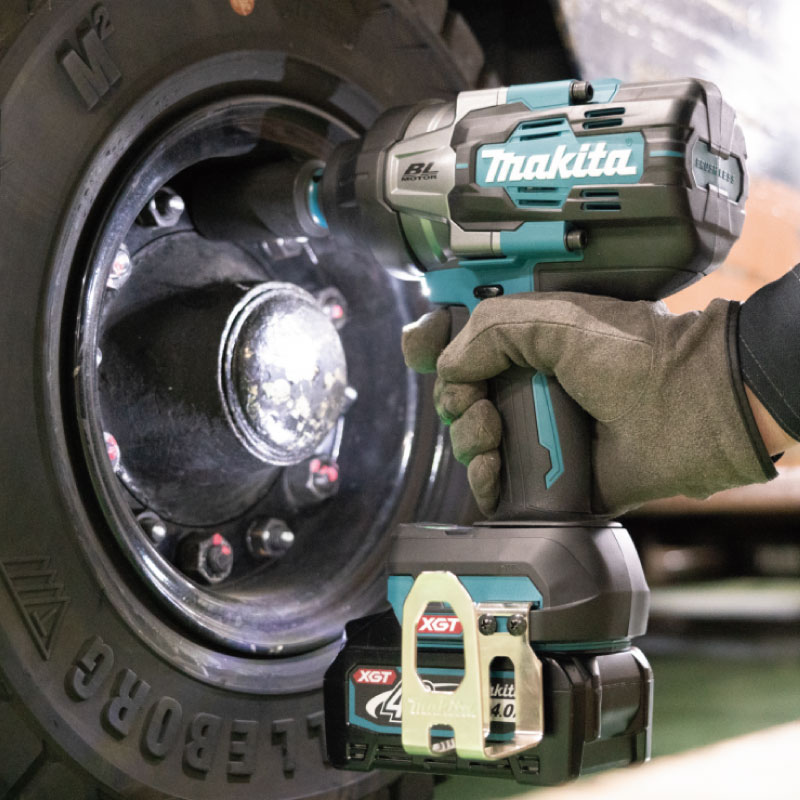

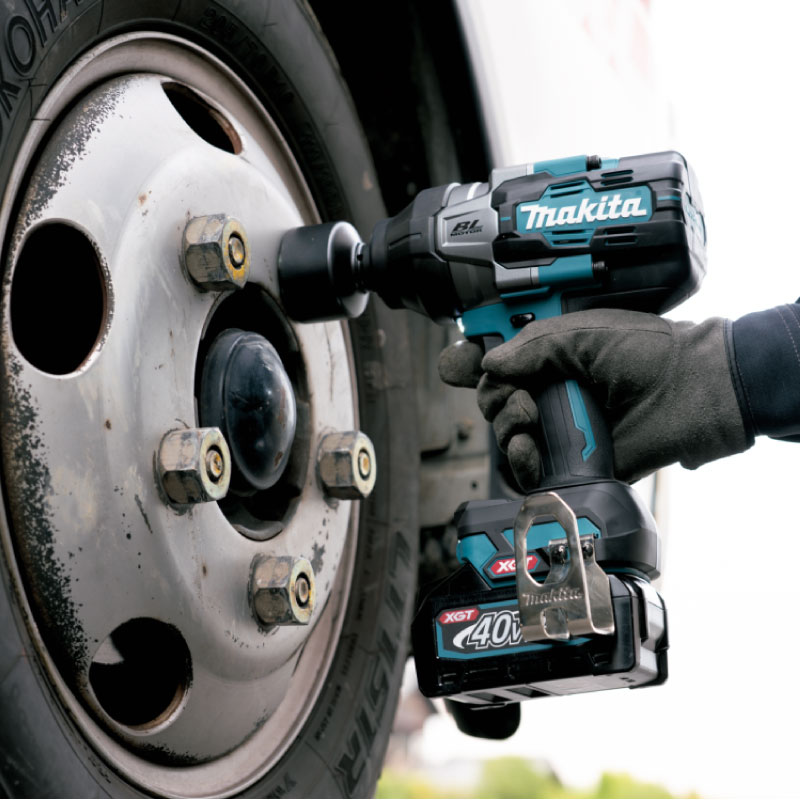

  • This model has been developed based on TW001G, and the tip shape of the anvil has been changed from the 19mm (3/4") square drive to a 12.7mm (1/2") square drive, making the tool suitable for tasks such as chassis maintenance and construction site work, where the 12.7mm (1/2") square drive and high torque are used.
  • High torque but compact overall length for easy handling and control

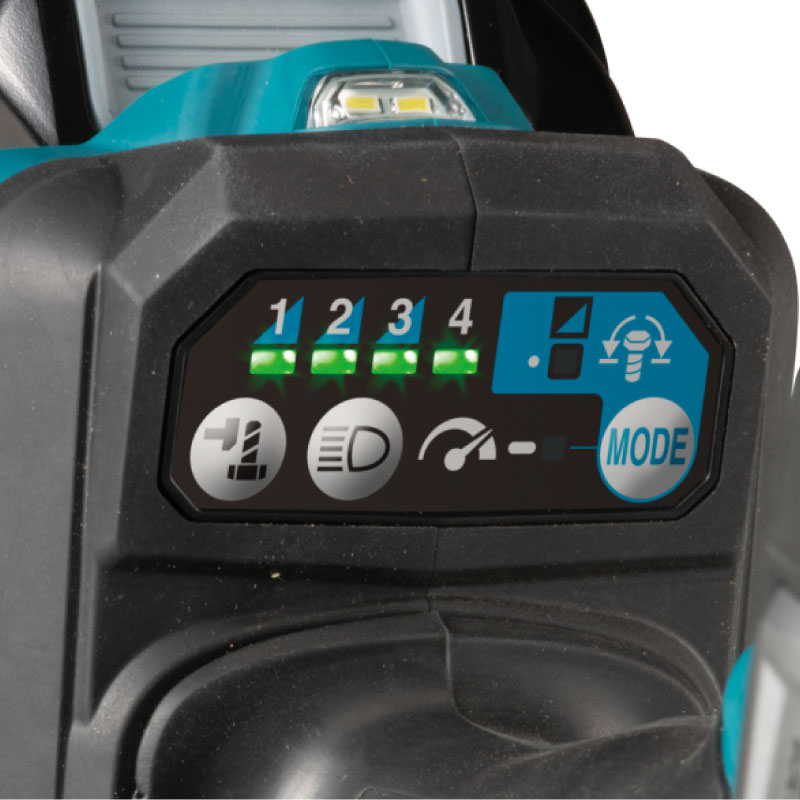

  • Electronic 4 stage impact power selection for added versatility
  • 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
  • Trigger switch with full speed mode allows for less hand and finger fatigue
  • Style of socket retention: C ring
  • Reverse Rotation Auto Stop Mode stops after the bolt/nut loosened enough

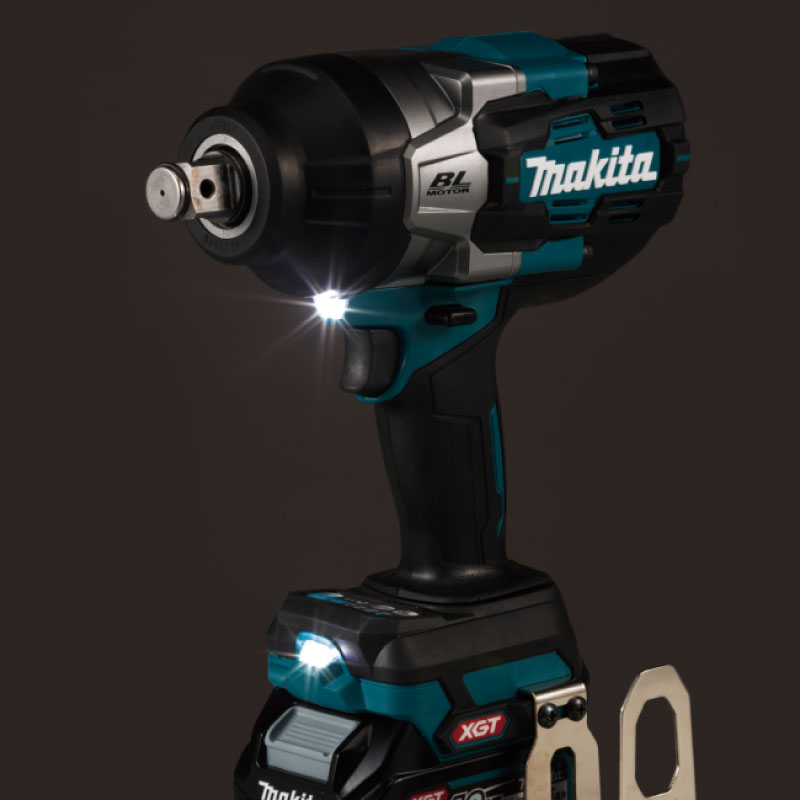

  • Twin LED job light ×2 with preglow and afterglow functions
    Even when a large socket of M27 or larger is attached to the tool, another LED job light added above the battery provides bright illumination on the socket and workpiece.
  • Powered by 40Vmax XGT Li-Ion battery
  • BL motor delivers 1,700 N·m (1,250 ft.lbs.) of max torque and 2,200 N∙m (1,620 ft.lbs.) of nut-busting torque
  • BL motor is electronically controlled to optimize battery energy use for longer run time per charge
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • Excellent performance in continuous heavy duty applications
  • Ergonomically designed handle with rubberized soft grip
  • High water-resistance compatible with XPT
  • Electric brake stops the rotation gently but fast, allowing user to quickly resume operation
  • Reversing switch is conveniently located
  • Durable, reversible hook convenient for temporary tool hanging
  • Battery protection circuit protects against overloading, over-discharging and over-heating

Standard equipment : Belt clip


Parts List
(0.94 MB)


Leaflet
(4.86 MB)

Available options

TW002GZ
Tool only


Technical specifications

Square drive 1/2" (12.7 mm)
No Load Speed Max / Hard / Med. / Soft: 0 - 1,800 / 0 - 1,000 / 0 - 900 / 0 - 850 minˉ¹
Impacts Per Minute Max / Hard / Med. / Soft: 0 - 2,400 / 0 - 2,000 / 0 - 1,800 / 0 - 1,700 minˉ¹
Max fastening torque 1,700 N·m
Nut-busting torque 2,200 N·m
Dimensions (L x W x H) 213 x 94 x 297 mm
Net weight 3.9 - 5.1 kg
