TW004G

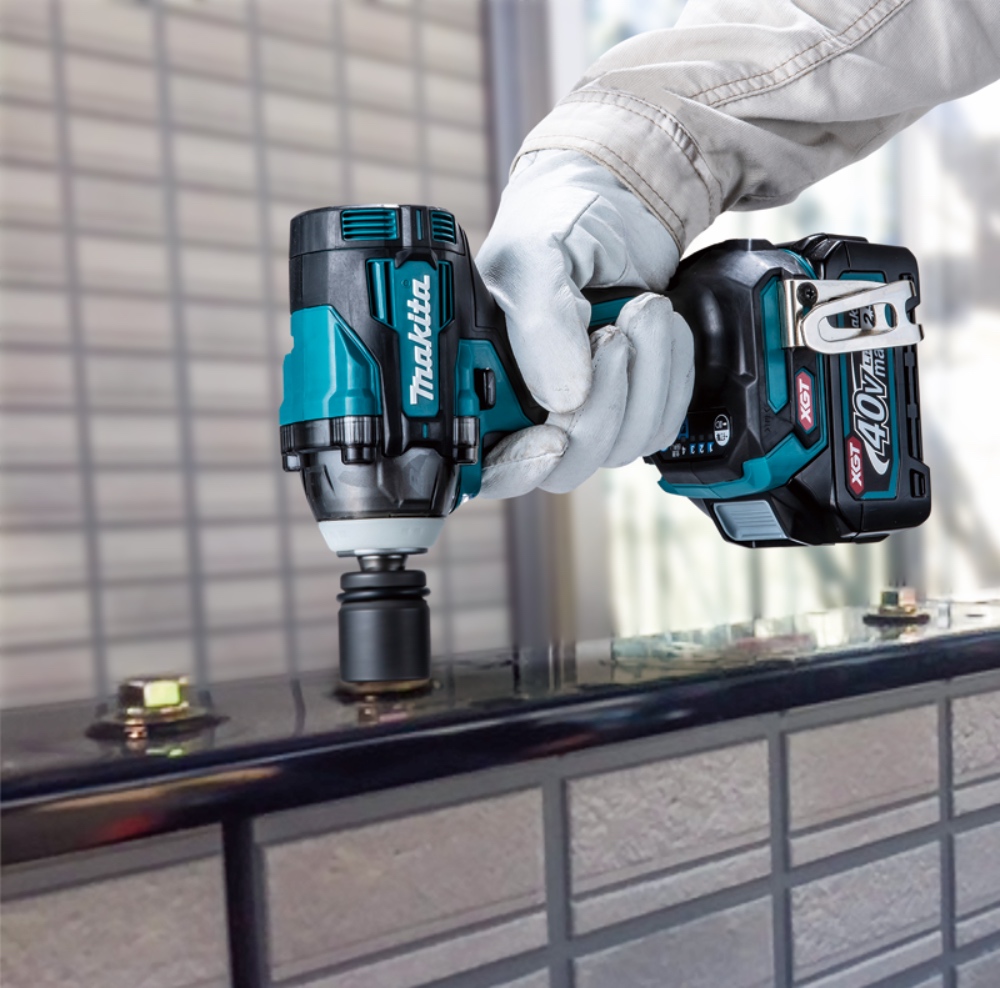

Cordless Impact Wrench

40Vmax XGT BL Cordless 1/2" (12.7 mm) 350 N·m (260 ft.lbs.) Impact Wrench, Forward/Reverse Rotation Auto Stop Mode
Increased motor speed under load delivers higher torque than DTW300 and DTW301

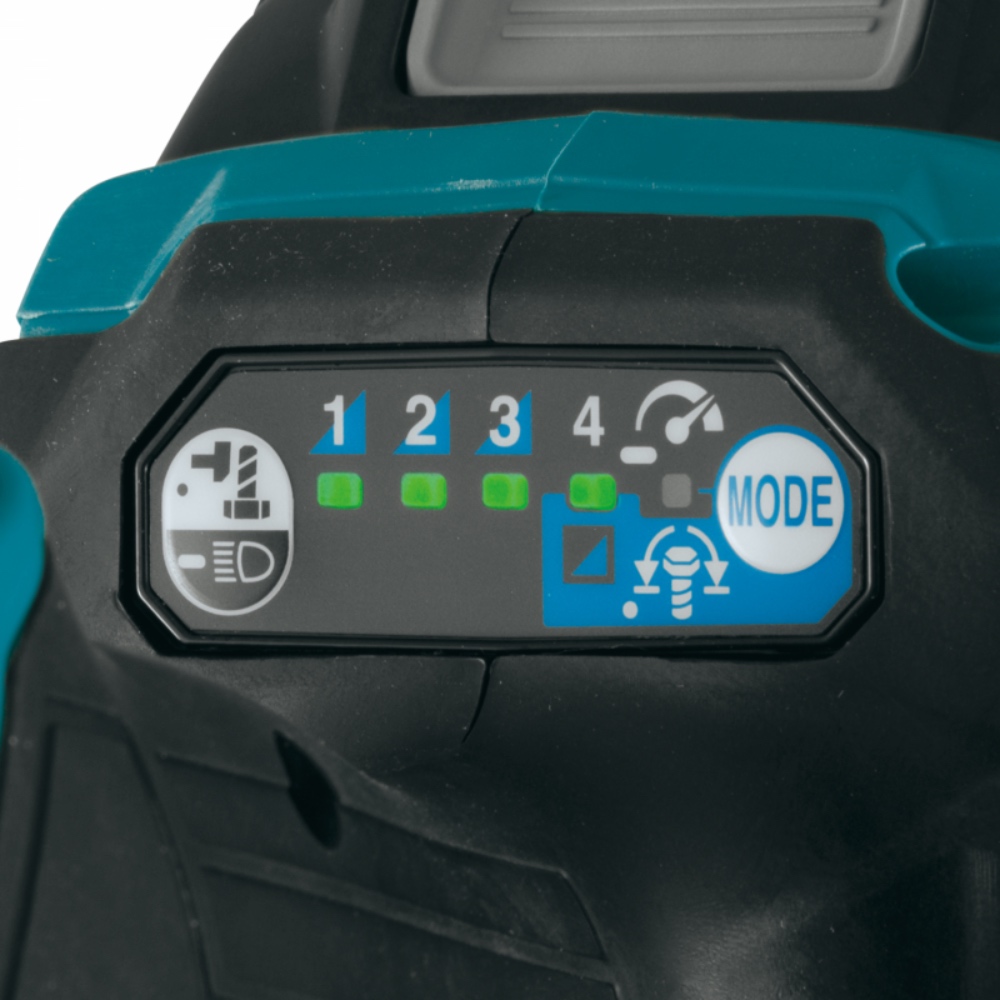

Electronic 4 stage impact power selection for added versatility
3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
Trigger switch with full speed mode allows for less hand and finger fatigue
Compact design with a short overall length of 144 mm
Constant speed control maintains fastening torque by minimizing the rotation speed reduction caused by decreased battery capacity
Style of socket retention: C ring
Reverse Rotation Auto Stop Mode stops after the bolt/nut loosened enough

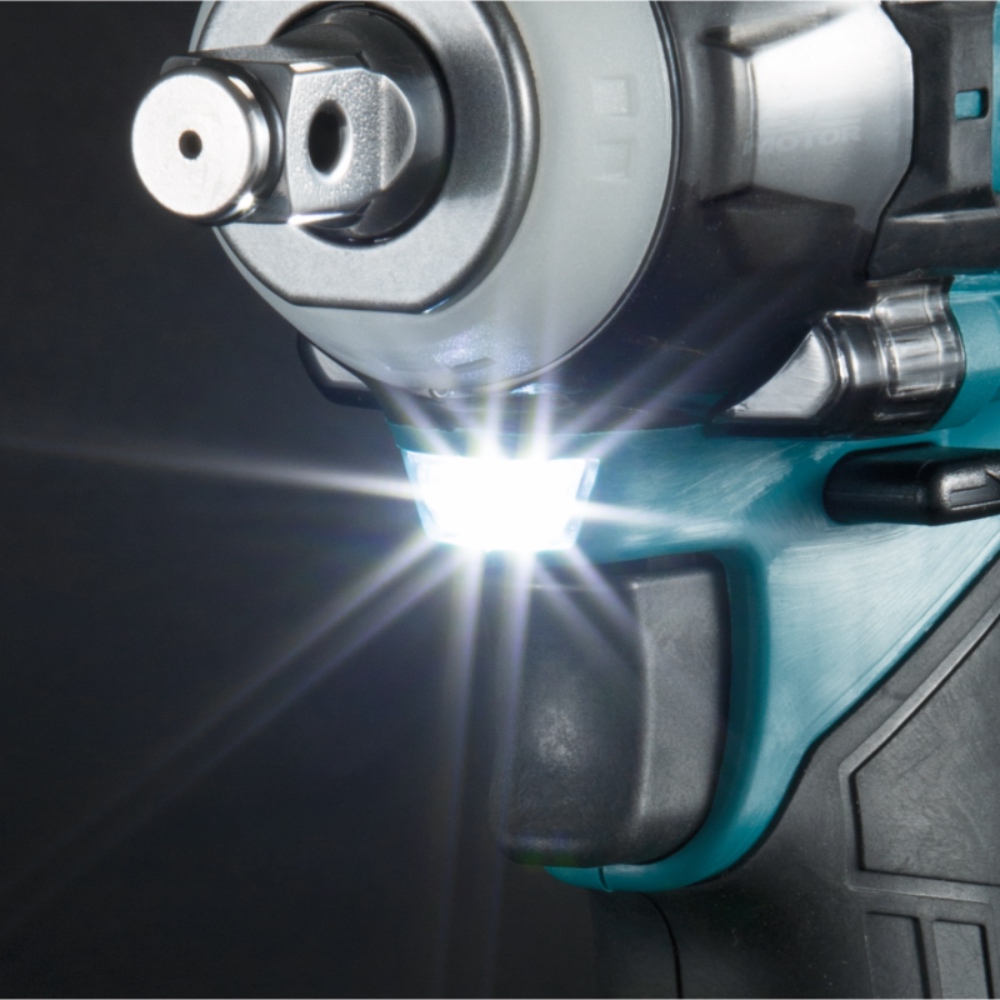

Twin LED lights with preglow and afterglow functions for better illumination
Powered by 40Vmax XGT Li-Ion battery
BL motor delivers 350 N·m (260 ft.lbs.) of max torque and 630 N∙m (465 ft.lbs.) of nut-busting torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
Excellent performance in continuous heavy duty applications
Ergonomically designed handle with rubberized soft grip
XPT (eXtreme Protection Technology); For use in outdoor applications or harsh environments, protection from dust and dripping water is enhanced
Electric brake stops the rotation gently but fast, allowing user to quickly resume operation

Standard equipment : Belt clip

Fastening capacities Standard bolt	M10 - M20
Fastening capacities High strength bolt	M10 - M16
Square drive	1/2" (12.7 mm)
No Load Speed	0 - 3,200 /2,600 /1,800 /1,000 minˉ¹
Impacts Per Minute	0 - 4,000 /3,400 /2,600 /1,800 minˉ¹
Max fastening torque	350 N·m
Dimensions (L x W x H)	144 x 86 x 248 mm
Net weight	1.9 - 2.2 kg
