DHP481
Cordless Hammer Driver Drill

DHP481
Cordless Hammer Driver Drill

18V Cordless Hammer Driver Drill 13 mm (1/2") 125 N·m

  

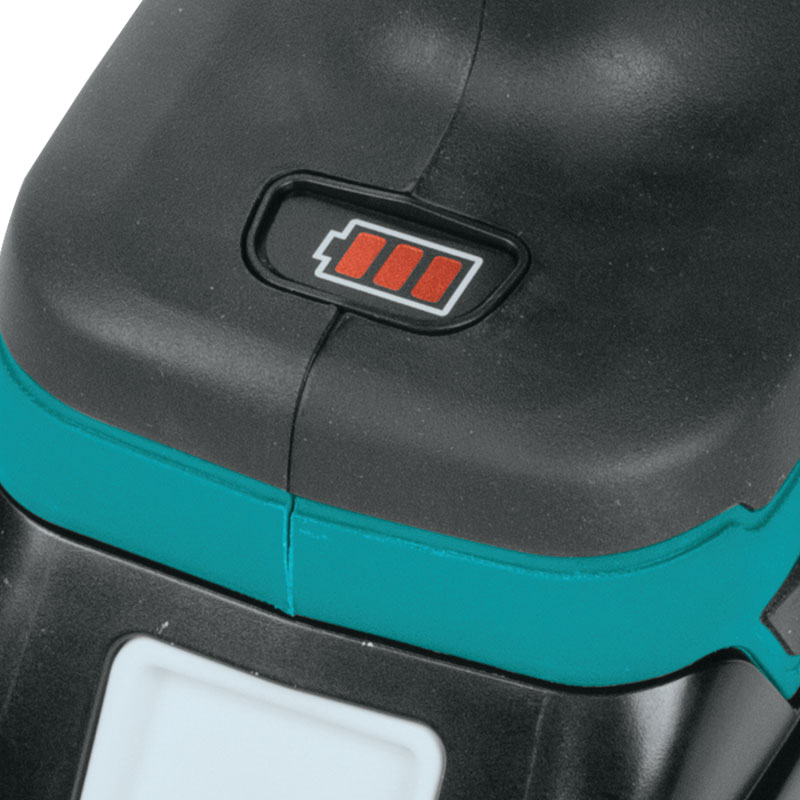

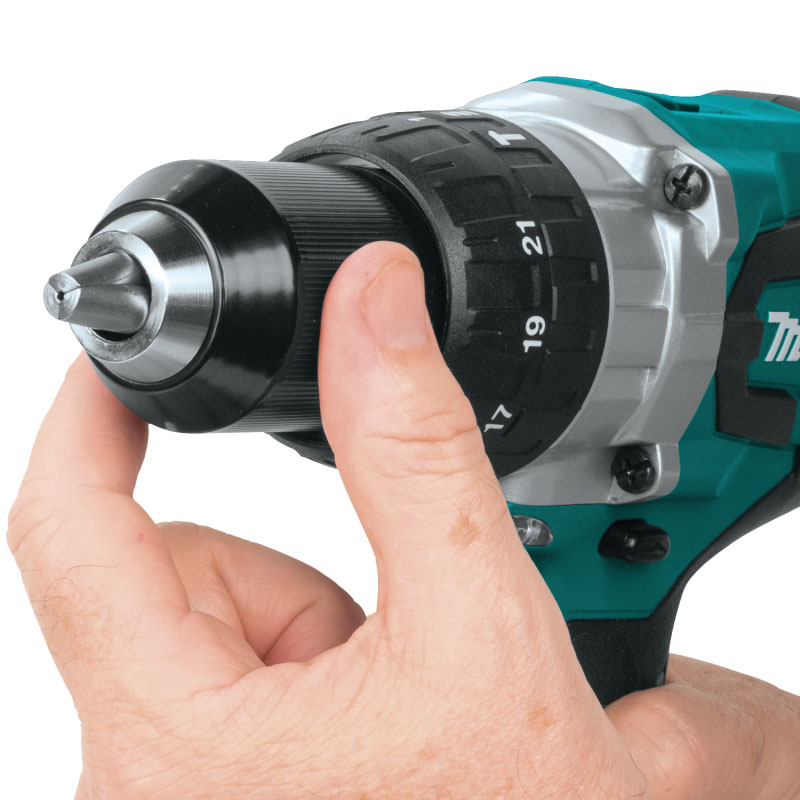

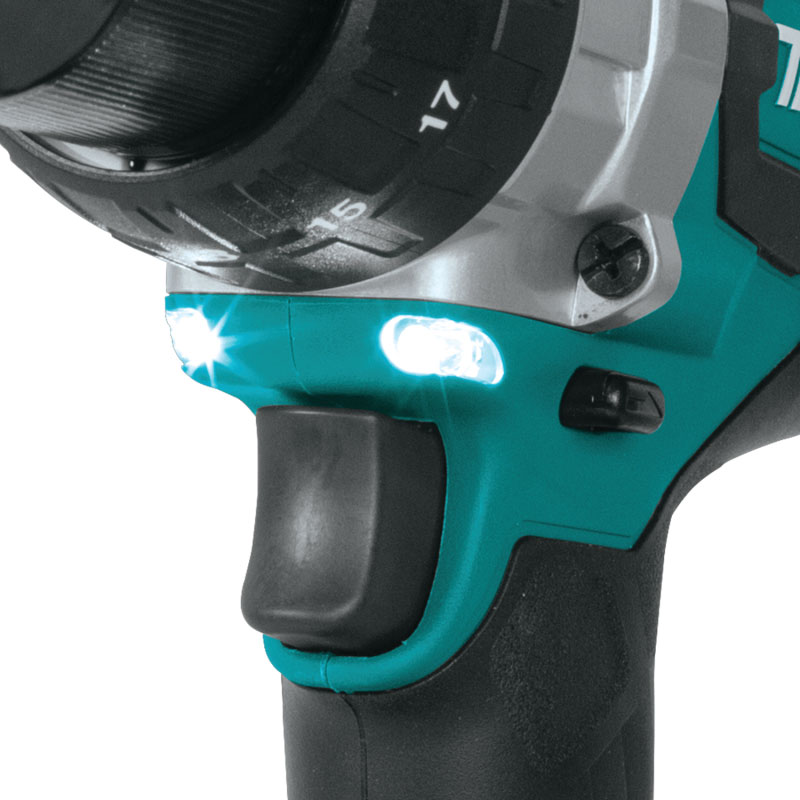

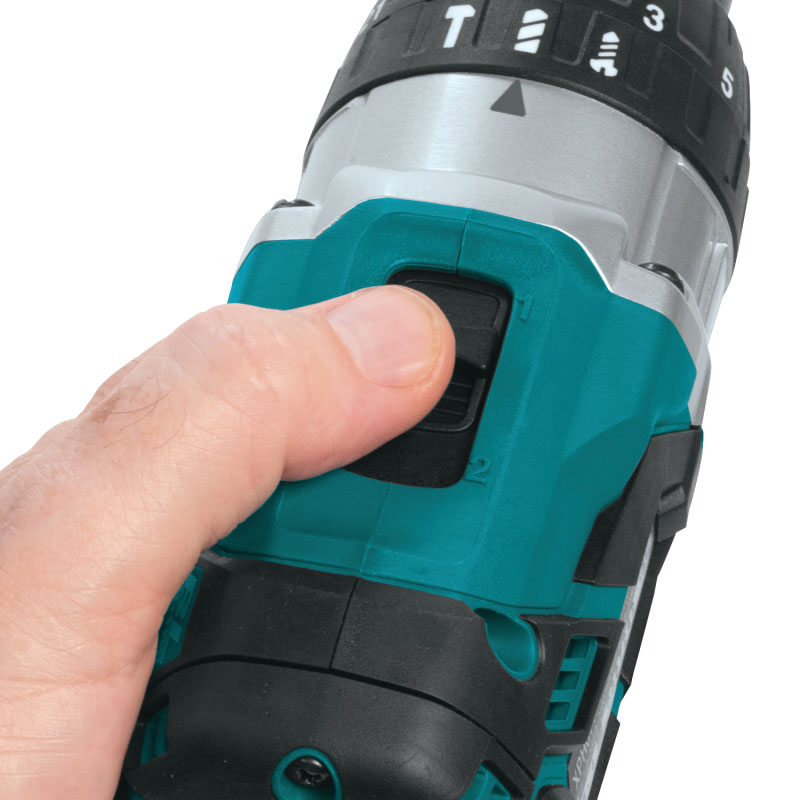

๐ Features the highest torque in the industry ๐ 0-31,500 IPM for fast hammer drilling in masonry materials ๐ Delivers up to 50% more power and performance than previous model ๐ BL motor delivers 125 N·m of max torque ๐ BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge ๐ BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life ๐ All metal variable 2-speed transmission (0-550 & 0-2,100 RPM) for a wide range of drilling, fastening and hammer drilling applications ๐ All metal gears and gear housing for maximum job site durability ๐ All metal 13 mm self ratcheting chuck for improved bit gripping strength and durability ๐ Compact and ergonomic design at only 205 mm long ๐ Lightweight for reduced operator fatigue ๐ 21 Clutch settings and drill mode for added fastening control ๐ 3-Stage LED gauge indicates battery charge level ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Dual LED lights with afterglow feature illuminate the work area ๐ Improved ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold ๐ Electric brake for maximum productivity and increased operator safety ๐ Reversing switch is conveniently located

Standard Equipments : Depth gauge, Side handle, Belt clip, (+)(-) Bit, Bit holder


Technical specifications

Capacity : Masonry 16 mm
Capacity : Steel 13 mm
Capacity : Wood 76 mm
Chuck Capacity 1.5 - 13 mm
Impacts Per Minute (IPM) 0 - 31,500
No Load Speed (RPM) : High/Low 0 - 2,100 / 0 - 550
Max Fastening Torque : High/Low 115 / 60 N·m
Max Lock Torque 125 N·m
Dimensions (L x W x H) 205 x 79 x 249 mm
Net weight 2.7 - 3 kg
Variable Speed
Brake
Reversing
Mechanical 2-Speed
Keyless Chuck
Torque Setting 21
Built-in-Job Light
