DSP601
Cordless Plunge Cut Saw

DSP601
Cordless Plunge Cut Saw

18V X2 (36V) Cordless Plunge Cut Saw 165 mm (6-1/2")

  

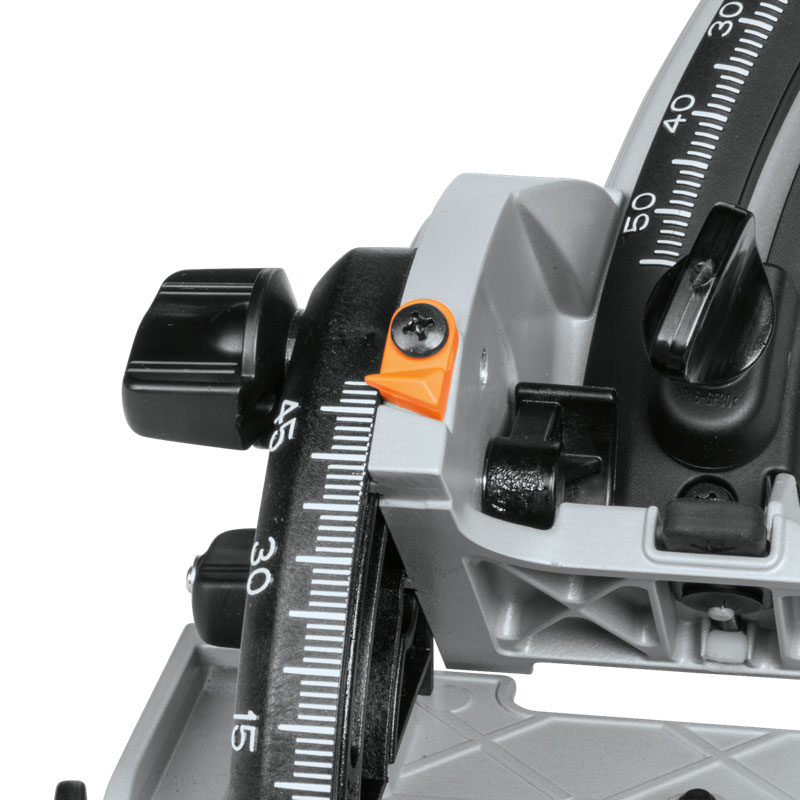

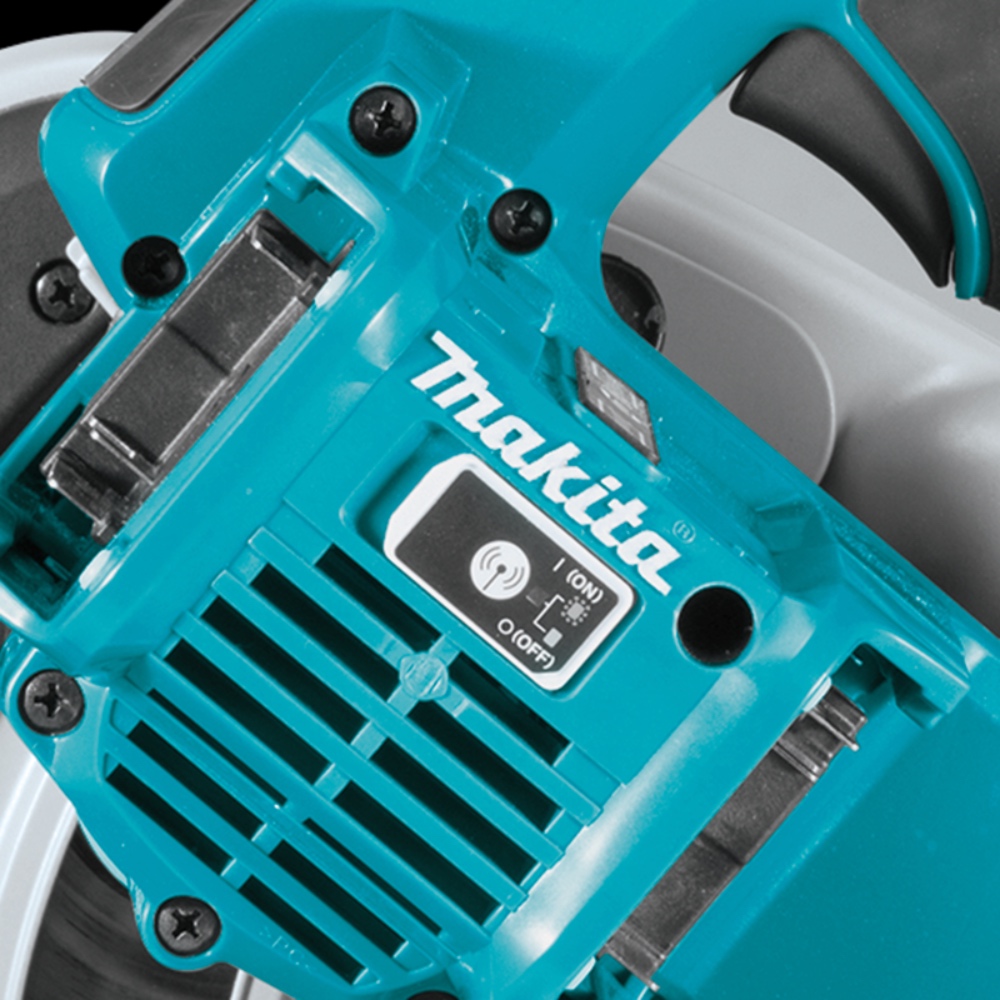

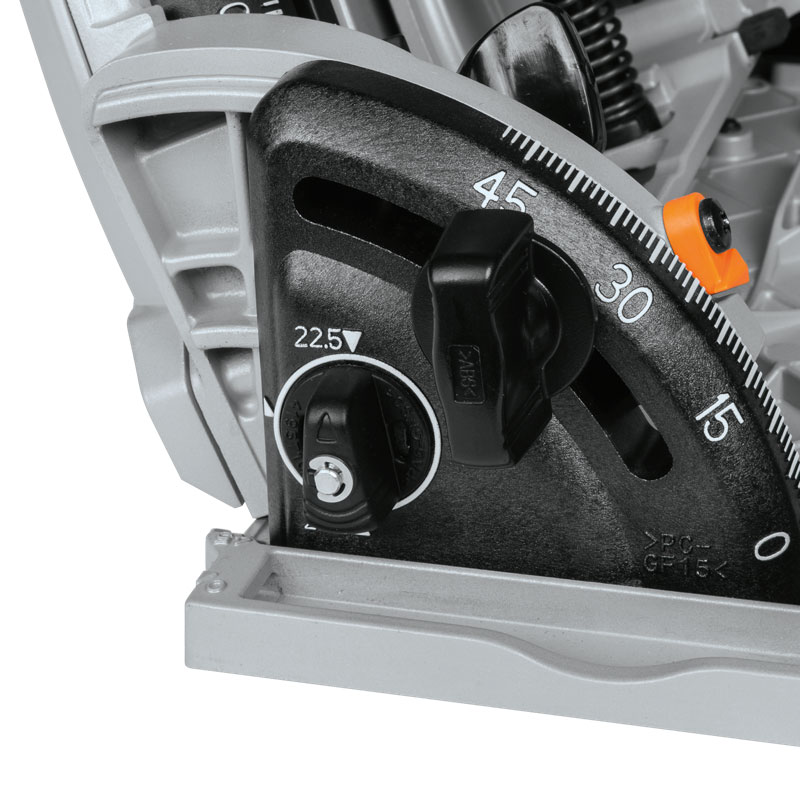

๐ Auto-start Wireless System (AWS) Connects to Vacuum Cleaner with Bluetooth ๐ Up to 40% Faster Cutting than Corded Model SP6000 ๐ Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform ๐ BL motor delivers 6,300 RPM for fast cutting and ripping ๐ BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge ๐ Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance ๐ Large cutting capacity (56 mm at 90º, 40 mm at 45º and 38 mm at 48º) and bevel capacity (-1° - 48°) with a positive stop at 22.5° ๐ Precision accurate cutting delivers a splinter-free mirror finish ๐ Depth stopper for splinter-free cutting enables to easily cut a preliminary groove at a depth of 2 mm ๐ Variable speed dial control (2,500 - 6,300 RPM) for optimum performance in a variety of materials ๐ Electronic soft start feature for smooth start-ups ๐ Easy to set depth adjustment with large scale ๐ Magnesium components deliver a well balanced and lightweight saw ๐ Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts ๐ Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation

Standard Equipments: TCT saw blade, Hex wrench,


Technical specifications

Wheel Diameter 165 mm
Hole diameter 20 mm
Bevel angle -1 - 48°
Max cable cutting capacity 56 mm
Max Cutting Capacity 45° 40 mm
No Load Speed (RPM) 2,500 - 6,300
Dimensions (L x W x H) 346 x 241 x 272 mm
Net weight 4.4 - 5.1 kg
Variable Speed
Brake
Soft Start
Dust Collection
