DHS660
Cordless Circular Saw

DHS660
Cordless Circular Saw

18V Cordless Circular Saw 165 mm (6-1/2")

  

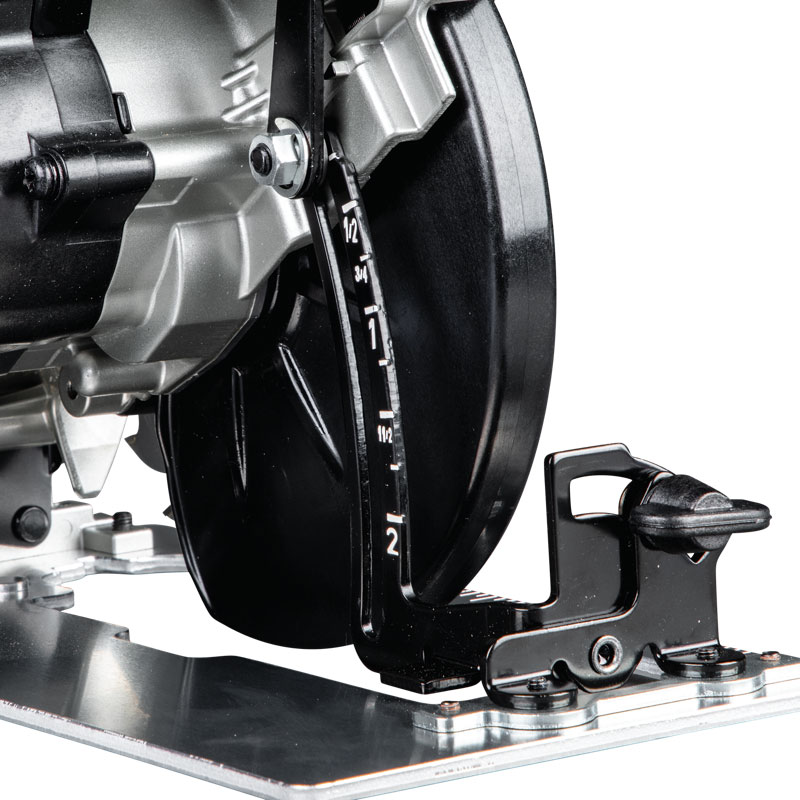

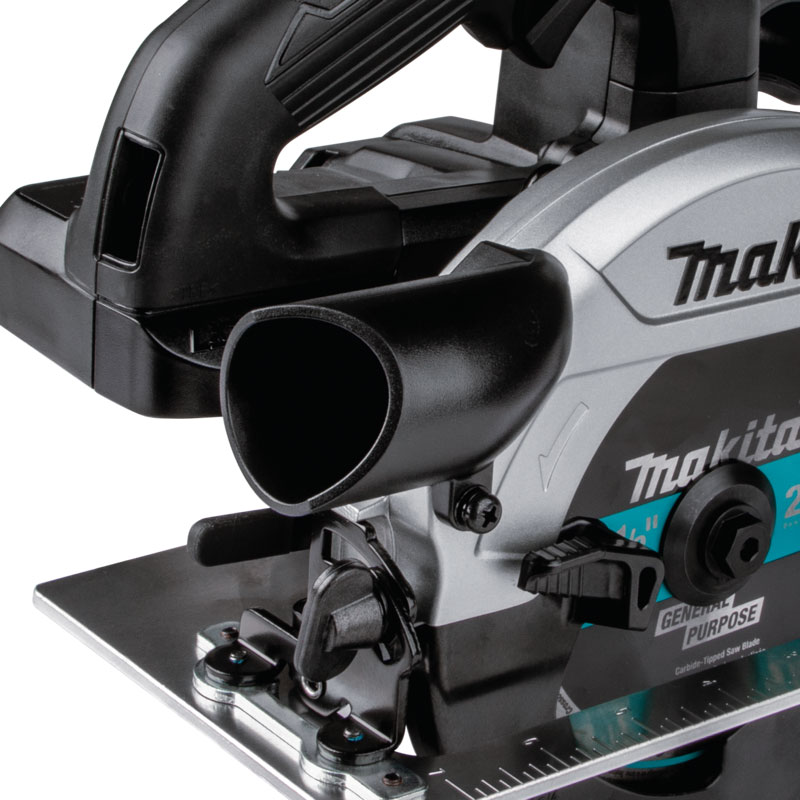

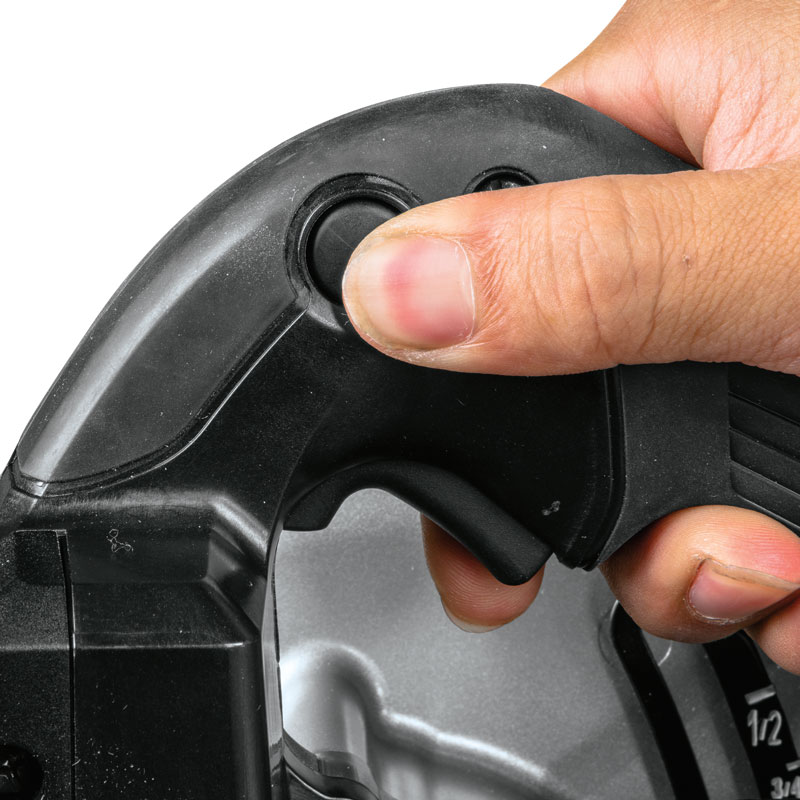

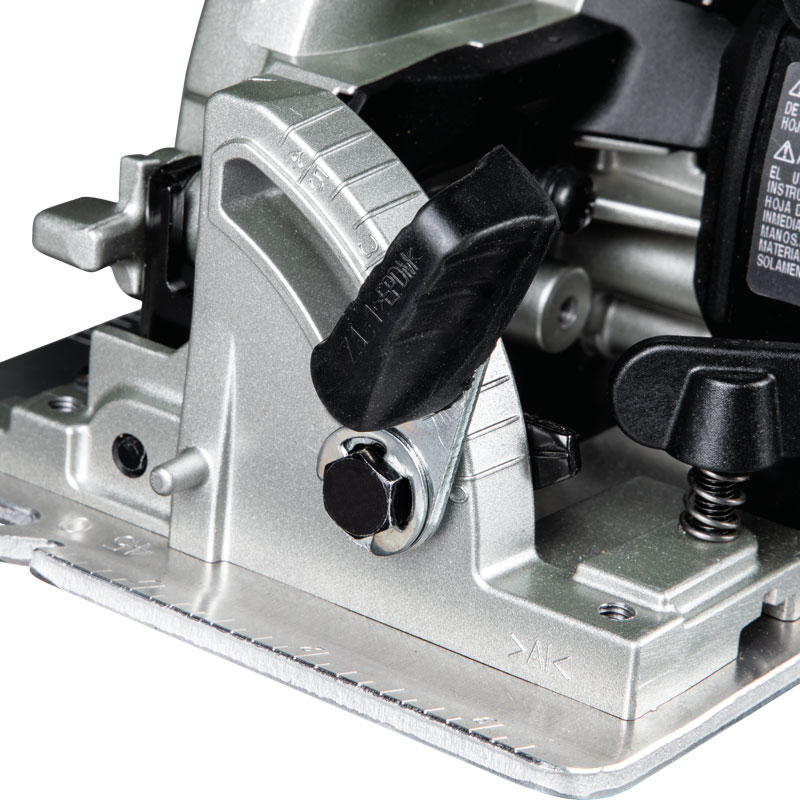

๐ Compact and Lightweight Design for Better Maneuverability ๐ Indication lamp using ADT (Automatic torque Drive Technology) ๐ High-efficiency BL motor provides higher power and more work amount ๐ Smooth cutting at high rotational speed of 5,000 RPM ๐ ADT (Automatic torque Drive Technology) adjusts speed and torque during operation for optimum performance ๐ Easy-to-operate lock off button for increased maneuverability ๐ Better visibility of blade tip by changing the position of front grip ๐ Easy-to-read scale markings for easier adjustments ๐ Blower function blows sawdust off the cut line ahead for a better cutting view ๐ Dual LED for more visibility ๐ Large rubberized levers for quick and easy depth and bevel adjustments ๐ Electric brake for maximum productivity and increased operator safety ๐ Soft start suppresses start-up reaction for more control and better accuracy ๐ Dust nozzle is attachable for connecting to vacuum cleaner ๐ Aluminum base with 45 and 50 degrees bevel cutting capacity ๐ Rear dust exhaust port ๐ Large, comfortable front grip. ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions.

Standard Equipments: TCT saw blade, Hex wrench, Guide rule, Dust nozzle


Technical specifications

Wheel Diameter 165 mm
Hole diameter 20 / 30 mm
Max Cutting Capacity 57 mm
Max Cutting Capacity 45° 41 mm
No Load Speed (RPM) 5,000
Dimensions (L x W x H) 270 x 186 x 250 mm
Net weight 2.9 - 3.2 kg
Brake
Soft Start
Dust Collection
Built-in-Job Light
