DHS680
Cordless Circular Saw

DHS680
Cordless Circular Saw

18V Cordless Circular Saw 165 mm (6-1/2")

  

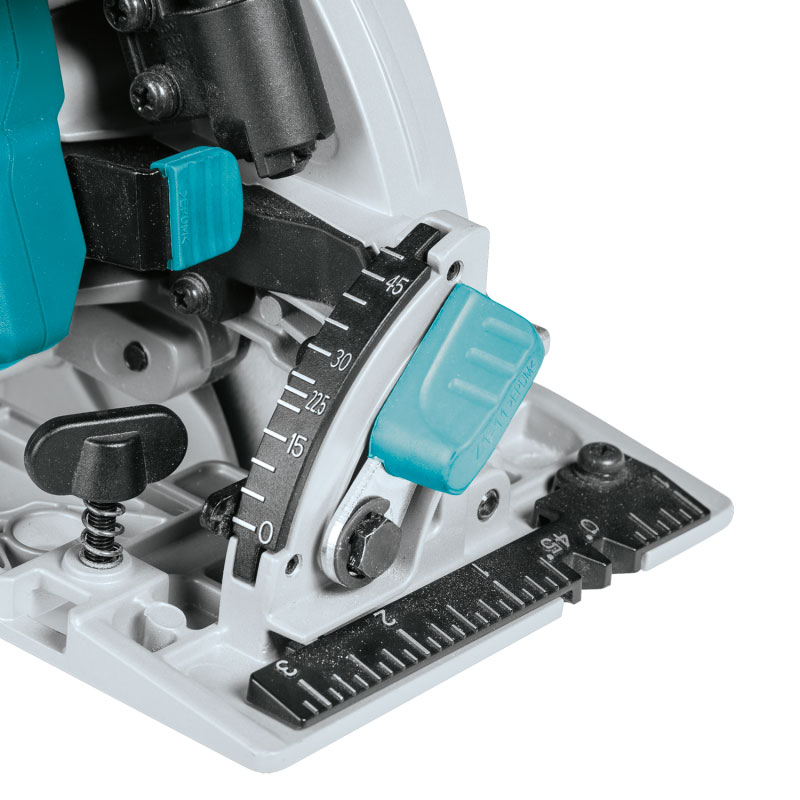

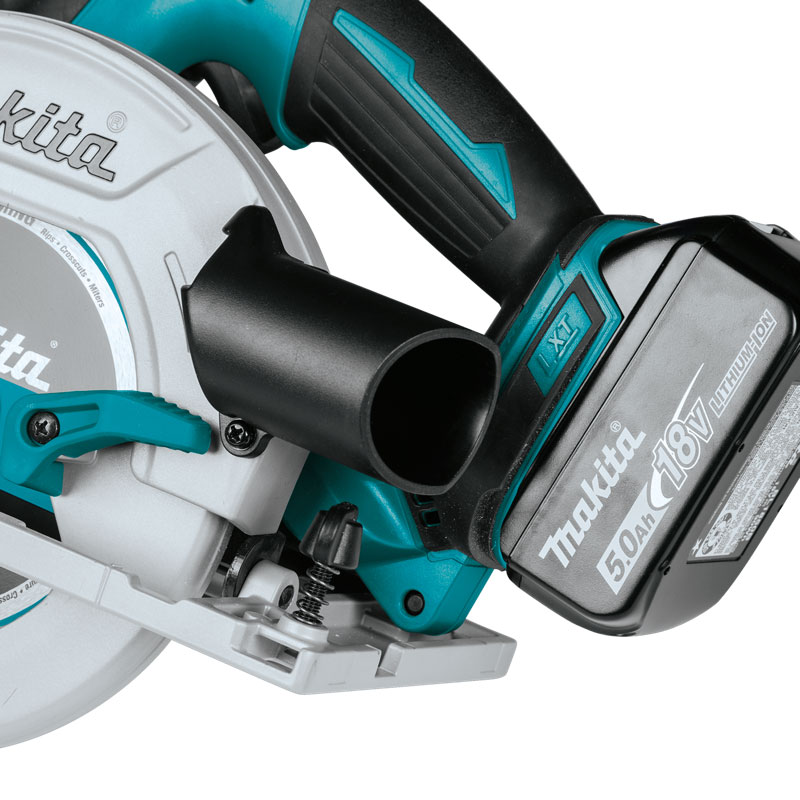

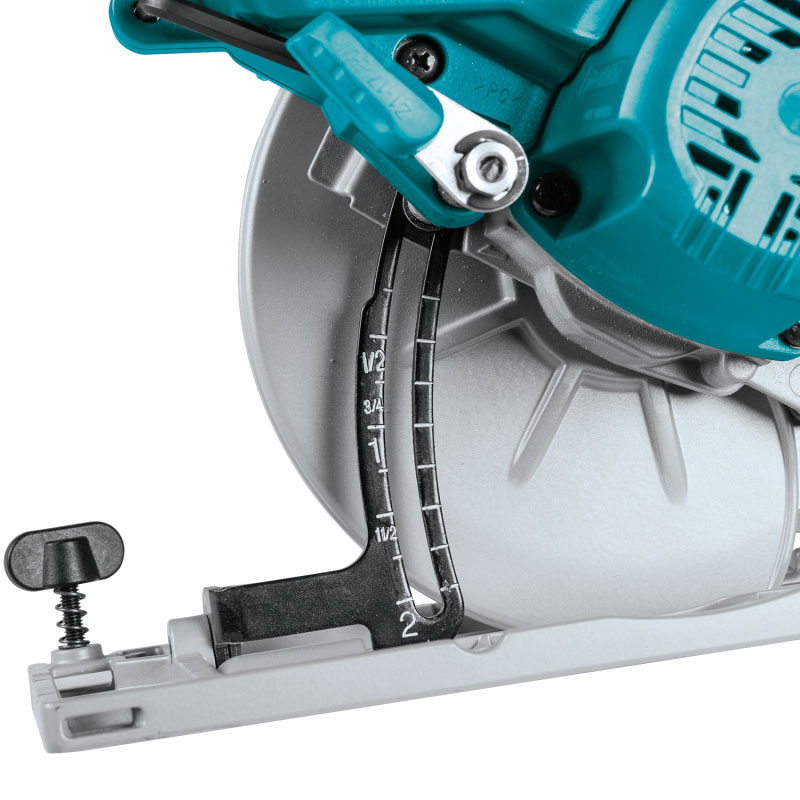

๐ High-efficiency BL motor provides higher power and more work amount ๐ Smooth cutting at high rotational speed of 5,000 RPM ๐ Compact and lightweight design ๐ ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance ๐ Blower function blows sawdust off the cut line ahead for a better cutting view ๐ Dual LED job lights for more visibility ๐ Soft grip provides increased comfort on the job ๐ Large rubberized levers for quick and easy depth and bevel adjustments ๐ Electric brake for maximum productivity and increased operator safety ๐ Soft start suppresses start-up reaction for more control and better accuracy ๐ Dust nozzle is attachable for connecting to vacuum cleaner ๐ Magnesium base with 45 and 50 degrees bevel cutting capacity ๐ Rear dust exhaust port ๐ LED indicator panel with 3 indicators for: Battery Fuel Gauge, Automatic Torque Drive and Overload Protection ๐ Tool hanger for hanging on a ladder or rafter ๐ Large, comfortable front grip ๐ Large lock off lever easily operated even with a gloved hand ๐ 24T thin kerf TCT saw blade for fast cutting

Standard Equipments : TCT saw blade, Hex wrench, Guide rule, Dust nozzle


Technical specifications

Wheel Diameter 165 mm
Hole diameter 20 / 30 mm
Max Cutting Capacity 57 mm
Max Cutting Capacity 45° 41 mm
No Load Speed (RPM) 5,000
Dimensions (L x W x H) 350 x 170 x 238 mm
Net weight 3 - 3.3 kg
Brake
Soft Start
Dust Collection
Built-in-Job Light
