UG001G
Cordless Ground Trimmer

40Vmax Cordless Ground Trimmer 500 mm (19-3/4")

  
Brake
Anti-restart function
Electronic 2-Speed
Constant Speed
Soft Start

Features

  • Overview:

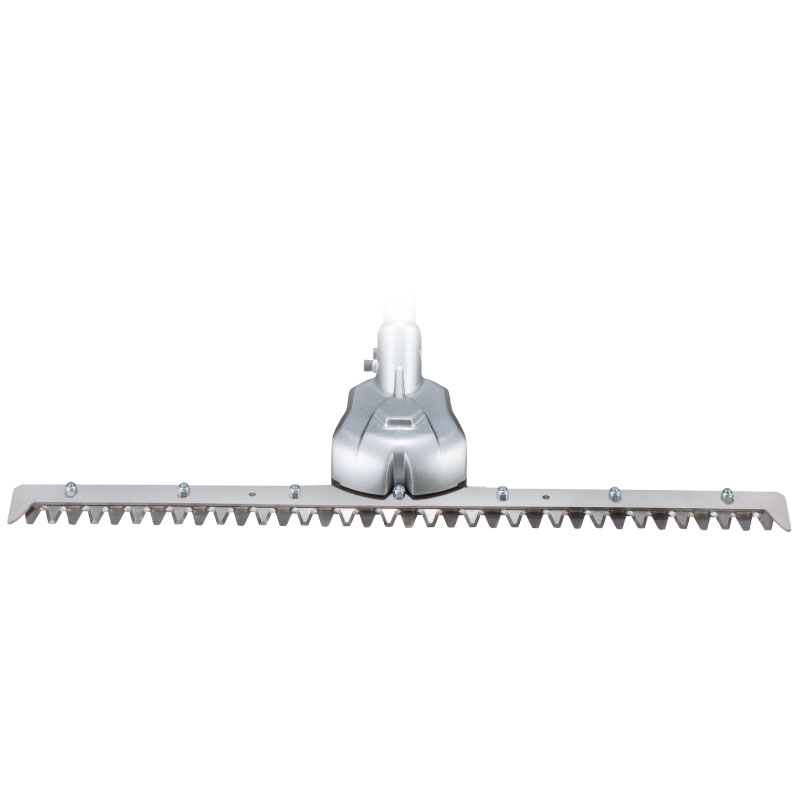

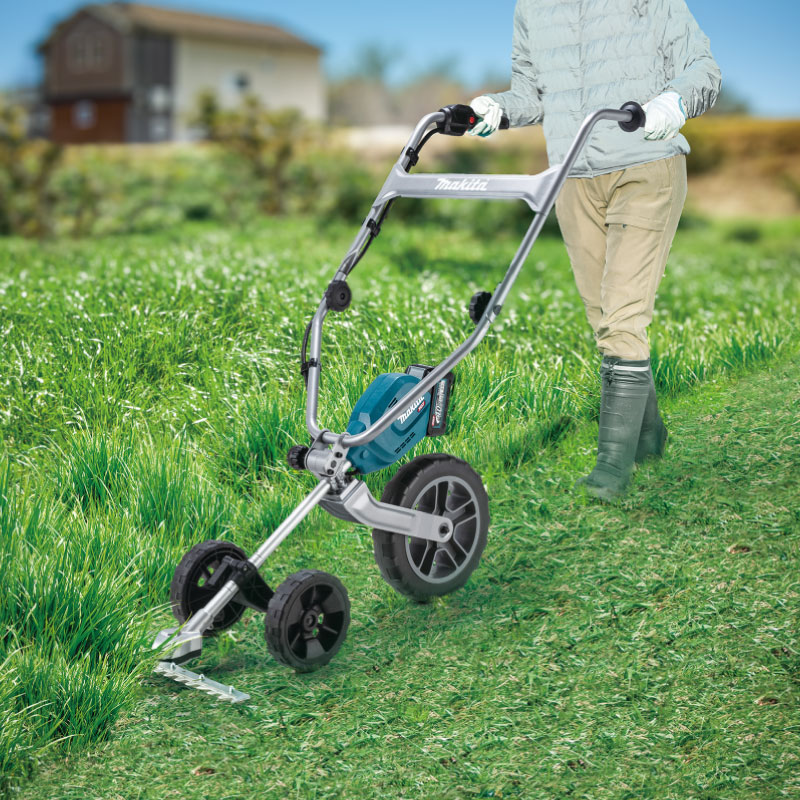

    The UG001G is a cordless ground trimmer powered by a 40Vmax XGT Li-Ion battery. T‑shaped hedge‑trimmer‑type shear blades set at 90° to the shaft enable push‑forward cutting without side‑to‑side swinging. The three‑wheel design allows the machine to stand on its own, reducing the holding effort and helping reduce operator fatigue during extended operation.
  • A 500 mm cutting width delivers high work efficiency
  • Tool-less wheel position adjustment to suit the user’s height
  • 258 mm wheel spacing delivers straight‑line stability.
  • Three-facet-ground teeth with curved tips reduce friction, maintaining cutting performance even when sap builds up on the shear blades.
  • Reciprocating blade design reduces stone and debris scattering compared to typical rotary‑blade grass trimmers.
  • An abrasion‑resistant sheet‑metal underplate enables ground‑sliding trimming.

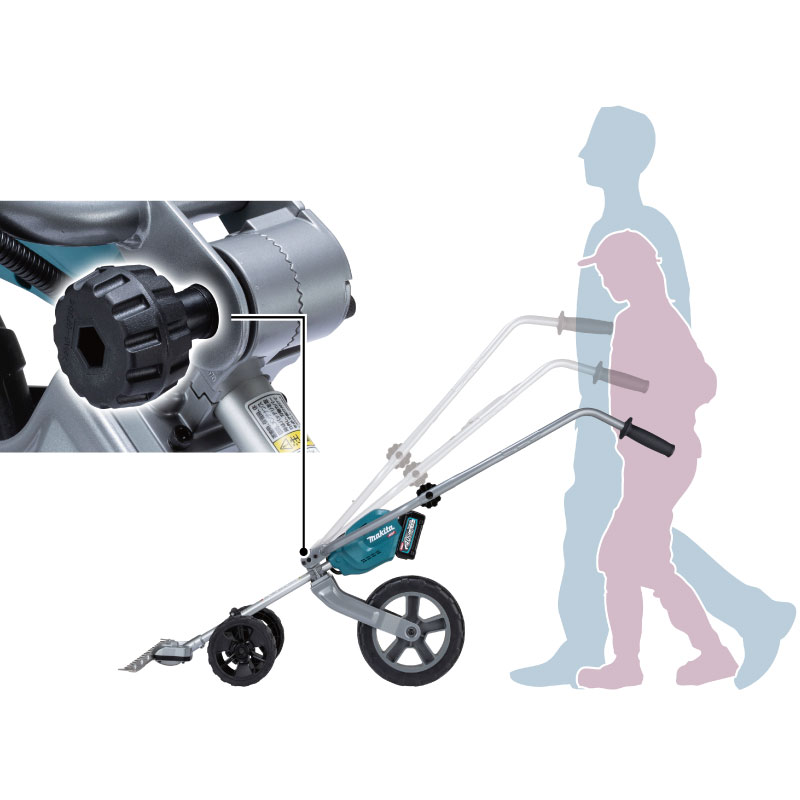

  • Tool‑less handle height adjustment to three positions (1,020 / 910 / 790 mm) using a thumb nut to suit users of different heights.

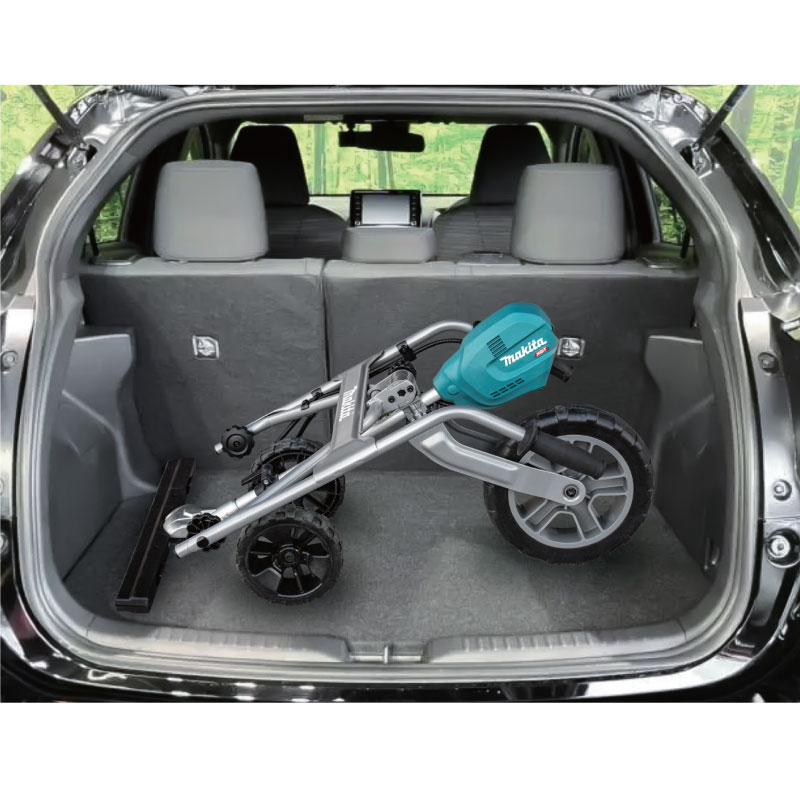

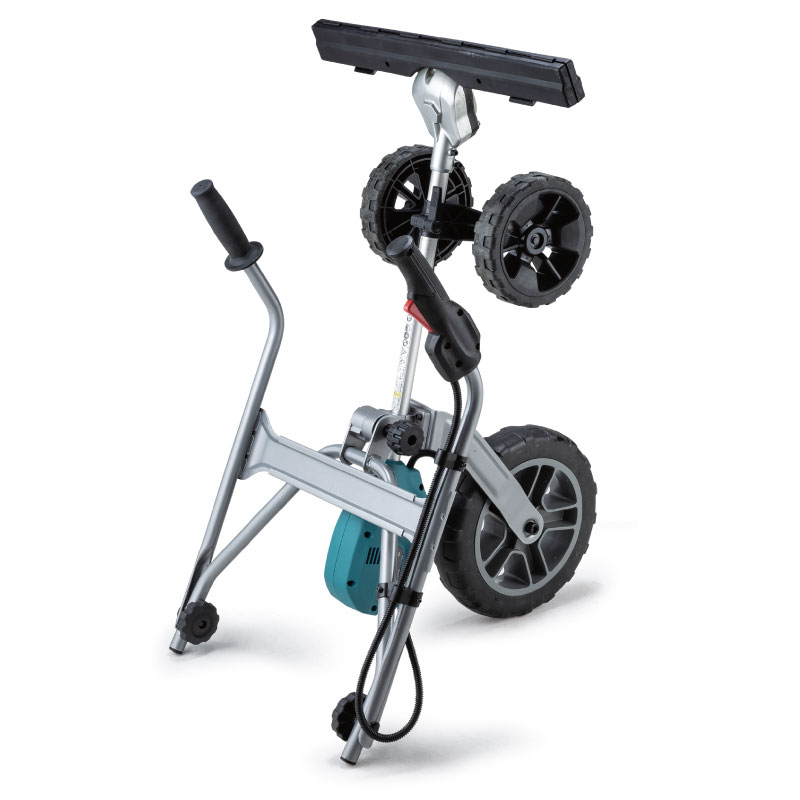

  • Foldable handle reduces overall size for compact storage and easy transport.
  • Larger‑diameter, wider front wheels for smoother travel over uneven ground
  • A large rear tire enables self‑standing, lift‑free grass cutting, making operation easier for users of varying strength.
  • The cutting height can be adjusted without tools by loosening the lever and changing the front wheel position.
  • High water-resistance compatible with XPT (eXtreme Protection Technology)
  • Soft start feature for smooth start-up
  • Constant speed control for stable cutting operation
  • Anti-restart function minimizes accidental start-up.
  • Electric brake that stops the blades for user protection

Standard equipment : Blade cover, Hex wrench,


Parts List
(2.03 MB)


Leaflet
(30.15 MB)

Technical specifications

No Load Speed : High/Low 2,000 / 1,500 minˉ¹
Cutting strokes per minute 4,000 / 3,000 minˉ¹
Continuous Use BL4040F : 90 / 160 min.
Blade length 521 mm
Dimensions (L x W x H) 1,345 x 521 x 791 mm
Net weight 10 kg
