4114S
Angle Cutter
4114S
Angle Cutter

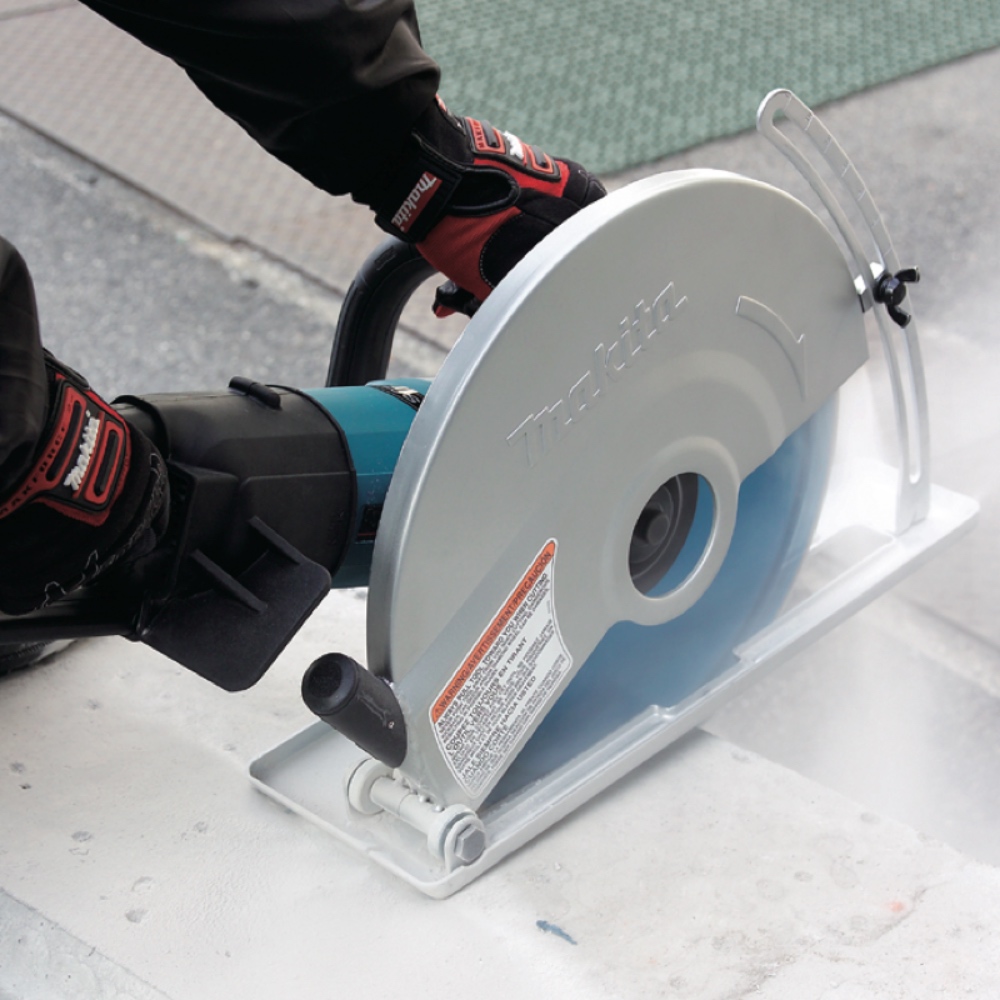

Angle Cutter 355 mm (14") 2,400 W
Features
๐ Soft start function minimizes the startup shock
๐ Faster cutting for increased productivity
๐ SJS technology is a mechanical clutch system that helps minimize motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
๐ Powerful 1,650 W motor delivers 3,500 RPM for the most demanding applications
๐ AC/DC switch for use with alternative power source
๐ Tool base can be removed for cutting closer to walls; guide wheels on the tool guard for smooth traveling
๐ Built-in vacuum attachment port for efficient removal of dust and debris
๐ Rubber shield helps keep debris away from operator and from entering the motor
๐ Tool base adjusts allowing up to 5" cutting depth; best for cutting split face block when building retaining walls
๐ Guide wheels on the tool guard ensure smooth traveling of tool over surface material when base is removed for cutting closer to walls
๐ Positioning of the tool body can be adjusted (0°-80°) for operator comfort; operates independently of cutting depth for convenience and efficiency
๐ Base has front and rear cutting guides for increased accuracy
๐ Double insulated
Standard Equipments : Wrench
Technical specifications
| Continuous Rating Input | 2,400 W |
|---|---|
| Wheel Diameter | 355 mm |
| Max Cutting Capacity | 125 mm |
| No Load Speed | 3,500 minˉ¹ |
| Dimensions (L x W x H) | 673 x 240 x 329 mm |
| Net weight | 10.8 kg |
| Power Supple Cord | 2.5 m |
| Carbon Brush | 204 |
