(EN / TH)

JV0600
Jig Saw

JV0600
Jig Saw

Jig Saw 650 W Top Handle

  

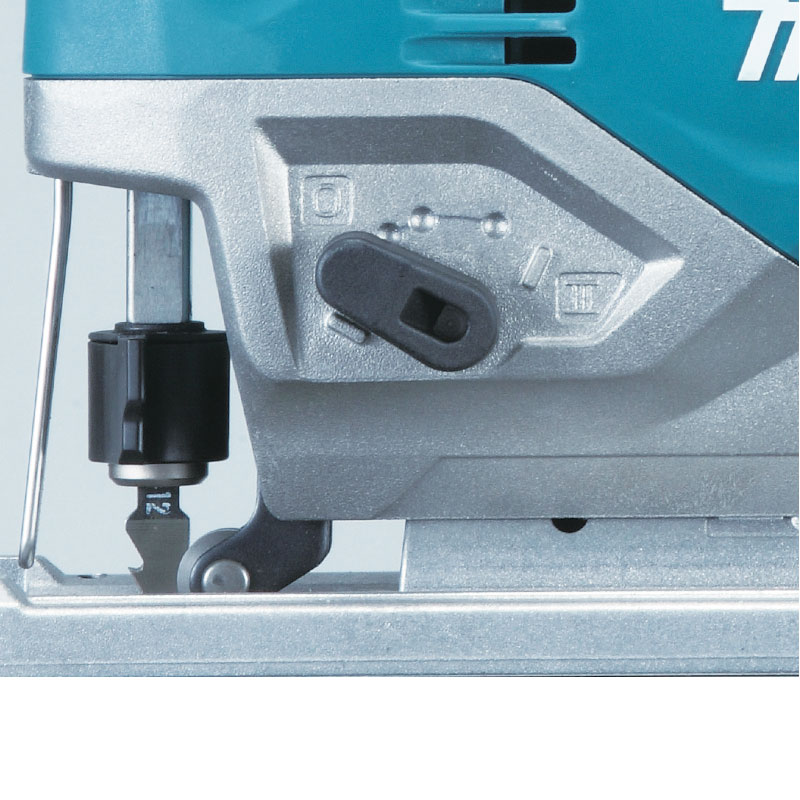

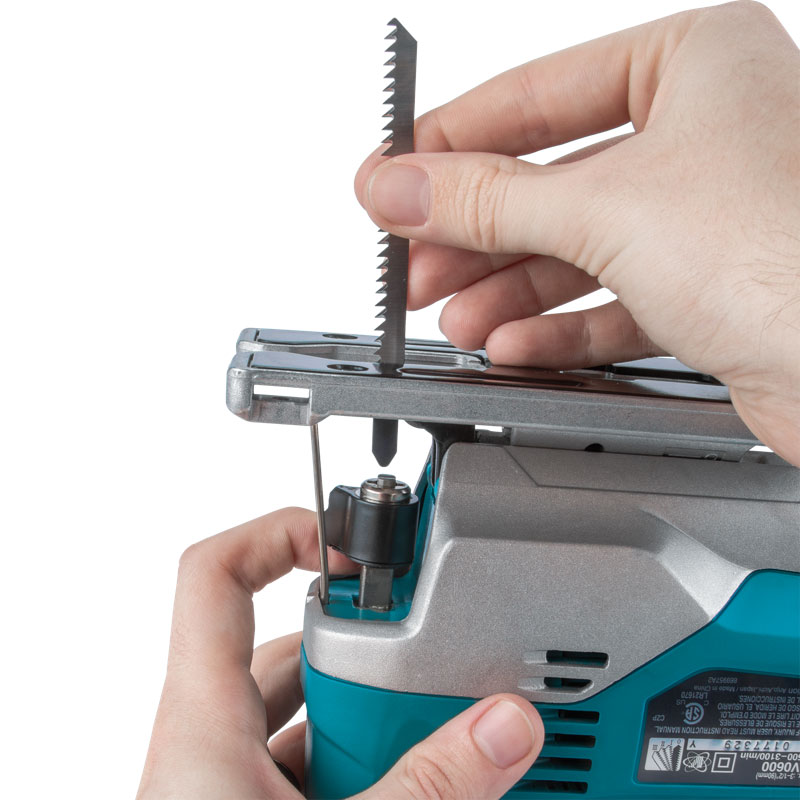

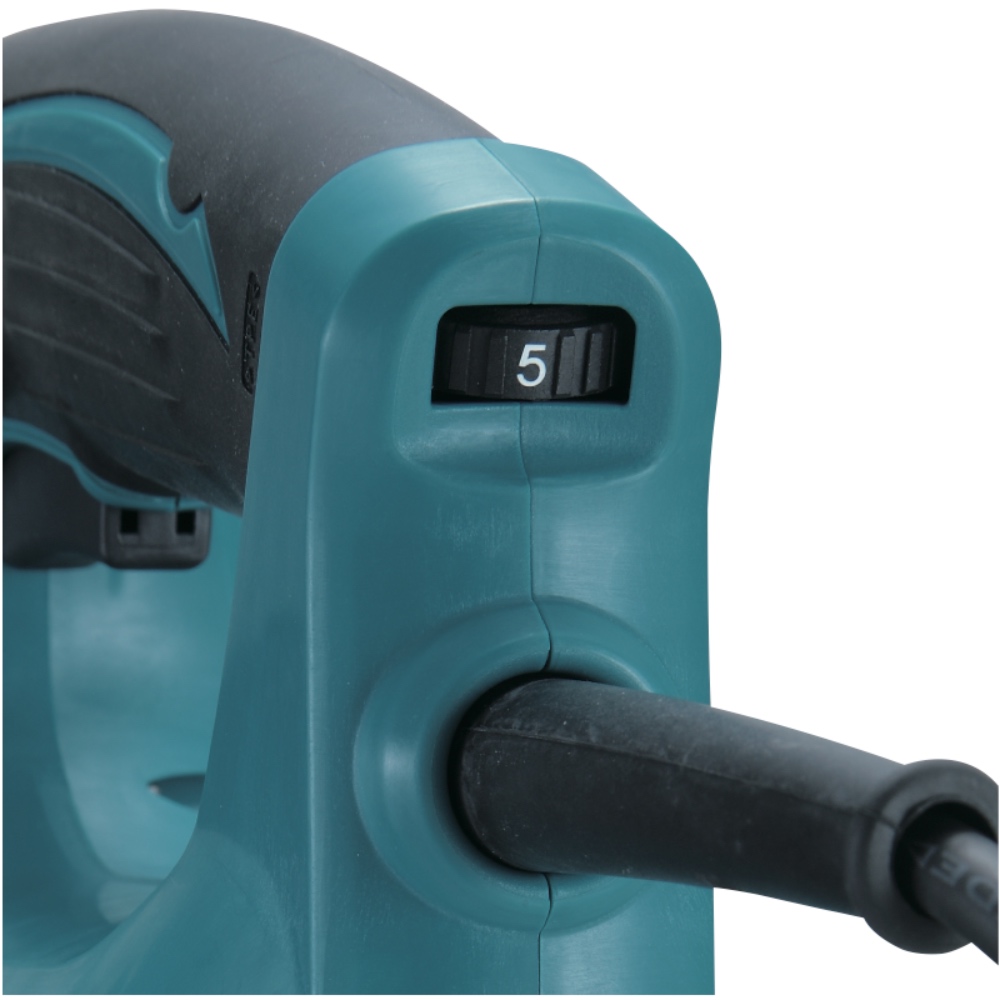

๐ Powerful 650 W motor and 3 orbital setting plus straight cutting deliver faster and more accurate cuts in a variety of materials ๐ Variable speed control dial (500-3,100 SPM) enables user to match the speed to the application ๐ Through-the-body dust port for use with a vacuum provides efficient dust management ๐ Counterbalance system for reduced vibration ๐ Toolless blade change system for fast blade installation and removal ๐ Low profile design engineered for improved handling in compact areas ๐ Die-cast aluminum housing base for added durability ๐ Built-in dust blower clears the line of cut for increased accuracy ๐ Ergonomic soft grip and 2-finger trigger for increased comfort ๐ Die-cast aluminum base adjusts from 0° - 45° right or left ๐ Lock-on button for continuous operation ๐ Double insulated

Standard Equipments : Jig saw blade, Hex wrench


Technical specifications

Continuous Rating Input 650 W
Capacity : Wood 90 mm
Capacity : Steel 10 mm
Length of Stroke 23 mm
Strokes Per Minute (SPM) 500 - 3,100
Bevel range 0 - 45°
Dimensions (L x W x H) 223 x 77 x 197 mm
Net weight 1.9 kg
Carbon Brush 64
Double Insulation
Variable Speed
Orbital Cutting
Bayonet Shank Jig Saw Blade
Dust Collection
