Jig Saw

4329
Jig Saw

Jig Saw 450W Top Handle

  

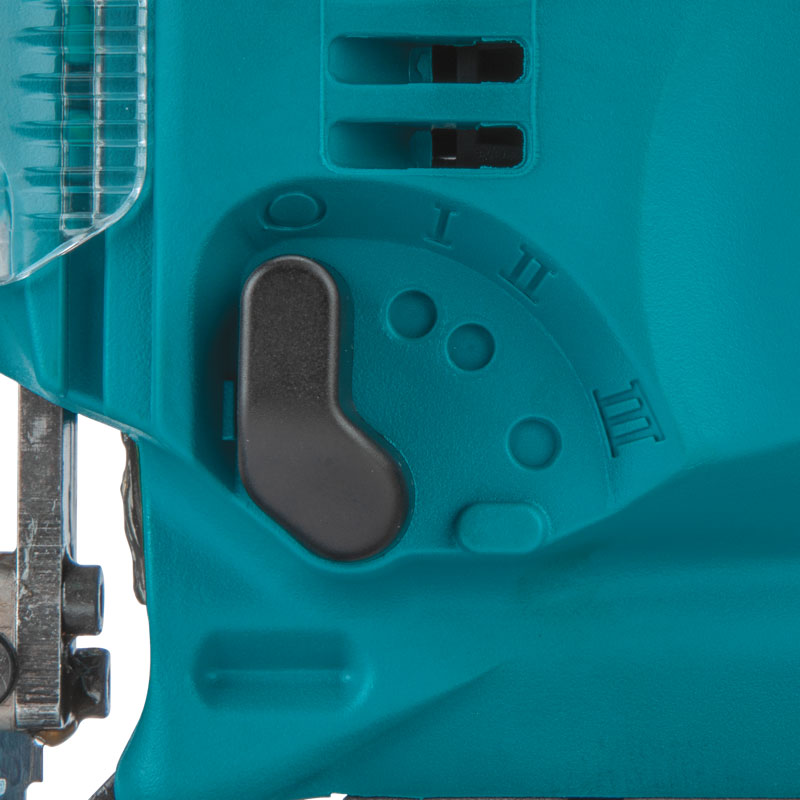

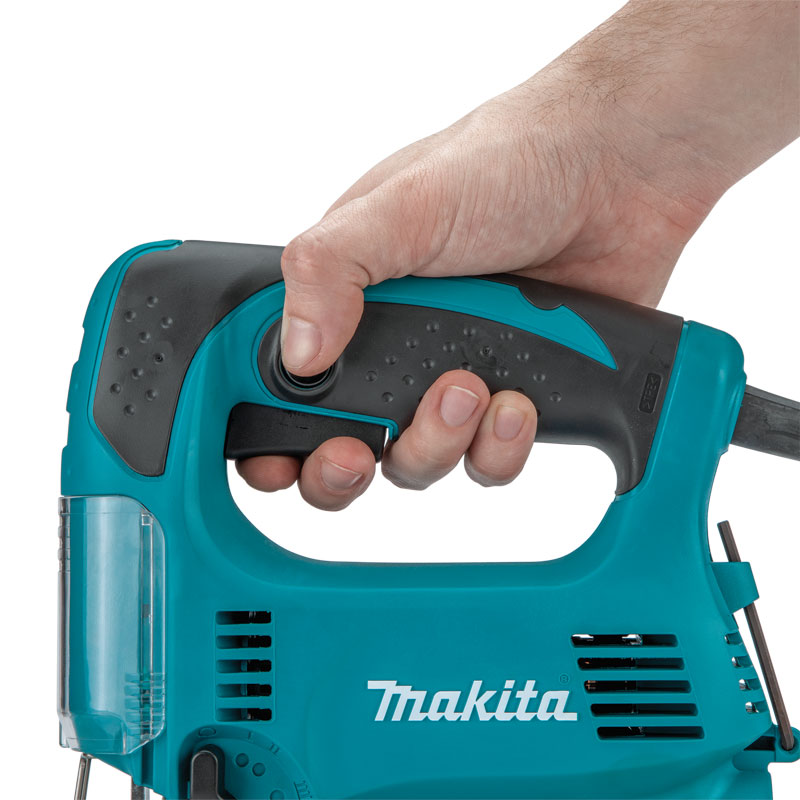

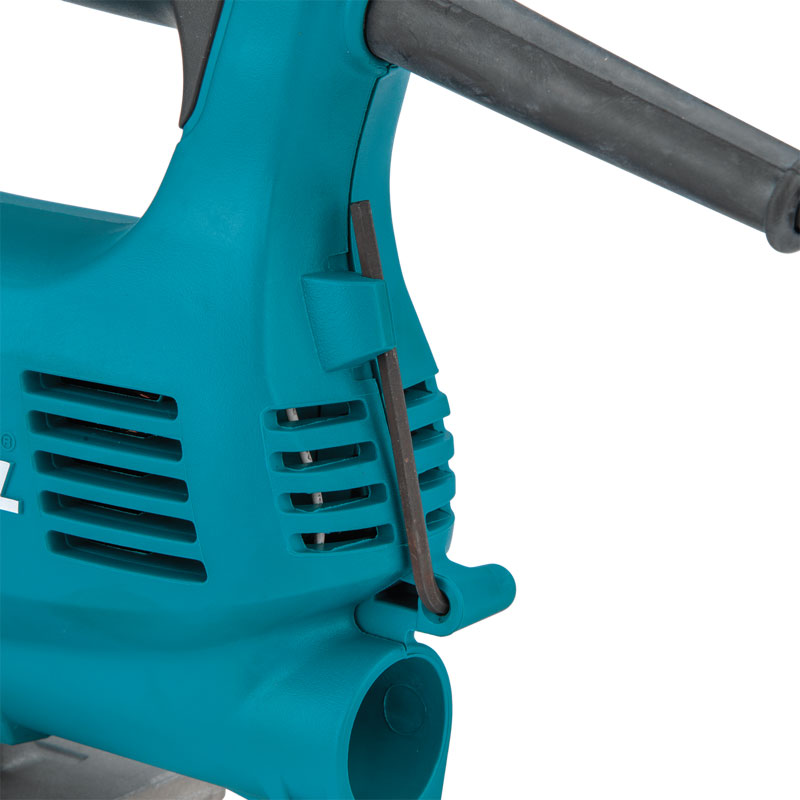

๐ 3 orbital settings plus straight cutting with a powerful 450W motor for use in a variety of materials ๐ Variable speed control dial (500-3,100 SPM) enables user to match the speed to the application for optimal cutting performance in a variety of materials ๐ Through-the-body dust port provides optimal dust management with use of clear dust cover and vacuum ๐ Bevel cuts to 45° right or left and positive stop at 90° for solid cutting performance ๐ 4329: Heavy duty aluminum die-cast base increases durability and maximizes tool life ๐ Ergonomically designed rubberized grip for increased comfort and control ๐ Vacuum port enables direct connection of dust extractor ๐ Counterweight balancing system for reduced vibration ๐ Low noise level at only 83 dB(A) for improved user comfort ๐ Uses bayonet type blades ๐ Thick blades (of 1.7 mm thickness) can be attached ๐ Dust cover minimizes scattering of tips ๐ Large 2-finger trigger switch with conveniently-located lock-on button for continuous use and increased operator comfort ๐ Onboard hex wrench for fast and easy blade changes and bevel adjustments ๐ Double insulated

Standard Equipments : Jig saw blade, Hex wrench


Technical specifications

Continuous Rating Input 450 W
Capacity : Wood 65 mm
Capacity : Steel 6 mm
Length of Stroke 18 mm
Strokes Per Minute (SPM) 500 - 3,100
Bevel angle 0 - 45°
Dimensions (L x W x H) 223 x 77 x 197 mm
Net weight 1.9 kg
Carbon Brush 64
Double Insulation
Variable Speed
Orbital Cutting
Bayonet Shank Jig Saw Blade
Dust Collection
