SK40GD

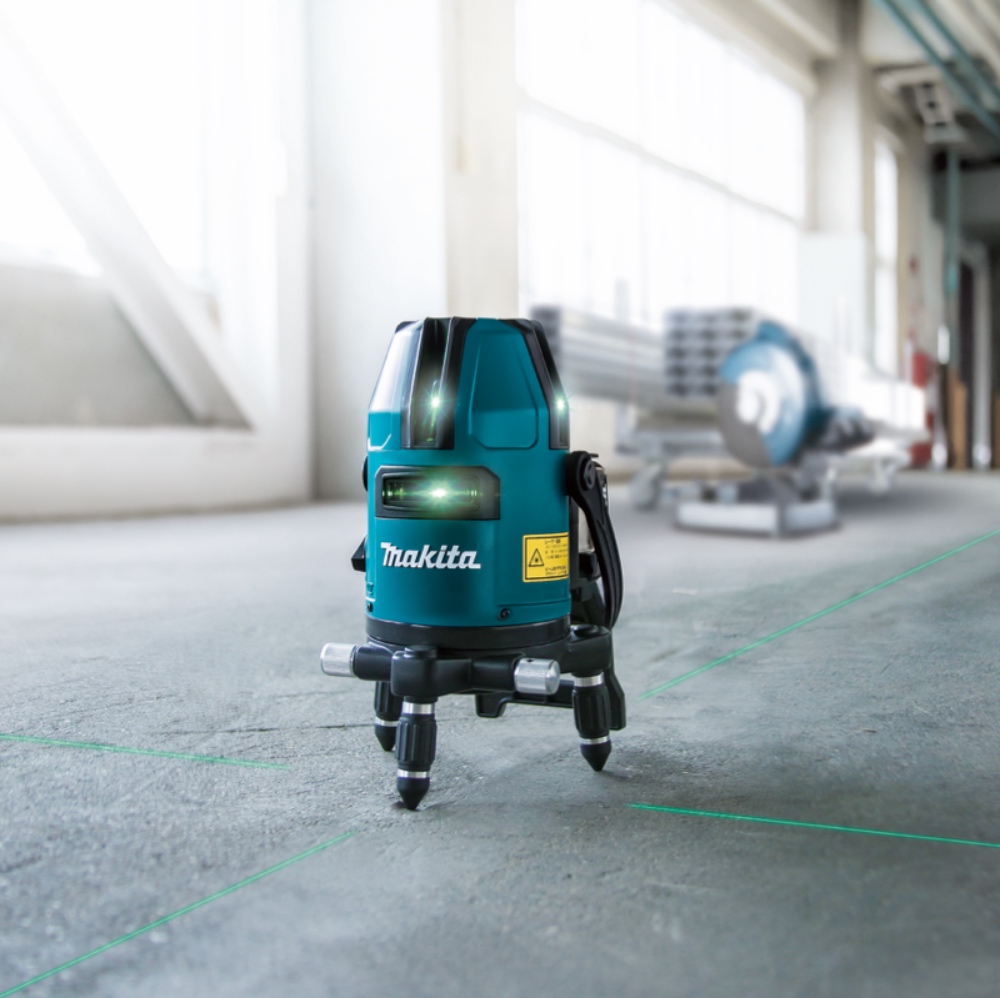

Rechargeable Green Multi Line Laser

SK40GD
Rechargeable Green Multi Line Laser

12V max Rechargeable Green Multi Line Laser

  

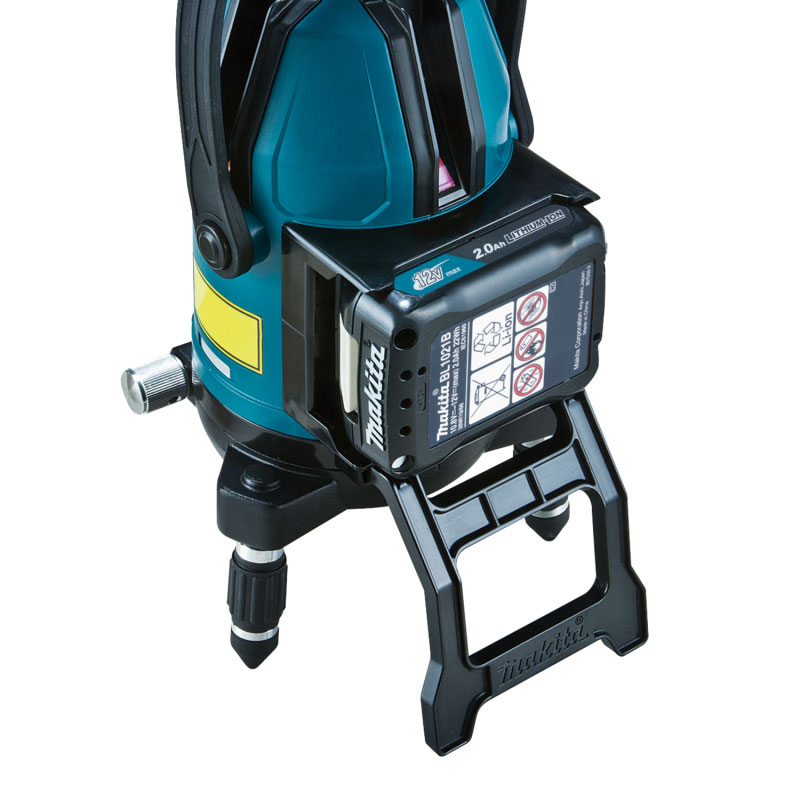

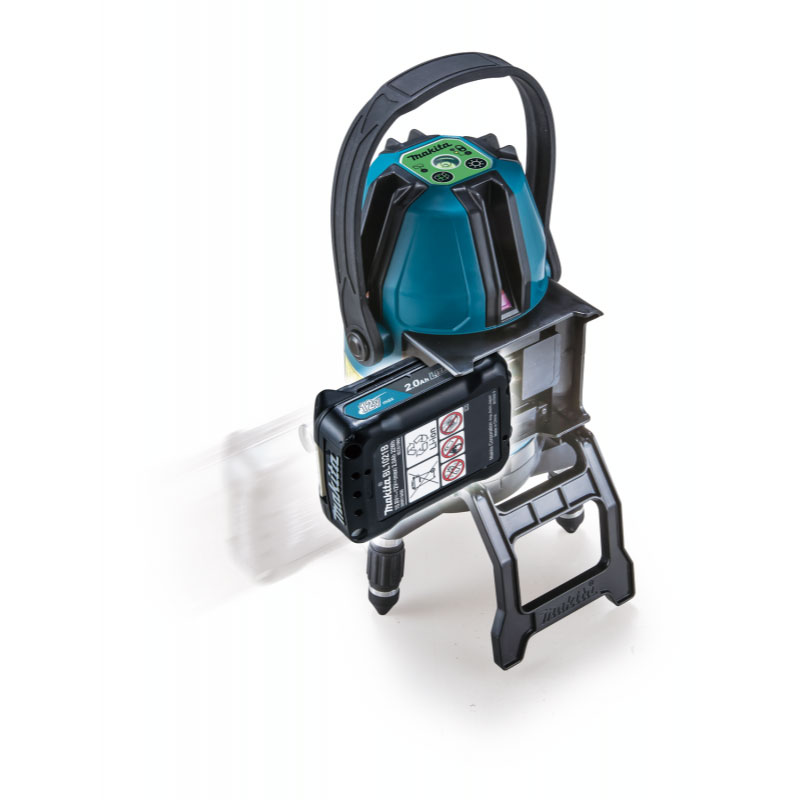

๐ High brightness green laser for increased visibility at bright site ๐ 4V1H (4-Vertical lines plus 1-horizontal line) ๐ Without point on laser line ๐ 2-brightness mode selection: Eco → Normal ๐ High self-leveling accuracy (+/-1 mm at 10 m) similar to that of high-end models ๐ Laser type [wavelength] ∙ Line laser: Green diode laser [515 nm] ∙ Spot laser for lower plumb point: Red diode laser [650 nm] ๐ Indication method: Automatic vertical line indication by gimbal mechanism*¹ *1 Gimbal mechanism is to keep verticality by the law of gravitation and it makes marking more precise ๐ Gimbal braking method: Magnet damper method ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions (Only the body of the Line laser is IP54 rated) ๐ ESD (Electrostatic discharge) protective measures: Level 2 (IEC61000-4-2) ๐ 12Vmax CXT Li-Ion battery can be attached directly to the line laser body ๐ Large handle minimizes the tool from falling ๐ Shock absorbing construction minimizes the tool from vibration during transport

Standard Equipments : Glass laser visibility, CD-ROM + Operation guide + Safety manual, Storage case


Technical specifications

Leveling accuracy +/-1 mm / 10 m
Self-leveling range +/-4°
Number of laser lines 5 (4V1H)
Laser type Laser class 2: 515 nm
Operating time (approx.) w/ BL1016 : 6 hours
Protection class IP54
Net weight 1.4 - 1.6 kg
Carrying Case
