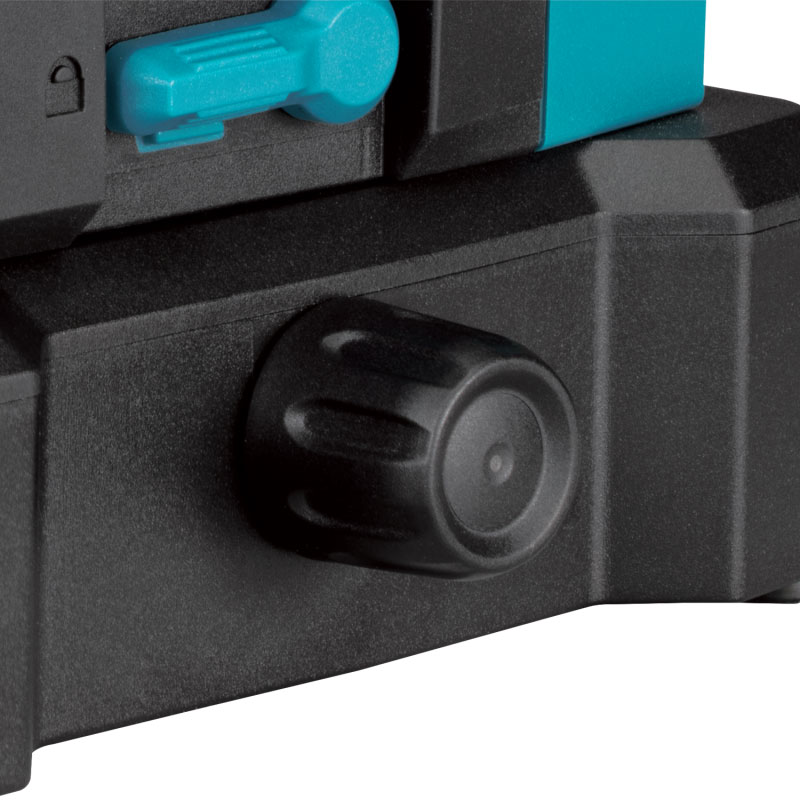

๐ Rotary base with eccentric rotation mechanism ･ Reduces setup time ･ Vertical laser lines can rotate around the defined plumb point up to 10 degrees left and right (with a dial for fine adjustment) ･ Eccentric rotation mechanism enables the laser body to rotate without changing the position of the defined plumb point, enabling easy line positioning ๐ Three full 360-degree lines can be projected ๐ Full 360-degree line is created by letting the laser from a light source reflect on a cone mirror ๐ 4 Horizontal lines & 4 Vertical lines ๐ Laser light output power: less than 2.0 mW ๐ High accuracy +/-2 mm @ 10 m ๐ ndication method: Automatic vertical line indication by gimbal mechanism ๐ Control method: Magnet damper method control ๐ 6-laser line mode selection: 2V(F/R)4H→4V4H→4V→4H→2V(F/R)→2V(L/R) ๐ 3-brightness mode selection: Bright→Normal→Eco ๐ eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions (Dust and water resistance with IP54 rating for increased durability)

Standard Equipments : Soft bag, L-adapter, Target plate, CD manual + Quick start
