DCC501
Cordless Dustless Cutter

DCC501
Cordless Dustless Cutter

18V Cordless Cutter 125 mm (5") Wet Type

  

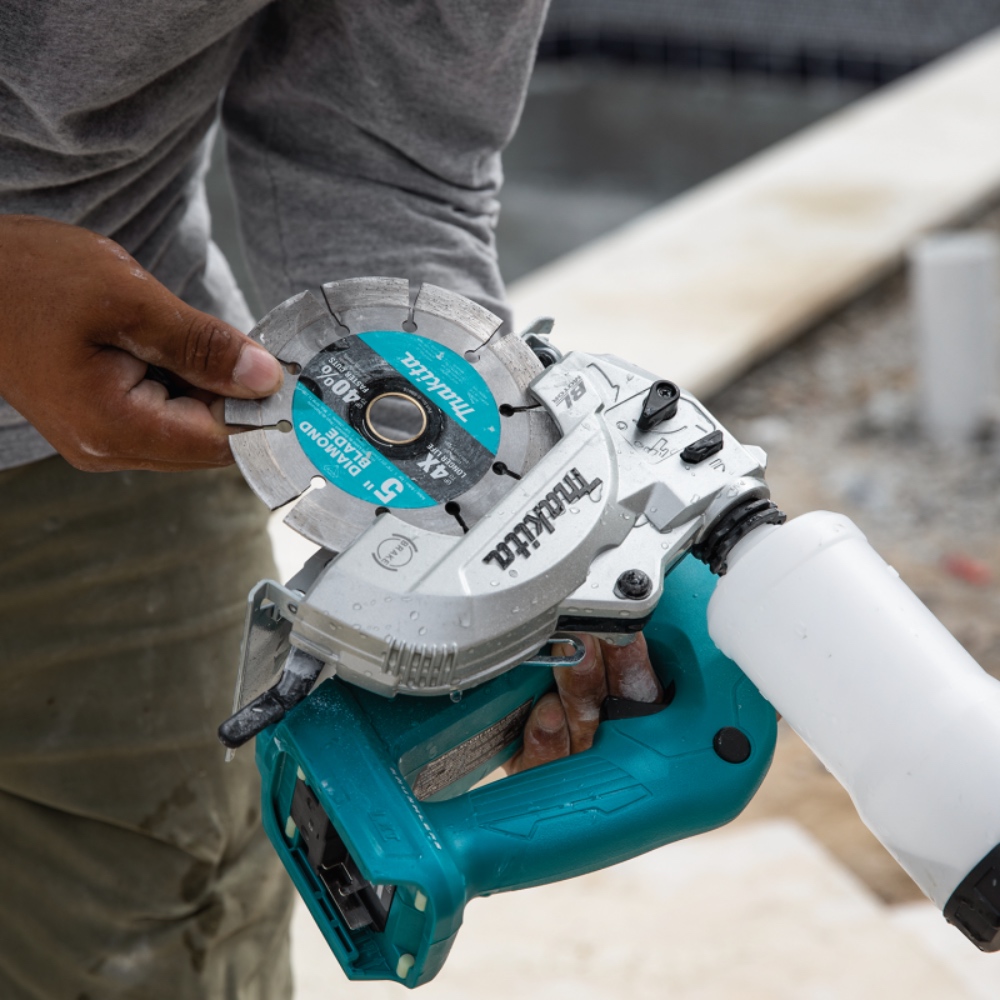

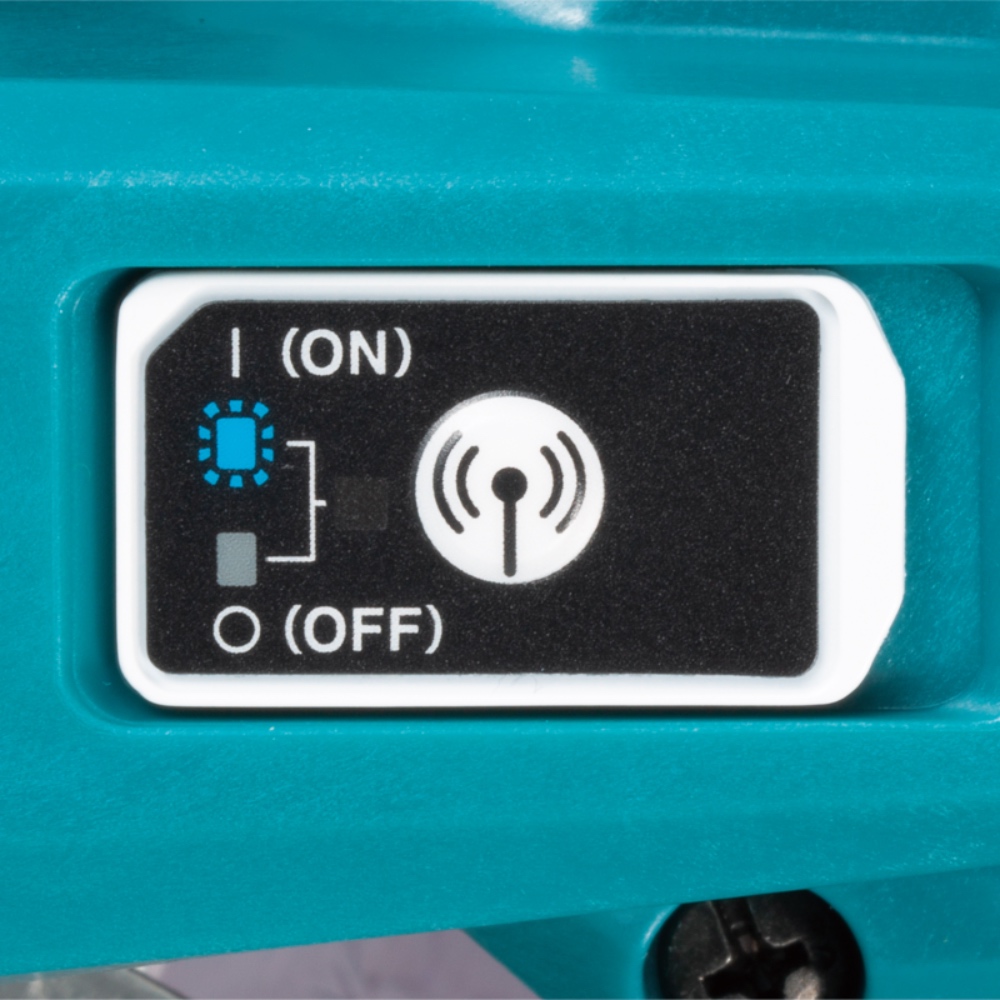

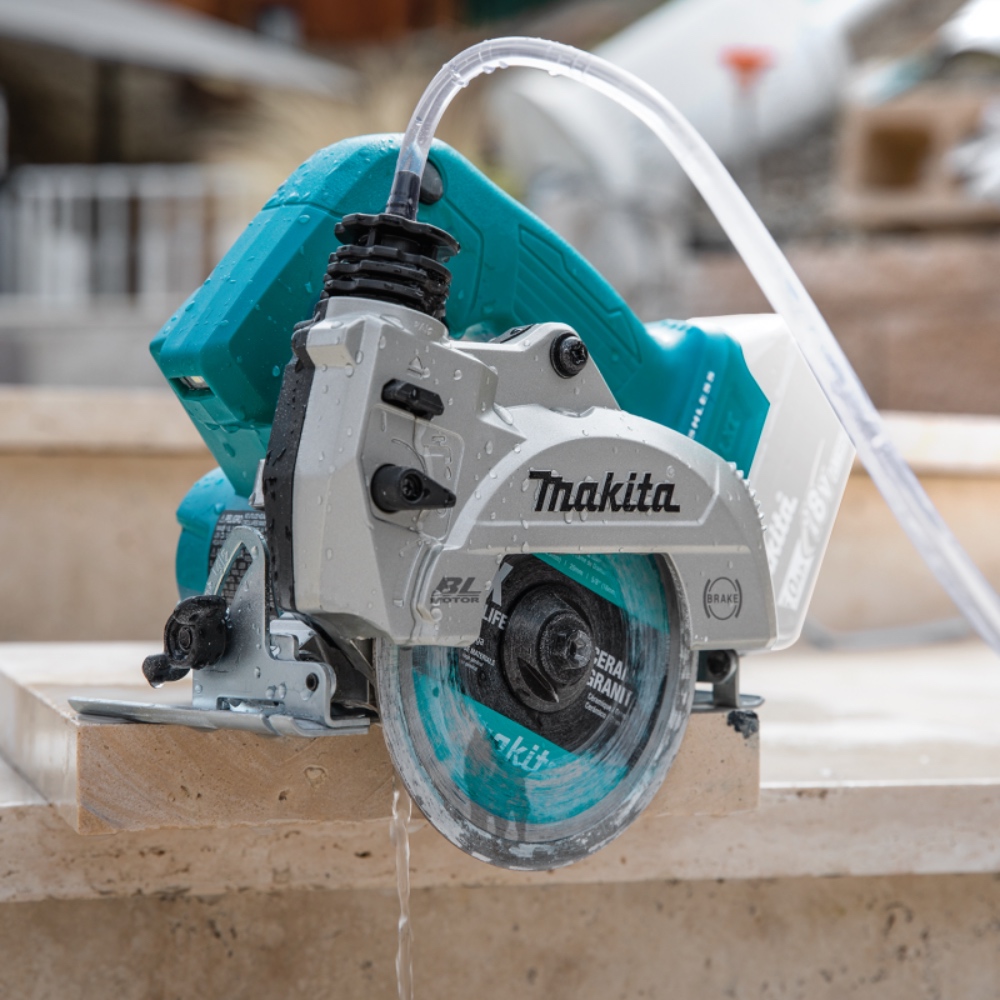

๐ BL motor provides high power and excellent cutting performance ๐ Built-in LED light for better illumination and more accurate work ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth ๐ Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance ๐ Water supply attachment with a tank capacity of 500 mL is supplied as standard equipment ๐ Compatible with optional guide rail for increased maneuverability ๐ Dust cover to minimize dust scattering around ๐ Dust proof switch covered with dust cover minimizes contamination of motor ๐ Up to 125 mm (5") diameter diamond wheel can be used ๐ Cuts up to 40 mm (1-9/16") with 125 mm (5") wheel ๐ Powerful cutting in stone, masonry, tile, concrete & more ๐ Lock-on button for continuous use operation ๐ Two-stage safety trigger switch minimizes accidental start up ๐ Battery protection circuit protects against overloading, over-discharging and over-heatingTwo-stage safety trigger switch minimizes accidental start up

Standard Equipments: WATER SUPPLY HOSE COMPLETE A 140Y23-7(1) HEX. WRENCH 5 783217-7(1)


Technical specifications

Hole diameter 20 mm
Max Cutting Capacity 40 mm
Max Cutting Capacity 45° 27 mm
No Load Speed (RPM) 8,800
Dimensions (L x W x H) 231 x 163 x 291 mm
Net weight 2.7 - 3.0 kg
Brake
Soft Start

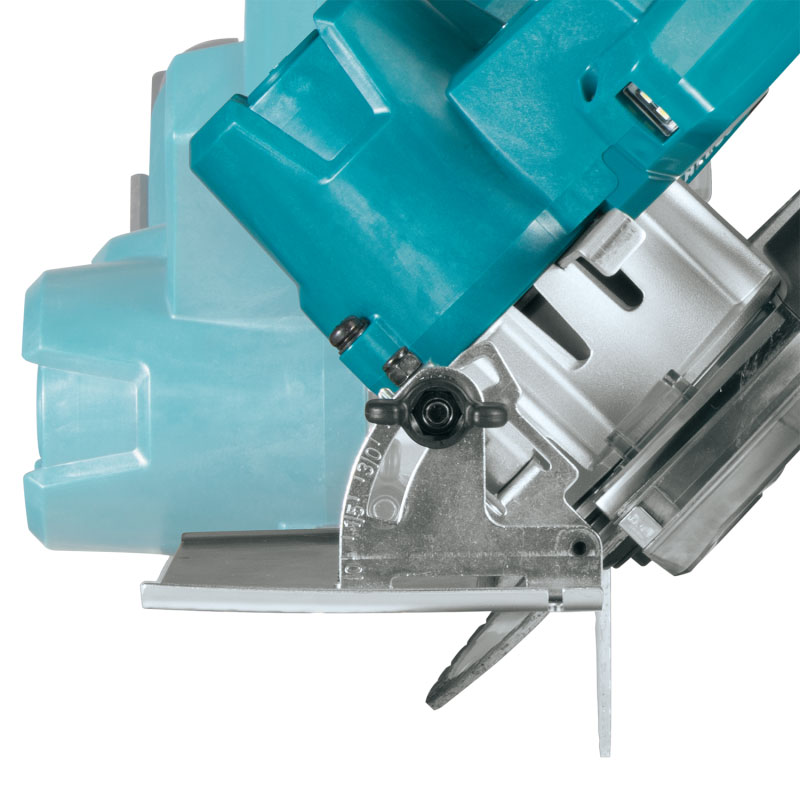

Bevel Cutting 45 left
Built-in-Job Light
