(EN / TH)

LS003G
Cordless Slide Compound Miter Saw

LS003G
Cordless Slide Compound Miter Saw

40V max Cordless Slide Compound Miter Saw 305 mm

  

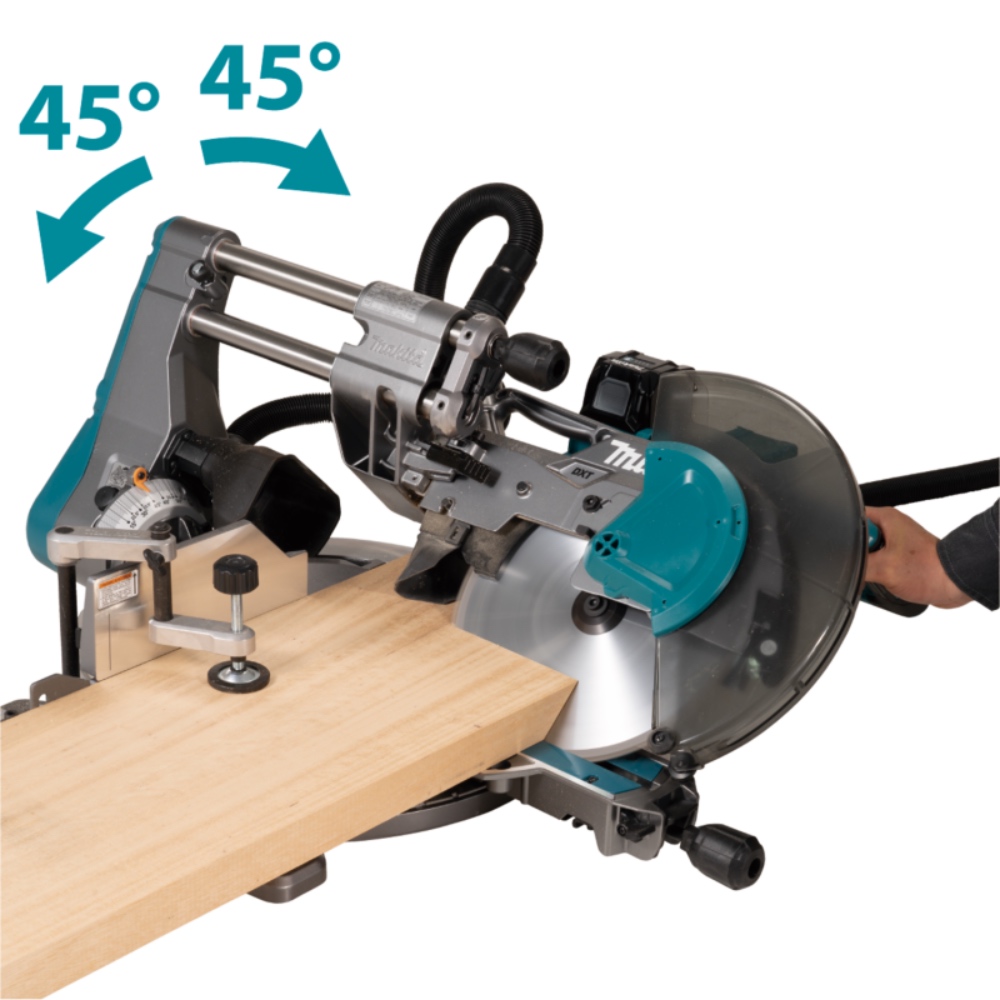

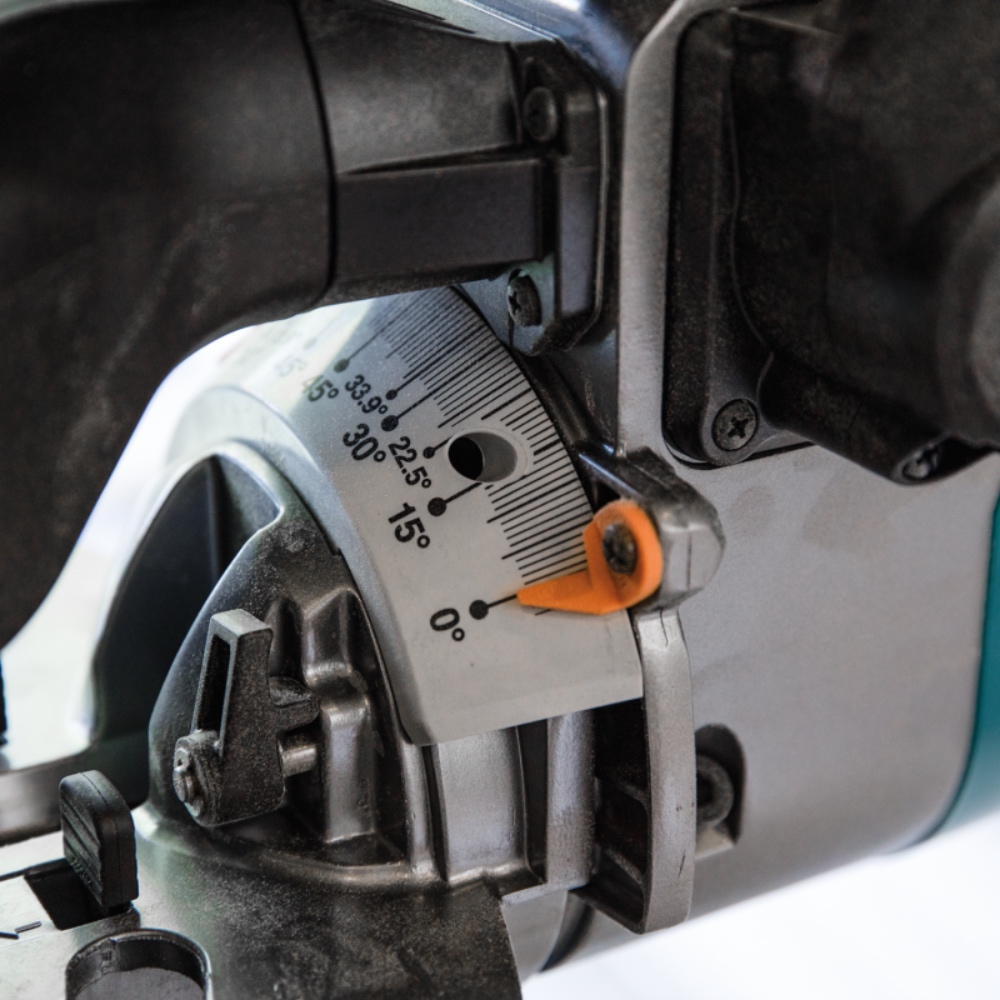

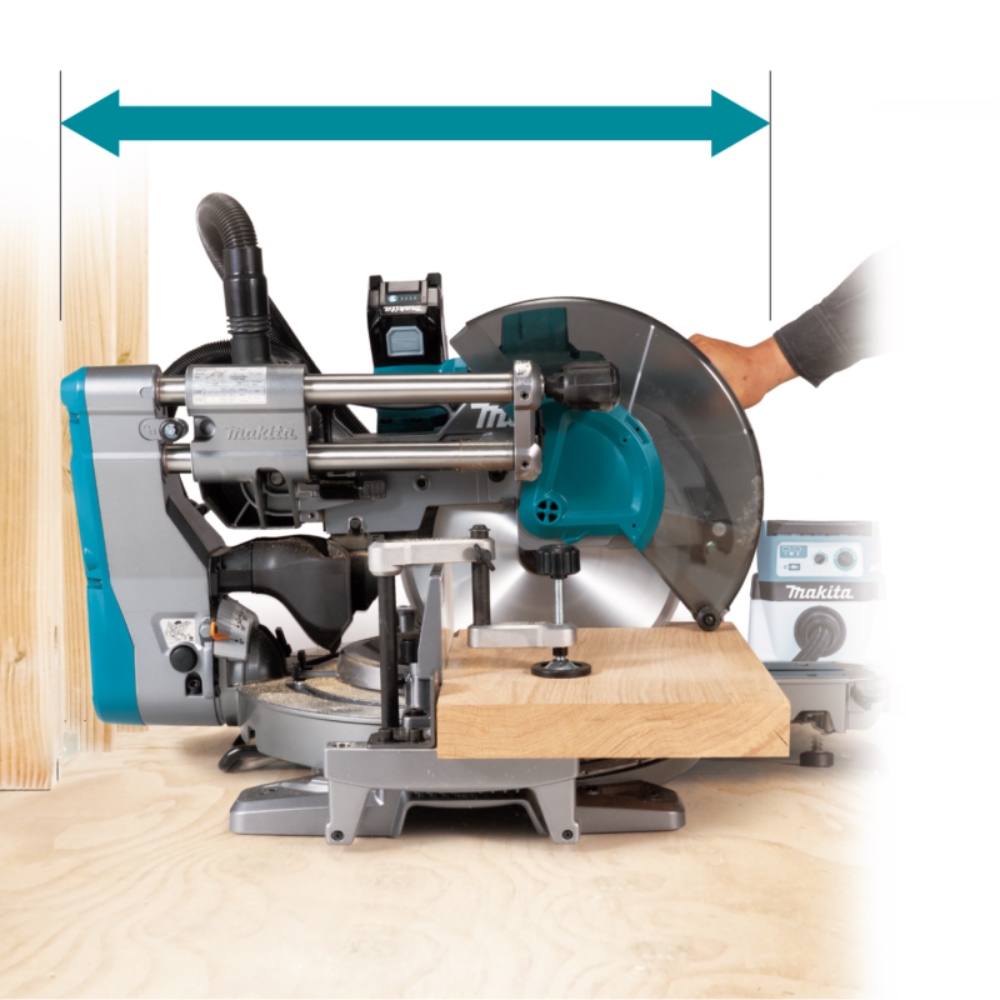

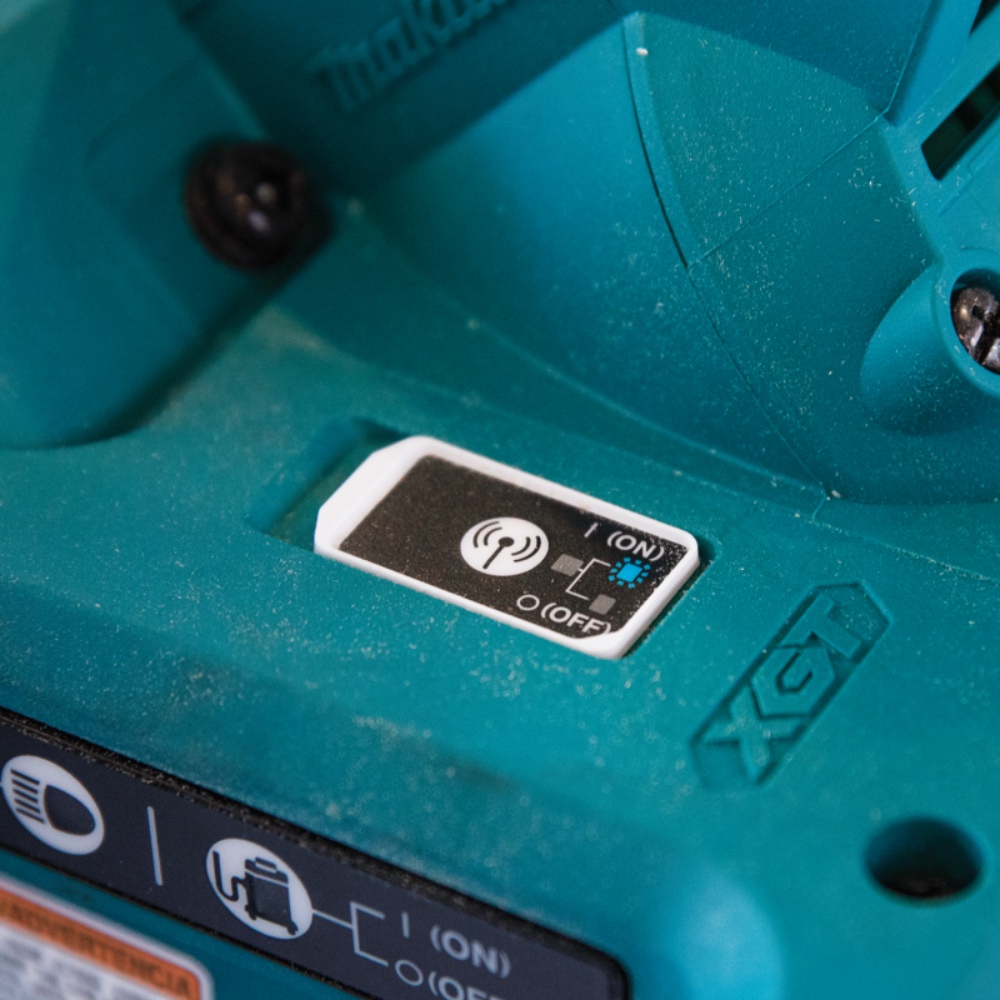

๐ Auto-start wireless System (AWS) utilizes Bluetooth technology for wireless on-off communication between the tool and dust extractor ๐ Bevel angle lock and release knob at front of tool for easy access and repositioning ๐ Bevels 0-48° left and right; Miters 0-60° left and right, with positive stops at 0°, 15°, 22.5°, 30°, 31.6°, 45°, and 60° left and right ๐ Convenient on-board hex wrench for fast and easy blade changes ๐ Convenient onboard hex wrench storage for blade changes ๐ Electric brake for maximum productivity ๐ Extension wings for cutting longer material; retractable for more compact storage ๐ Extra large 3-5/8" x 15" cutting capacity at 90°; cuts up to 8" ๐ Soft start suppresses start-up reaction for smooth start-ups and longer gear life ๐ Incorporates Deep eXact cutting Technology (DXT) achieved by our consistent pursuit of cutting larger size workpiece but with higher accuracy. ๐ Rail-forward design enables to be placed against a wall for maximizing work space ๐ Large turn base supports workpiece securely for increased stability ๐ Increased dust extraction rate for a cleaner work environment

Standard Equipments : DUST BAG ASS'Y 122852-0(1) VISE ASS'Y 126617-2(1) TRIANGULAR RULE 762001-3(1) HEX. WRENCH 6 781044-6(1) TCT BLADE305X60T WOOD EFFICUT B-67452(1)


Technical specifications

Wheel Diameter 305 mm
Hole diameter 25.4 - 30 mm
Max Cutting Capacity 107 x 363 mm
Max Cutting Capacity 45° 107 x 255 mm
No Load Speed (RPM) 3,600
Dimensions (L x W x H) 898 x 690 x 725 mm
Net weight 30.5 - 31.1 kg
Brake
Constant Speed
Soft Start
Bevel Cutting 45 LR
Dust Collection
Built-in-Job Light
