LS002G
Cordless Slide Compound Miter Saw

LS002G
Cordless Slide Compound Miter Saw

40Vmax Cordless Slide Compound Miter Saw 216 mm

  
Brake
Constant Speed
Soft Start
Bevel Cutting 45 LR
Dust Collection
Built-in-Job Light

Features

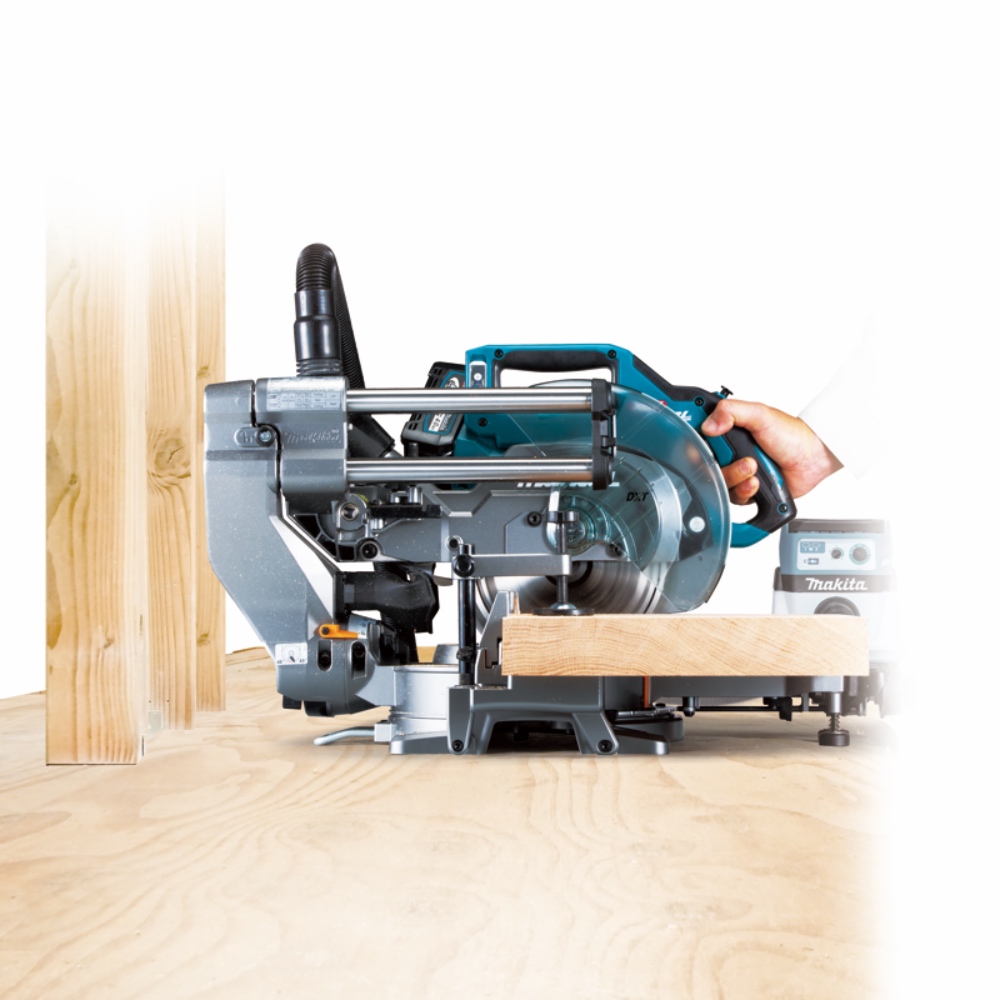

๐ Redesigned blade case for reduced sawdust flying towards operator ๐ Rail-forward design enables to be placed against a wall for maximizing work space ๐ LED lamp to cast an exact cutting line ๐ Precision miter angle adjustment; Can be achieved simply by turning a knob on the turn base ๐ High precision cutting; Bevel cutting precision has been increased by optimizing the rigidity of each and every relevant part ๐ Easy locking and release of bevel angle; Bevel angle can be locked/released by turning ๐ Constant speed control as stable as that of AC tools ๐ Equipped with BL motor, allowing for smooth cutting ๐ Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth ๐ Bevel range of 48° right and left ๐ Single sliding system enables smooth operation to produce superior cuts ๐ Front knob for easy bevel angle adjustment ๐ One-touch slide lock; Can be easily locked/unlocked by inserting/removing the lock pin ๐ Soft start feature for smooth start-ups. ๐ See-through blade guard system for greater visibility of blade and line of cut. ๐ Oversized trigger switch for better fit, added comfort and easier operation. ๐ Electric brake for maximum productivity. ๐ Incorporates Deep eXact cutting Technology (DXT) achieved by our consistent pursuit of cutting larger size workpiece but with higher accuracy.

Standard Equipments: DUST BAG ASSEMBLY 127512-9(1) VISE ASSEMBLY 127693-9(1) TRIANGULAR RULE 762001-3(1) HEX. WRENCH 5 783022-2(1) EFFICUT FOR WOOD CUTTING/ GENE E-07010(1)


Technical specifications

Wheel Diameter 216 mm
Hole diameter 25.4/ 30 mm
Max Cutting Capacity 70 x 312 mm
Max Cutting Capacity 45° 70 x 220 mm
No Load Speed 4,800 minˉ¹
Dimensions (L x W x H) 702 x 551 x 557 mm
Net weight 16.4 - 17.0 kg
