ML014G
Cordless Tower Light

ML014G Parts List (2.08 MB)

ML014G Leaflet (9.03 MB)

ML014G
Cordless Tower Light

40Vmax/18V Cordless Tower Light, 15,000 Lumens

  
Soft Start

Features

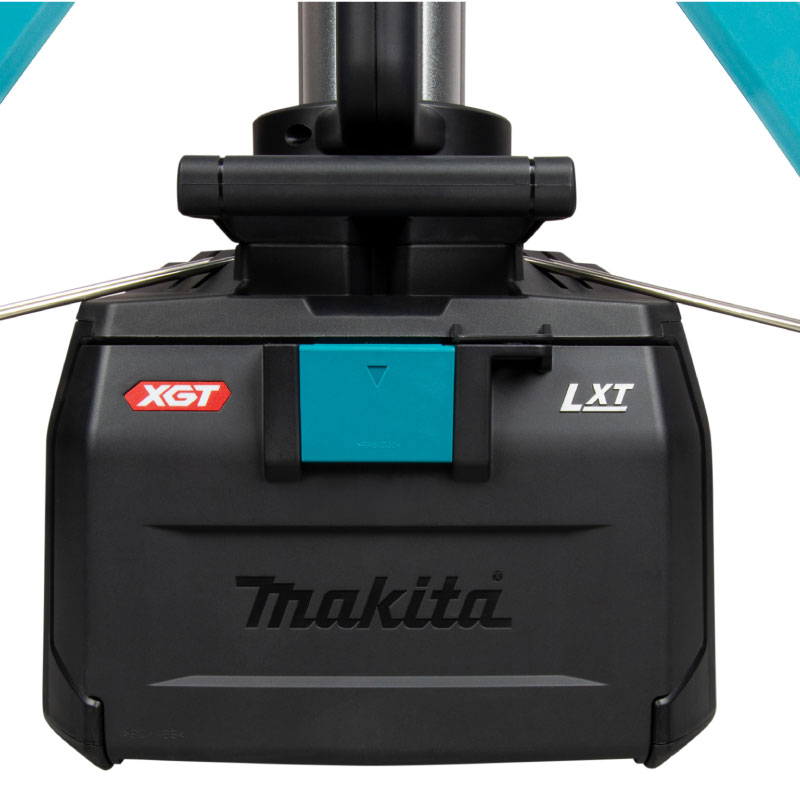

  • Up to two batteries can be installed;
    · Only one XGT or 18V LXT
    · Two; One XGT and One 18V LXT in parallel connection
  • Max luminous flux: 15,000 lm
  • Stepless brightness settings:15,000 lumens - 1,100 lumens
  • ML014G can provide sufficiently bright illumination with wide overage and with short downtime caused by setup, allowing users to quickly start their illuminated operations at dusk or night.
  • With the features above, ML014G is optimal for illumination at construction sites or various emergency scenes such as fire, traffic accidents, fields of disaster prevention/reduction and post disaster recovery, etc.
  • Approx. 3.6 / 48 hours of continuous illumination with BL4080F+BL18120 batteries at a constant illuminance at max / min setting (15,000 / 1,100 lm)

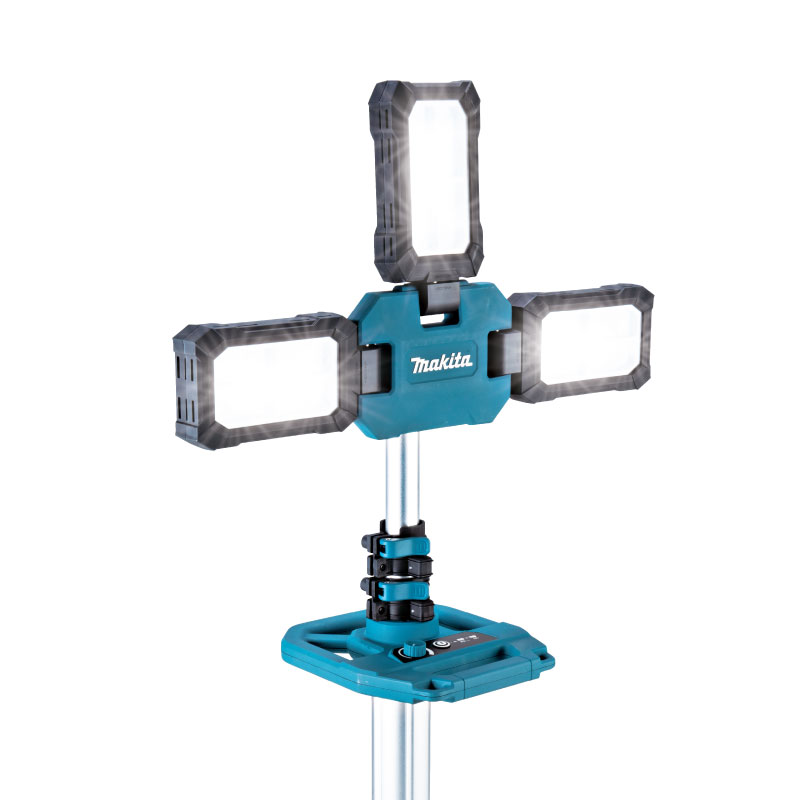

  • The light angle is easily adjustable to suit your application, providing optimal illumination;

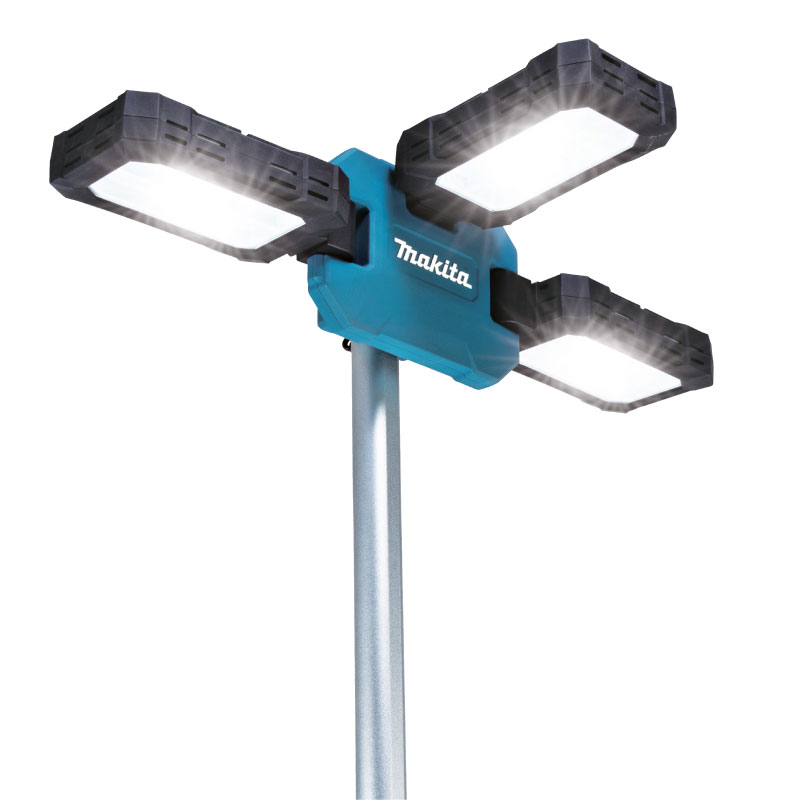

    · 3 Light heads rotate 180° horizontally and vertically.
    · Light base rotates 180° vertically.

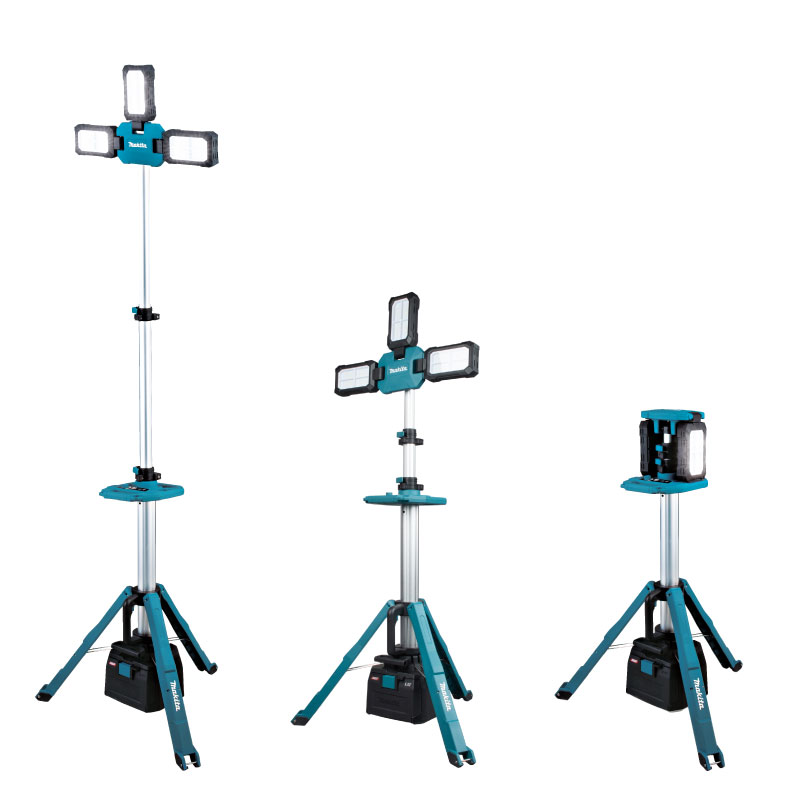

  • Manually adjustable height of light head;
    · The setup height of light head can be adjusted from 1,085 to 2,430mm.
    · Manual raising and lowering (release the lock lever and use the handle to adjust)

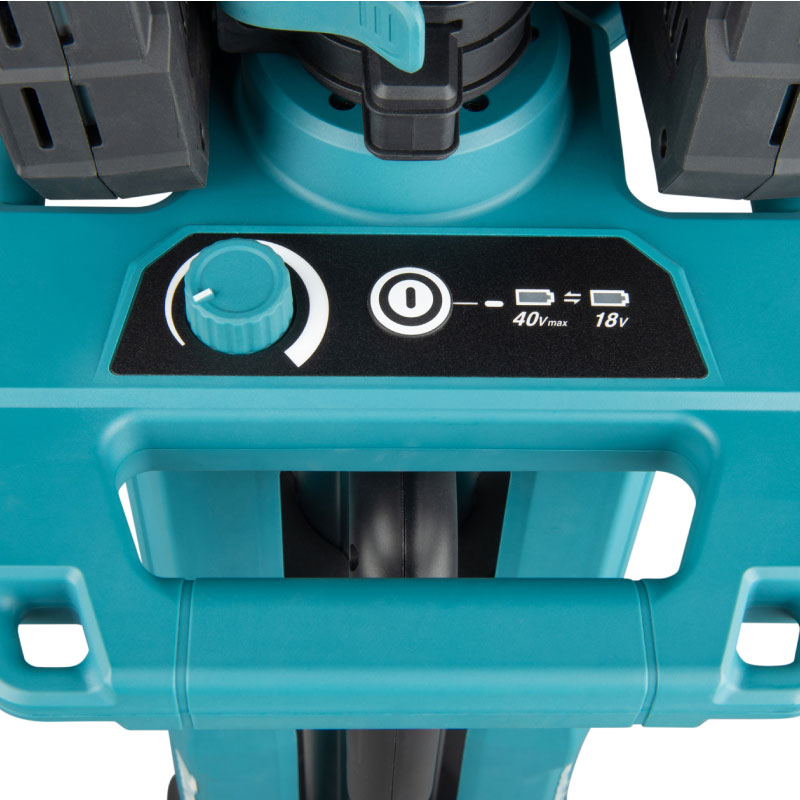

  • Battery capacity warning function automatically notifies the user about reduction in each battery capacity on Control panel
  • IP56 certified dust and water resistance
  • Shoulder belt can be easily slung over your shoulder for added mobility

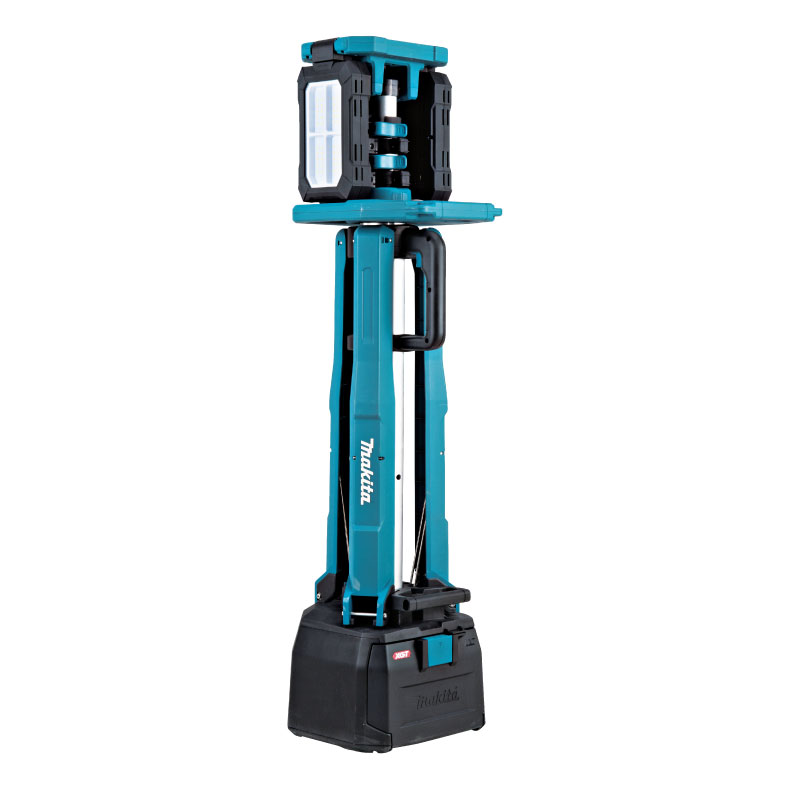

  • Foldable into a compact size for simple storage and transport
  • Improved setup stability;
    · Each of the three legs is stepped above the foot, allowing user to hook the strap of a weight bag onto the leg easily.
    · For improved stability; Battery compartment is positioned at a lower height of the tower light. Anti-slip rubber soles are added to the foot of the tripod.
    · For more stable outdoor use, the foot is redesigned with a larger opening enough for user to hammer a peg into the ground easily.
  • Gradual illumination relieves the stress on user's eyes
  • Foldable into a compact size for easy storage and transport
  • Tripod is operable by pushing a lock-release button
  • LED light color: daylight white (Color temperature: 5,000K)
  • Padlock hole for battery theft protection

Standard equipment : Shoulder belt


Parts List
(2.08 MB)


Leaflet
(9.03 MB)

Available options

ML014G
Tool only


Technical specifications

Luminous flux 1,100 - 15,000 lm
Continuous use BL4080 : 2.0 - 28 hours
Continuous use BL4080F + BL18120 : 3.6 - 48 hours
Light base rotates (Vertically) 180 °
Each light head (Vertical / Horizontal) 180 ° / 180 °
Max setup height 2,430 mm
Dust and water resistance IP56
Dimensions (L x W x H) 780 x 680 x 1,085 - 2,430 mm
Net weight 12.8 kg
