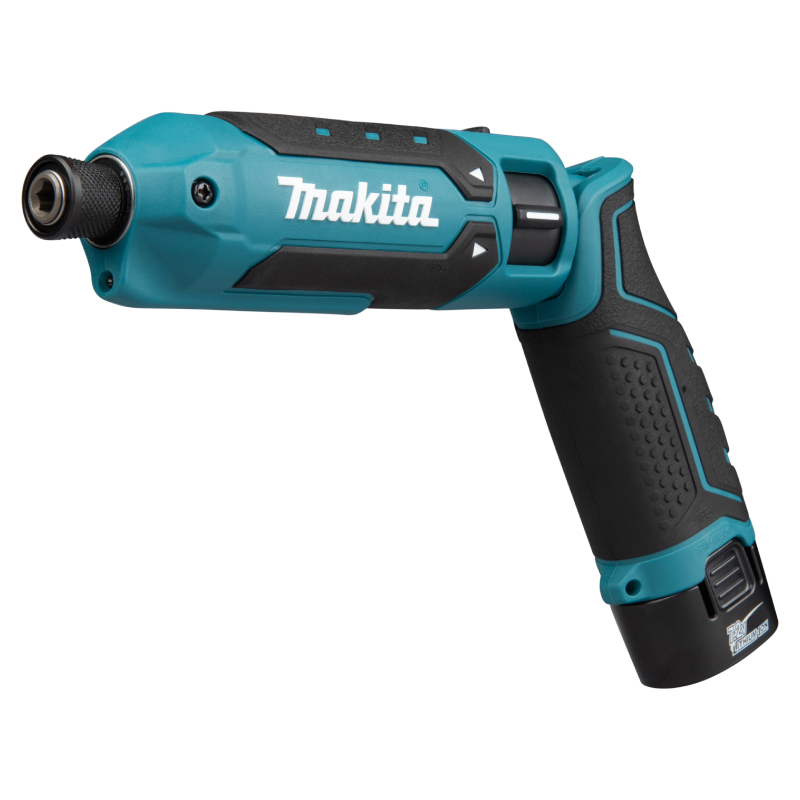

TD023D
Cordless Impact Driver

TD023D
Cordless Impact Driver

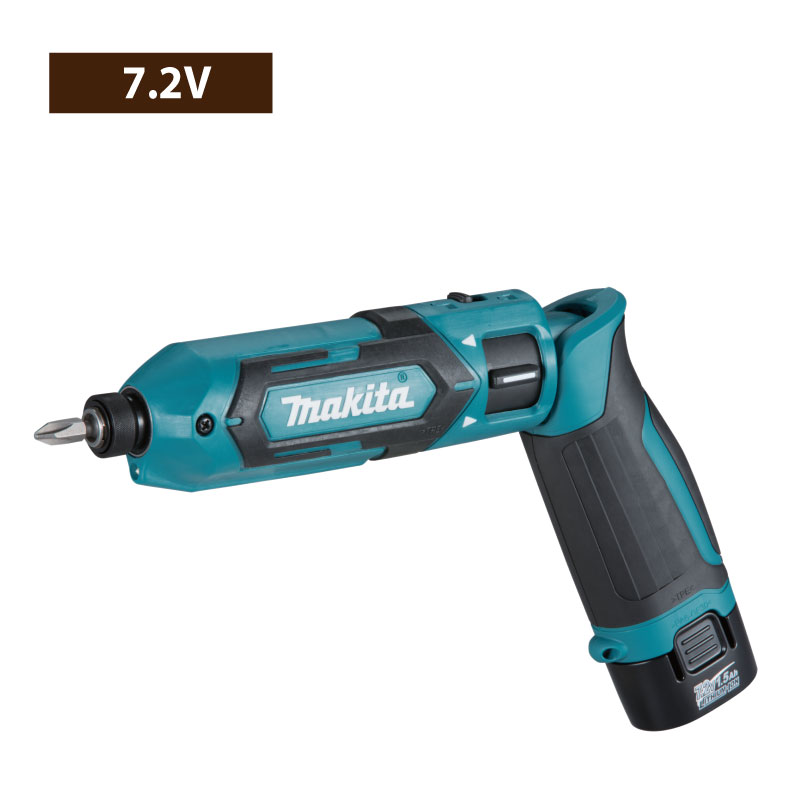

7.2V Cordless Impact Driver Two-Position 25 N·m

  
Variable Speed
Brake
Reversing
Built-in-Job Light
Carrying Case

Features

  • Released with the same core performance, including maximum fastening torque, as the current TD022D, but with a refreshed exterior design.
  • Delivers 25 N·m (220 in.lbs.) of Max Torque in a compact design
  • 0-2,450 RPM and 0-3,000 IPM for reduced fastening time

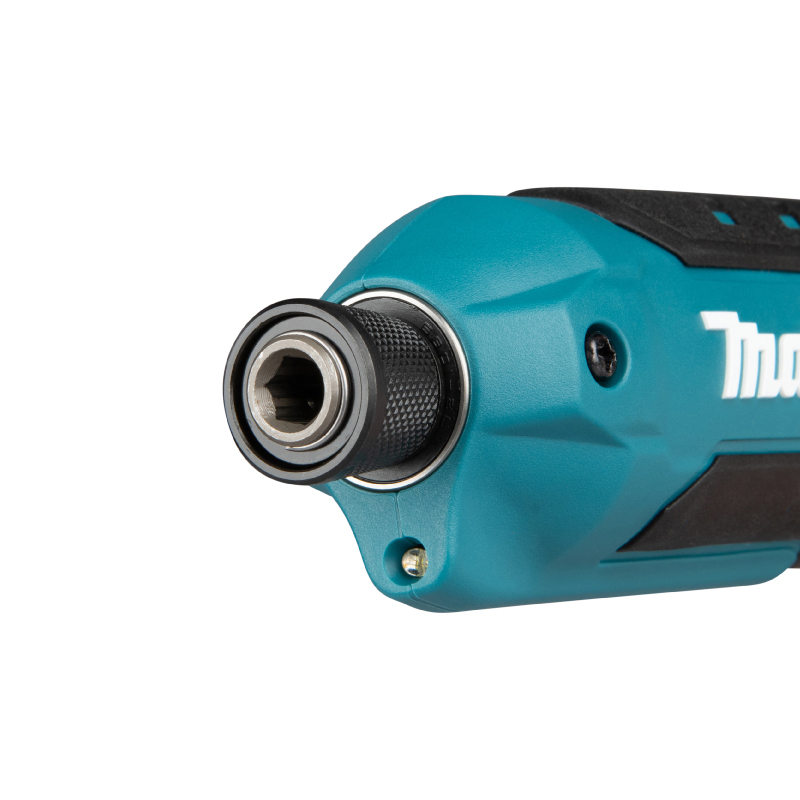

  • Easy-to-grip tapered bit sleeve;
    - Designed for easy and quick bit removal
    - Convenient 6.35 mm (1/4") hex chuck for quick bit changes
  • One-touch bit installation;
    The bit can be locked in place with a simple push-in motion without pulling back the bit sleeve.
    (The same structure as DTD173)

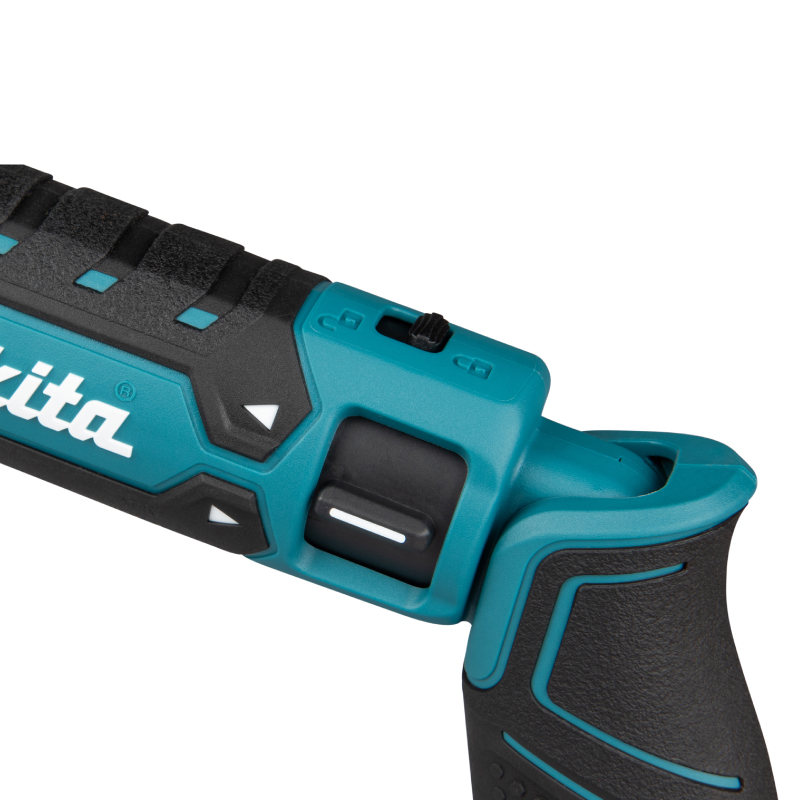

  • Multi-function variable speed rotary switch allows operator to adjust driving speed and direction simultaneously for precise fastening applications
  • Switch position enables easy access for left or right handed users
  • LED job light with pre-glow function brightly illuminates a spot and the periphery by enlarging the illuminated area
  • Soft grip handle provides increased comfort on the job
  • Can also be used as a hand screwdriver for final tightening with better control.
  • Electric brake for maximum productivity
  • Compact and lightweight design with precision control and high fastening torque

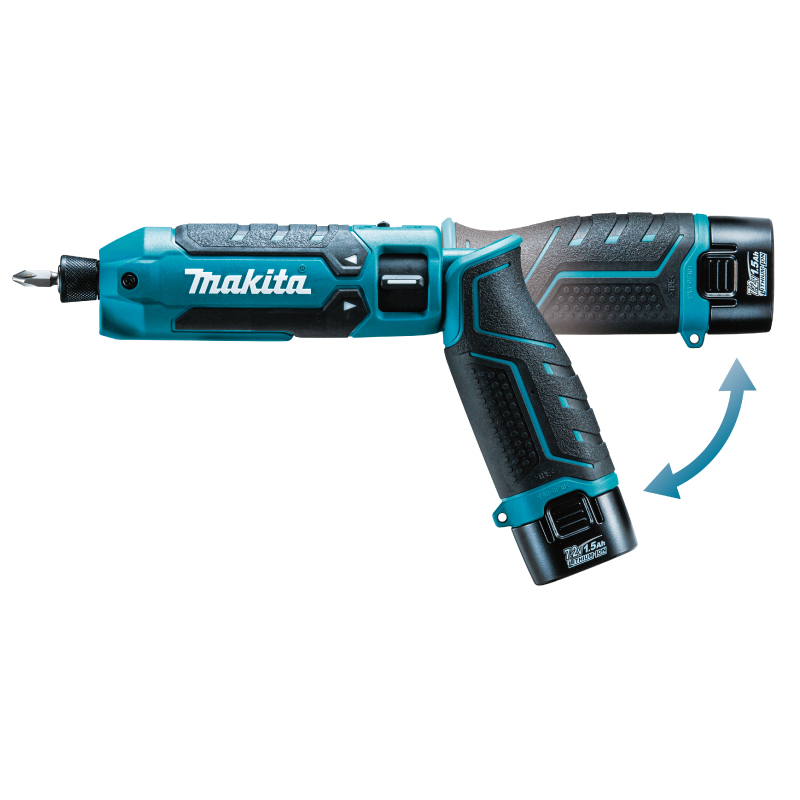

  • Comfortable grip design operates in straight or pistol grip positions

Standard equipment : Bit set, Holster, Band


Available options


Technical specifications

Max fastening torque 25 N·m
No Load Speed 0 - 2,450 minˉ¹
Impacts Per Minute 0 - 3,000 minˉ¹
Dimensions (L x W x H) 229 x 42 x 142 mm
Net weight 0.58 kg
