DCU602
Battery Powered Wheelbarrow

DCU602
Battery Powered Wheelbarrow

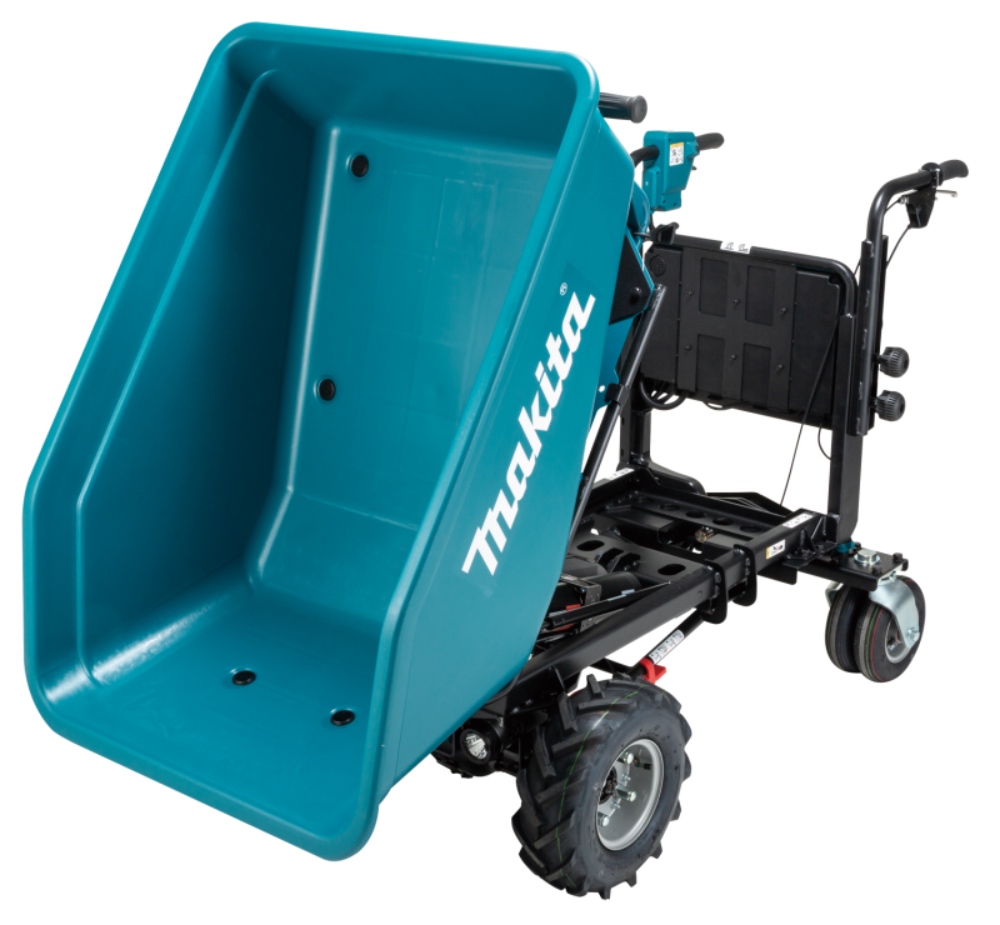

36V Battery Powered Wheelbarrow

  

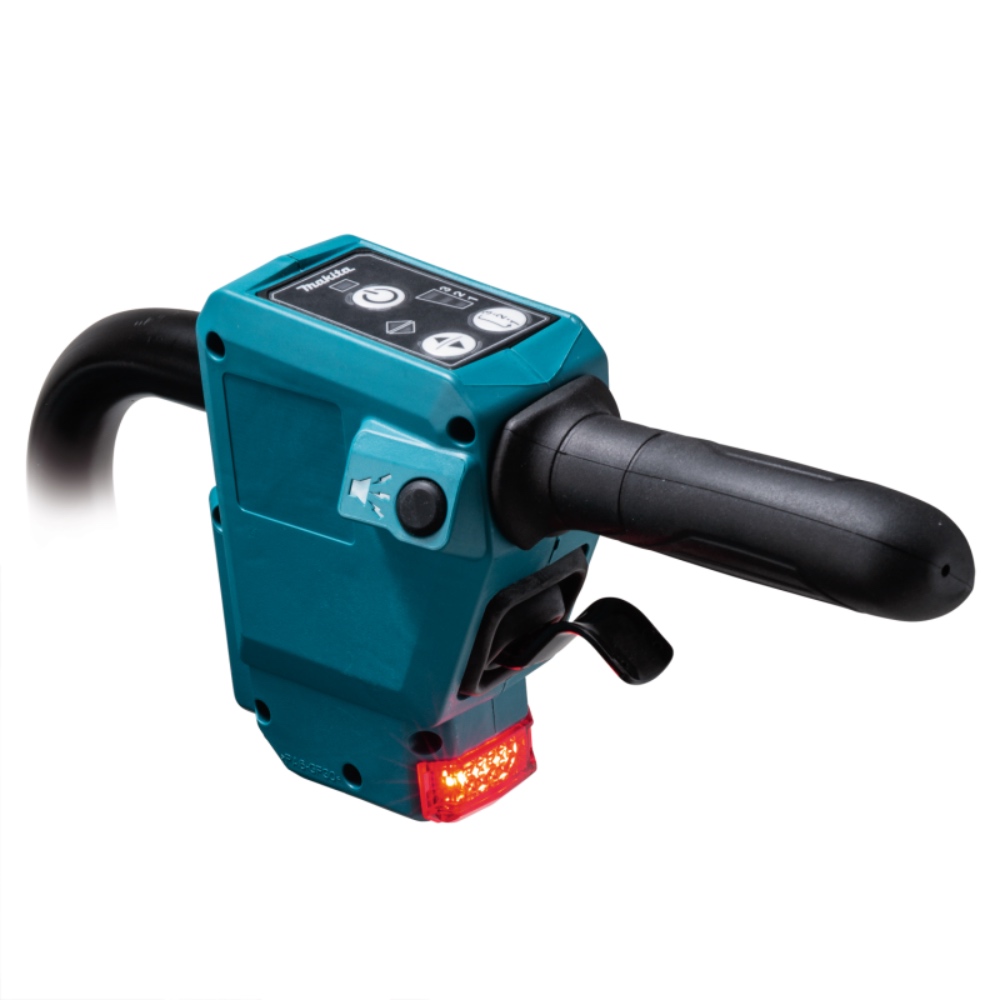

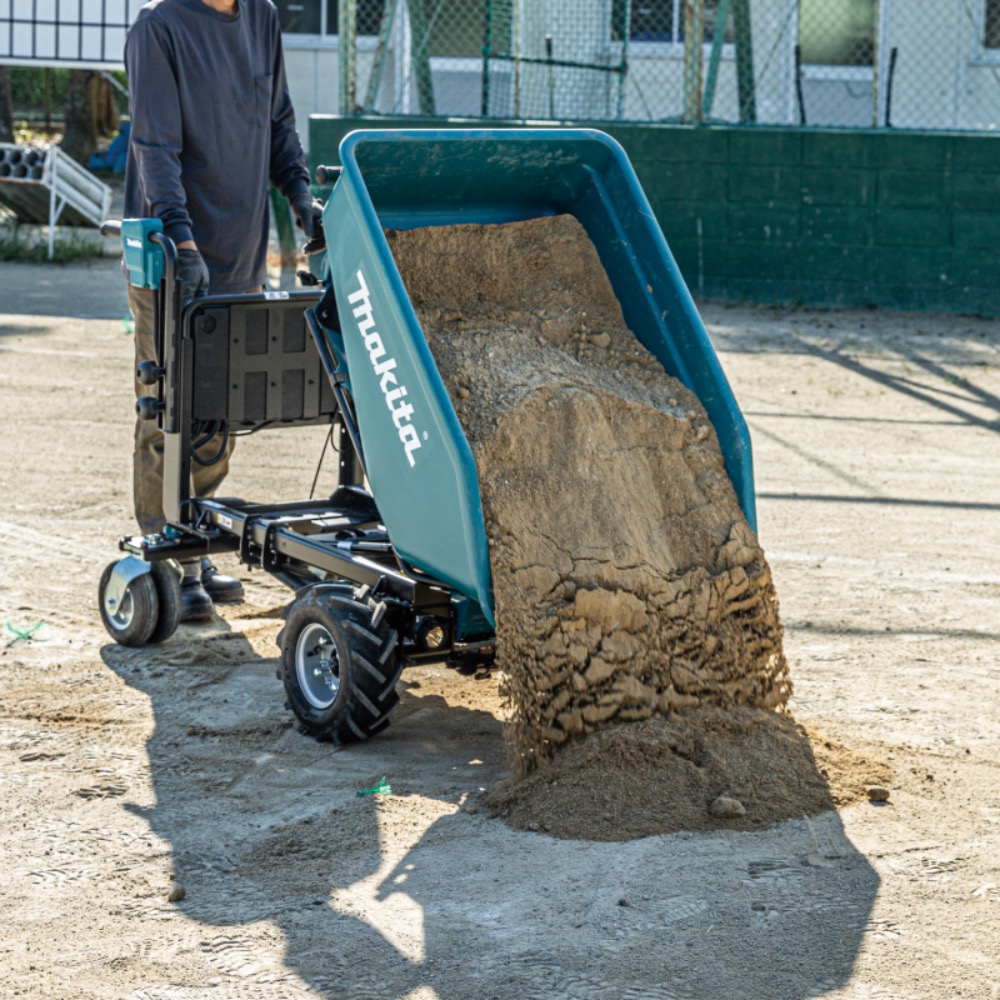

๐ Max load capacity up to 300 kg ๐ Electric dump ๐ The bucket can be tilted electrically up to 75º with a reference to the ground, and then the bucket can be tilted manually up to 110º ๐ The electric dump is limited to use on a flat ground, therefore, the machine is equipped with a level gauge to check the leveling of the machine ๐ Bucket capacity : Heaped capacity 200 L , Full liquid capacity 100 L ๐ Rust-free plastic bucket accepts wet loads ๐ Dump bucket can be replaced with Carrier (optional accessory) ๐ 4-wheel barrow (with front-wheel drive system) for stable load-carrying even with heavy loads ๐ XPT (eXtreme Protection Technology) / IPX4-compatible ๐ Powered by two 18V LXT batteries in series ๐ Two or four batteries can be installed for a 2-series/2-parallel connection for a secure amount of work ๐ Equipped with a battery selection switch to choose which combination of 2 batteries to use ๐ Selection of 3 Forward speeds and F/R rotation by push button ๐ Small diameter double tire structure allows for low platform and high load capacity ๐ Driving wheels (Front wheels) touch the ground stably ๐ Rear wheel axle is designed to tilt to enable Front wheels (driving wheels) to stably touch the ground for reliable driving even on bumpy road surfaces ๐ Swivel lock fixes the direction of rear wheels ๐ Headlights ๐ Handle height can be adjusted according to user's height without tool simply by turning 2 knob screws ๐ Equipped with electric and electromagnetic brakes on top of hand lever-operated mechanical brake


Technical specifications

Traveling speed 1.5 - 5.0 km/h
Reverse 1.0 km
Potential travel distance BL1860B x4: 7.2 km
Continuous Use BL1860B x4: 100 min.
Max load capacity 300 kg
Max climbing capacity 12°
Dimensions (L x W x H) 1,480 x 730 x 820 mm
Net weight 147 kg
Variable Speed
Brake
Reversing
Electronic 3-Speed
Constant Speed
Soft Start
Built-in-Job Light
