DJV185
Cordless Jig Saw

DJV185
Cordless Jig Saw

18V Cordless Barrel Handle Jig Saw

  

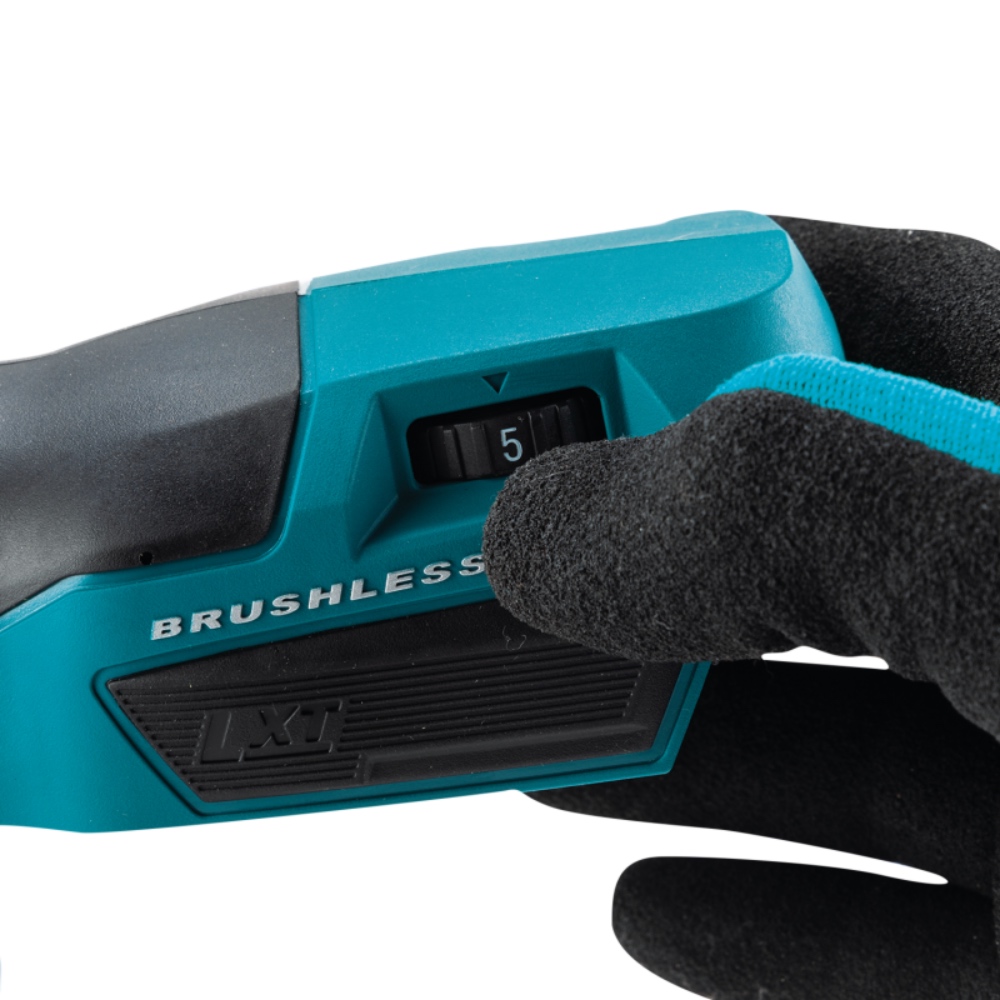

Variable Speed
Brake
Constant Speed
Soft Start
Orbital Cutting
Bayonet Shank Jig Saw Blade
Dust Collection
Built-in-Job Light
Carrying Case

Features

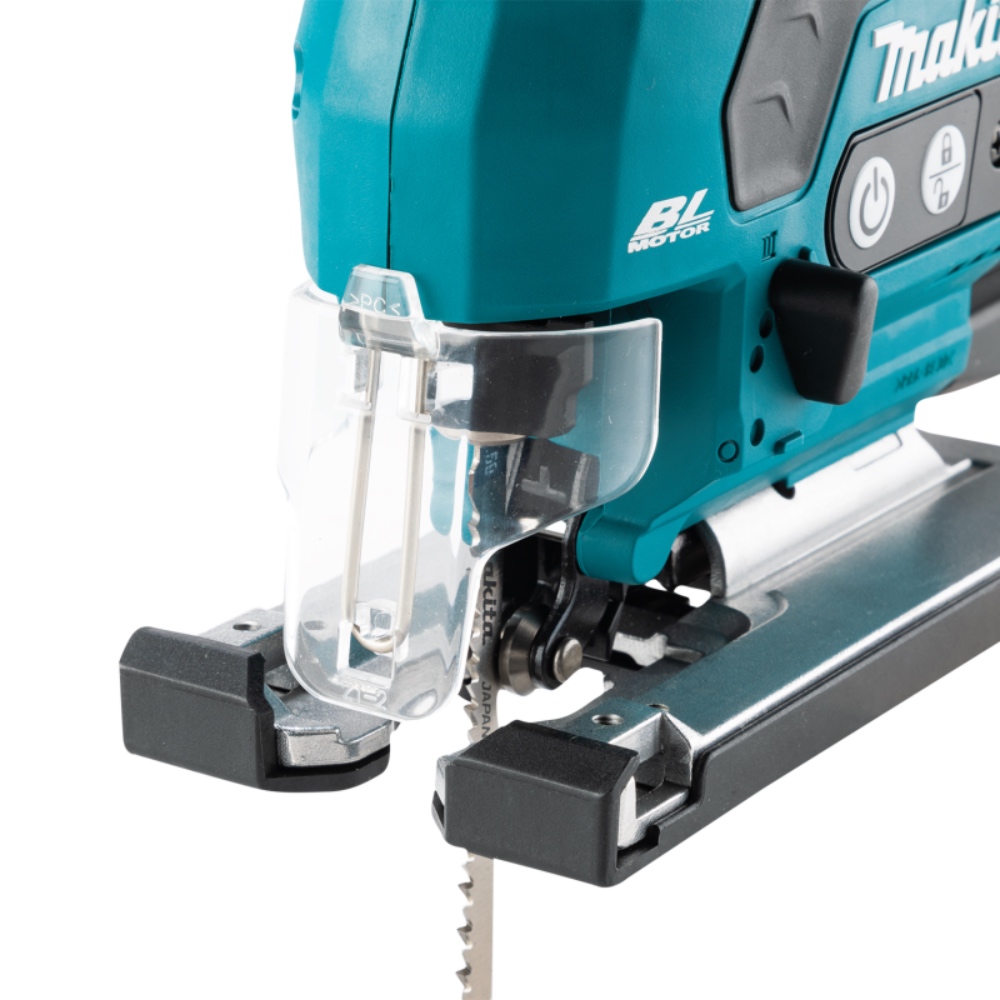

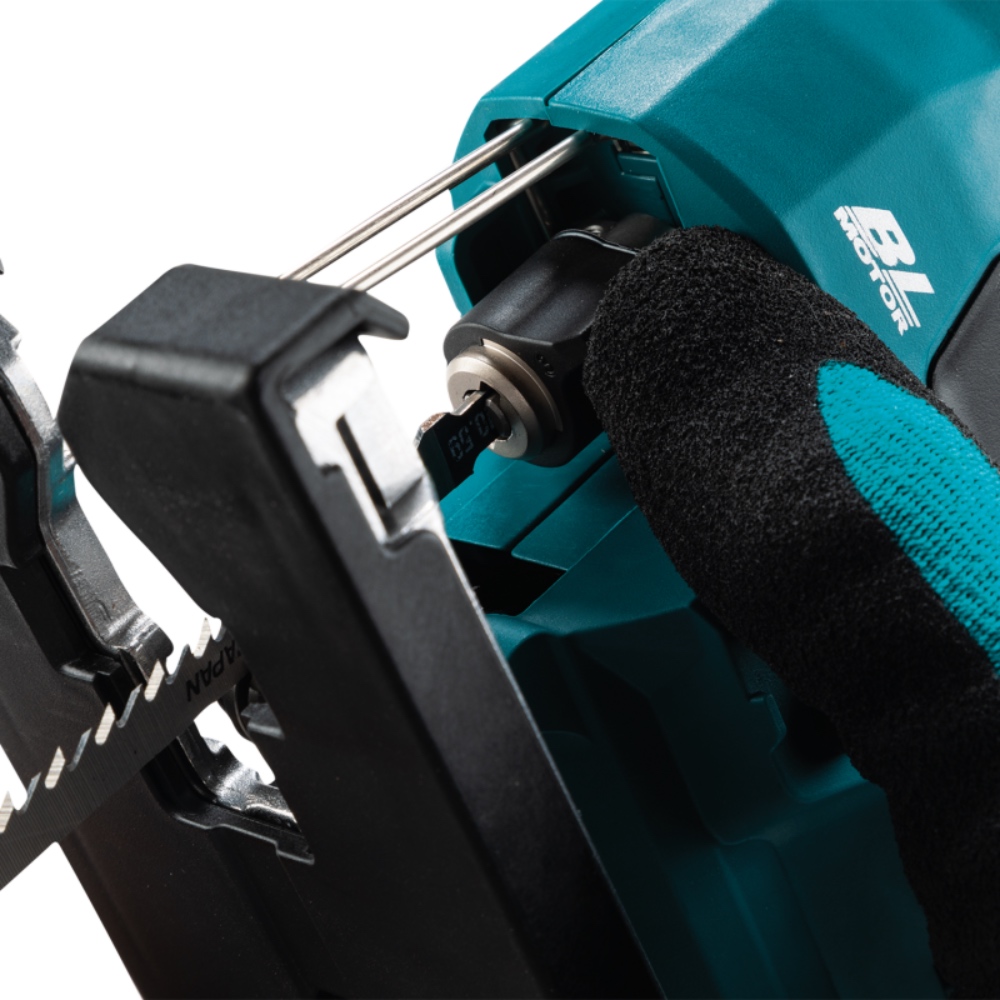

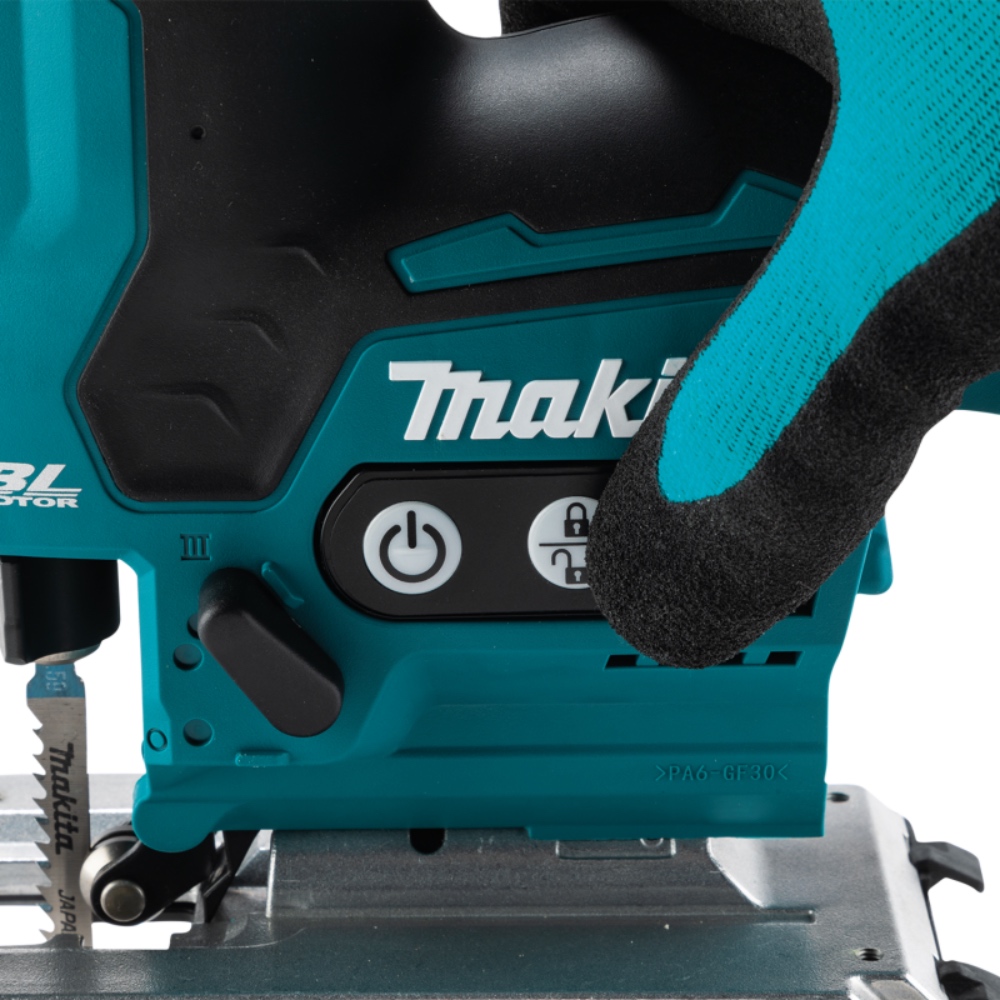

๐ Compact and lightweight for reduced operator fatigue ๐ Light reduction function reduces the glare of the light when the tool is being used upside down ๐ BL motor delivers high power ๐ Lock on button for continuous operation ๐ Soft start allows for accurate landing of the blade on the surface of the workpiece ๐ 3 orbital settings plus straight cutting for use in a wide range of materials ๐ Soft no-load rotation reduces vibration and aligns blade with the cutting line easily ๐ Disabling soft no-load rotation function in operator's preference ๐ LED job light (Single LED with light up function during standby mode) ๐ Toolless blade clamp for easy blade change with one hand ๐ Ergonomically designed handle with soft grip ๐ Dust nozzle can be attached for connection to Makita vacuum cleaner ๐ Electric brake for increased productivity ๐ Handy rip fence (guide rule) allows you to do extra-accurate straight cuts and circular cuts (optional) ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : Jig saw blade, Hex wrench, Cover plate, Dust nozzle, Dust cover


Technical specifications

Capacity : Wood 135 mm
Capacity : Mild Steel 10 mm
Capacity : Aluminum 20 mm
Length of Stroke 23 mm
Strokes Per Minute 800 - 3,000 minˉ¹
Bevel range 0 - 45°
Dimensions (L x W x H) 244 x 77 x 183 mm
Net weight 2.0 - 2.3 kg
