SP6000
Plunge Cut Circular Saw

SP6000
Plunge Cut Circular Saw

Plunge Cut Circular Saw 165 mm (6-1/2") 1,300 W

  

๐ Electronic speed control maintains constant speed under load for smooth cutting ๐ Variable speed dial control (2,200 - 6,400 RPM) for optimum performance in a variety of materials ๐ Powerful 1,300 W motor for continuous operation ๐ Electronic soft start feature for smooth start-ups ๐ Large cutting capacity (56 mm at 90º and 40 mm at 45º) ๐ Close-to-wall cutting; only 18 mm away from wall ๐ Depth stopper for splinter-free cutting enables to easily cut a preliminary groove at a depth of 2 mm ๐ Straight or bevel cutting; blade enters material on the same cutting line ๐ Easy to set depth adjustment with large scale ๐ Bevel capability (-1º to 48º) with positive stops at 22.5º and 45º ๐ Magnesium components deliver a well balanced and lightweight saw ๐ Dual front and rear bevel supports provide additional rigidity for precise ๐ Blade wrench attaches to the saw for fast and convenient blade changes ๐ Large 36 mm (1-7/16") rear dust port directs material away from the operator and easily connects to a vacuum system. ๐ Double insulated

Standard Equipments : Carbide-tipped saw blade, Hex wrench


Technical specifications

Continuous Rating Input 1,300 W
Wheel Diameter 165 mm
Hole diameter 20 mm
Max Cutting Capacity 56 mm
Max Cutting Capacity 45° 40 mm

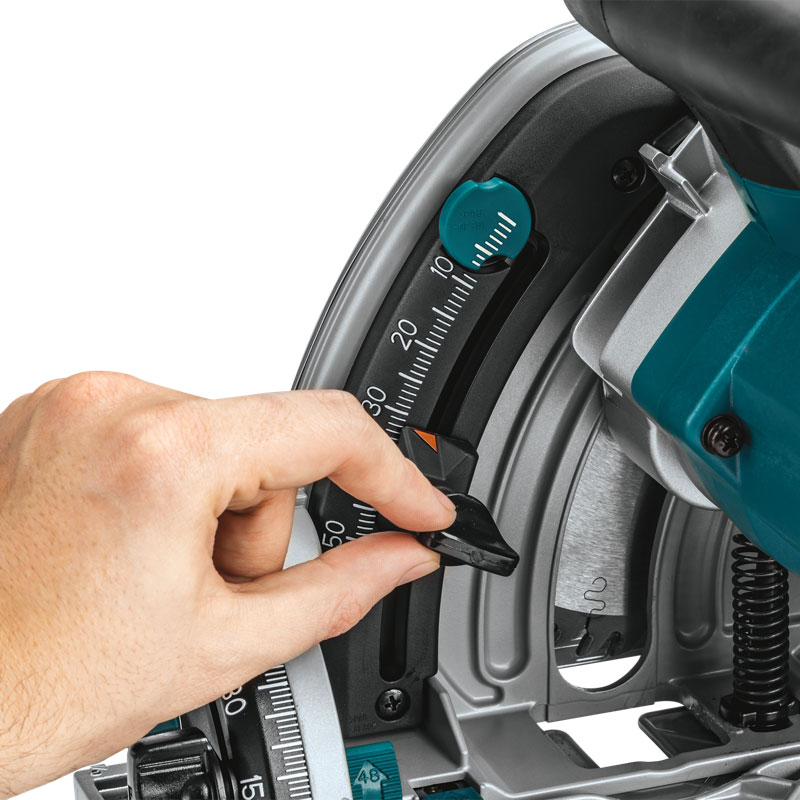

No Load Speed (RPM) 2,200 - 6,400

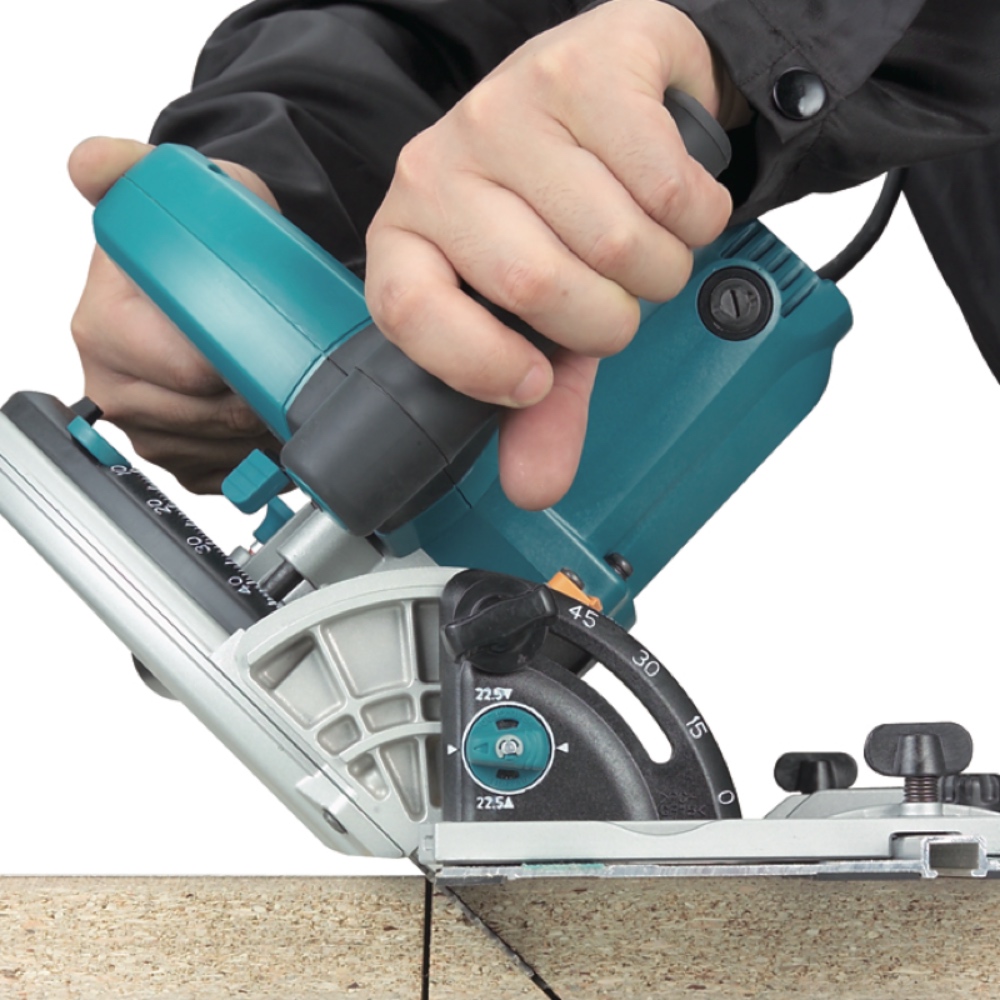

Dimensions (L x W x H) 341 x 225 x 250 mm
Net weight 4.2 kg
Power Supple Cord 2.5 m
Carbon Brush 303
Double Insulation
Variable Speed
Brake
Constant Speed
Soft Start
Dust Collection
