PJ7000
Plate Joiner

PJ7000
Plate Joiner

Plate Joiner 701 W

  

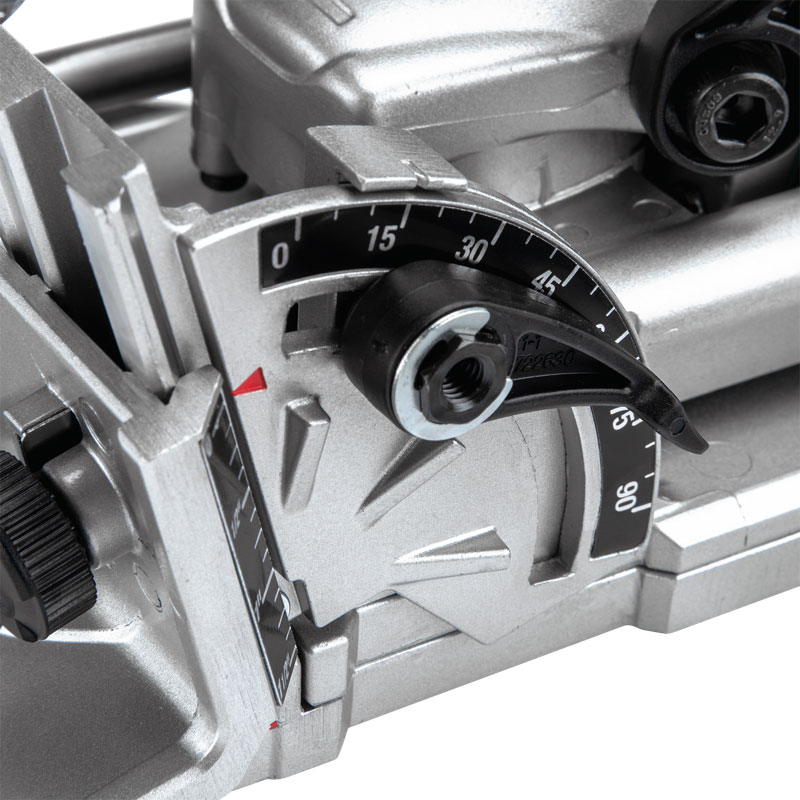

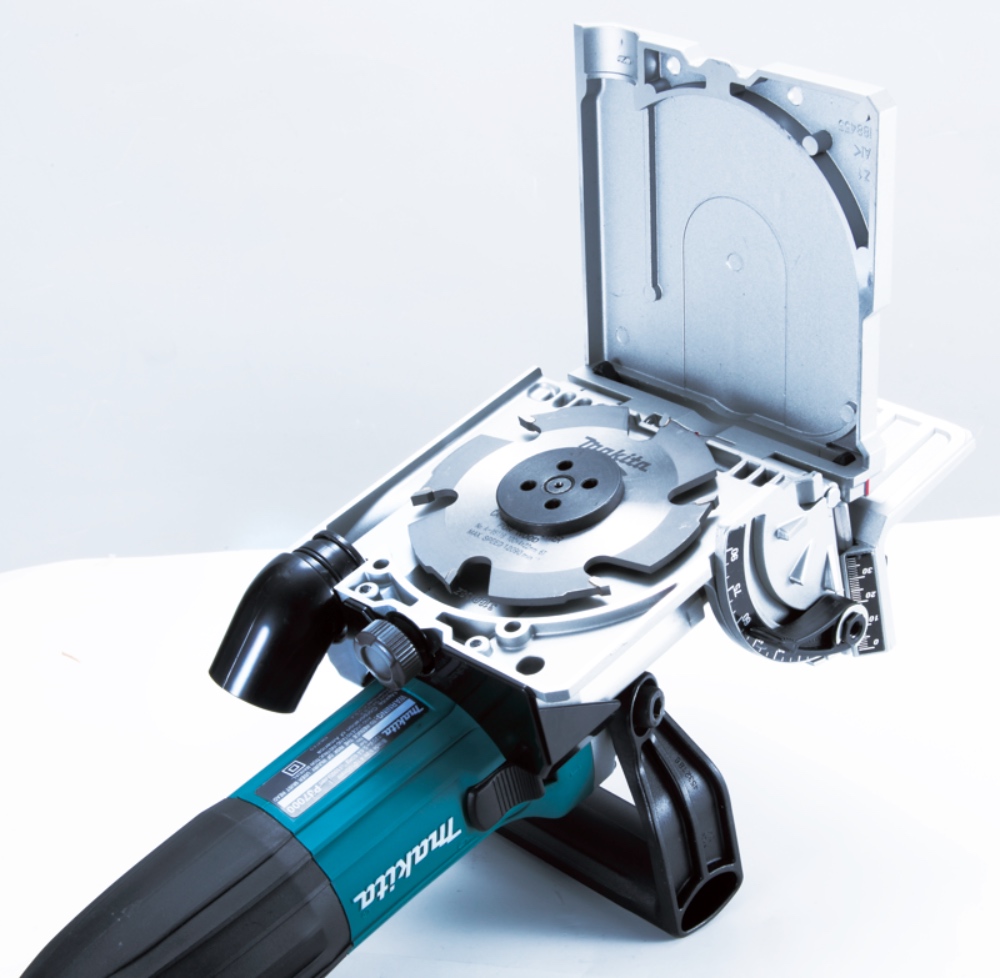

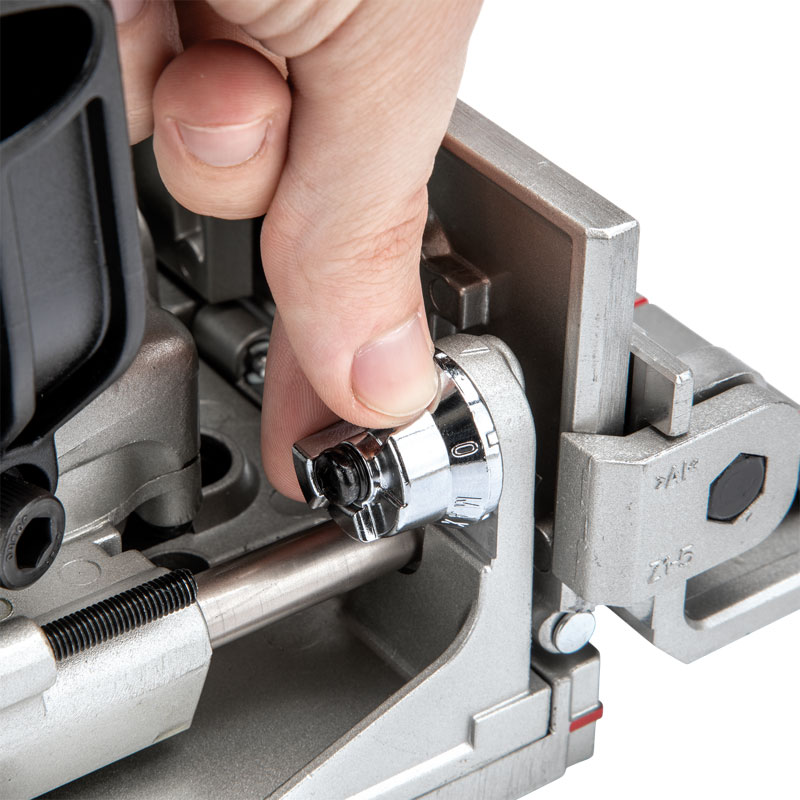

๐ Powerful 701 W motor delivers 11,000 RPM for quick, precise cutting in a variety of woods ๐ Rack-and-pinion vertical fence system engineered for accurate fence adjustments ๐ Cast aluminum pivot fence with three positive stops at 0°, 45° and 90° ๐ Six depth settings with one-touch stops for #0, #10, and #20 and most common biscuits sizes ๐ Large and easy-to-operate cam locks for fence adjustments ๐ Toolless blade cover and shaft lock for fast and easy blade changes ๐ Non-marring rubber inserts on shoe engineered to minimize material from slipping ๐ Cast aluminum front body for added durability ๐ Slim and ergonomic body design for added comfort ๐ Designed for making strong plate joints in a minimum amount of time ๐ Large top grip handle for improved handling ๐ Dust bag for a cleaner work environment ๐ Connectable to vacuum cleaner ๐ Double insulated for operator safety

Standard Equipments : Cutter blade, Angle guide, Dust bag, Set plate, Lock nut wrench


Technical specifications

Continuous Rating Input 701 W
Blade diameter 100 mm
Wheel Diameter 100 mm
Hole diameter 22 mm
No Load Speed (RPM) 11,000
Dimensions (L x W x H) 302 x 139 x 145 mm
Net weight 2.8 kg
Power Supple Cord 2.5 m
Double Insulation
Dust Collection
Carrying Case
