GA7060
Angle Grinder
GA7060
Angle Grinder
Angle Grinder 7" 2,200 W Large Trigger Switch

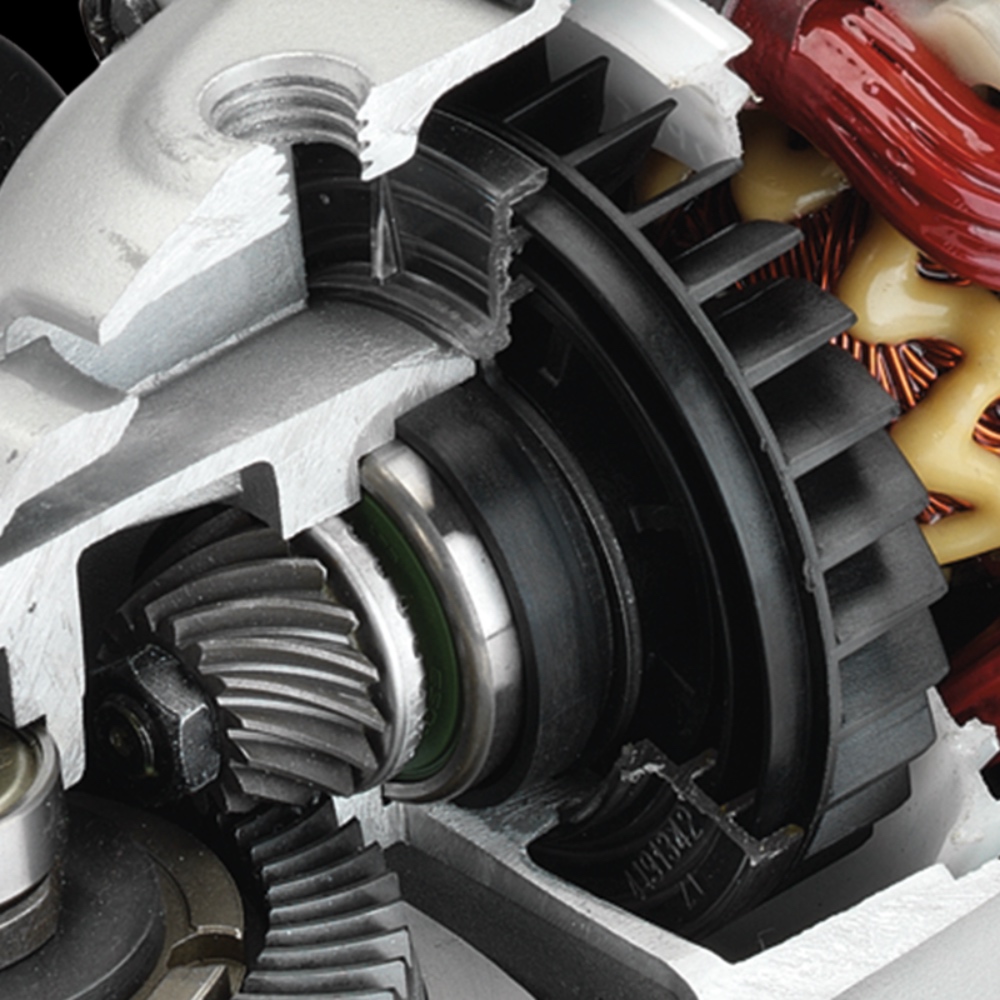

๐ Developed for heavy duty applications such as foundry grinding ๐ Motor more durable for heavy duty applications ๐ Design of anti layer short of armature ๐ Compact design at only 450mm (17-3/4") long ๐ Switch cover and sponge minimize entering of metal particles to switch terminals to improve the protection against electric leakage ๐ Newly designed side handle provides more comfort and control ๐ Newly designed shaft lock enables to press the button from a slant angle ๐ Protection of serial No. label with a transparent portion of brush holder cover ๐ Powerful 2,200 W motor delivers 8,500 RPM for the most demanding applications ๐ Spiral bevel gears for smoother rotations, quieter gear noise and a more efficient transfer of energy ๐ Three position adjustable side handle for operator covenience ๐ Large trigger switch for easy operation ๐ Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement. ๐ Externally accessible brushes for greater serviceability. ๐ Double insulated for operator safety. ๐ Can be connected to dust extraction system with optional dust-collecting wheel cover.
Standard Equipments : Side grip, Wheel cover, Lock nut wrench
Technical specifications
| Continuous Rating Input | 2,200 W |
|---|---|
| Wheel Diameter | 180 mm |
| No Load Speed (RPM) | 8,500 |
| Switch Type | Trigger Switch |
| Dimensions (L x W x H) | 450 x 200 x 144 mm |
| Net weight | 5.38 - 5.89 kg |
| Power Supple Cord | 2.5 m |
| Carbon Brush | 218 |
