Cordless Air Compressor

AC001G
Cordless Air Compressor

40V max Cordless Air Compressor

  

๐ Developed mainly for interior nailing applications e.g. finish nailing with 18 Ga nail ๐ Portable air station for regular pressure tools ๐ Low noise level, yet with excellent combination of high air flow and lightweight design ๐ Surrounding environment-friendly machine with low noise level • A belt drive is used to reduce the motor speed to the proper one at the compression unit, featuring low noise level similar or lower than Competitor M ๐ Excellent combination of high air flow and lightweight design • Both high air flow and lightweight design, which are similar to that of Competitor D, have been achieved by adjusting the compression unit and parts layout, increasing work efficiency and portability ๐ Quiet design for operator and crew comfort; ideal for indoor use ๐ Lightweight design for increased job site portability ๐ Complete roll-cage construction provides protection to withstand a variety of job-site, transporting, and storage environments ๐ Powered by 40Vmax XGT Li-Ion battery ๐ Carry handle with rubberized grip designed for easy transportation ๐ Rigid roll cage frame construction minimizes the chance of damage to the motor and compression units ๐ Oil-free pump design


Technical specifications

Motor shaft No load speed (RPM) 6,000 RPM
Crank shaft No load speed (RPM) 2,075 RPM
Air flow 0.62 MPa (90 PSI) : 34 L/min

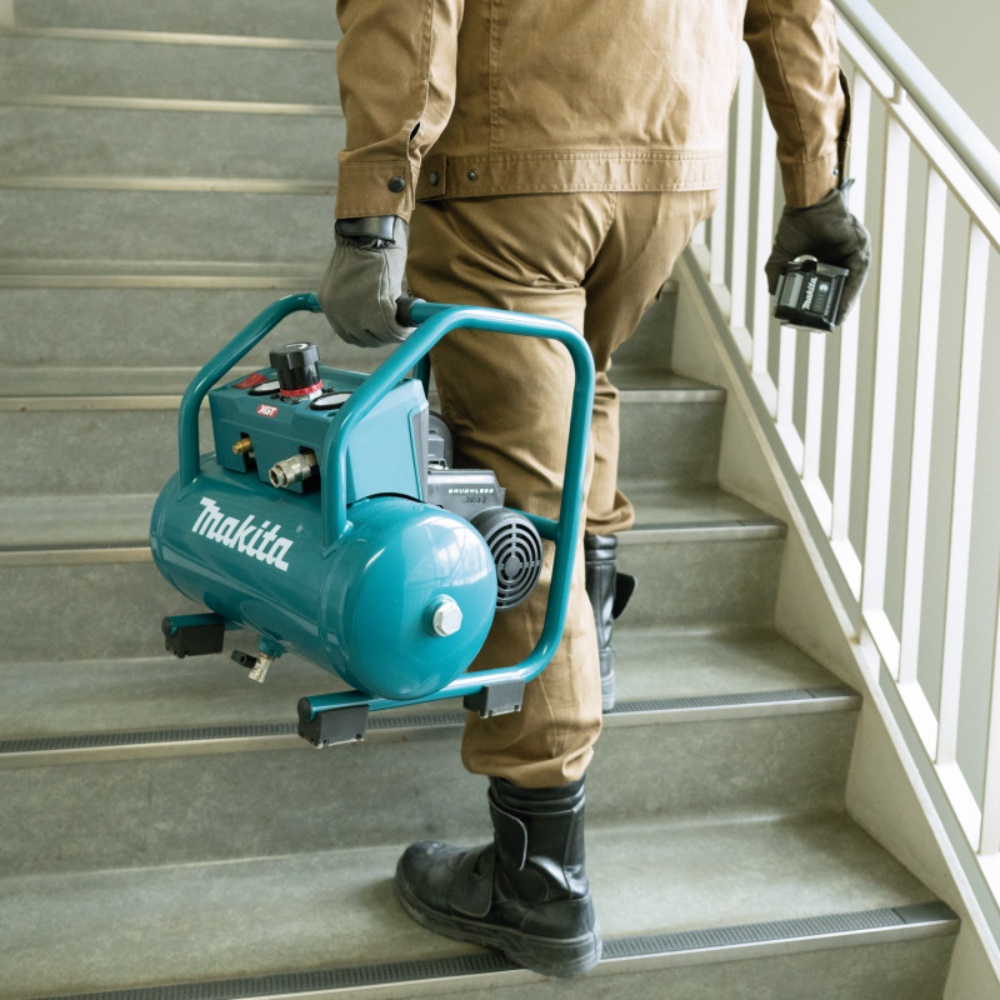

Tank 7.6 L
Max air pressure in tank 0.93 MPa (135 PSI)
Cut-in pressure 0.72 MPa (105 PSI)

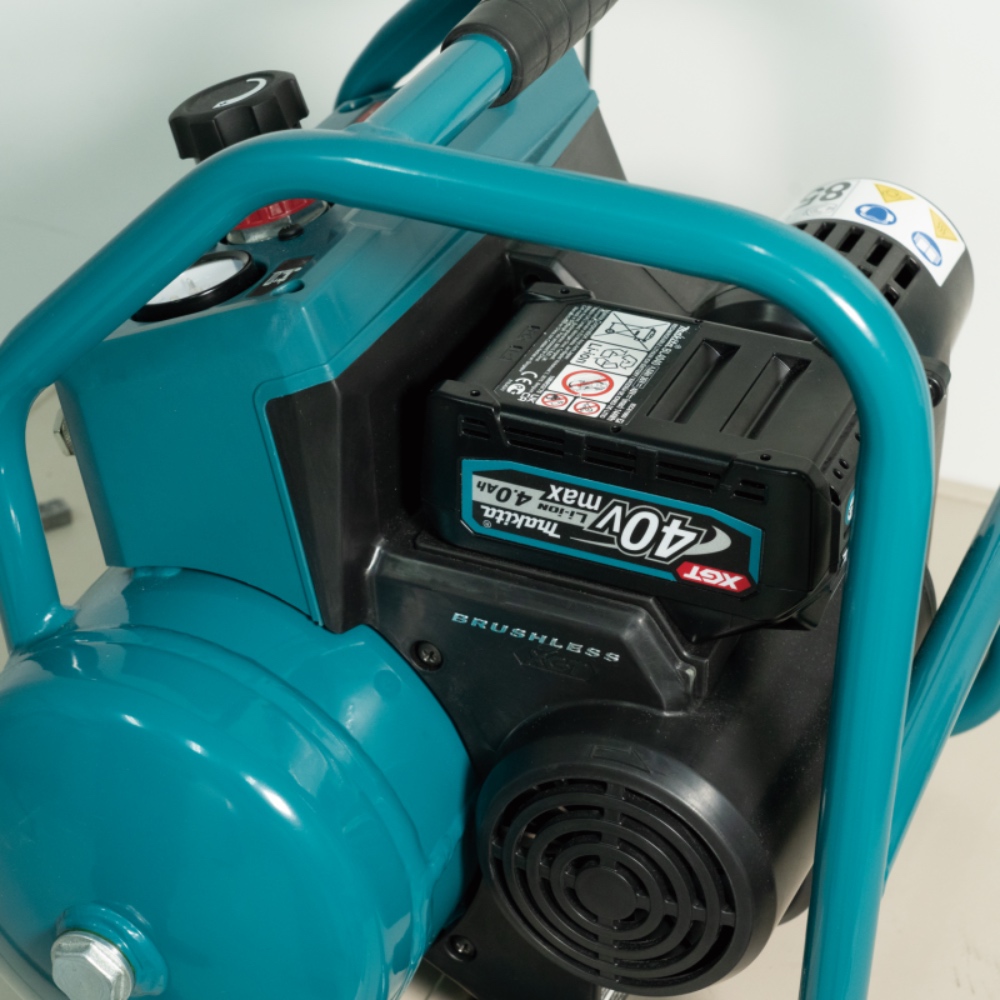

Cut-out pressure 0.93 MPa (135 PSI)
Recovery time (from empty to full) 100 sec
Actual nail-driving performance 717 pcs
Dimensions (L x W x H) 302 x 402 x 382 mm
Net weight 10.1-11.3 kg
