DTW190
Cordless Impact Wrench

DTW190
Cordless Impact Wrench

18V Cordless Impact Wrench 1/2" (12.7 mm) 190 N·m

  

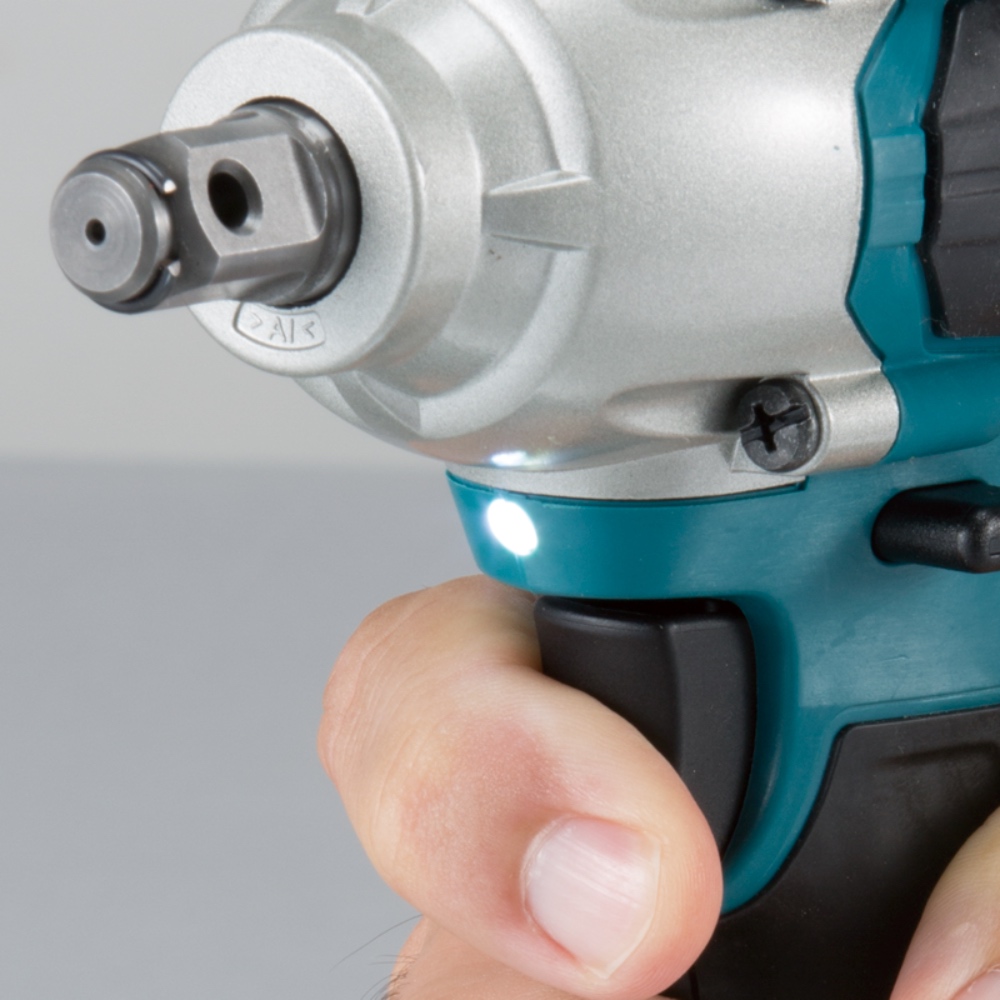

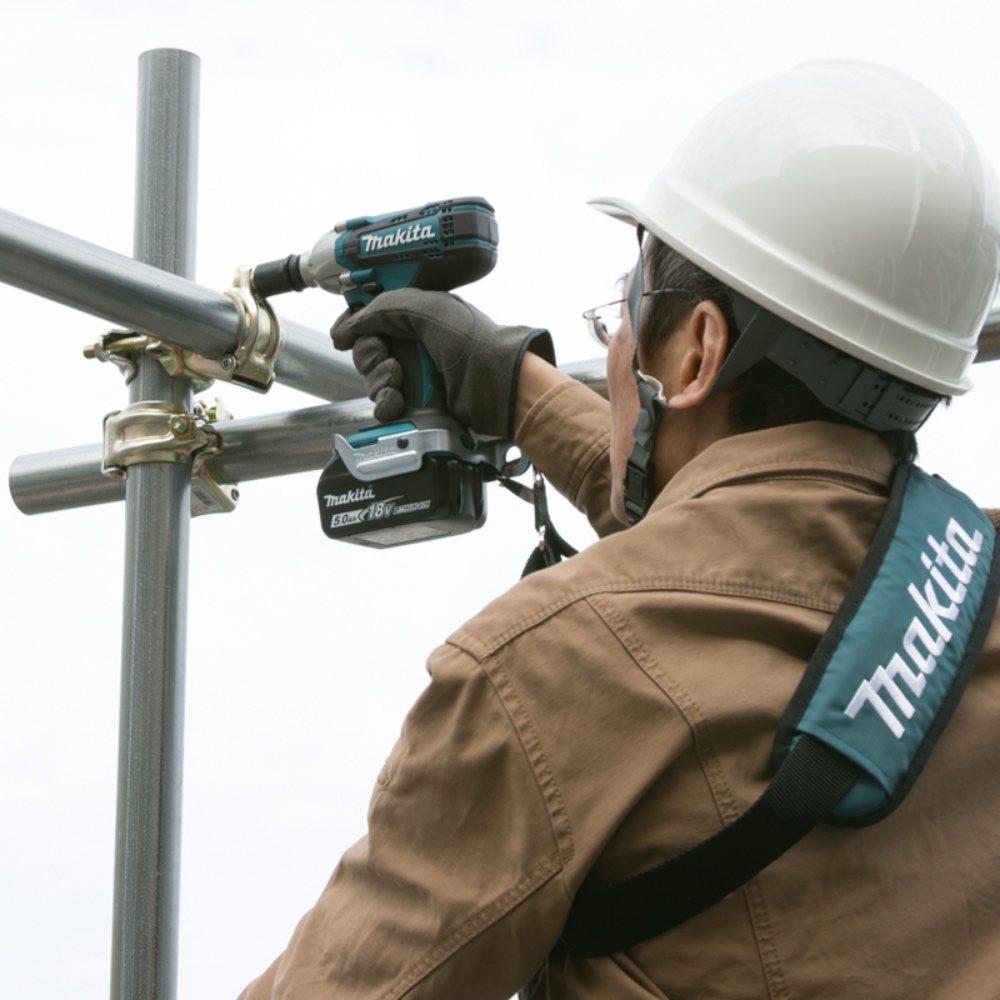

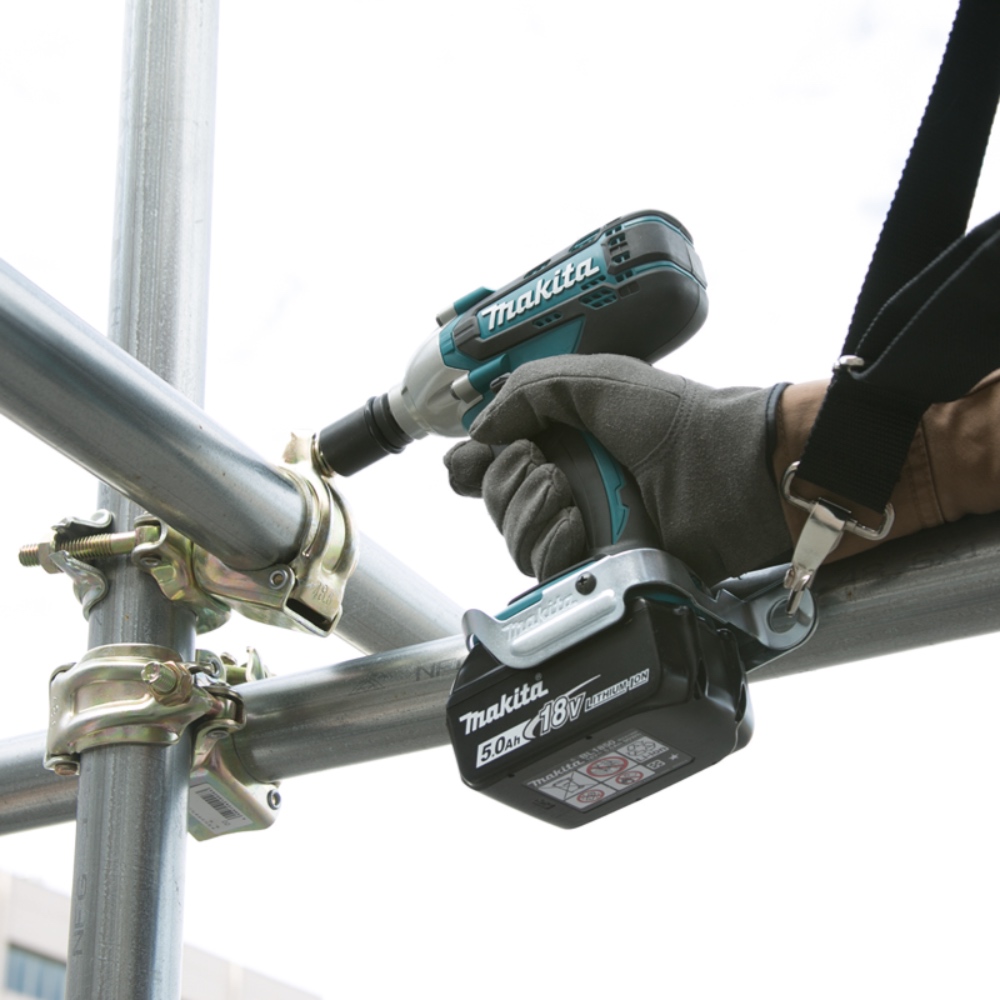

๐ 90 N·m (140 ft.lbs.) of Max torque optimal for scaffold bulding ๐ Shoulder strap improves freedom of operator’s movement during work at height ๐ 0-2,300 RPM & 0-3,000 IPM for a wide range of fastening applications ๐ Compact and ergonomic design at only 176 mm long ๐ Lightweight for reduced operator fatigue ๐ Built-in LED light with preglow illuminates the work area ๐ Ergonomically designed handle with soft grip provides increased comfort on the job ๐ Variable speed control by trigger for precise fastening in a wide variety of applications ๐ Electric brake for increased operator safety ๐ Reversing switch is conveniently located ๐ Belt clip (optional accessory) can be attached for increased operator comfort ๐ Equipped with Battery protection circuit to protect against overloading, over-discharging and over-heating

Standard Equipments: Shoulder strap, Tool hanger


Technical specifications

Fastening capacities Standard bolt M8 - M16
Fastening capacities High strength bolt M8 - M12
Square drive 12.7
No Load Speed (RPM) 0 - 2,300
Impacts Per Minute (IPM) 0 - 3,000
Max fastening torque 190 N·m
Dimensions (L x W x H) Overall length : 176 mm
Net weight 1.4 - 1.8 kg
Variable Speed
Brake
Reversing
Built-in-Job Light
