DPB183
Cordless Portable Band Saw

DPB183
Cordless Portable Band Saw

18V Cordless Portable Band Saw

  

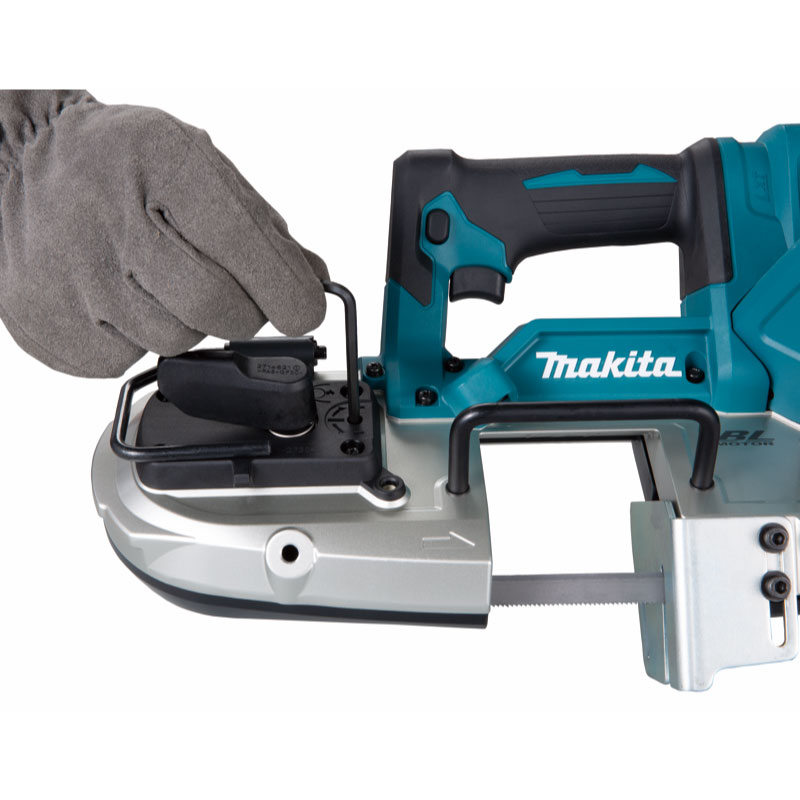

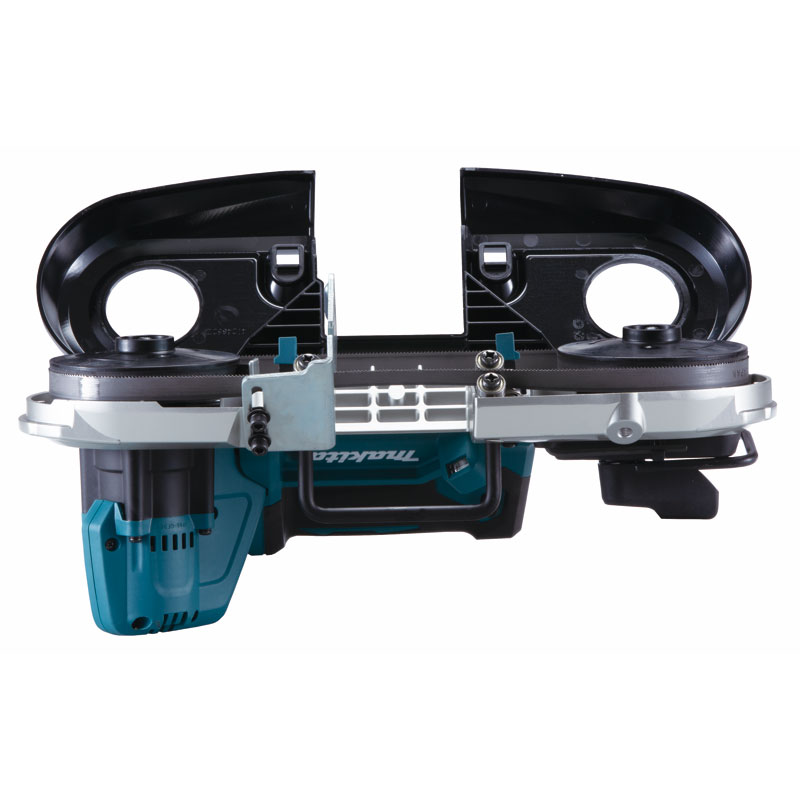

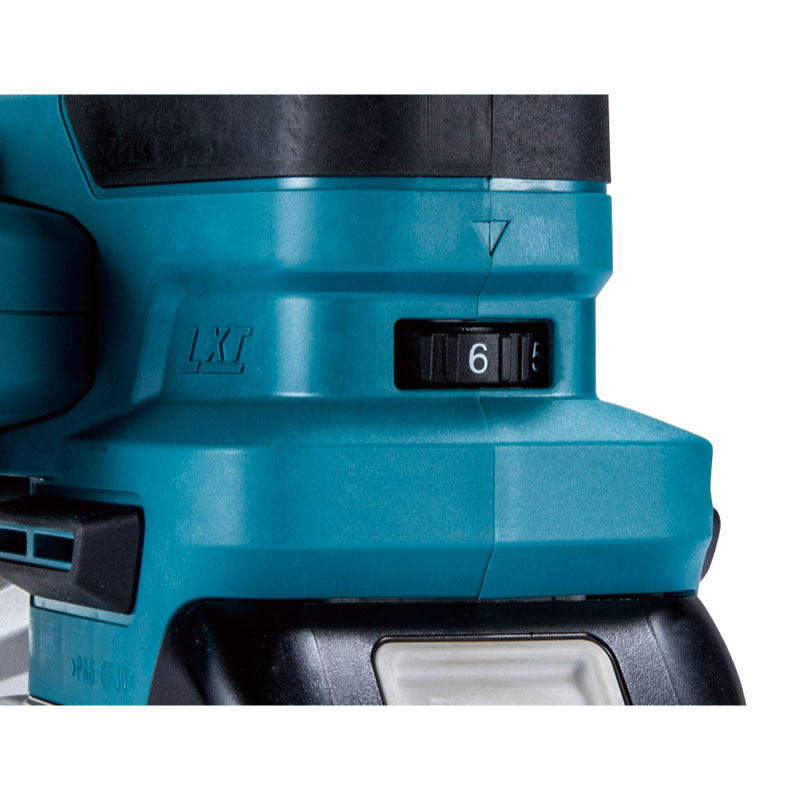

๐ BL motor is electronically controlled to optimize battery energy use for longer run time per charge ๐ Stable cutting with highly rigid aluminum structure; Rigid aluminum die-cast frame and gear housing minimizes the blade from sliding off the wheel; The rigidity also allows for increasing the tension on the blade to minimize the blade from slipping on the wheel ๐ 66 mm cutting capacity; Large cutting capacity allows for single-pass cutting of ๐ 65 mm x 45 mm light gauge steel stud ๐ Constant speed control minimizes the reduction in blade speed to provide stable cutting ๐ Variable speed control by dial; An optimum cutting speed can be selected to suit application ๐ Catch bracket protects the tool body from damage by hitting against workpiece ๐ Electric brake for maximum productivity and increased operator safety ๐ Aluminum diecast frame and gear housing for increased durability ๐ Drastically reduced size has been achieved by relocating the handle for easier operation even in tight spaces ๐ Easy blade track adjustment simply by turning the screw ๐ Redesigned structure of wheel cover and frame (lowered aluminum portion than wheel) for easy installation/removal of blade when the wheel cover is open ๐ Twin LED job light with pre-glow and afterglow functions illuminates the work area ๐ Adjustable stopper plate convenient to cut pipes near walls, floors and ceilings ๐ Tool hook secures the tool when not in use ๐ Wheel cover encloses the blade outside the cutting area making the saw suitable for one-handed operation. ๐ Lock-off button minimizes accidental startup. ๐ On-tool storage for hex wrench. ๐ Battery protection circuit protects against overloading, over-discharging and over-heating.

Standard Equipments : Band saw blade, Hex wrench, Hook, Grip


Technical specifications

Capacity : Round 66 mm
Capacity : Square 66 x 66 mm
Blade speed 0 - 3.2 m/s
Blade size : Length 835 mm
Dimensions (L x W x H) 392 x 174 x 242 mm
Net weight 3.6 - 3.9 kg
Variable Speed
Brake
Constant Speed
Built-in-Job Light
