TD003G
Cordless Impact Driver

TD003G
Cordless Impact Driver

40V max Cordless Impact Driver 210 N·m

  

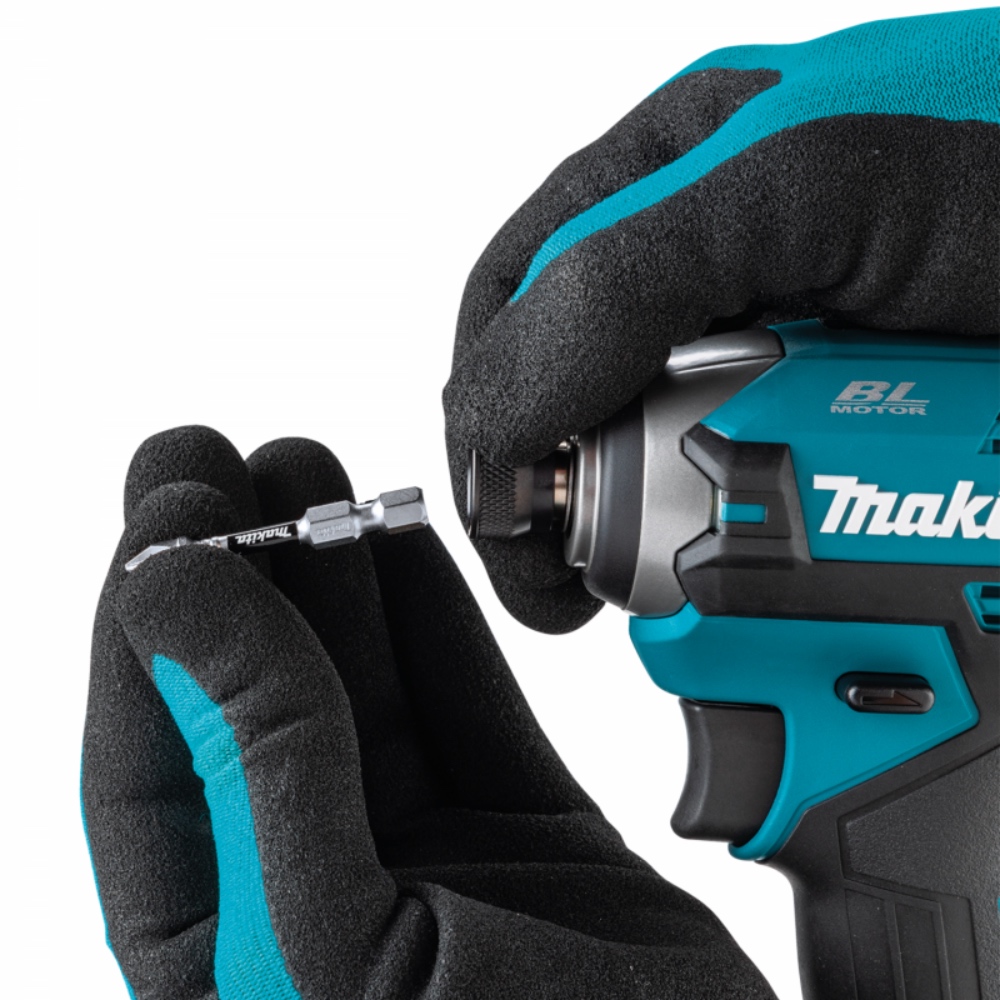

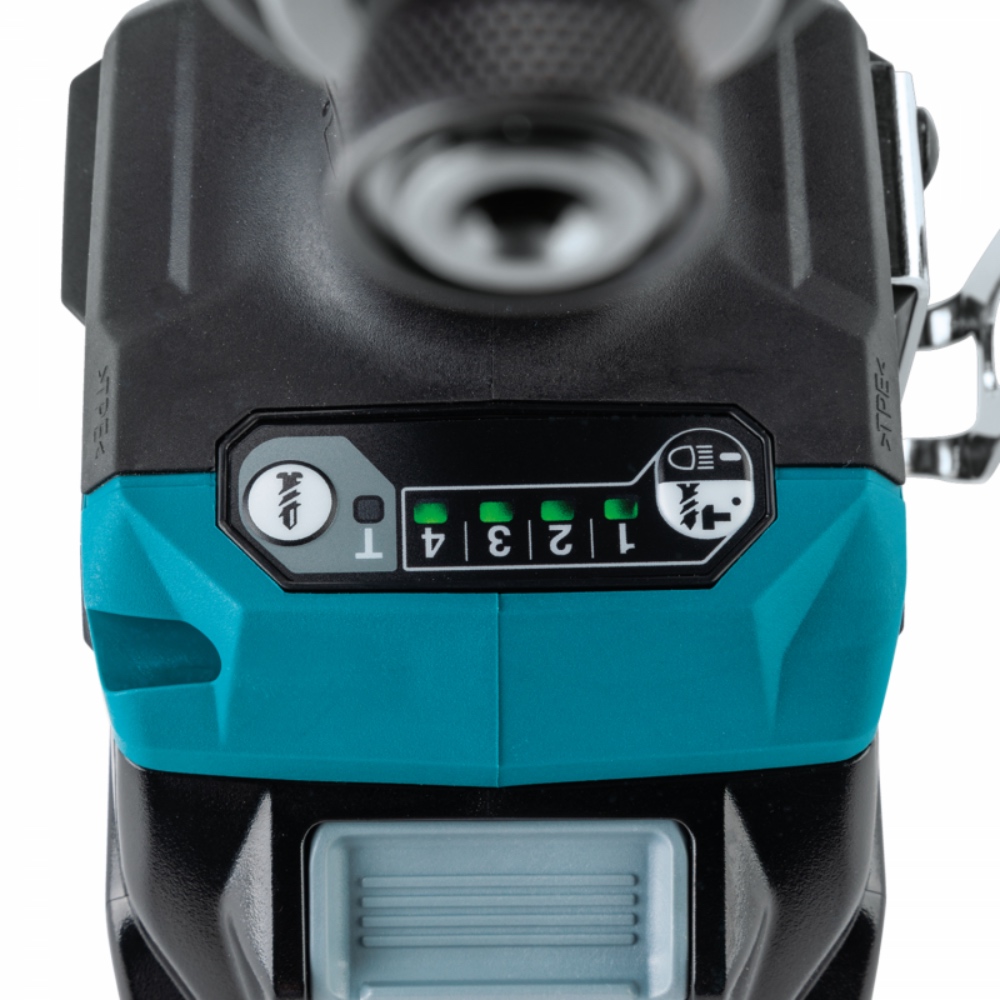

๐ Simple impact power selection: ∙ 4 modes (Max/ Hard/ Medium/ Soft for bolt) ∙ 1 T-mode (for thin metal only) ๐ Max fastening torque: 210 N·m ๐ One LED job light ๐ Excellent performance in continuous heavy-duty operation ๐ High power 40Vmax XGT Li-Ion battery reduces the current load on the controller, allowing for continuous heavy-duty operation ๐ Constant speed control allows to operate the tool at the same speed as that at which you operate the tool on a full charged battery, even when the remaining battery capacity becomes low ๐ One-touch bit installation ๐ Anti-bit wobbling structure ๐ BL motor is electronically controlled to optimize battery energy use for longer run time per charge ๐ Variable speed control by trigger for precise fastening in a wide variety of applications ๐ Reversing switch is conveniently located ๐ Durable, reversible belt clip convenient for temporary tool hanging ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Electric brake for maximum productivity ๐ Trigger lock function ๐ Anti-restart function ๐ Automatic impact stop system (Available in T-mode which is for driving self-drilling screw in thin metal only)

Standard Equipments : Belt clip, Hand strap


Technical specifications

Capacity Machine screw M4 - M8
Capacity Standard bolt M5 - M16
Capacity High strength bolt M5 - M12
No Load Speed (RPM) 0 - 2,900
Impacts Per Minute (IPM) 0 - 3,500
Max fastening torque 210 N·m
Dimensions (L x W x H) 121 x 86 x 195 mm
Net weight 1.7 - 2.9 kg
Variable Speed
Brake
Reversing
Electronic 4-Speed
Constant Speed
Built-in-Job Light
