UX01G
Cordless Multi Function Power Head

UX01G
Cordless Multi Function Power Head

40V max Cordless Multi Function Power Head

  

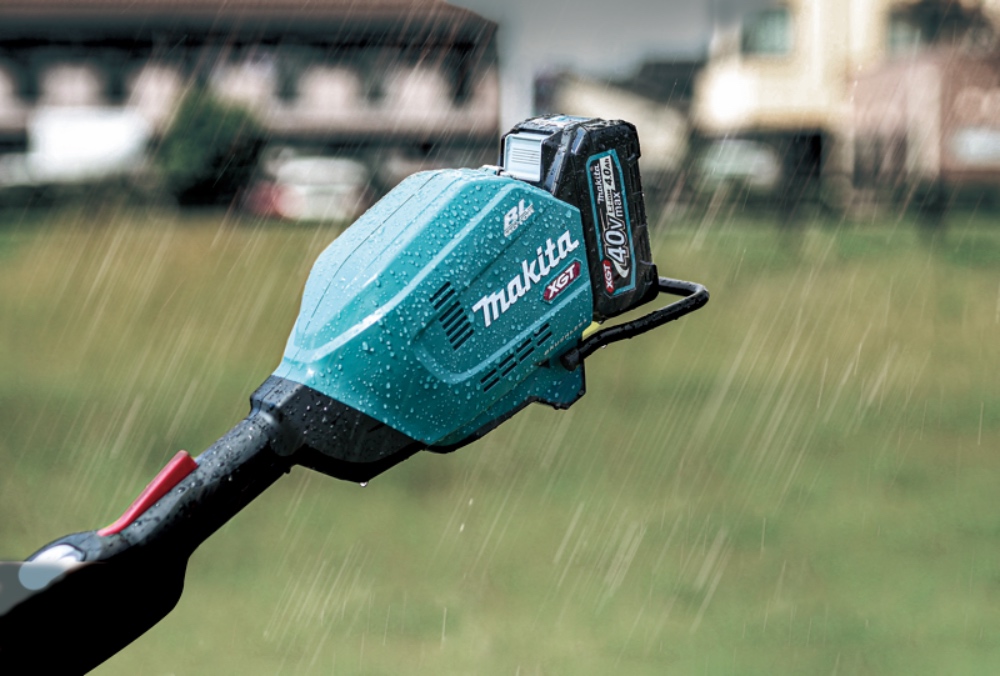

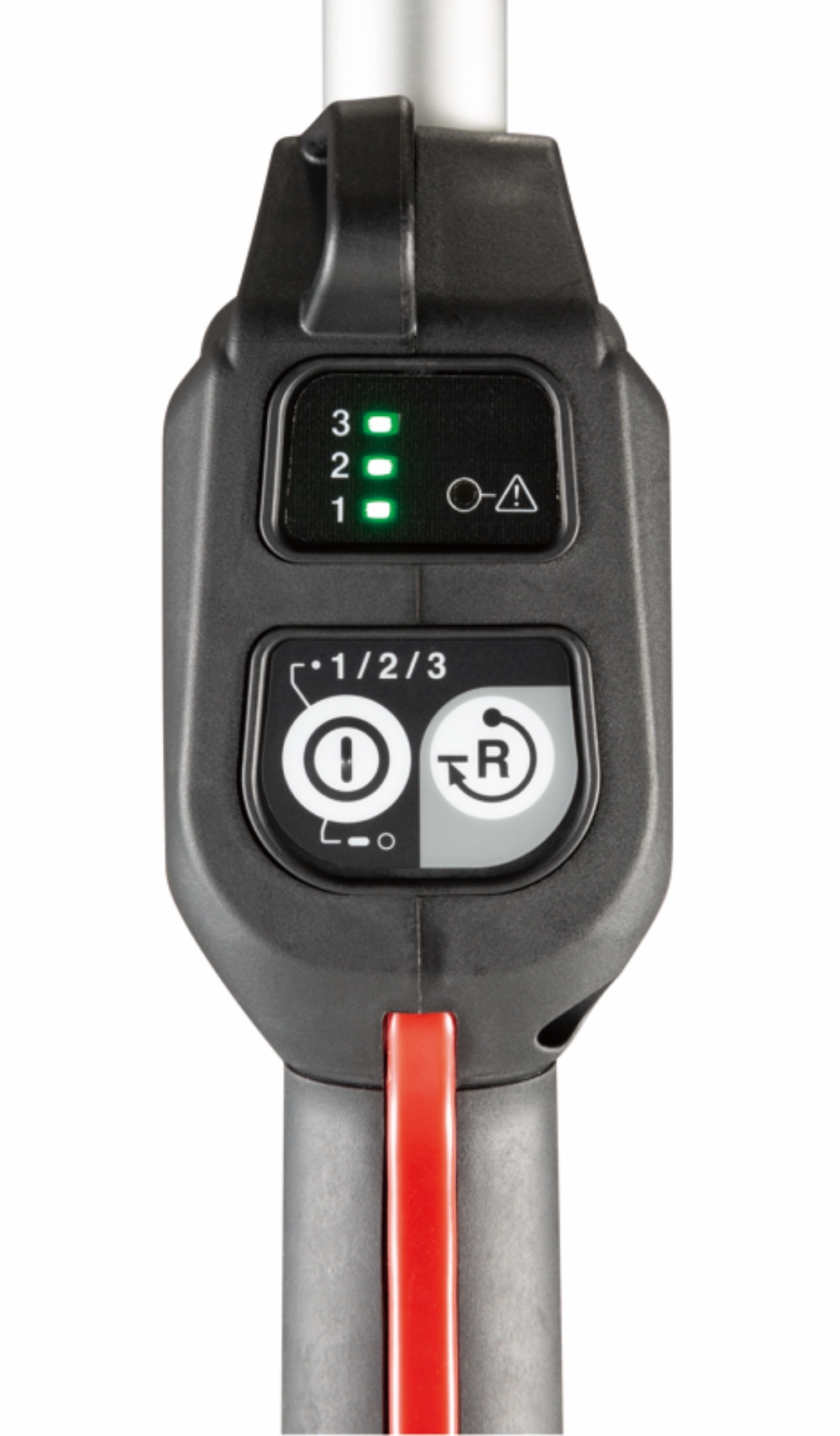

๐ BL motor and the XGT battery deliver much higher power than the current model DUX60, and enables use in a wider range of applications ๐ WetGuard and IPX4; Excellent water-resistant performance ๐ Active Feedback sensing Technology (AFT) turns the motor off if rotation speed suddenly slows ๐ High/Medium/Low 3-speed selection and variable speed control by trigger ๐ Multi-tool system consisting of power head and versatile optional attachments is ideal for a wide range of applications ๐ BL motor is electronically controlled to optimize battery energy use for longer run time per charge ๐ BL motor efficiently uses energy to match torque and RPM to the changing demands of the application ๐ Ergonomically designed new loop handle fits comfortably in user's hand ๐ Variable speed control (high: 0 - 9,700, medium: 0 - 8,200, low: 0 - 5,700 RPM) allows the user to match speed to application ๐ Soft start for smooth start-ups ๐ Electric brake stops the motor rotation gently but fast, allowing user to quickly resume operation ๐ Lever style lock system for quick toolless installation and replacement of the attachments

Standard Equipments : Shoulder harness, Hex wrench, Accessory bag, Battery, Charger


Technical specifications

Max out put 1.0 kW
No Load Speed (RPM) : High/Med./Low 0-9,700/ 0 - 8,200/ 0 - 5,700
Dimensions (L x W x H) 1,001 x 225 x 209 mm
Net weight 4.2 - 12.6 kg
Variable Speed
Brake
Reversing
Electronic 3-Speed
Constant Speed
Soft Start
