M2300B
Compound Miter Saw
M2300B
Compound Miter Saw

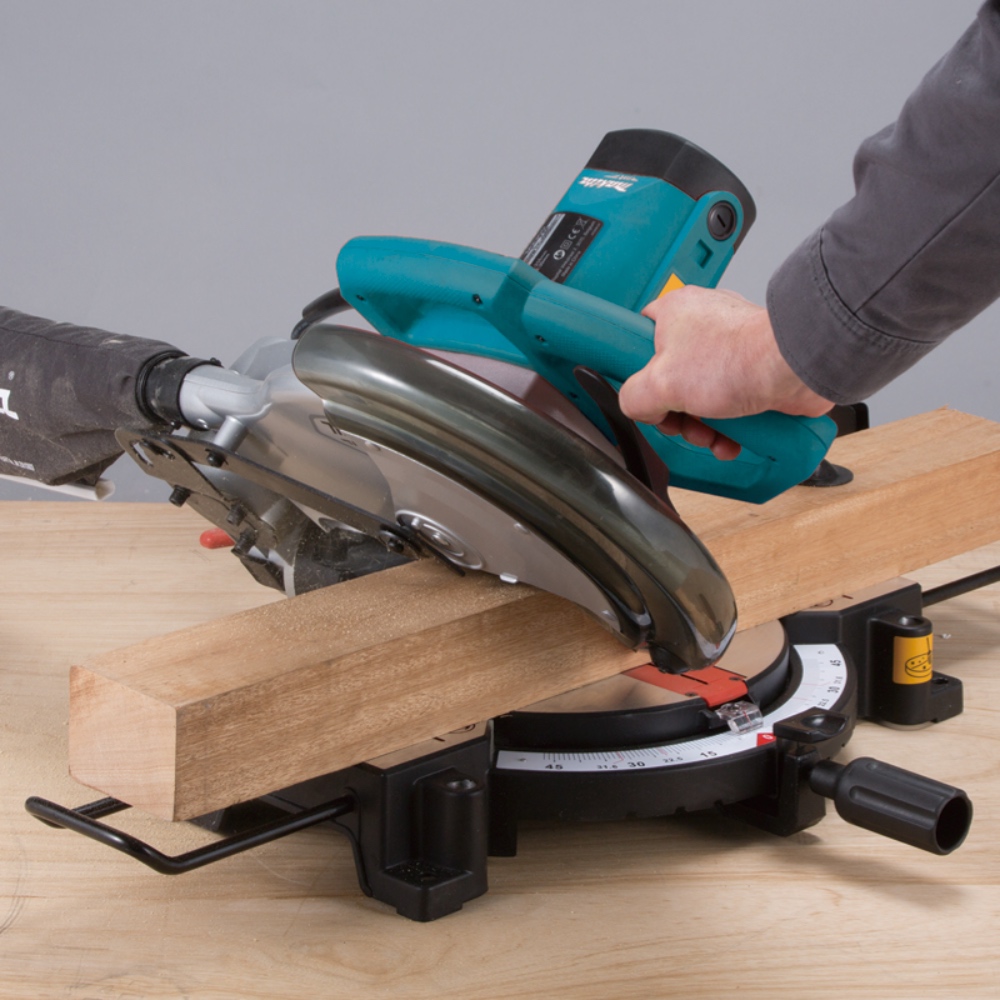

255 mm (10") 1,500 W Compound Miter Saw
๐ Cuts up to 130mm (5-1/8”) at 90° and 90mm (3-9/16”) at 45° ๐ Powerful 1,500W motor delivers 4,200 RPM ๐ Compact and lightweight 14.7kg (32.5 lbs) for job site portability ๐ Dust bag for a cleaner work environment ๐ Connects to Makita vacuum cleaner for a cleaner work area ๐ Electric brake for maximum productivity and increased operator safety ๐ See-through blade guard system for greater visibility of the line of cut
Standard Equipments : TCT saw blade, Dust bag, Triangular rule, Vertical vise, Vise assembly, Holder, Set plate
Technical specifications
| Continuous Rating Input | 1,500 W |
|---|---|
| Wheel Diameter | 255 mm |
| Miter Anger | 45° L / 45° R |
| Bevel angle | 45° L |
| Max Cutting Capacity 90° | 75 x 130 mm |
| Max Cutting Capacity 45° | 75 x 90 mm |
| No Load Speed (RPM) | 4,200 |
| Vibration Level | 2.5 m/s² |
| Sound Pressure Level | 92 dB(A) |
| Sound Power Level | 105 dB(A) |
| Dimensions (L x W x H) | 610 x 485 x 515 mm |
| Net weight | 14.7 kg |
| Power Supple Cord | 2.5 m |
| Carbon Brush | 23000123 |
