M8103B
Hammer Drill
M8103B
Hammer Drill

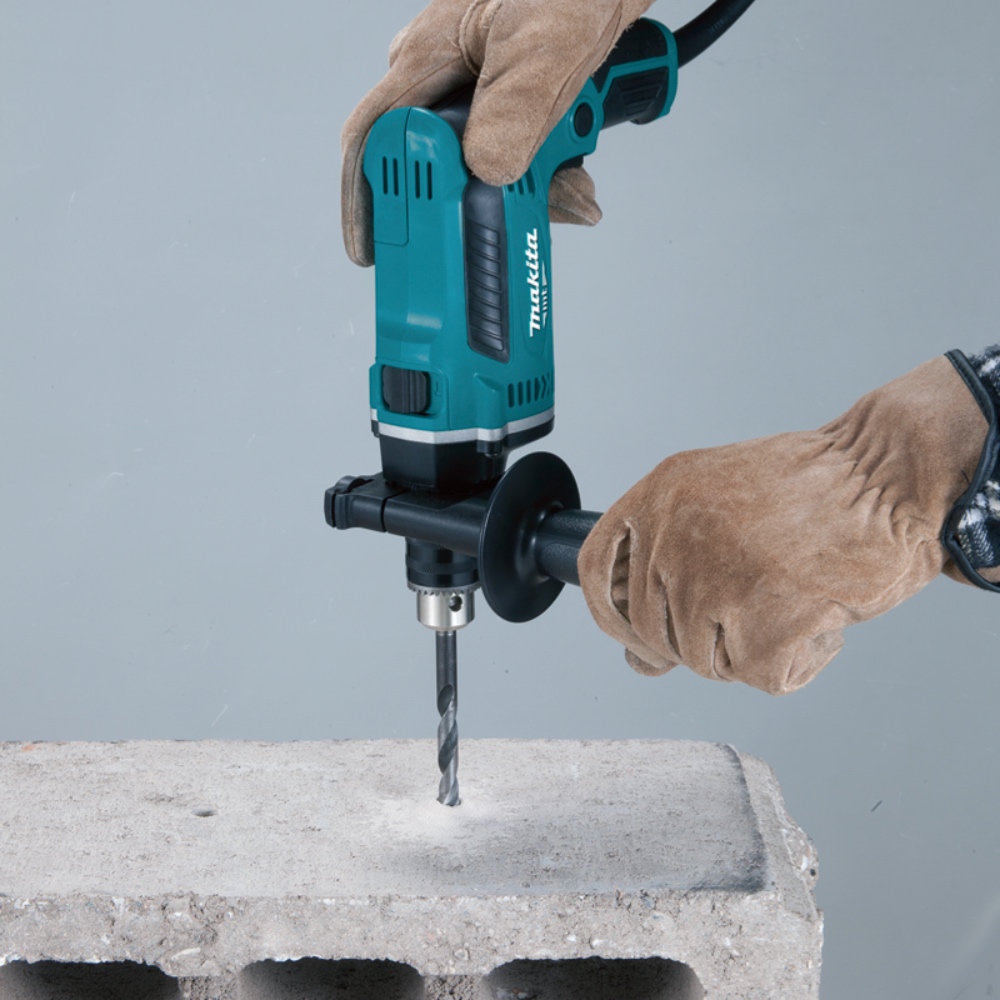

13 mm (1/2") 430 W Hammer Drill with Keyed Chuck
๐ Ergonomically designed handle with soft grip fits your hand perfectly to provide maximum comfort and control ๐ Lightweight (1.8 kg) with large drilling capacity up to 13 mm in concrete ๐ Recessed lock-on button for continuous use ๐ Reversing switch is conveniently located ๐ 360° swivel side handle ๐ Variable speed control dial enables user to match the speed to the application ๐ 2-mode operation for "Rotation Only" or "Hammering with Rotation" for multiple applications
Standard Equipments : Side handle, Depth gauge, Chuck key, Chuck key holder
Technical specifications
| Continuous Rating Input | 430 W |
|---|---|
| Capacity : Concrete | 13 mm |
| Capacity : Steel | 13 mm |
| Capacity : Wood | 18 mm |
| Blows Per Minute (BPM) | 0-33,000 |
| No Load Speed (RPM) | 0-3,000 |
| Sound Pressure Level | 90 dB(A) |
| Sound Power Level | 101 dB(A) |
| Dimensions (L x W x H) | 255 x 72 x 193 mm |
| Net weight | 1.8 kg |
| Power Supple Cord | 2.0 m |
| Carbon Brush | 85 |
