4-Cut Drill Bits SDS-PLUS
4-Cut Drill Bits SDS-PLUS
4-Cut Drill Bits SDS-PLUS
4-Cut Drill Bits SDS-PLUS

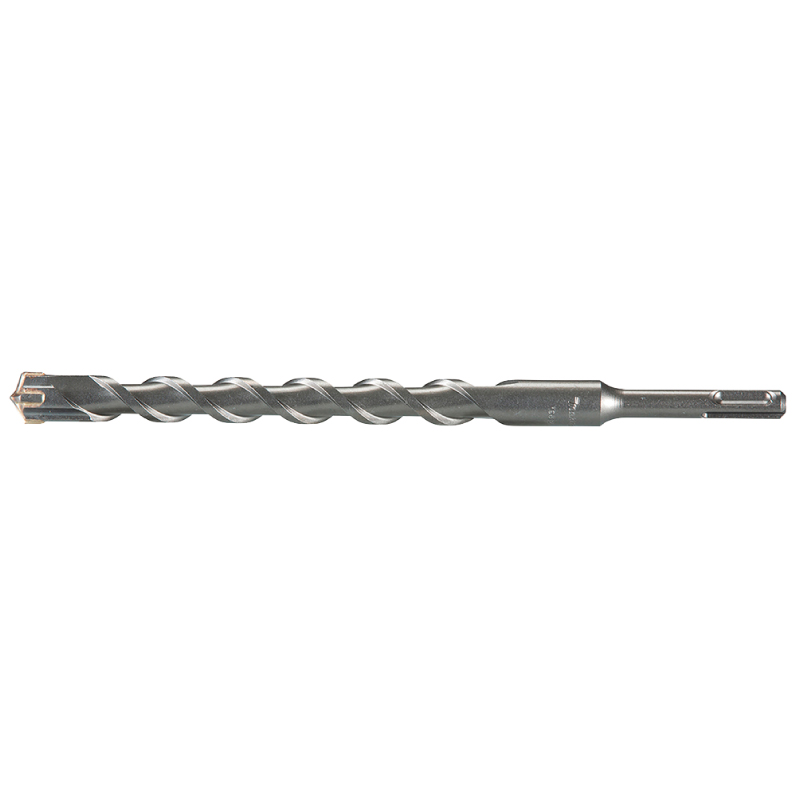

Drill bits with SDS-PLUS shank are designed for drilling into concrete and masonry. The centring 4 cutter tip helps with precise starts, whilst the 2 flutes of the bit aides with dust removal giving a smooth and fast drilling experience. A wide range of sizes helps the user to find the right bit for the job.
Technical specifications
| Part No. | Bit dia. mm | Leagh mm | Working leagh mm | Sales pkg q'ty |
|---|---|---|---|---|
| B-68127 | 5 | 110 | 50 | 1 |
| B-68133 | 5 | 160 | 100 | 1 |
| B-62496 | 6 | 110 | 50 | 1 |
| B-62505 | 6 | 160 | 100 | 1 |
| B-62533 | 6.5 | 110 | 50 | 1 |
| B-62549 | 6.5 | 160 | 100 | 1 |
| B-62555 | 6.5 | 210 | 150 | 1 |
| B-62561 | 6.5 | 260 | 200 | 1 |
| B-62583 | 7 | 160 | 100 | 1 |
| B-62599 | 7 | 210 | 150 | 1 |
| B-62614 | 8 | 160 | 100 | 1 |
| B-62620 | 8 | 210 | 150 | 1 |
| B-62636 | 8 | 260 | 200 | 1 |
| B-62670 | 10 | 160 | 100 | 1 |
| B-62686 | 10 | 210 | 150 | 1 |
| B-62692 | 10 | 260 | 200 | 1 |
| B-62701 | 10 | 310 | 250 | 1 |
| B-62739 | 12 | 160 | 100 | 1 |
| B-62745 | 12 | 210 | 150 | 1 |
| B-62751 | 12 | 260 | 200 | 1 |
| B-62773 | 12 | 350 | 290 | 1 |
| B-62795 | 14 | 160 | 100 | 1 |
| B-62804 | 14 | 210 | 150 | 1 |
| B-62810 | 14 | 260 | 200 | 1 |
| B-62832 | 14 | 350 | 290 | 1 |
| B-62854 | 16 | 160 | 100 | 1 |
| B-62860 | 16 | 210 | 150 | 1 |
| B-62882 | 16 | 310 | 250 | 1 |
| B-62907 | 16 | 460 | 400 | 1 |
| B-68177 | 18 | 260 | 200 | 1 |
| B-68236 | 18 | 460 | 400 | 1 |
| B-68183 | 20 | 260 | 200 | 1 |
| B-68242 | 20 | 460 | 400 | 1 |
| B-68199 | 22 | 260 | 200 | 1 |
| B-68258 | 22 | 460 | 400 | 1 |
| B-68208 | 25 | 260 | 200 | 1 |
| B-68264 | 25 | 460 | 400 | 1 |
